Q78-ZXHNH298QHome Gateway

ZXHN H298Q Home Gateway User Manual ZXHN H298Q Home Gateway User Manual Manual No: Edition Time: LEGAL INFORMATION Copyright © 2021 ZTE CORPORATION. The contents of this document are protected by copyright laws and in- ternational treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obli- gations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their re- spective owners. This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular purpose, title or non-infringement. ZTE CORPORATION and its licensors shall not be liable for damages resulting from the use of or reliance on the information contained herein. ZTE CORPORATION or its licensors may have current or pending intel- lectual property rights or applications covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein. ZTE CORPORATION reserves the right to upgrade or make technical change to this product without further notice. Users may visit ZTE technical support website http://support.zte.com.cn to inquire related information. The ultimate right to interpret this product resides in ZTE CORPORATION. 1 Safety Precautions Before using the device, read the following safety precautions. ZTE bears no liability to the consequences incurred by violation of the safety instructions. Usage Cautions  Read all the safety cautions carefully before using the device.  Only use the accessories included in the package, such as power supply adapter.  Do not extend the power cord, otherwise the device will not work.  The power supply voltage must meet the requirements of the device input voltage (The voltage fluctuation range is less than 10%).  Keep the power plug clean and dry to prevent any risk of electric shock or other dangers.  Disconnect all the cables during a lightning storm to prevent the device from damage.  Power off and unplug the power plug when the device is not in use for a long time.  Do not attempt to open the covers of the device. It is dangerous to do so when the device is powered ON.  Power off and stop using the device under the conditions such as, abnormal sound, smoke, and strange smell. Contact the service provider for mainte- nance if the device is faulty. Environment Requirements  Ensure proper ventilation to the device. Place the device away from direct sunlight.  Keep the device ventilated and dry. Never spill any liquid on the device.  Do not place any object on the device to prevent any deformation or damage to the device.  Do not place the device near any source of heat or water.  Keep the device away from any household appliances with strong magnetic or electric fields, such as microwave oven and refrigerator. Cleaning Requirements  Before cleaning, power off the device, and unplug all the cables connected to the device, such as power cable, optical fiber, and Ethernet cable.  Do not use any liquid or spray to clean the device. Use a soft dry cloth. Environment Protection  Do not dispose the device or battery improperly.  Observe the local regulations about the equipment disposal or treatment. Environmental Information The equipment you purchased has required the extraction and use of natural resources for its production. It may contain substances that are hazardous to people’s health and to the environment. To avoid putting such substances into our environment and to reduce pressure on our natural resources, we ask that you reuse or recycle your end-of-life equipment by using an accredited elec- tronics take-back system. The symbols below indicate that this product should be reused or recycled and not simply discarded. Please locate and use an appropriate reuse and recycling site. If you need more information on collection, reuse and recycling systems, con- tact your local or regional waste administration. You may also contact your equipment provider for more information on the environmental performances of these products. 2 Product Specifications The ZXHN H298Q is an advanced home gateway with VoIP that supports 2033Mbps Dual-band concurrent 11ac Wi-Fi. It provides High Speed Internet, IPTV and Voice over IP services through GE uplink. Those services are delivered by the gateway on your home network to the PCs, STBs, phones, gaming devices and so on via the integrated interfaces: Ethernet, Wi-Fi, FXS ports. Technical Specifications Dimension 221 mm (L) × 186 mm (W) × 89 mm (H) Power adapter Input: AC 100 V – 240 V, 50 Hz/60 Hz Output: DC 12.0 V, 2.0 A Environment Requirements Operation temperature 0 °C – 40 °C (32 °F – 104 °F) Operation humidity 5% – 95% (non-condensing) please use the power adapter provided by the manufacturer. 3 Hardware Description Front panel Figure 3-1 shows the front panel of the ZXHN H298Q, and Figure 3-2 shows the indicators. Figure 3-1 The Front Panel Figure 3-2 The indicators Indicator Status Description Power Off Power off or the power supply is not connected. Green Power on. Broadband Off The equipment is not powered on or the WAN port is disabled. On The link is activated. Indicator Status Description Internet Off No detected data.The ZXHN H298Q is powered off. Flashing green Currently in data transmission. Solid green The WAN connection is online. The device has a WAN IP address from IPCP, DHCP or statically configured. LED remains green in the case of disconnection due to idle timeout when PPP dial-on-demand is enabled. Green LED indicates that th…

Text truncated - open the document above for the full version.

ZTECorporation Date:02/01/2021 FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 Towhomitmayconcern: I,theundersigned,herebyauthorizeULVerificationServicesInc.toactonourbehalfin allmannersrelatingtoapplicationforequipmentauthorization,includingsigningofall documentsrelatingtothesematters.AnyandallactscarriedoutbyULVerification ServicesInc.onourbehalfshallhavethesameeffectasactsofourown. I,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988, 21U.S.C.853(a). InauthorizingULVerificationServicesInc.asourrepresentative,westillrecognizethat weareresponsibleto: a)complywiththerelevantprovisionsofthecertificationprogram; b)makeallnecessaryarrangementsfortheconductoftheevaluation, includingprovisionforexaminingdocumentationandaccesstoallareas, records(includinginternalauditreports)andpersonnelforthepurposesof evaluation(e.g.testing,inspection,assessment,surveillance, reassessment)andresolutionofcomplaints; c)makeclaimsregardingcertificationonlyinrespectofthescopeforwhich certificationhasbeengranted; d)donotuseourproductcertificationinsuchamannerastobringthe CertificationDivisionintodisreputeandnotmakeanystatement regardingourproductcertificationwhichtheCertificationDivisionmay considermisleadingorunauthorized; e)uponsuspensionorcancellationofcertification,discontinueuseofall advertisingmatterthatcontainsanyreferencetheretoandreturnany certificationdocumentsasrequiredbytheCertificationDivision; f)usecertificationonlytoindicatetheproductsarecertifiedasbeingin conformitywithspecifiedstandards; g)endeavortoensurethatnocertificateorreportnoranypartthereofis usedinamisleadingmanner; h)ensurethatanyreferencetoourproductcertificationincommunicationmedia suchasdocuments,brochuresoradvertising,complieswiththe requirementsoftheCertificationDivision; i)keeparecordofallcomplaintsmadeknowntousrelatingtotheproduct’s compliancewithrequirementsoftherelevantstandardandtomakethese recordsavailabletothewhenrequested; j)takeappropriateactionwithrespecttosuchcomplaintsandanydeficiencies foundinproductsorservicesthataffectcompliancewiththerequirements forcertification; k)documenttheactionstaken. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, Signedby: CompanyName:ZTECorporation ContactName:YumingXie TitleofPerson:Manager Address:ZTEPlaza,Hi-techPark,NanshanDistrict,Shenzhen,Guangdong518057China

ZTECorporation FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 Subject:RequestforConfidentiality FCCID:Q78-ZXHNH298Q ToWhomItMayConcern: PursuanttotheprovisionsofSections0.457and0.459oftheCommission’srules(47 CFR§§0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachmentsasconfidentialdocumentfrompublicdisclosureindefinitely. SchematicDiagram BlockDiagram TheoryofOperation Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. BestRegards CompanyName:ZTECorporation ContactName:YumingXie TitleofPerson:Manager Address:ZTEPlaza,Hi-techPark,NanshanDistrict,Shenzhen,Guangdong518057China Date:02/01/2021

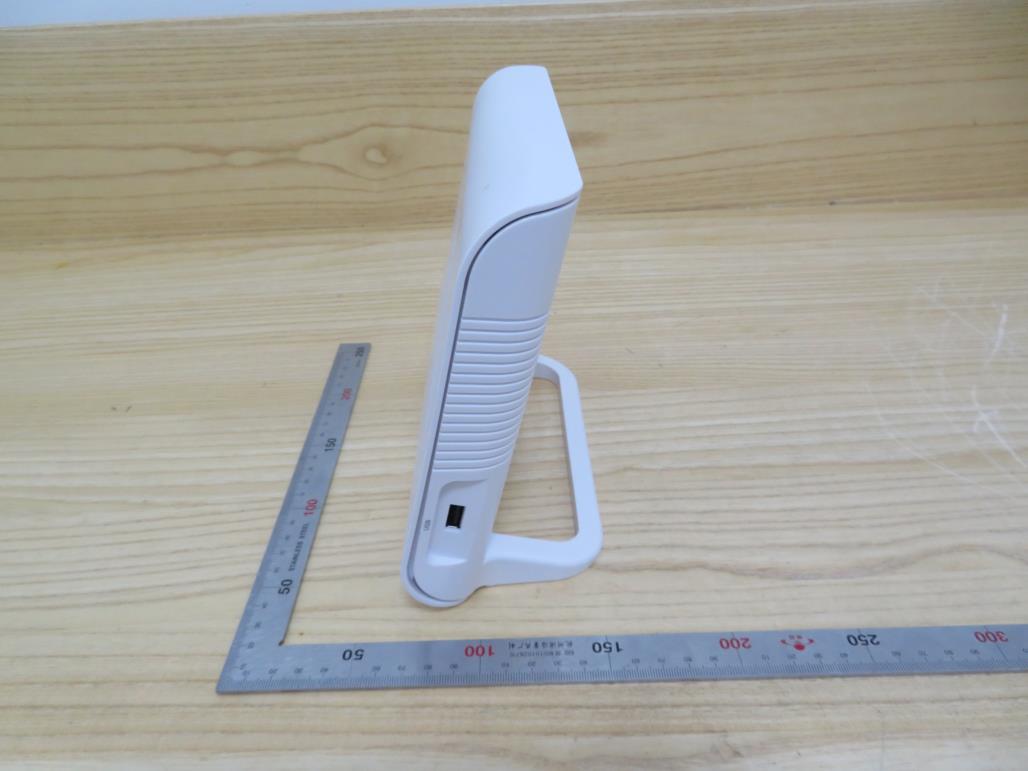

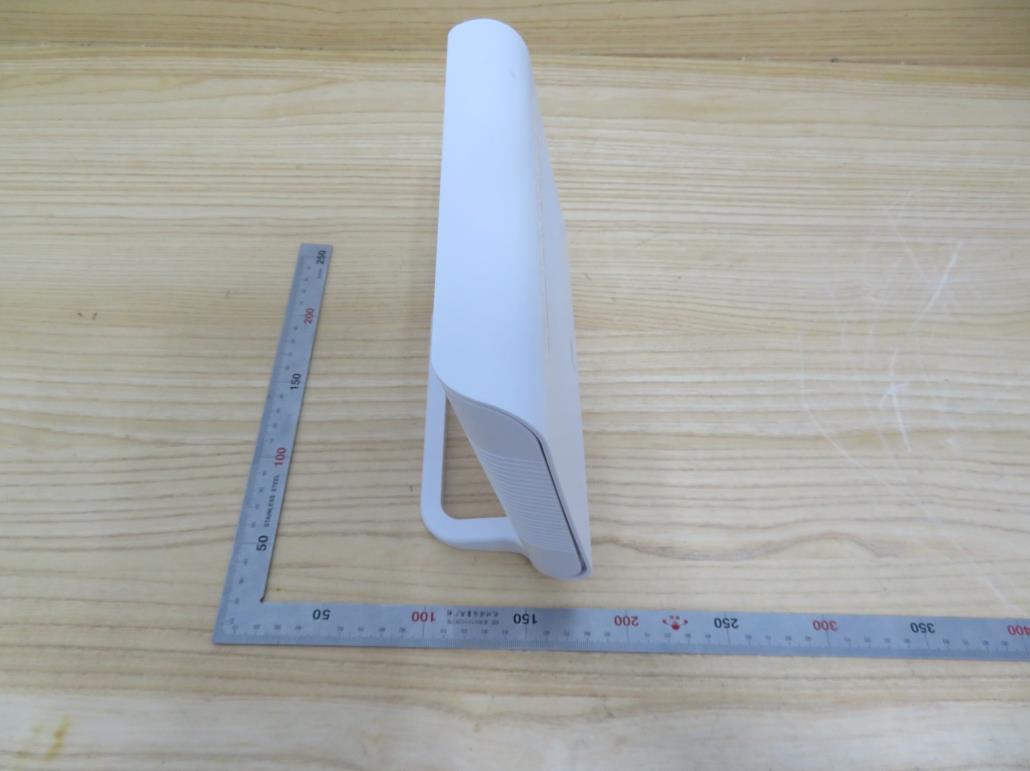

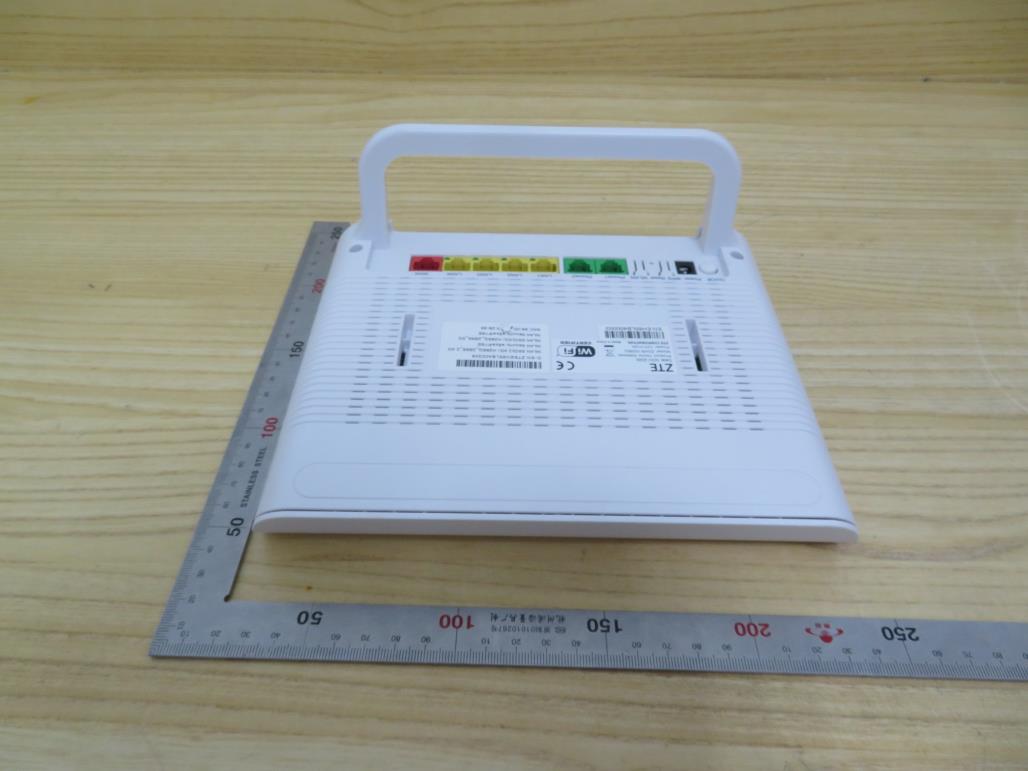

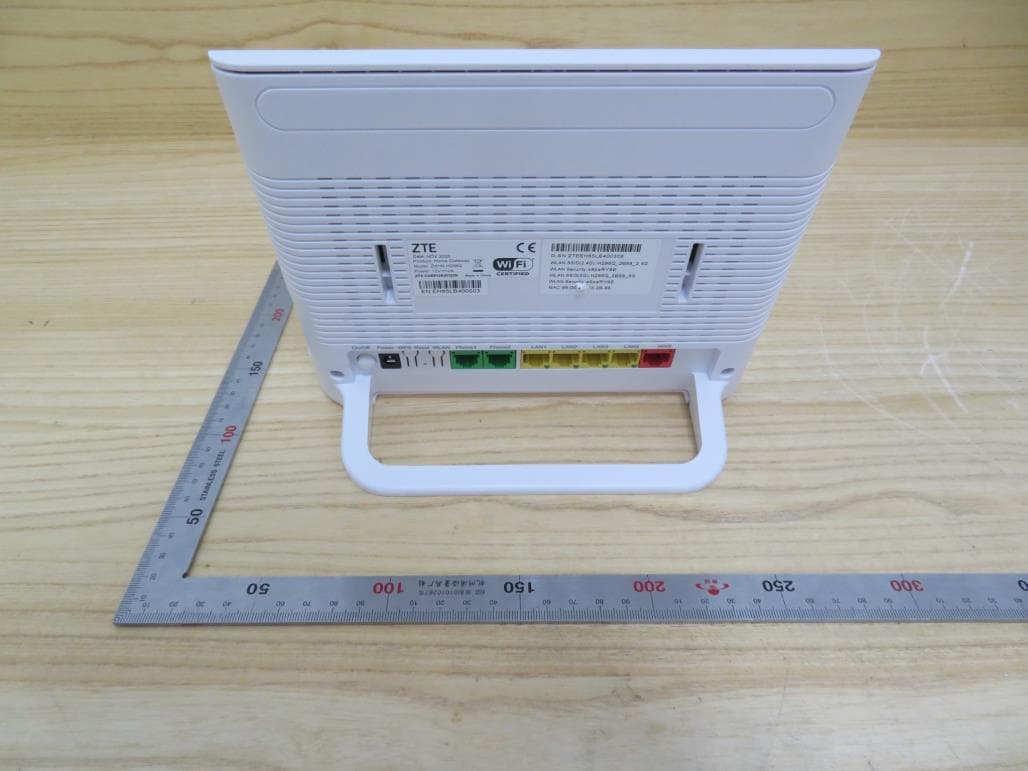

External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6

Internal Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-3 Internal View of EUT-4 5G ANT1 5G ANT2 5G ANT3 5G ANT4 2.4GANT1 2.4G ANT2 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-5 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-6

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Home Gateway MODEL NUMBER: ZXHH H298Q FCC ID: Q78-ZXHNH298Q REPORT NUMBER: 4789807223-3 ISSUE DATE: April 01, 2020 Prepared for ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789807223-3 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 3 2. TEST METHODOLOGY ........................................................................................................ 4 3. FACILITIES AND ACCREDITATION .................................................................................... 4 4. REQUIREMENT .................................................................................................................... 5 REPORT No.: 4789807223-3 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Manufacturer Information Company Name: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China EUT Information EUT Name: Home Gateway Model: ZXHH H298Q Sample Received Date: February 4, 2021 Sample Status: Normal Sample ID: 3646283 Date of Tested: February 4 ~ March 31, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Tested By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789807223-3 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789807223-3 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their expos…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART E CERTIFICATION TEST REPORT For Home Gateway MODEL NUMBER: ZXHH H298Q FCC ID: Q78-ZXHNH298Q REPORT NUMBER: 4789807223-2 ISSUE DATE: March 31, 2021 Prepared for ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789807223-2 Page 2 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 03/31/2021 Initial Issue REPORT NO.: 4789807223-2 Page 3 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6dB/26dB Bandwidth FCC 15.407 (a)&(e) PASS 2 99% Occupied Bandwidth RSS-Gen Clause 6.6 PASS 3 Conducted Output Power FCC 15.407 (a) PASS 4 Power Spectral Density FCC 15.407 (a) PASS 5 Radiated Bandedge and Spurious Emission FCC 15.407 (b) FCC 15.209 FCC 15.205 PASS 6 Conducted Emission Test for AC Power Port FCC 15.207 PASS 7 Frequency Stability FCC 15.407 (g) PASS 8 Antenna Requirement FCC 15.203 PASS Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789807223-2 Page 4 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 7 2. TEST METHODOLOGY ........................................................................................................ 8 3. FACILITIES AND ACCREDITATION .................................................................................... 8 4. CALIBRATION AND UNCERTAINTY .................................................................................. 9 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 9 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 9 5. EQUIPMENT UNDER TEST ............................................................................................... 10 5.1. DESCRIPTION OF EUT ............................................................................................... 10 5.2. MAXIMUM AVERAGE OUTPUT POWER.................................................................... 11 5.3. CHANNEL LIST ............................................................................................................ 12 5.4. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 13 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 14 5.6. THE WORSE CASE CONFIGURATIONS.................................................................... 16 5.7. DESCRIPTION OF TEST SETUP ................................................................................ 17 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 18 7. ANTENNA PORT TEST RESULTS .................................................................................... 20 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 20 7.2. 6/26 dB EMISSION BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ................... 21 7.3. CONDUCTED OUTPUT POWER ................................................................................ 23 7.4. POWER SPECTRAL DENSITY ................................................................................... 26 8. RADIATED TEST RESULTS .............................................................................................. 28 8.1. RESTRICTED BANDEDGE ......................................................................................... 35 8.1.1. 802.11a CDD 4TX MODE ..................................................................................... 35 UNII-1 BAND ....................................................................................................................... 35 UNII-2A BAND ..................................................................................................................... 37 UNII-2C BAND ..................................................................................................................... 39 UNII-3 BAND ....................................................................................................................... 42 8.1.2. 802. 11ac VHT20 CDD 4TX MODE ...................................................................... 44 UNII-1 BAND .................................................…

Text truncated - open the document above for the full version.

REPORT NO.: 4789807223-2 Page 151 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (LOW CHANNEL, VERTICAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 8969.000 37.64 10.69 48.33 74.00 -25.67 peak 2 11015.000 43.98 13.38 57.36 74.00 -16.64 peak 3 11015.000 29.14 13.38 42.52 54.00 -11.48 AVG 4 12269.000 34.85 16.04 50.89 74.00 -23.11 peak 5 14326.000 33.51 17.93 51.44 74.00 -22.56 peak 6 16526.000 44.45 19.77 64.22 68.2 -3.98 peak 7 17274.000 29.97 22.45 52.42 74.00 -21.58 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Since non-restricted band peak emissions are less than the average limit, they also comply with the -27dBm/MHz (68.2dBuV/m) limit. REPORT NO.: 4789807223-2 Page 152 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (MID CHANNEL, HORIZONTAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 8210.000 37.96 9.80 47.76 74.00 -26.24 peak 2 11191.000 51.21 13.78 64.99 74.00 -9.01 peak 3 11191.000 34.90 13.78 48.68 54.00 -5.32 AVG 4 12225.000 36.05 15.99 52.04 74.00 -21.96 peak 5 13501.000 34.59 17.22 51.81 74.00 -22.19 peak 6 14777.000 34.16 17.96 52.12 74.00 -21.88 peak 7 16757.000 49.81 20.39 67.13 68.2 -1.07 peak 8 17769.000 28.16 23.87 52.03 74.00 -21.97 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton, where: Ton is the transmitting duration. 5. For the transmitting duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter prior to adding the filter to the measurement chain. 8. Since non-restricted band peak emissions are less than the average limit, they also comply with the -27dBm/MHz (68.2dBuV/m) limit. REPORT NO.: 4789807223-2 Page 153 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (MID CHANNEL, VERTICAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 9398.000 36.48 10.96 47.44 74.00 -26.56 peak 2 11191.000 43.08 13.78 56.86 74.00 -17.14 peak 3 11191.000 28.73 13.78 42.51 54.00 -11.49 AVG 4 12676.000 35.42 15.66 51.08 74.00 -22.92 peak 5 13534.000 34.66 17.18 51.84 74.00 -22.16 peak 6 14755.000 33.35 17.88 51.23 74.00 -22.77 peak 7 16768.000 47.59 20.47 67.23 68.2 -0.97 peak 8 17450.000 30.23 21.95 52.18 74.00 -21.82 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Since non-restricted band peak emissions are less than the average limit, they also comply with the -27dBm/MHz (68.2dBuV/m) limit. REPORT NO.: 4789807223-2 Page 154 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (HIGH CHANNEL, HORIZONTAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 9354.000 37.38 10.70 48.08 74.00 -25.92 peak 2 11334.000 49.91 14.15 64.06 74.00 -9.94 peak 3 11334.000 33.54 14.15 47.69 54.00 -6.31 AVG 4 13446.000 34.25 17.12 51.37 74.00 -22.63 peak 5 13908.000 33.90 17.54 51.44 74.00 -22.56 peak 6 14810.000 34.06 17.97 52.03 74.00 -21.97 peak 7 17010.000 46.75 21.31 67.21 68.2 -0.99 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton, where: Ton is the transmitting duration. 5. For the transmitting duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter prior to adding the filter to the measurement chain. 8. Since non-restricted band peak emissions are less than the average limit, they also comply with the -27dBm/MHz (68.2dBuV/m) limit. REPORT NO.: 4789807223-2 Page 155 of 283 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (HIGH CHANNEL, VERTICAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m…
