Q78-A415Tri-Band CDMA Phone with Bluetooth (CDMA/PCS CDMA/AWS CDMA)

A415 User Guide Table of contents Safety ....................................................4 About your device ................................4 Before using your phone ....................6 Handset description............................6 Battery usage .........................................7 Battery charging ....................................7 Battery handling information .............8 Basic operation ....................................9 Turning the phone on/off ...................9 Accessing the menu ...........................9 Using MyHomeScreen ......................10 Accessing the menu map ................10 Basic functions ......................................11 Making a call through the contact list ......................................13 Mute/Unmute a call ............................13 Memory function .................................15 Storing a phone number ..................15 Entering letters, numbers & symbols ..................................................15 Recent calls .........................................16 All calls ...................................................16 Missed calls ..........................................17 Incoming calls ......................................17 Outgoing calls ......................................17 Call timers ..............................................17 Messages .............................................18 Send text message ............................18 Send picture message ......................18 Voicemail ...............................................19 Conversations ......................................19 Drafts ......................................................20 Settings .................................................20 Contacts ...............................................21 My Backup ............................................21 Contact list ............................................21 Add new entry ....................................22 Speed dial ............................................22 Group .....................................................23 Service number ..................................23 My phone number .............................24 Browser ...............................................24 Browser Menu Option ......................24 Games & Apps ....................................25 Multimedia ..........................................26 Camera ..................................................26 Video Recorder ..................................26 My Pictures ..........................................27 My Videos ............................................28 My Sounds ...........................................28 My Ringtones ......................................29 Music ...................................................29 Music Player ........................................29 Music Files ...........................................30 My Lists..................................................30 2 Table of contents Tools ....................................................30 Voice service .......................................30 Schedule ...............................................32 Alarm ......................................................33 Memo pad ............................................33 Calculator .............................................34 World time ............................................34 Tip calculator .......................................34 Stop watch ...........................................35 Countdown timer ...............................35 Unit converter .....................................35 Bluetooth ............................................35 Bluetooth ..............................................35 Settings ...............................................37 Display ...................................................37 Sounds ..................................................39 Call ..........................................................40 Security ..................................................41 Phone ....................................................43 Mass Storage ......................................44 Memory info .........................................44 Phone info ............................................45 Care and maintenance ......................46 Warranty..............................................47 One (1) year limited warranty (U.S.) .....................................47 Additional safety information ..........53 Small children ......................................53 Operating environment....................53 Medical devices .................................54 Vehicles.................................................55 Potentially explosive environments ......................................56 Emergency calls .................................57 Certification information (SAR) .......58 Safety information for fixed wireless terminals potentially explosive atmospheres .......................................59 Interference to medical devices ..................................................59 Exposure to RF energy ....................59 Body-worn operation ........................59 FCC compliance information..........60 U.S.A. U.S.Federal communications commission radio frequency interference statement .....................60 FCC hearing-aid compatibility (HAC) regulations for wireless devices ....61 Table of contents 3 Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. Power on safely Do not power on the device when and where prohibited or when it may cause interference or danger. Road safety comes first Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. Interference All wireless devices may be susceptible to interference, which could affect performance. Turn device off in restricted areas Fol…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE PLZAZ, HI-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, 51857, CHIAN Date: May 19, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Please be notified that ZTE COPPORATION hereby declares that all tested modes are performed in maxim um conducted power within the ranges, specified in the filing for all wireless modes and that tune-up tolerances are applied. This authorization is to the product of as following: FCC ID : Q78-A415 If you have any acknowledgement and response, please send it to HCT CO., LTD. directly. Should you ha ve any questions or comments regarding this matter, please have my best attention. Sincerely, Royce Wang / Manager ZTE Corporation

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, 518057, China Date: March 2, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZTE Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Tri-Band CDMA Phone with Bluetooth(CDMA/PCS CDMA/AWS CDMA) FCC ID : Q78-A415 We affirm that between SIEMIC and ZTE Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ---------------------------------------------- Royce Wang / Manager ZTE Corporation SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, 518057, China Date: March 2, 2011 To: Federal Communications Commission Authorization and Evaluation Division RE: Request of Confidentiality for FCC ID: Q78-A415 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, ZTE Corporation hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ZTE Corporation temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ---------------------------------------------- Royce Wang / Manager ZTE Corporation SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006

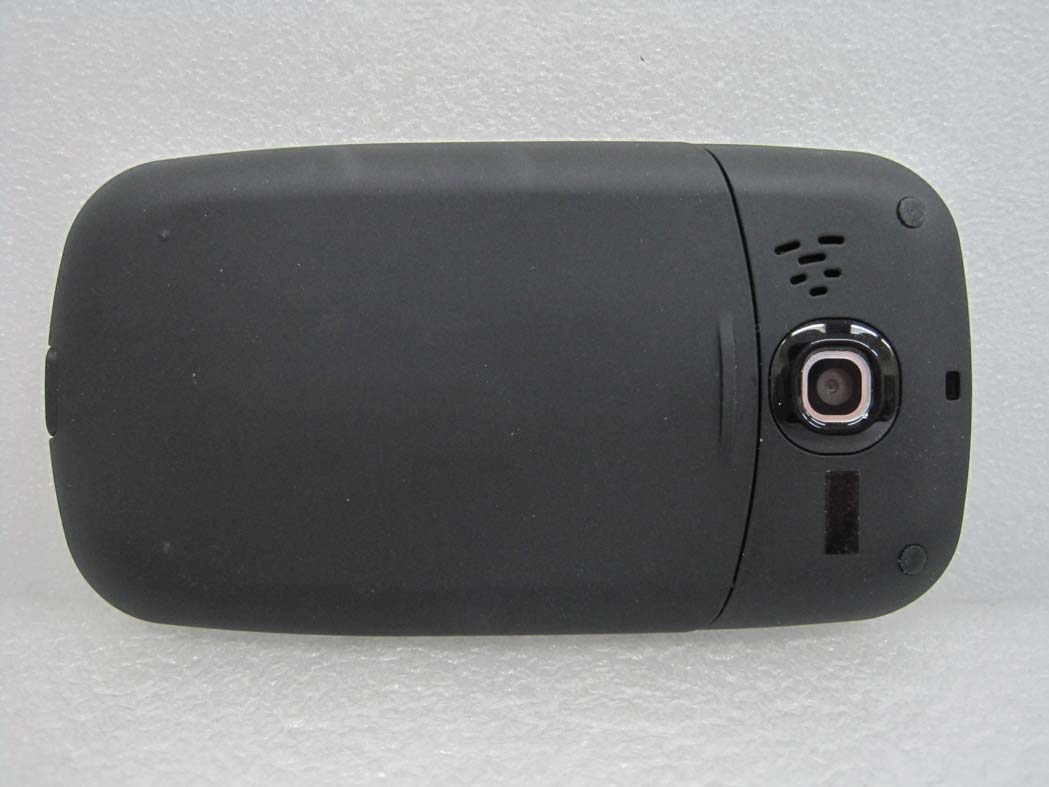

FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

37 25 ZTE Model: A415 SKU: CRKA415KIT FCC ID: : Q78-A415 HW Version ES2 Date Code: R111 MEID DEC:123456789012345678 MEID HEX:A1234567890123

FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 11 INTERNAL PHOTOGRAPHS FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 11 ■ INTERNAL PHOTO FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 11 ■ INTERNAL PHOTO (GPS ANTENNA) FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 11 ■ INTERNAL PHOTO (CDMA ANTENNA) FCC ID: Q78-A415 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １１ of 11 ■ INTERNAL PHOTO (BT ANTENNA)

SAR TEST REPORT HCT CO., LTD EUT Type: Tri-Band CDMA Phone with Bluetooth(CDMA/PCS/AWS CDMA) FCC ID: Q78-A415 Model: A415 Trade Name ZTE CORPORATION Date of Issue: Mar.04, 2011 Test report No.: HCTA1103FS02 Test Laboratory: HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 Applicant : ZTE CORPORATION ZTE PLZAZ, HI-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, 51857, CHIAN Tel: +82-6-775-8636020 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 2005 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1103FS02 FCC ID: Q78-A415 Date of Issue: Mar.04, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 115 Table of Contents 1. INTRODUCTION ..........................................................................................................................................４ 2. DESCRIPTION OF DEVICE.........................................................................................................................５ 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................................６ 3.1 SAR MEASUREMENT SETUP .......................................................................................................６ 3.2 DASY E-FIELD PROBE SYSTEM ...................................................................................................７ 3.3 PROBE CALIBRATION PROCESS .................................................................................................８ 3.4 SAM Phantom .............................................................................................................................１０ 3.5 Device Holder for Transmitters .....................................................................................................１０ 3.6 Brain & Muscle Simulating Mixture Characterization ......................................................................１１ 3.7 SAR TEST EQUIPMENT .............................................................................................................１２ 4. SAR MEASUREMENT PROCEDURE .....................................................................................................１３ 5. DESCRIPTION OF TEST POSITION.......................................................................................................１４ 5.1 HEAD POSITION .........................................................................................................................１４ 5.2 Body Holster/Belt Clip Configurations ...........................................................................................１５ 6. MEASUREMENT UNCERTAINTY ...........................................................................................................１６ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS ..................................................................................１７ 8. SYSTEM VERIFICATION .........................................................................................................................１８ 8.1 Tissue Verification .......................................................................................................................１８ 8.2 System Validation ........................................................................................................................１８ 9. 3G MEASUREMENT PROCEDURES .....................................................................................................１９ 9.1 Procedures Used To Establish Test Signal ....................................................................................１９ 9.2 SAR Measurement Conditions for CDMA2000 1x .........................................................................１９ 10. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ......................２１ 10.1 SAR Evaluation Considerations ..................................................................................................２１ 11. SAR TEST DATA SUMMARY .................................................................................................................２３ 11.1 Measurement Results (CDMA835 Head SAR) .............................................................................２３ 11.2 Measurement Results (AWS1700 Head SAR) .............................................................................２４ 11.3 Measurement Results (PCS1900 Head SAR) ..............................................................................２５ 11.4 Measurement Results (CDMA835 Body SAR) .............................................................................２６ 11.5 Measurement Results (AWS1700 Body SAR) .............................................................................２７ 11.6 Measurement Results (PCS1900 Body SAR) ..............................................................................２８ 12. CONCLUSION........................................................................................................................................２９ 13. REFERENCES .......................................................................................................................................３０ Attachment 1. – SAR Test Plots....................................................................................................................３１ Attachment 3. – Probe Calibration Data .........................................................................…

Text truncated - open the document above for the full version.

HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 www.hct.co.kr HAC RF Emission TEST REPORT FCC ID: Q78-A415 APPLICANT: ZTE CORPORATION Application Type : Certification EUT Type : Tri-Band CDMA Phone with Bluetooth (CDMA/PCS/AWS CDMA) Tx Frequency : 824.70 – 848.31 MHz (CDMA) 1 711.25 – 1 753.75 MHz (AWS CDMA) : 1 851.25 – 1 908.75 MHz (PCS CDMA) Maximum Conducted : 0.251 W CDMA (24.0 dBm) 0.251 W AWS CDMA (24.0 dBm) Power (HAC) : 0.251 W PCS CDMA (24.0 dBm) Trade Name/Model(s) : ZTE CORPORATION /A415 FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) : §20.19 HAC Standard : ANSI C63.19-2007 Hearing Aid Near-Field Category: M4 This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 862. Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part This report only only relates to the tested sample and may not be reproduced, except in full, without written apprIM of the HCT Co., Ltd. ZTE CORPORATION ZTE PALZA, HI-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, 518057, CHINA Date of Issue: Mar. 4, 2011 Test Report No.: HCTA1103FM01 Test Site: HCT CO., LTD. Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 24 Table of Contents 1. APPLICANT / EUT DESCRIPTION -------------------------------------------------------------------------------- 2. HAC MEASUREMENT SET- UP ----------------------------------------------------------------------------- 3. SYSTEM SPECIFICATIONS --------------------------------------------------------------------------------- 4. EUT ARRANGEMENT ---------------------------------------------------------------------------------------- 5. SYSTEM VALIDATION -------------------------------------------------------------------------------------- 6. PROBE MODULATION FACTOR ------------------------------------------------------------------------ 7. FCC 3G MEASUREMENTS – MAY / JUNE 2006 ---------------------------------------------------- 8. TEST PROCEDURE ---------------------------------------------------------------------------------------- 9. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES ------------------------------------------------- 10. MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11. HAC TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12. HAC TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13. CONCLUSION ------------------------------------------------------------------------------------------------ Appendix A_HAC TEST PLOTS Appendix B_TEST SET-UP PHOTO Appendix C_DIPOLE VALIDATION PLOTS Appendix D_PROBE CALIBRATION DATA Appendix E_DIPOLE CALIBRATION DATA 4 5 6 8 9 11 14 15 17 18 20 23 24 Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 24 Version TEST REPORT NO. DATE DESCRIPTION HCTA1101FM01 March 04, 2011 First Approval Report HCTA1101FM01 March 10, 2011 Adding the Air interface/bands information Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 4 of 24 HAC MEASUREMENT REPORT 1. APPLICANT / EUT DESCRIPTION 1.1 Applicant • Company Name: ZTE CORPORATION • Attention: ZTE PALZA, HI-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, 518057, CHINA • Tel. / Fax : Tel: +86-775-8636020 1.2 EUT Description • EUT Type: Tri-Band CDMA Phone with Bluetooth (CDMA/PCS/AWS CDMA) • Trade Name: ZTE CORPORATION • Model(s): A415 • FCC ID: Q78-A415 • Serial Number(s): #1 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1 711.25 – 1 753.75 MHz (AWS CDMA) 1 851.25 – 1 908.75 MHz (PCS CDMA) • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 20.19(b); §6.3(v), §7.3(v) • Modulation(s): CDMA835/AWS1700/PCS1900 • Αntenna Type: Intenna • Date(s) of Tests: Feb.15, 2011 • Place of Tests: HCT CO., LTD. Icheon, Kyoung ki-Do, KOREA • Report Serial No.: HCTA1103FM01 • Max E-Field Emission: AWS 875ch, 1 753.75 MHz = 34.3 dBV/m (M4) • Max H-Field Emission: PCS1900 1175ch, 1 908.75 MHz = - 18.1 dBA/m (M4) Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 5 of 24 2. HAC MEASUREMENT SET-UP These measurements are performed using the DASY4 automated dosimetric assessment system. It is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland. It consists of high precision robotics system (Staubli), robot controller, Pentium IV computer, near-field probe, probe alignment sensor. The robot is a six-axis industrial robot performing precise moveme…

Text truncated - open the document above for the full version.

Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 1 of 19 APPENDIX A. HAC TEST PLOTS Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 19 Test Laboratory: HCT CO., LTD. Ambient Temperature / Channel 21.3 °C /1013 Test Date Feb. 15, 2011 DUT: A415; Type: Bar; Serial: #1 Communication System: CDMA 835MHz FCC; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: σ = 0 mho/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: E Device Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ER3DV6 - SN2343; ConvF(1, 1, 1); Calibrated: 2010-05-20 - Sensor-Surface: (Fix Surface) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: HAC Test Arch; Type: SD HAC P01 BA E Scan - ER3D - 2007: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Measurement grid: dx=5mm, dy=5mm Maximum value of peak Total field = 55.3 V/m Probe Modulation Factor = 0.963 Device Reference Point: 0.000, 0.000, 353.7 mm Reference Value = 80.0 V/m; Power Drift = 0.028 dB Hearing Aid Near-Field Category: M4 (AWF 0 dB) Peak E-field in V/m Grid 1 48.6 M4 Grid 2 54.6 M4 Grid 3 53.9 M4 Grid 4 48.6 M4 Grid 5 55.3 M4 Grid 6 54.6 M4 Grid 7 47.3 M4 Grid 8 53.1 M4 Grid 9 52.3 M4 Cursor: Total = 55.3 V/m E Category: M4 Location: -5, -1.5, 369.9 mm 0 dB = 55.3V/m Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 19 Test Laboratory: HCT CO., LTD. Ambient Temperature / Channel 21.3 °C /384 Test Date Feb. 15, 2011 DUT: A415; Type: Bar; Serial: #1 Communication System: CDMA 835MHz FCC; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: σ = 0 mho/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: E Device Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ER3DV6 - SN2343; ConvF(1, 1, 1); Calibrated: 2010-05-20 - Sensor-Surface: (Fix Surface) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: HAC Test Arch; Type: SD HAC P01 BA E Scan - ER3D - 2007: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Measurement grid: dx=5mm, dy=5mm Maximum value of peak Total field = 56.3 V/m Probe Modulation Factor = 0.963 Device Reference Point: 0.000, 0.000, 353.7 mm Reference Value = 80.9 V/m; Power Drift = 0.110 dB Hearing Aid Near-Field Category: M4 (AWF 0 dB) Peak E-field in V/m Grid 1 49.1 M4 Grid 2 55.8 M4 Grid 3 55.4 M4 Grid 4 48.8 M4 Grid 5 56.3 M4 Grid 6 56.0 M4 Grid 7 47.1 M4 Grid 8 53.5 M4 Grid 9 53.1 M4 Cursor: Total = 56.3 V/m E Category: M4 Location: -6, -2, 369.9 mm 0 dB = 56.3V/m Report No.: HCTA1103FM01 FCC ID: Q78-A415 Date of Issue: Mar. 10, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 4 of 19 Test Laboratory: HCT CO., LTD. Ambient Temperature / Channel 21.3 °C /777 Test Date Feb. 15, 2011 DUT: A415; Type: Bar; Serial: #1 Communication System: CDMA 835MHz FCC; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: σ = 0 mho/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: E Device Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ER3DV6 - SN2343; ConvF(1, 1, 1); Calibrated: 2010-05-20 - Sensor-Surface: (Fix Surface) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: HAC Test Arch; Type: SD HAC P01 BA E Scan - ER3D - 2007: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Measurement grid: dx=5mm, dy=5mm Maximum value of peak Total field = 46.1 V/m Probe Modulation Factor = 0.963 Device Reference Point: 0.000, 0.000, 353.7 mm Reference Value = 68.6 V/m; Power Drift = -0.032 dB Hearing Aid Near-Field Category: M4 (AWF 0 dB) Peak E-field in V/m Grid 1 43.8 M4 Grid 2 46.0 M4 Grid 3…

Text truncated - open the document above for the full version.
