Q78-AC682CDMA 1x-EVDO Wireless data terminal

AC682 Modem User Guide Cautions for Users  Use of AC682 EV-DO Modem (hereinafter referred as “modem”), while running a notebook PC with a battery, may cause earlier exhaustion of the battery than usual due to additional consumption of electric currents.  Be cautious when you touch a modem with a bare hand after long use, it may cause a burn due to its high temperature. Pick it out with the antenna after separation.  Do not allow children or pets to approach or touch the modem when separated from a notebook PC or PDA.  Do not give impact to the modem or throw it away.  Use the leather case provided along with the modem when you carry the modem.  When the modem is lost or stolen, immediately report it to the corresponding telecommunication operator.  Do not recklessly lend your own modem to anybody else.  Do not attach an additional device which may cause alteration in performance of the product registered for the type approval.  This modem sends and receives the radiofrequency (RF) energy in status of power-on. The radiofrequency (RF) energy may affect a human body.  Use the modem in the manner you use a notebook PC in general.  Be noticed that most of electronic devices are designed to be free from the RF energy but there are some products that may be out of order due to the RF energy.  Medical Devices Industry Association recommends the patients using a pacemaker not to use RF using devices such as cell phones, wireless modems and so on because using those devices in the range of 15cm from the pacemaker may affect the pacemaker. In an inevitable situation, make it sure to keep the distance of more than 15cm between the modem and the pacemaker. To minimize the possible interference, use the modem on the opposite side of the pacemaker. Do not use it if possible.  If you use a medical device, ask the manufacturer if the device is free from the RF energy. Some hospitals use RF medical devices. Separate the modem from a notebook PC or a PDA when entering a hospital.  The modem may affect the functions of a hearing-aid.  The places banning use of cell phones may require prohibit use of modems.  Separate the modem from a notebook PC or PDA we you get on an airplane.  Separate the modem from a notebook PC or PDA to avoid interference with explosive operations at a blasting area or a place posted “Turn off a walkie-talkie”. And follow all the instructions shown in the area:  Hold yourself in installing or using the modem at the places such as danger areas of gas leakage, chemical storage facilities, decks of a vessel and so on. AC682 Modem Install Setup Insert AC682 to the USB ports of your laptop or PC. The installation procedures are the Windows 2000 and Windows XP. Start setup If the auto run does not start after inserting the CD, please double-click on “Setup.exe” file on CD-ROM to start the installation.If you have already inserted your Modem into your PC, remove the Modem and double-click “Setup.exe” Start Auto Run Install Shield Wizard... click 'next' Choose the installation directory and click "Next" to continue. Click "Install" to continue. AC682 Modem is configuring your new software installation. Check device Ports installation. You will be shown to these prompts listed above. Installation Complete. Click “Finish” to launch the software. Using AC682 Modem Application Software During this installation a Shortcut will have been placed on your desktop for the AC682 EVDO Modem Application software. On auto start of the Application Software, the first screen you will see Main window. Main Indicator state Icons Dial up Network Press button to connect internet with CDMA 1X or CDMA 1X EVDO. It will if it connects successfully as follows: Main Function buttons Data connection in EVDO or 1X RF signals strength indicator Data flow check Click the button, you will check all download and upload data through AC682. To Disconnect Clicking the disconnect button on the Main window will disconnect the dialup connection and the modem will switch to idle mode. SMS Click button and enter into the "sms" interface, the interface is as follows: Message Mailbox Click any one mailbox in the tree-node to see its messages . Inbox: There're Modem ,Computer, to store messages transferred from the inbox of the modem ,and received messages when using the software. Sendbox: It is used to store messages that have been sent succussfully. Unsent: It is used to store messages that have been sent unsuccussfully. DraftsBox: Store messages edited with the software and ready to send. (Stored in the PC) New, Delete Message You can new or delete messages New: Click button then the normal mode of" Write SMS " will pop-up, You can new messages .For details please refer to" Write SMS ". Delete: Select the messages you want to delete then click button. You can select button to delete all messages in current mailbox. Reply, Forward Message Here, you can reply and forward the selected messages. Reply: Select messages you want to reply,then click button, the normal mode of "Write SMS" will pop-up. In the " Write SMS", the phone number of address has been inputed into "Recipient", just input the message content and send it. Forward: Select messages you want to forward, click button, the normal mode of " Write SMS " will pop-up. In the " Write SMS", just input phone number into Send to and send out the message. You can also edit the message content before send. For details, please refer to: " Write SMS ". Write SMS We will introduce the normal mode of "Write SMS", with which you can edit and send messages easily. Recipient: Input phone number here. You can click to enter into "Select Contacts" window to select contacts saved in computer, in Modem. After click OK, the selected phone number and their names will be shown in the input field next to "Send ". If there are several phone numbers, they would be separated by ";" SMS Content: input the content of message that will be sent Save: You can save the edited messages. …

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-AC682, has no space to put the label except the internal of this device. The label will put under the internal compartment and it is visible to the users as they purchase the products and insert the SIM Card. _______________________ Contact Person: David. Gong Company: ZTE CORPORATION Tel: +86-755-86360379 Fax: +86-755-86360298 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: April 21, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-AC682 To Whom It May Concern: We, ZTE CORPORATION, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: April 22, 2011 ZTE CORPORATION Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-AC682). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: AC682_Schem.pdf) Block Diagram (file: AC682_BlkDia.pdf) Parts List (file: AC682_PartsLst.pdf) Operation Description (file: AC682_OpDes.doc) Tune Up Procedure (file: AC682_TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Date: April 21, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang have designated Roy Wu in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: Q78-AC682 Any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Royce Wang ZTE CORPORATION Tel: +86-755-26770345 Fax: +86-755-26770347 E-Mail: [email protected]

1/1 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: April 21, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-AC682 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: AC682_ExtPho.pdf)  Internal Photos (file: AC682_IntPho.pdf)  Test Setup Photos (file: AC682_Tsup.pdf)  User Manual (file: AC682_UserMan.pdf) The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, David Gong

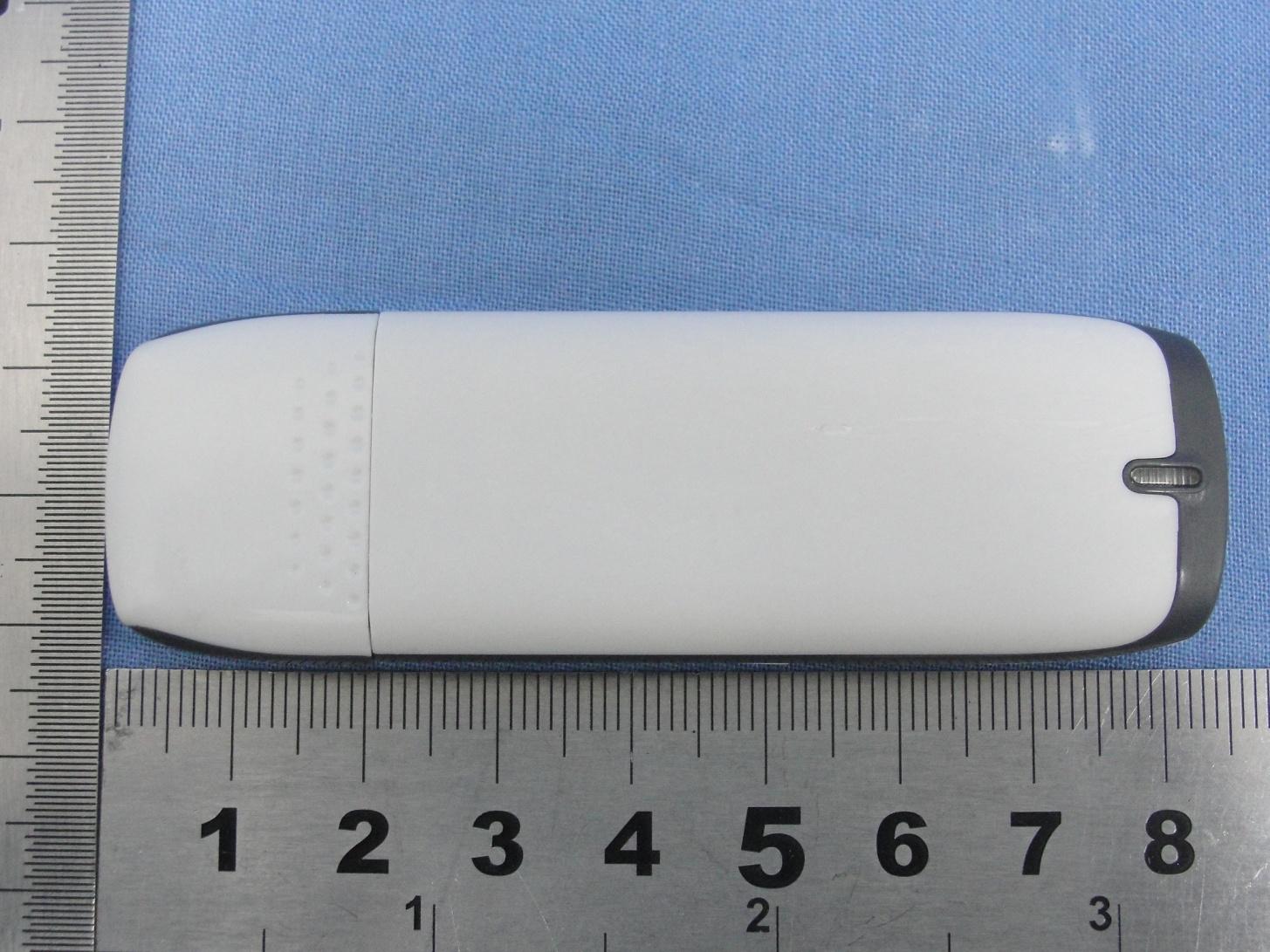

Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 1. External Photograph of EUT Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 720510

Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 2. Internal Photograph of EUT Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 720510 Photographs of EUT Report No.: EP132446 Brand Name: ZTE / Model Name: AC682 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 WWAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 FCC SAR Test Report Report No. : FA132446 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : CDMA 1x-EVDO Wireless data terminal BRAND NAME : ZTE MODEL NAME : AC682 FCC ID : Q78-AC682 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 24, 2011 and completely tested on Apr. 19, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 FCC SAR Test Report Report No. : FA132446 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage .............…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 System Check_Body_835MHz_110419 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.7 V/m; Power Drift = 0.00827 dB Peak SAR (extrapolated) = 3.7 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.7 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 #01 CDMA2000 BC0_RTAP 153.6_Horizontal Up_0.5cm_Ch1013 DUT: 132402 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 825 MHz; σ = 0.967 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.814 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.4 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 1.2 W/kg SAR(1 g) = 0.772 mW/g; SAR(10 g) = 0.483 mW/g Maximum value of SAR (measured) = 0.831 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 #02 CDMA2000 BC0_RTAP 153.6_Horizontal Down_0.5cm_Ch1013 DUT: 132402 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 825 MHz; σ = 0.967 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.967 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.868 mW/g; SAR(10 g) = 0.563 mW/g Maximum value of SAR (measured) = 0.941 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.812 mW/g; SAR(10 g) = 0.509 mW/g Maximum value of SAR (measured) = 0.879 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 #02 CDMA2000 BC0_RTAP 153.6_Horizontal Down_0.5cm_Ch1013_2D DUT: 132402 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 825 MHz; σ = 0.967 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.967 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.868 mW/g; SAR(10 g) = 0.563 mW/g Maximum value of SAR (measured) = 0.941 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.812 mW/g; SAR(10 g) = 0.509 mW/g Maximum value of SAR (measured) = 0.879 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 #03 CDMA2000 BC0_RTAP 153.6_Vertical Front_0.5cm_Ch1013 DUT: 132402 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 825 MHz; σ = 0.967 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.719 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.04 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 0.934 W/kg SAR(1 g) = 0.629 mW/g; SAR(10 g) = 0.416 mW/g Maximum value of SAR (measured) = 0.658 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-19 #04 CDMA2000 BC0_RTAP 153.6_Vertical Back_0.5cm_Ch1013 DUT: 132402 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110419 Medium parameters used: f = 825 MHz; σ = 0.967 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.422 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10 V/m; Power Drift = -0.0045 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.377 mW/g; SAR(10 g) = 0.259 mW/g Maximum value of SAR (measured) = 0.401 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10 V/m; Power Drift = -0.0045 dB Peak SAR (extrapolated) = 0.473 W/kg SAR(1 g) = 0.321 mW/g; SAR(10 g) = 0.206 mW/g…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F6 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AC682 FCC SAR Test Report Report No. : FA132446 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up …

Text truncated - open the document above for the full version.
