Q78-AD3701USB Dongle

MOBILE BROADBAND / GLOBALACCESS AD3701 GLOBAL READY USB MODEM PRODUCT USER MANUAL Welcome - 1 - Congratulations on purchasing the AD3701 Global Ready Modem for Mobile Broadband and GlobalAccess service! Before installing the AD3701 Modem, VZAccess Manager Software and Drivers, please read this User Manual which describes the features of the AD3701 Modem hardware. Important: Do not plug AD3701 Modem into Type-A USB port until you have installed VZAccess Manager and have activated Mobile Broadband and GlobalAccess service for your AD3701 Modem. (See VZAccess Manager User Guide on the Installation CD for detailed instructions on installation and software features.) The AD3701 Global Ready USB Modem is a global data device that operates on the reliable Verizon Wireless Mobile Broadband and GlobalAccess networks* in America ,Europe or Asia. Now you can easily connect at high speeds to the Internet, your corporate Intranet, and your email while you’re away the office and out of the country. *Technology Bands: CDMA 1X, EVDO Rev.A/0 800/1900 MHz;UMTS, HSDPA, HSUPA 850/900/1900/2100 MHz; GSM, GPRS, EDGE 850/900/1800/1900. Service not available everywhere. Visit www.verizonwireless.com/vzglobal for a complete list of available countries. Information subject to change. Wireless communications Important Notice Due to the transmitting and receiving properties during wireless communications, the data can occasionally be lost or delayed. This can be due to the variation in radio signal strength that results from changes in the characteristics of the radio transmission path. Although the data loss is rare, the environment where you operate the modem may adversely affect communications. Variations in radio signal strength are referred to as fading. Fading is caused by several different factors including signal reflection, signal ionosphere, and signal interference from other radio channels. Safety hazards Do not operate AD3701 Modem in an environment that may be susceptible to radio interference resulting in danger specifically; Areas where prohibited by the law  Follow any special rules and regulations and obey all signs and notices. Always turn off the host device and remove the modem from the USB port when instructed to do so, or when you suspect that it may cause interference or danger. Where explosive atmospheres may be present  Do not operate your modem in any area where a potentially explosive atmosphere may exist. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply with all signs and instructions.  Users are advised not to operate the modem while at a refueling point or service station. Users Welcome - 2 - are reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.  Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential locations can include gas stations, below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. Near Medical and life support equipment  Do not operate your modem in any area where medical equipment, life support equipment, or near any equipment that may be susceptible to any form of radio interference. In such areas, the host communications device must be turned off. The modem may transmit signals that could interfere with this equipment. On an aircraft, either on the ground or airborne  In addition to FAA requirements, many airline regulations state that you must suspend wireless operations before boarding an airplane. Please ensure that the host device is turned off and your modem is removed from the USB port prior to boarding aircraft in order to comply with these regulations. The modem can transmit signals that could interfere with various onboard systems and controls. While operating a vehicle  The driver or operator of any vehicle should not operate a wireless data device while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some countries, operating such communications devices while in control of a vehicle is an offense. Copyright Copyright © 2010 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. V1.0, 2010.02 AD3701 Modem Hardware: Overview - 3 - Thank you for choosing the advanced and compact AD3701 Global Ready Modem by Verizon Wireless! This Global Ready modem for worldwide mobile data access is designed for computers equipped with Type-A USB ports. This mobile data solution gives you the coverage and speed you need whether away from the office or out of the country. Some of the key features of the AD3701 Global Ready Modem are: • Across the Globe via Mobile Broadband (BroadbandAccess) and GlobalAccess* *GlobalAccess requires a Global Feature added to your Verizon Wireless account which together with the pre-installed SIM Card enables you to access email in the GSM networks while traveling overseas. . • USB (Universal Serial Bus) Universal form factor makes wireless BroadbandAccess Mobile connectivity more convenient than ever since it works with virtually all computers equipped with a Type-A USB port such as notebooks and desktops. Swivel USB connector connects to notebook USB interface. . • Supports Various Operating Systems Designed to operate on different computer platfo…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: May 19, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-AD3701 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: AD3701_Schem.pdf) Block Diagram (file: AD3701_BlkDia.pdf) Parts List (file: AD3701_PartsLst.pdf) Operation Description (file: AD3701_OpDes.pdf) Tune up Procedure (file: AD3701_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: May 19, 2010 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Roy Wu in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-AD3701 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: July 30, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-AD3701 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

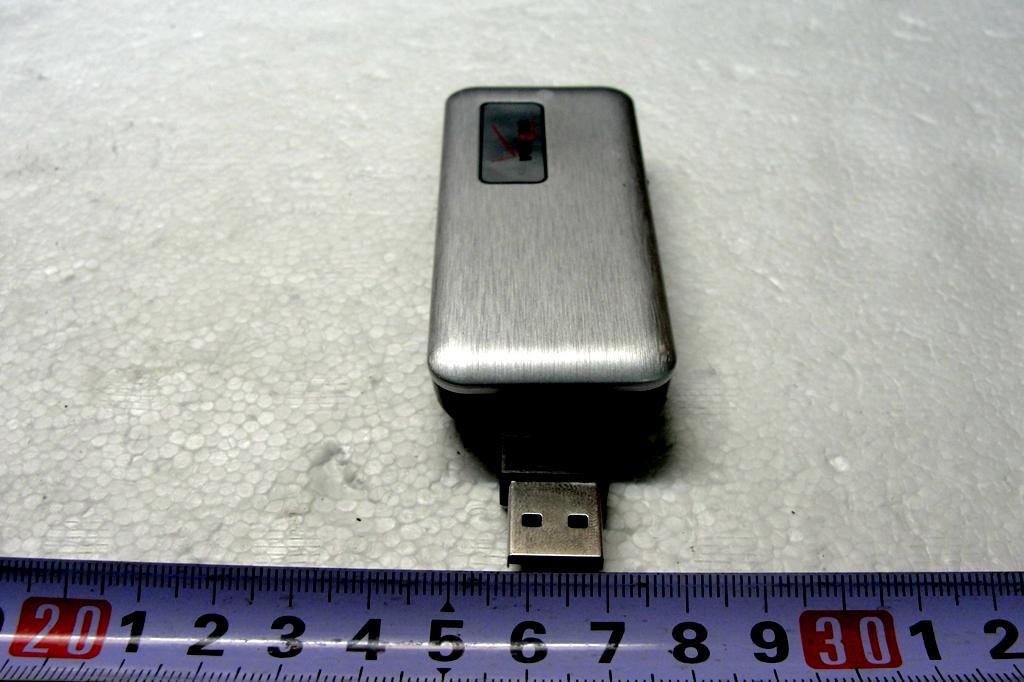

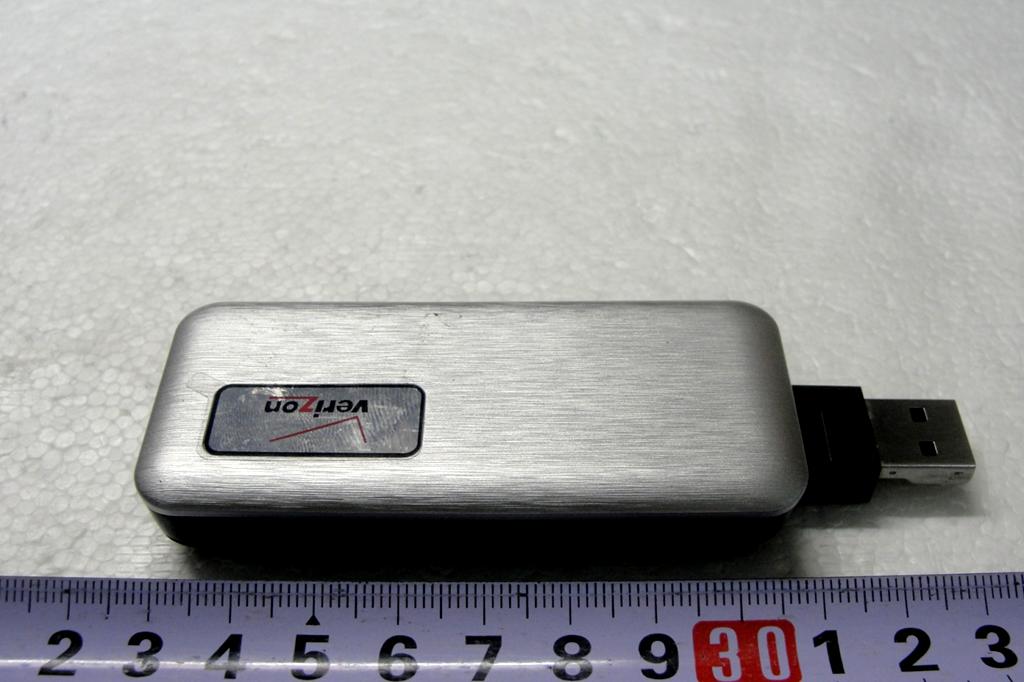

Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 1. External Photograph of EUT Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 720510

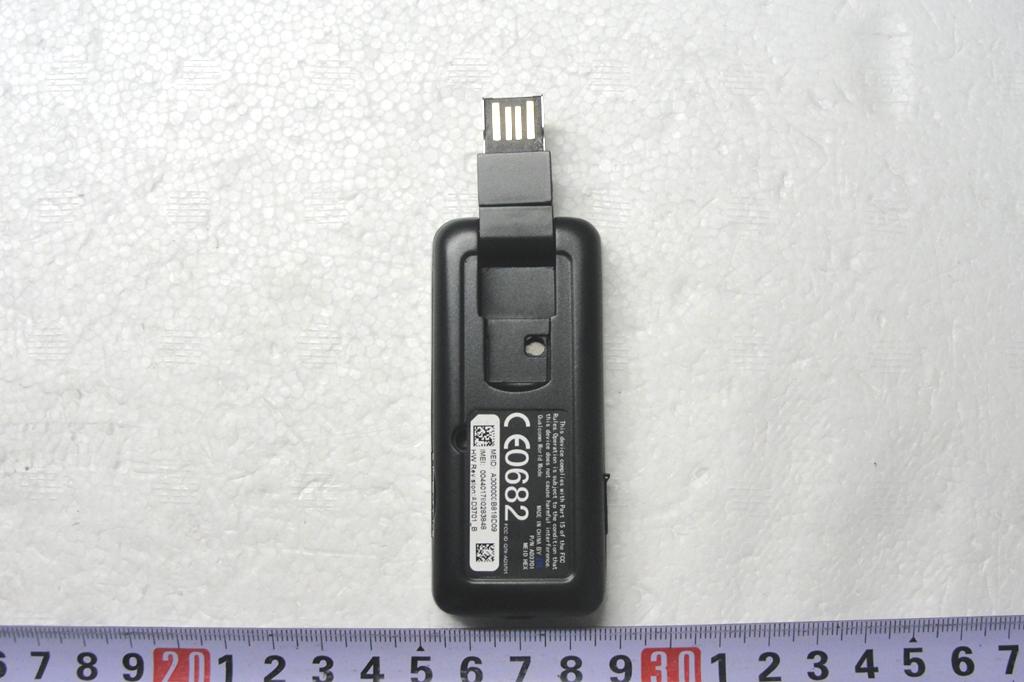

Label Location back side of the device Label Here

Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 2. Internal Photograph of EUT Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Main Antenna (Tx/Rx) WWAN Aux. Antenna (Rx only) GPS Antenna (Rx only) Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Main Antenna Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Main Antenna Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Main Antenna Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Main Antenna Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 WWAN Aux. Antenna Photographs of EUT Report No.: EP9D2501 Model Name: AD3701 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 23 TEL : 86-0512-5790-0158 Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 720510 WWAN Aux. Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 FCC Test Report Report No. : FD9D2501 FCC Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : USB Dongle BRAND NAME : ZTE MODEL NAME : AD3701 FCC ID : Q78-AD3701 STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Dec. 25, 2009 and completely tested on Apr. 07, 2010. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 FCC Test Report Report No. : FD9D2501 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 5 1.4. Test Site ............................................................................................................................................ 6 1.5. Applied Standards ............................................................................................................................. 6 1.6. Ancillary Equipment List .................................................................................................................... 6 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1. Test Mode ......................................................................................................................................... 7 2.2. Connection Diagram of Test System ................................................................................................ 8 2.3. Test Software .................................................................................................................................... 8 3. TEST RESULT ............................................................................................................................................. 9 3.1. Test of AC Conducted Emission Measurement ................................................................................ 9 3.2. Test of Radiated Emission Measurement ....................................................................................... 13 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 17 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 18 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 FCC Test Report Report No. : FD9D2501 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FD9D2501 Rev. 01 Initial issue of report May 18, 2010 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 FCC Test Report Report No. : FD9D2501 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.107 7.2.2 AC Conducted Emission < 15.107 limits < RSS-Gen table 2 limits PASS Under limit 6.86 dB at 0.19 MHz 3.2 15.109 7.2.3.2 Radiated Emission < 15.109 limits or < RSS-Gen table 1 limits (Section 6) PASS Under limit 6.86 dB at 512.10 MHz SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 19 TEL : 86-0512-5790-0158 Report Issued Date : May 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-AD3701 FCC Test Report Report No. : FD9D2501 1. General Description 1.1. Applicant ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P. R. China 1.2. Manufacturer ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P. R. China 1.3. Feature of Equipment Under Test Product Feature & Specification Equipment USB Dongle Brand Name ZTE Model Name AD3701 FCC ID Q78-AD3701 Tx Frequency Range GSM850 : 824 MHz ~ 849 MHz GSM1900 : 1850 MHz ~ 1910 MHz WCDMA Band V : 824 MHz ~ 849 MHz WCDMA Band II : 1850 MHz ~ 1910 MHz CDMA2000 BC0 : 824 MHz ~ 849 MHz CDMA2000 BC1 : 1850 MHz ~ 1910 MHz Rx Frequency Range GSM850 : 869 MHz ~ 894 MHz GSM1900 : 1930 MHz ~ 1990 MHz WCDMA Band V : 869 MHz ~ 894 MHz WCDMA Band II : 1930 MHz ~ 1990 MHz CDMA2000 BC0 : 869 ~ 894 MHz CDMA2000 BC1 : 1930 ~ 1990 MHz GPS : 1.57542 GHz An…
