Q78-B01Light BTH

Overview MFB Front Back LED Speaker Ear cushion Microphone Light BTH ZTE Bluetooth headset User Guide How to usePower on / off:Press and hold the MFB for longer than 5 seconds to switch. Pairing:Before you can use your headset,you must pair it with your phone. Step 1.Press and hold the MFB for longer than 5 seconds to power on theheadset and put Headset in paring mode.Step 2.Turn on the Bluetooth function onthe mobile phone and set the phone to search for Bluetooth devices. Step 3.Select the headset (Light BTH).* decide by customer of device name.Step 4.Enter the passcode 0000 to pair and connect the headset to your phone. Answering / Ending a call:Short press the MFB Rejecting an incoming call:Press and hold MFB for longer than 2 seconds.Redialing last number:Press and hold MFB for longer than 3 seconds. Talk time 8 Hours Standby time 120 HoursTypical -1~4 dBm for Class 2Out power: -0.5~4 dBmIf BT Headset dosen’t connector A.G.,it will auto-shut down after 300 sec. Button Function Without permission,any company,firm or user shall not alter the frequency,increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. The application of low power frequency electric machineries shall not affect the navigation safety nor inter a legal communication, if an Interference is found, the service will be suspended until improvement is made and the interference no loger exists. Button Headset Status Action Function MFB Ringing Short Press Answer an incoming call Talking Talking Short Press Voice Recognition Power off Press and hold for longer than 5 seconds Power on headset and put Headset into pairing mode Power on Press and hold for longer than 5 seconds Power off the Headset Voice dial Short Press The phone will enter voice dial mode (handset must have this function) ChargingFirst time use: Charge the headset for approximately 2 hours,or until the LED light is off.Step 1.Connect the miniconnector of chargingcable to the chargingconnector on the headset. Step 2.Connect the USBconnector of charging cable to the powered USBport on the desktop orlaptop. Step 3.LED will fash twice when connected and lights on during charging. After charging complete, LED will turn off.Note: Headset is not functional while charging. LED Flashing Event Flashing Pattern COMMENT Power on Flash 3 times ON (250ms) OFF (250ms Only applied when user power on thesystem. Power off Flash 3 times ON (250ms) OFF (250ms) Only applied when user shutdown the system. Pairing ON(300ms) OFF(300ms) Standby – No Connected ON(100ms) OFF(4900ms) N/A Standby - ACL connected ON(100ms) OFF(2900ms) N/A SCO Connected ON(100ms) OFF(1900ms) N/A Charging ON N/A Charging Complete OFF N/A N/A FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution . Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. . This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Light BTH 中兴蓝牙耳机 用户手册 充电 第一次使用：请将耳机充电约2小时，或直到LED灯熄灭。 步骤1.将充电线连接至耳机的充电界面。步骤2.将充电线的USB端子接到桌机或笔记型计算机的USB埠。步骤3. 连结充电时、LED会闪烁两次。充电时LED会保持亮着。当充电完成后，LED将熄灭。附注：耳机在充电时将无法运作。 如何使用 电源开/关：开:按住MFB按键的时间超过5秒钟关:按住MFB按键的时间超过5秒钟 配对：在使用耳机之前，您必须将耳机跟您的手机进行配对。步骤1.按住MFB按键五秒，让耳机开启并进入配对模式。步骤2.打开移动电话的蓝牙功能并设置手机搜索蓝牙设备。步骤3.选择耳机（Light BTH）。步骤4.输入密码0000配对并连接耳机到您的手机。 接听/结束通话：短按MFB拒绝接听来电：按住MFB的时间超过2秒回放最后号码：按住MFB的时间超过3秒通话时控制麦克风开/关：按住MFB的时间超过2秒通话时间 8 Hours待机时间 120 Hours蓝牙范围 信息 Class 2如果蓝牙耳机沒有和A.G.连线,300秒后自动关机。 按键功能 经型式认证合格之率射频电机,非经许可,公司、商号或使用者均不得擅自变更频率、加大功率或变原计之特性及功能。 低功率射频电机之使用不得影响飞航安全及干扰合法通信；经发现有干扰现象时，应立即停用，并改善至无干扰时方得继续使用。前项合法通信，指依电信法规定作业之无线电通信。低功率射频电机须忍受合法通信或工业、科学及医疗用电波辐射性电机设备之干扰。 按钮 耳机状态 动作 功能 MFB 响铃 按一下 回答来电 通话 按一下 挂断电话 关机 按住超过5 秒 开机并让耳机进入配对模式 开机 按住超过5 秒 关机 语音播号 按一下 手机进入语音播号模式(手机必需有此功能) MFB按键 前视图 后视图 LED 喇叭 麦克风 概观 事件 闪烁方式 备注 电源开启 闪烁 3 次 亮着 (300ms) 不亮 (300ms) 只有当系统开启时候. 电源关闭 闪烁 3 次 亮着 (300ms) 不亮 (300ms) 只有当系统关闭时候. 配对 亮着 (200ms) 不亮 (200ms) 待机--未连结 亮着 (500ms) 不亮 (2500ms) N/A 待机--ACL 连结 亮着 (1500ms) 不亮 (6000ms) N/A SCO 连结 亮着 (2000ms) 不亮 (6500ms) N/A 充电中 亮着 N/A 充电完成 不亮 N/A LED 显示状态 N/A

ZTE Corporation NO. 55, Hi-tech Road South, ShenZhen, P.R.China Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Name/Title: Royce Wang / Product Certification Manager Company Name: ZTE Corporation Address: ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 51807 TEL: 0086-755-26770345 FAX: 0086-755-26770347 Email: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

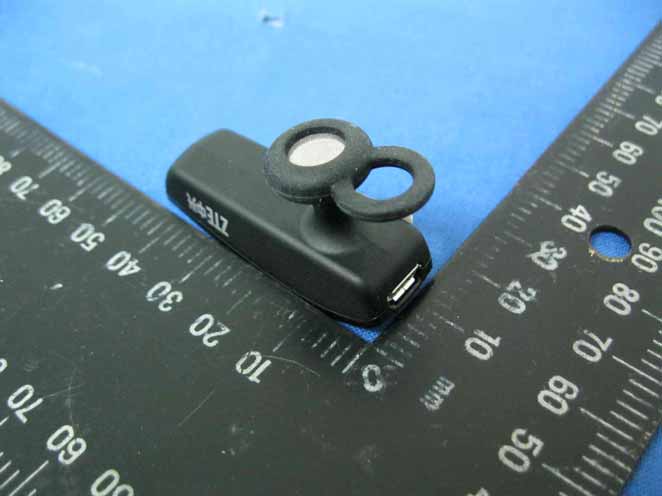

Report No.T110504301 Page 1 of 6 External Photo

Report No.T110504301 Page 2 of 6 Internal Photo Report No.T110504301 Page 3 of 6 Report No.T110504301 Page 4 of 6 Report No.T110504301 Page 5 of 6 Power Adapter Report No.T110504301 Page 6 of 6 USB Cable Photo

FCC IDQ78-B01 Report No.T110504301-RP1 Page 1 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Light BTH Model : B01 Trade Name : ZTE Issued for ZTE Corporation NO. 55, Hi-tech Road South, ShenZhen, P.R.China Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: +886-6-580-2201 FAX: +886-6-580-2202 http://www.ccsrf.com E-Mail : [email protected] Issued Date: May 19, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDQ78-B01 Report No.T110504301-RP1 Page 2 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 05/19/2011 Initial Issue All Page 86 Winnie Chen FCC IDQ78-B01 Report No.T110504301-RP1 Page 3 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 20dB BANDWIDTH FOR HOPPING...................................................................... 12-17 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 18-23 7.3 HOPPING CHANNEL SEPARATION..................................................................... 24-29 7.4 NUMBER OF HOPPING FREQUENCY USED ...................................................... 30-32 7.5 DWELL TIME ON EACH CHANNEL ...................................................................... 33-47 7.6 CONDUCTED SPURIOUS EMISSION .................................................................. 48-55 7.7 RADIATED EMISSION........................................................................................... 56-75 7.8 CONDUCTED EMISSION ...................................................................................... 76-80 APPENDIX SETUP PHOTOS .......................................................................................... 81-86 FCC IDQ78-B01 Report No.T110504301-RP1 Page 4 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZTE Corporation Address NO. 55, Hi-tech Road South, ShenZhen, P.R.China Equipment Under Test Light BTH Model B01 Trade Name ZTE Tested Date May 04 ~ 19, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager FCC IDQ78-B01 Report No.T110504301-RP1 Page 5 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Light BTH Model Number B01 Identify Number T110504301 Received Date May 04, 2011 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 6.31 dBm (0.0043W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spectrum Frequency Selection by software / firmware Transmitter Classification portable device Antenna Type PCB Antenna, Antenna Gain : 2.31dBi Normal Mode: 3.7Vdc(Battery Powered) Power Source Charging Mode: 5Vdc (From Notebook PC, Powered From Host Device) RF Exposure Evaluation Since the EUT is classed portable device, and the maximum peak power is 6.31 dBm (<13.6dBm), the MPE evaluation is not required and no SAR consideration applied. Signal Cable Unshielded micro cable 0.2 m × 1 I/O Port Micro USB port × 1 Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intend…

Text truncated - open the document above for the full version.

FCC IDQ78-B01 Report No.T110504301-RP1 Page 81 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDQ78-B01 Report No.T110504301-RP1 Page 82 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDQ78-B01 Report No.T110504301-RP1 Page 83 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC IDQ78-B01 Report No.T110504301-RP1 Page 84 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDQ78-B01 Report No.T110504301-RP1 Page 85 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP FCC IDQ78-B01 Report No.T110504301-RP1 Page 86 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
