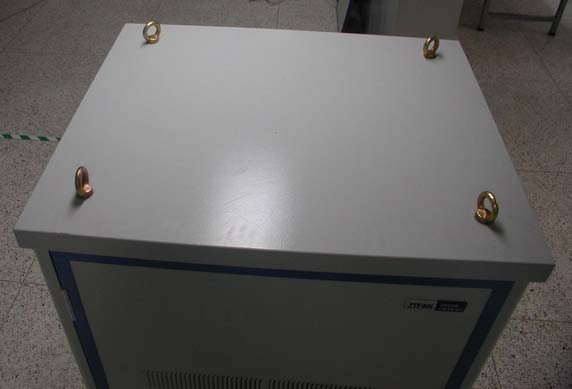

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT Front View EUT Back View EUT Top View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Rear Side of EUT / Proposed Label Location

§2.1091 - RF EXPOSURE Limit According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for Occupational/Controlled Exposures 0.3-3.0 3.0-30 30-300. 300-1500 614 1842/f 61.4 / 1.63 4.89/f 0.163 / *(100) *(900/f\2\) 1.0 f/300 6 6 6 6 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4лR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 44.90 (dBm) Maximum peak output power at antenna input terminal: 30.90 (W) Prediction distance: 300 (cm) Predication frequency: 1959.375 (MHz) Antenna Gain (typical): 17 (dBi) Power density at predication frequency at 300 cm: 0.464 (mW/cm2) MPE limit for uncontrolled exposure at prediction frequency: 5(mW/cm2) Test Result: Pass

ZTE Corporation FCC ID: Q78-CBTSO119 Report # RSZ06053004 FCC PART 24 TYPE APPROVAL Report 1 FCC PART 24 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China FCC ID: Q78-CBTSO119 May 30, 2006 Th i s Repo rt Co ncern s: Orig ina l Re port Eq uip m e n t T y pe : CD MA 2000 Outdoor Co m p ac t BTS – O1 Test Engineer: JX HE Report No.: RSZ06053004 Test Date: May 01-28, 2006 Reviewed By: ZH XIE Prepared By: ZTE Corporation. ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057, P.R.China Tel: +86-755-26770000 Fax: +86-755-26771999 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of ZTE Corporation. This report must not be used by the client to claim product certification、approval、or endorsement by any agency of the US Government. ZTE Corporation FCC ID: Q78-CBTSO119 Report # RSZ06053004 FCC PART 24 TYPE APPROVAL Report 2 TABLE OF CONTENTS GENERAL INFORMATION .......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE ...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S) .............................................................................................................................4 TEST METHODOLOGY ..................................................................................................................................................4 TEST FACILITY .............................................................................................................................................................4 EXTERNAL I/O CABLE .................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION ......................................................................................................................6 EQUIPMENT MODIFICATIONS .......................................................................................................................................6 CONFIGURATION OF TEST SETUP .................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1091 - RF EXPOSURE ................................................................................................................................................9 LIMIT ...........................................................................................................................................................................9 TEST DATA ..................................................................................................................................................................9 §2.1046, §22.913(a) - EFFECTIVE RADIATED POWER ......................................................................................10 APPLICABLE STANDARD ............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE ......................................................................................................................................................10 TEST DATA ................................................................................................................................................................10 §2.1047- MODULATION CHARACTERISTIC ......................................................................................................18 APPLICABLE STANDARD ............................................................................................................................................18 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................18 TEST PROCEDURE ......................................................................................................................................................18 TEST DATA ................................................................................................................................................................18 §15.107 (a)- CONDUCTED EMISSION .......................................................................................................26 MEASUREMENT UNCERTAINTY ..................................................................................................................................26 EUT SETUP ................................................................................................................................................................26 Test Receiver Setup ......................................................................................................................................27 Test Equipment List and Details............................................................................................................…
