Q78-D930V2DCDMA 2000 Digital Mobile Phone

Contents Using your phone ...................... 1 Getting to know your phone... 2 Onscreen icons ......................... 4 Before getting started.............. 5 Inserting a memory card......... 5 Using the battery.......................6 Power on/off............................... 9 Powering on ...............................9 Powering off ...............................9 Basic Operation........................10 Screen control ......................... 10 Enter the Launcher .................. 11 Home screen............................. 11 Display the dial keyboard ..... 13 Switch to sleep mode............ 13 Wake up your phone.............. 13 Text Input .................................. 15 Keyboard ................................... 15 XT9 text input........................... 16 Care and maintenance............17 Consumer limited warranty ... 18 Additional safety information . 22 Using your phone 1 Using your phone Thanks for choosing the ZTE ® Chorus TM (Model #: D930). It’s a CDMA2000 1X EVDO Digital Mobile Phone, which is shortly referred to as ‘phone’ from now on. Don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions it shows that matter. For more information about how to use your phone, refer to the User Manual on the phone. To r e a d t h e User Manual, do as follows: 1. Hold the power key to turn on your phone. 2. Click to enter the Launcher, select Settings > About phone > User manual. 2 Getting to know your phone Touch screen Menu/ Speakerphone key Home / Back key Muve music key Speaker Speaker Camera Headset jack Speaker Getting to know your phone Getting to know your phone 3 Power key Volume keys USB port Menu/Speakerphone key: Menu/Hold the key to enable or disable Speakerphone mode. Muve music key: Enter Muve music. Home/Back key: Back/Hold the key to back to home screen. 4 Onscreen icons Onscreen icons Icons Descriptions Icons Descriptions Signal strength No signal Battery is full Charging Battery is low In call Connected to 3G You have an unread message. Speakerphone is on You have unheard voicemail. Call forwarding is on Missed call Call on hold Connected to a PC Vibrate mode Music playing Ringer is silenced New calendar reminder Flight mode A clock alarm is active. Bluetooth ® is on Receiving location data from GPS Roaming Before getting started 5 Before getting started Inserting a memory card 1. Turn off your mobile phone, remove the battery and disconnect any external power. 2. Slide the metal clasp back, and then open. 3. Insert the memory card into the slot. 4. Close the clasp and slide into place to secure the card. Note : This mobile phone supports memory cards. For details on compatibility information of memory, please consult your manufacturer or supplier. 6 Before getting started Using the battery Inserting the battery 1. Open the battery cover on the back of your phone. 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover clicking it back into position. Before getting started 7 Removing the battery 1. Switch off your phone. 2. Open the battery cover. 3. Lift the battery up and out of your phone. Charging the battery The rechargeable Li-ion battery that comes with your phone is ready to use, but is not charged. That’s easy to do. We’ll show you how below. The first three times you use the battery, make sure it’s completely drained before recharging, then recharge it fully. That will help to ensure its optimum performance and a long life. 8 Before getting started 1. Connect the charger to your phone, and plug it into an 110V/220V socket. 2. The battery indicator in the corner of the screen will scroll right and left to show you it’s charging. If the phone’s battery has been fully drained, the battery indicator may not immediately appear on the screen when charging starts. Please don’t worry if the phone and charger become warm while charging. That’s completely normal. 3. When fully charged, the battery indicator will stop scrolling right and left. 4. Disconnect the charger from your mobile, and unplug. Power on/off 9 Power on/off Powering on Press the power key until the power-on icon appears. Powering off Long press the power key to display the menu Phone options and select Power off. 10 Basic Operation Basic Operation Screen control You can control your phone through a series of operations on the screen. z Press: you can press the items on the screen to select, open the applications, or use the keyboard to input characters. z Slide: you can scroll up/down the page or scroll the page left/right by sliding vertically or horizontally on the screen. z Long press: you can long press some items to get the item's available menu. Long press the application icons to add the shortcuts of these applications to the home page. z Drag: you can drag some items on the screen to realize some operations. z Switch between landscape mode and portrait mode: you can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as text input interface, message viewing interface, etc. Basic Operation 11 Enter the Launcher On the Home screen, touch the Launcher icon to enter the Launcher and press the icon to return. After entering the Launcher, press the icon to enter the corresponding submenu, press the Home/Back key to return to the previous menu and press the Home/Back key to return to the home screen. Home screen Indication of three home screens. MessagingContacts Launcher icon Phone Widget Notification bar Drag the notification bar down from the top of the screen to open notifications panel. Status bar Show the Signal strength, battery status, etc. Icons Touch to open the relevant application. 12 Basic Operation Add icons to the home screen Long press the empty area on the home screen to pop up Add to Home screen menu. Select Shortcuts, Widgets…

Text truncated - open the document above for the full version.

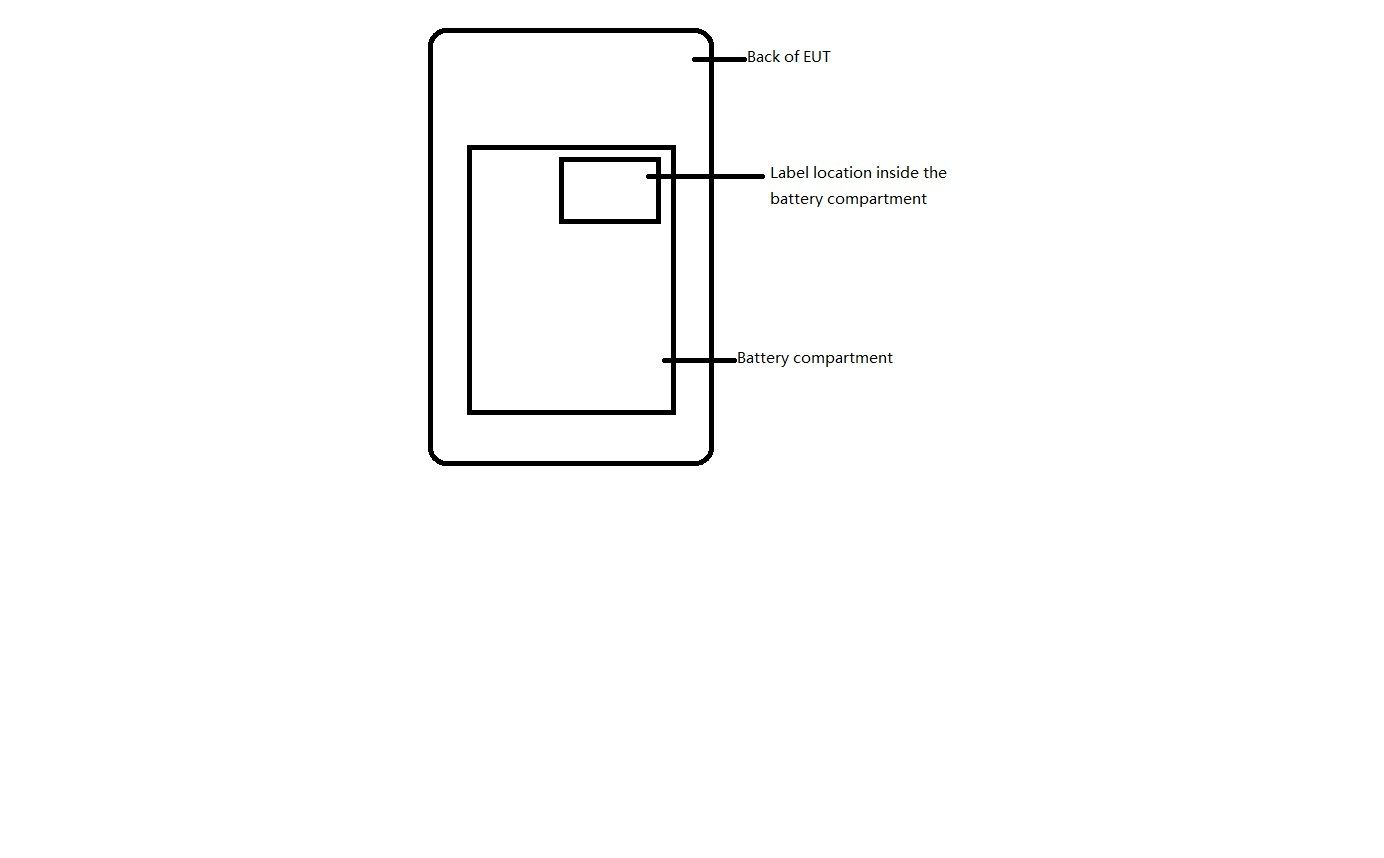

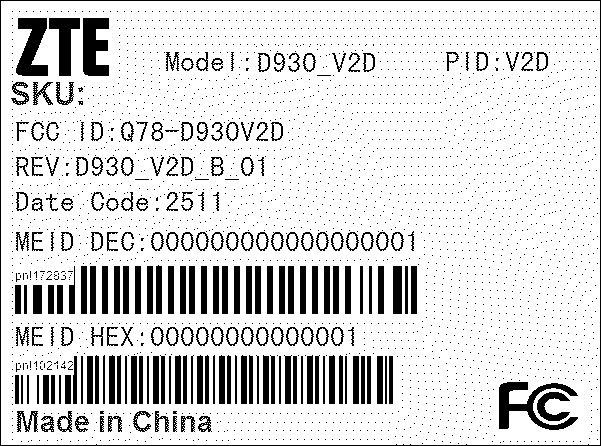

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-D930V2D, has no space to put the label except the surface of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. _______________________ Contact Person: David. Gong Company: ZTE CORPORATION Tel: +86-755-86360379 Fax: +86-755-86360298 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: July 21, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-D930V2D To Whom It May Concern: We, ZTE CORPORATION, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, David Gong

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-D930V2D Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: D930_V2D _Schem.pdf) Block Diagram (file: D930_V2D _BlkDia.pdf) Parts List (file: D930_V2D _PartsLst.pdf) Operation Description (file: D930_V2D _OpDes.doc) Tune Up Procedure (file: D930_V2D _TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Date: July 21, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang have designated Jones Tsai in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: Q78-D930V2D Any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Royce Wang ZTE CORPORATION Tel: +86-755-26770345 Fax: +86-755-26770347 E-Mail: [email protected]

Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D 1. External Photograph of EUT Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50M5-C Battery Brand Name ZTE Model Name Li3710T42P3h553457-NTC USB Cable Brand Name YiLiSheng Model Name USB-MU5-B-120 Type 1.20m shielded without core Earphone Brand Name SANGFAI Model Name SF-880KM-45 Type 1.64m non-shielded without core Camera Brand Name A-kerr Model Name YD15UF LCD Panel Brand Name TIANMA Model Name TM032LDZ19 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D

Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D 3. Internal Photograph of EUT Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D WWAN Main Antenna Tx / Rx Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D WWAN Vice Antenna Rx Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D Bluetooth Antenna Tx / Rx Photographs of EUT Report No.: EP142629 Brand Name: ZTE / Model Name: D930_V2D SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D GPS Antenna Rx

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D FCC SAR Test Report Report No. : FA142629 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 System Check_Head_835MHz_110612 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 835 MHz; σ = 0.911 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.55 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.6 V/m; Power Drift = 0.103 dB Peak SAR (extrapolated) = 3.37 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 System Check_Body_835MHz_110612 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110612 Medium parameters used: f = 835 MHz; σ = 0.974 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.76 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.3 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.75 mW/g 0 dB = 2.75mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-11 System Check_Head_1800MHz_110611 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800_110611 Medium parameters used: f = 1800 MHz; σ = 1.43 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.29, 5.29, 5.29); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.1 V/m; Power Drift = 0.0037 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (measured) = 10.3 mW/g 0 dB = 10.3mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-11 System Check_Body_1800MHz_110611 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_110611 Medium parameters used: f = 1800 MHz; σ = 1.55 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.67, 4.67, 4.67); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.7 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 14 W/kg SAR(1 g) = 9.44 mW/g; SAR(10 g) = 5.32 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-11 System Check_Head_1900MHz_110611 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110611 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.03, 5.03, 5.03); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 95.2 V/m; Power Drift = -0.0031 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.42 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-11 System Check_Body_1900MHz_110611 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110611 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.39, 4.39, 4.39…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-D930V2D FCC SAR Test Report Report No. : FA142629 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 #21 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch1013 DUT: 142501 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 825 MHz; σ = 0.9 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.651 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.075 dB Peak SAR (extrapolated) = 0.735 W/kg SAR(1 g) = 0.560 mW/g; SAR(10 g) = 0.401 mW/g Maximum value of SAR (measured) = 0.601 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 #22 CDMA2000 BC0_RC3 SO55_Right Tilted_Ch1013 DUT: 142501 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 825 MHz; σ = 0.9 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.391 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.8 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 0.438 W/kg SAR(1 g) = 0.365 mW/g; SAR(10 g) = 0.281 mW/g Maximum value of SAR (measured) = 0.384 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.8 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 0.421 W/kg SAR(1 g) = 0.304 mW/g; SAR(10 g) = 0.208 mW/g Maximum value of SAR (measured) = 0.347 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 #23 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch1013 DUT: 142501 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 825 MHz; σ = 0.9 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.664 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.069 dB Peak SAR (extrapolated) = 0.769 W/kg SAR(1 g) = 0.615 mW/g; SAR(10 g) = 0.453 mW/g Maximum value of SAR (measured) = 0.656 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 #23 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch1013_2D DUT: 142501 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 825 MHz; σ = 0.9 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.664 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.069 dB Peak SAR (extrapolated) = 0.769 W/kg SAR(1 g) = 0.615 mW/g; SAR(10 g) = 0.453 mW/g Maximum value of SAR (measured) = 0.656 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-12 #24 CDMA2000 BC0_RC3 SO55_Left Tilted_Ch1013 DUT: 142501 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110612 Medium parameters used: f = 825 MHz; σ = 0.9 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.384 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = 0.087 dB Peak SAR (extrapolated) = 0.440 W/kg SAR(1 g) = 0.369 mW/g; SAR(10 g) = 0.282 mW/g Maximum value of SAR (measured) = 0.389 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measureme…

Text truncated - open the document above for the full version.
