Q78-E821SWCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone

Confidential and Proprietary Information of ZTE CORPORATION 1 E821S User Manual ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26779999 Website: http://www.zte.com.cn E-mail: [email protected] E821SE821S User Manual 2 Confidential and Proprietary Information of ZTE CORPORATION LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. The content here may be different from your device. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time: April 2011 Manual No. : 07958450 E821SE821S User Manual Confidential and Proprietary Information of ZTE CORPORATION 3 Contents Safety Information ........................................................................................................................... 5 General Care ................................................................................................................................ 5 General Guidelines ...................................................................................................................... 6 Road Safety ................................................................................................................................. 6 Hospital Safety ............................................................................................................................ 7 Emergency Service ...................................................................................................................... 7 Third Party Equipment ................................................................................................................ 7 Vehicles Equipped with an Airbag .............................................................................................. 8 Aircraft Safety ............................................................................................................................. 8 Privacy Information ..................................................................................................................... 8 Copyright Notice ......................................................................................................................... 8 Radio Frequency (RF) Energy .................................................................................................... 8 FCC Compliance ......................................................................................................................... 9 Limitation of Liability ................................................................................................................. 9 Your Phone .................................................................................................................................... 10 Instruction .................................................................................................................................. 10 Overview ................................................................................................................................... 10 Starting Up .................................................................................................................................... 11 Open the Back Cover ................................................................................................................ 11 Installing the Battery ................................................................................................................. 11 Installing the (U)SIM Card ....................................................................................................... 12 Inserting the Memory Card ....................................................................................................... 12 Charging .................................................................................................................................... 13 Security Code ............................................................................................................................ 13 Phone Password ..................................................................................................................... 13 PIN Code ............................................................................................................................... 14 PIN2 Code ............................................................................................................................. 14 PUK Code ............................................................................................................................. 14 Basic .............................................................................................................................................. 15 Power On/Off ............................................................................................................................ 15 Standby Mode ........................................................................................................................... 15 Indicator Icons ........................................................................................................................... 15 Main Menu ................................................................................................................................ 16 Keypad Lock ............................................................................................................................. 17 Multitasking .............................................................................................................................. 18 Making Calls ....................................................................…

Text truncated - open the document above for the full version.

Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 1 /Description about function of Antenna There are two internal antennas of planar monopole type in ZTE E821S mobile phone. One is main antenna cover WCDMA (W850/W2100) and GSM(GSM850/GSM900/GSM1800/GSM1900) band. The other is BT antenna. The two antennas are put on the different side. All antennas are suitable to be built-in within the housing of the mobile phone. The planar monopole antenna is a good candidate for wireless communication because of its simple structure, omni-directional radiation characteristics, low profile and light-weight. Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 2 Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 3 Return Loss --main antenna Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 4 Return Loss ------BT antenna Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 5 Radiation Pattern--main antenna H plane E1 plane Internal Use Only <> All Rights reserved, No Spreading abroad without Permission of ZTE 6 E2 plane Radiation Pattern--BT antenna

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Jul 10, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Jul 10, 2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-MOVISTARVEGA To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected] -Q78-E821S

! ! ! ! ! !

Report No.: RZA1105-0862SAR Page 1 of 126 TESTING No. L2264 OET 65 TEST REPORT Product Name WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model ZTE E821S FCC ID Q78-E821S Client ZTE CORPORATION TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 2 of 126 GENERAL SUMMARY Product Name WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model ZTE E821S FCC ID Q78-E821S Report No. RZA1105-0862SAR Client ZTE CORPORATION Manufacturer ZTE CORPORATION Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: July 18 th , 2011 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 3 of 126 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 8 1.7. The Maximum Power of Each Tested Mode ......................................................................... 9 1.8. Test Date .............................................................................................................................. 9 2. Operational Conditions during Test ............................................................................................ 10 2.1. General Description of Test Procedures............................................................................. 10 2.2. GSM Test Configuration ...................................................................................................... 10 2.3. WCDMA Test Configuration ................................................................................................ 11 2.3.1. Output Power Verification ............................................................................................ 11 2.3.2. Head SAR Measurements ........................................................................................... 11 2.3.3. Body SAR Measurements ........................................................................................... 11 2.4. Test Positions...................................................................................................................... 11 2.4.1. Against Phantom Head ................................................................................................ 11 2.4.2. Body Worn Configuration............................................................................................. 11 3. SAR Measurements System Configuration ................................................................................ 12 3.1. SAR Measurement Set-up .................................................................................................. 12 3.2. DASY4 E-field Probe System ............................................................................................. 13 3.2.1. EX3DV4 Probe Specification ....................................................................................... 13 3.2.2. E-field Probe Calibration .............................................................................................. 14 3.3. Other Test Equipment .........................................................................................................14 3.3.1. Device Holder for Transmitters .................................................................................... 14 3.3.2. Phantom...................................................................................................................... 15 3.4. Scanning Procedure........................................................................................................... 15 3.5. Data Storage and Evaluation .............................................................................................. 17 3.5.1. Data Storage................................................................................................................ 17 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 17 3.6. System Check..................................................................................................................... 20 3.7. Equivalent Tissues ..................…

Text truncated - open the document above for the full version.

TEST REPORT No. 2011TAR337 for ZTE Corporation WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model Name: ZTE E821S FCC ID: Q78-E821S with Hardware Version: w5dA Software Version: ZTE_VV_E821S_V1.0 Issued Date: Jul 07, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2011TAR337 Page2 of 80 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ................................................................................ 11 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 18 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 23 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ........................................................................... 28 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 30 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 42 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................................................. 54 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........................................... 60 No.2011TAR337 Page3 of 80 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jun 17, 2011 Testing End Date: Jul 07, 2011 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR337 Page4 of 80 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2011TAR337 Page5 of 80 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model Name ZTE E821S FCC ID Q78-E821S Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band V Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 33.63 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, pl…

Text truncated - open the document above for the full version.

No.2011TAR338 Page1 of 38 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2011TAR338 for ZTE Corporation WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model Name: ZTE E821S FCC ID: Q78-E821S with Hardware Version: w5dA Software Version: ZTE_VV_E821S_V1.0 Issued Date: Jul 07, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011TAR338 Page2 of 38 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)) .............................................................................................. 11 A.2 EMISSION LIMT (§2.1051/§22.917) .......................................................................................... 15 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 19 A.4 FREQUENCY STABILITY (§2.1055) ........................................................................................ 23 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ............................................................................... 25 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B))................................................................ 27 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) .......................................................... 29 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ......................................... 30 No.2011TAR338 Page3 of 38 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jun 17, 2011 Testing End Date: Jul 07, 2011 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR338 Page4 of 38 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086 21 68897541 Fax: 0086 21 50801070 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Country: China Telephone: 0086 21 68897541 Fax: 0086 21 50801070 No.2011TAR338 Page5 of 38 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Model Name ZTE E821S FCC ID Q78-E821S Frequency GSM 850MHz; PCS 1900MHz; WCDMA B…

Text truncated - open the document above for the full version.

CE1 CE2 RE: RE USB:

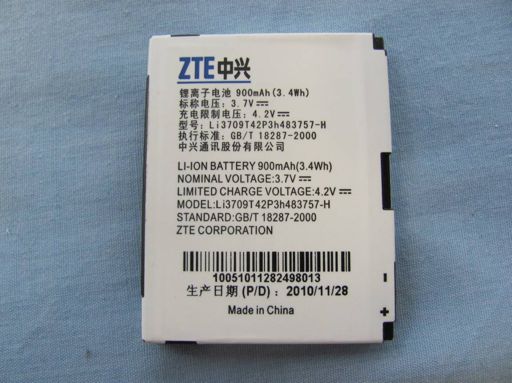

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 121 of 126 ANNEX H: The EUT Appearances and Test Configuration a: EUT b: Battery TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 122 of 126 c: Back View Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 123 of 126 Picture 7: Left Hand Touch Cheek Position Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 124 of 126 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 125 of 126 Picture 11: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 12: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0862SAR Page 126 of 126 Picture 13: Body with earphone, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm 15mm
