Q78-EUFI890LTE MOBILE HOTSPOT

ZTE EuFi890 Quick Start Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No.: 1.0 Edition Time: 05 -2011 Manual No.: 07958450xxxx Confidential and Proprietary Information of ZTE CORPORATION 1 Quick Guide Introduction ZTE EuFi890 is the newly developed LTE global-mode mobile hotspot device. It can provide LTE/EVDO/UMTS/EDGE/ GPRS flexible access for users to enjoy high-speed internet applications anytime and anywhere. EuFi890 has two work modes, Wi-Fi AP mode and USB Tethered mode. I n Wi-Fi AP mode, up to 5 Wi-Fi enabled clients can connect to the device simultaneously. This quick guide provides the instructions on how to install and get started with the product. For information about the services of connection, please consult your service provider. ZTE EUFI890 Quick Guide 2 Confidential and Proprietary Information of ZTE CORPORATION Specification Data Service LTE-FDD: 50 Mbps DL; 20 Mbps UL CDMA 1xEV-DO: 3.1 Mbps DL; 1.8 Mbps UL HSDPA/HSUPA: 14.4 Mbps DL; 5.76 Mbps UL EDGE: 473.6 Kbps UL/DL GPRS: 171.2 Kbps UL/DL Interface Micro USB 2.0 and Wi-Fi Wi-Fi Standard 802.11b/g/n Wi-Fi Security WEP/WPA/WPA2 Weight TBD Dimension(L×W×H) 88.8 mm*88.8 mm*18 mm Battery 1800 mAh *Standby time 100 hours *Working time 4 hours Operate system Windows 7, Windows Vista, Windows XP (SP2 or later), MAC 10.4 or later Web Browser IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome (5.0 or later) Operating temperature -10 °C ~ +60 °C Operating humidity 10% ~ 85% Storage temperature -20 °C ~ +70 °C Storage humidity 5% ~ 90% Notes: The device‟s standby and working time are only for your reference, and based on ideal working environment. ZTE EUFI890 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 3 Getting to Know Your Device The following figure shows the appearance of the device, it is only for your reference. The actual device may be different. Interface and Buttons 1. OLED Screen Displays the menus and the status of your device. 2. Up Button Scroll up to select the options. 3. OK Button Confirm the selection or operation. 4. Down Button Scroll down to select the options. 5. Power Switcher Power on/off your device. 6. Micro USB Port Charge your device. 7. Reset Button Press to restore your device to the factory default settings. OLED Indicator Icon Description Battery indication, animate while charging. No battery Data meter and 4G signal indication and 3G signal indication Roaming 1 2 3 4 6 7 5 ZTE EUFI890 Quick Guide 4 Confidential and Proprietary Information of ZTE CORPORATION Icon Description Indicates the numbers of current Wi-Fi connections. Settings Message ZTE EUFI890 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 5 Hardware Installation Inserting SIM Card and Battery 1. Use the thumb catch at the bottom of the device to open the battery cover as shown. 2. Insert the SIM card into the SIM card holder as shown. 3. Insert the battery as shown with the contacts located against the metal springs, and then press the battery down into the case. 4. Line the battery cover up correctly and press gently to close the case. ZTE EUFI890 Quick Guide 6 Confidential and Proprietary Information of ZTE CORPORATION Switching On/Off Your Device Slide the Power switcher to switch on/off the device. Notes: The device is powered on when the OLED screen lights up. Charging Your Device You can charge your device by using USB cable or adapter. 1. Insert the charger lead carefully with the plug arrow facing the bottom of the device. 2. The plug only fits one way. Do not use excessive force to insert the plug. 3. Make sure the plug is the right way round and lined up correctly and insert it gently. ZTE EUFI890 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 7 Working Mode The client enabled Wi-Fi function could connect to your device via Wi-Fi mode, shown as the picture below. ZTE EUFI890 Quick Guide 8 Confidential and Proprietary Information of ZTE CORPORATION Establishing a Connection between Your Device and the Client 1.Power on your device directly. It will take 1~2 minutes to initialize. 2. Use your normal Wi-Fi application on the client to search the available wireless network. Notes: You need to check your Wireless Network Connection. Set the client to obtain an IP address automatically in the Internet protocol (TCP/IP) properties, and the client will get an IP address like “192.168.0.100”. 3. Select the SSID of your device, and then click Connect. Notes: There will be a pop-up window to require the password. The SSID and default password will display once you power the device on, or you can select the WLAN information icon, and then choose SSID information to gain the SSID and preset password information. 4. Wait a moment, the connection between your device and the client will be established successfully. ZTE EUFI890 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 9 Accessing the Internet 1. Switch on the device. 2. Establish a connection between your device and the client. 3. After successfully establishing the connection, access the Internet in the Auto Connect, Manual Connec t mode. The default mode is Auto Connect. Notes: You can browse the WebGUI Configuration page and select WAN Settings > WAN Connection to set the connection mode. ZTE EUFI890 Quick Guide 10 Confidential and Proprietary Information of ZTE CORPORAT…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: June 23, 2011 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-EUFI890 , has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Royce Wang

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: June 23, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-EUFI890 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE EuFi890_Schem.pdf) Block Diagram (file: ZTE EuFi890_BlkDia.pdf) Parts List (file: ZTE EuFi890_PartsLst.pdf) Operation Description (file: ZTE EuFi890_OpDes.pdf) Tune up Procedure (file: ZTE EuFi890_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Royce Wang

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-29-88458594; Fax: +86-29-88723529 Date: June 23, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-EUFI890 To Whom It May Concern: We, ZTE CORPORATION, hereby declare to the LTE device that the MPR is permanent implement in this device by software (NV items) for 10MHz bandwidth QPSK , and 16QAM. The MPR power back off for 16QAM is 1 dB, which is within 3GPP tolerance, and the device cannot transmit higher power than the Tune up procedures. Sincerely yours, Name: Yang Zhao/ Title: Certification Manager Tel: +86-29-88458594 E-Mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: June 23, 2011 Power of Attorney To whom it may concern, Please be notified that I, ZTE CORPORATION, have designated Jones Tsai in Sporton International Inc. and Zhaoyang in ZTE CORPORATION as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-EUFI890 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: June 23, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-EUFI890 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

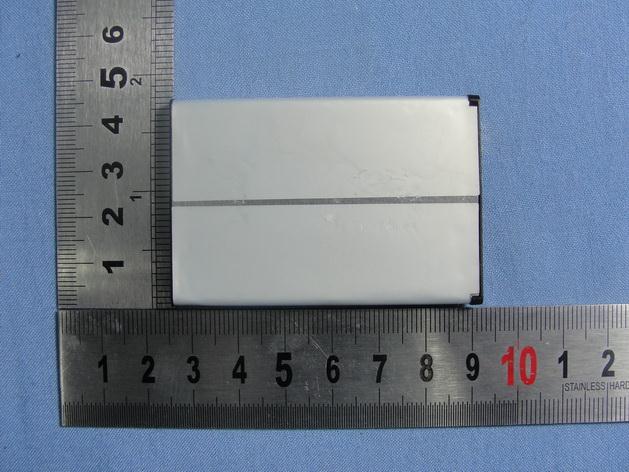

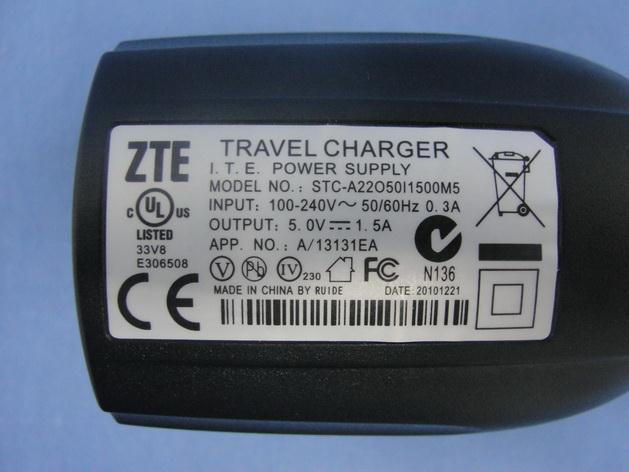

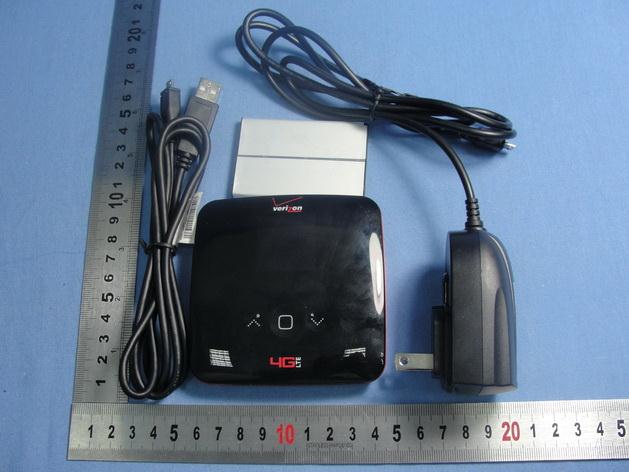

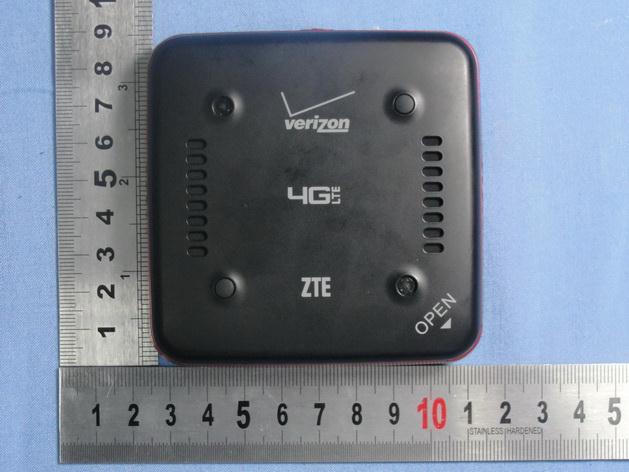

Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 List of Accessory: Specification of Accessory AC Adapter Brand Name RUIDE Model Name STC-A22O50I1500M5 Battery Brand Name ZTE Model Name Li3717T42P3h654458 USB Cable Signal Line 1.22 meter, non-shielded, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 720510 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890

Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 GPS Antenna Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 WIFI Antenna Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 WWAN diversity Antenna (Rx only) Photographs of EUT Report No.: EP0D2830 Brand Name: ZTE / Model Name: EuFi890 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-EUFI890 WWAN Main Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 39 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : Q78-EUFI890 FCC SAR Test Report Report No. : FA0D2830 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : LTE Mobile Hotspot BRAND NAME : ZTE MODEL NAME : EuFi890 FCC ID : Q78-EUFI890 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 28, 2010 and completely tested on Jun. 14, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 39 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : Q78-EUFI890 FCC SAR Test Report Report No. : FA0D2830 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 3.5.3 LTE operating configurations addressed in KDB 941225 D05 ................................................................ 8 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/13 System Check_Body_750MHz_110513 DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_110513 Medium parameters used: f = 750.076 MHz; σ = 0.922 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.84, 8.84, 8.84); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.45 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.3 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 3.79 W/kg SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.5 mW/g Maximum value of SAR (measured) = 2.46 mW/ g 0 dB = 2.46mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/14 System Check_Body_750MHz_110514 DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_110514 Medium parameters used: f = 750.076 MHz; σ = 0.922 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.84, 8.84, 8.84); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.39 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.6 V/m; Power Drift = 0.061 dB Peak SAR (extrapolated) = 3.73 W/kg SAR(1 g) = 2.27 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.42 mW/ g 0 dB = 2.42mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-9 System Check_Body_835MHz_110509 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110509 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.76 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.3 V/m; Power Drift = -0.00223 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.54 mW/g; SAR(10 g) = 1.69 mW/g Maximum value of SAR (measured) = 2.76 mW/g 0 dB = 2.76mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-6-14 System Check_Body_835MHz_110614 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110614 Medium parameters used: f = 835 MHz; σ = 0.975 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.83 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = 0.00133 dB Peak SAR (extrapolated) = 3.72 W/kg SAR(1 g) = 2.62 mW/g; SAR(10 g) = 1.73 mW/g Maximum value of SAR (measured) = 2.84 mW/g 0 dB = 2.84mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-3 System Check_Body_1900MHz_110503 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110503 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.39, 4.39, 4.39); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.7 V/m; Power Drift = 0.00891 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.76 mW/g Maximum value of SAR (measured) = 12.2 mW/g 0 dB = 12.2mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-9 System Check_Body_1900MHz_110509 DUT: Dipole 1900 MHz Communication System: CW; Frequen…

Text truncated - open the document above for the full version.
