Q78-G--R221GSM/GPRS Digital Mobile Phone

ZTE-G R221 Mobile Phone User Manual LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.1 Edition Time : 20101126 Manual No. : 079584502317 3 Table of Contents SECURITY .................................. 5 SAFETY PRECAUTIONS ........... 5 RF EXPOSURE ........................ 15 LIMITATION OF LIABILITY ..... 18 KEY FUNCTIONS ..................... 19 LOCKING AND UNLOCKING THE KEYPAD ........................... 21 INTERFACE ICONS ................. 21 BATTERY.................................. 22 INSERTING THE SIM CARD.... 24 INSERTING THE MEMORY CARD ........................................ 25 CHARGING THE BATTERY ..... 27 POWERING YOUR PHONE ON/OFF .....................................28 TURNING THE TORCH ON/OFF ..................................................28 WRITING TEXT.........................29 HOW TO ADD CONTACT TO THE PHONEBOOK...................31 HOW TO MAKE AND RECEIVE CALLS ......................................32 HOW TO SEND MESSAGES ...33 HOW TO RECEIVE MESSAGES ..................................................33 HOW TO SET USER PROFILES ..................................................34 4 HOW TO VIEW CALL HISTORY .................................................. 34 HOW TO CONFIGURE CALL SETTINGS ................................ 35 HOW TO SET YOUR PHONE .. 35 HOW TO SET YOUR ALARM .. 36 FILE MANAGER ...................... 37 CAMERA .................................. 37 VIEWING IMAGE ..................... 38 HOW TO PLAY MUSIC ............ 38 *HOW TO USE FM RADIO ...... 39 HOW TO USE SERVICES........ 39 5 Security „ To protect your mobile phone from illegal use, take the security measures as follows: ¾ Set PIN codes of the SIM card. ¾ Set handset lock code. ¾ Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions „ Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting. 6 „ Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed. „ Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing- light feature on your phone. (The flashing-light feature is not available on all products.) „ Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving „ Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them. „ Use hands-free function of the phone, if available. 7 „ Pull off the road and park before making or answering a call if conditions require. Precautions for Medical Devices and Facilities „ When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary. „ Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to discuss alternatives. „ If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy. „ In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. 8 Mobile Phone „ Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals. „ Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone. „ As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks. „ Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference. „ Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices. „ Keep your phone dry. Any liquid may damage your phone. 9 „ Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards. „ Do not connect the phone with any incompatible enhancement. „ Do not attempt to disassemble the mobile phone or battery. „ Do not store the phone with flammable or explosive articles. „ Do not charge the mobile phone without battery. „ Some electronic devices are susceptible to electromagnetic interference sent by phone if inadequately shielded. Please use phone at least 20 cm or as far away as you can from TV set, radio and other automated office equi…

Text truncated - open the document above for the full version.

ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070 Authorization Letter Date: January 12, 2011 BABT Forsyth House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: We, the undersigned, hereby authorize Ms. Zhang Xiaoying from TUV Product Service Limited, Beijing Branch, Unit 918, Landmark Tower 2, 8 North Dongsanhuan Road, 100004 Beijing, act on our behalf, as our agent, in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization shall expire 3 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Sincerely Royce Wang Title: Product Certification Director

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: GSM/GPRS Digital Mobile Phone Product Model: ZTE-G R221 FCC ID: Q78-G--R221 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Royce Wang Title: Product Certification Director ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070

Q78-G--R221 External Photo

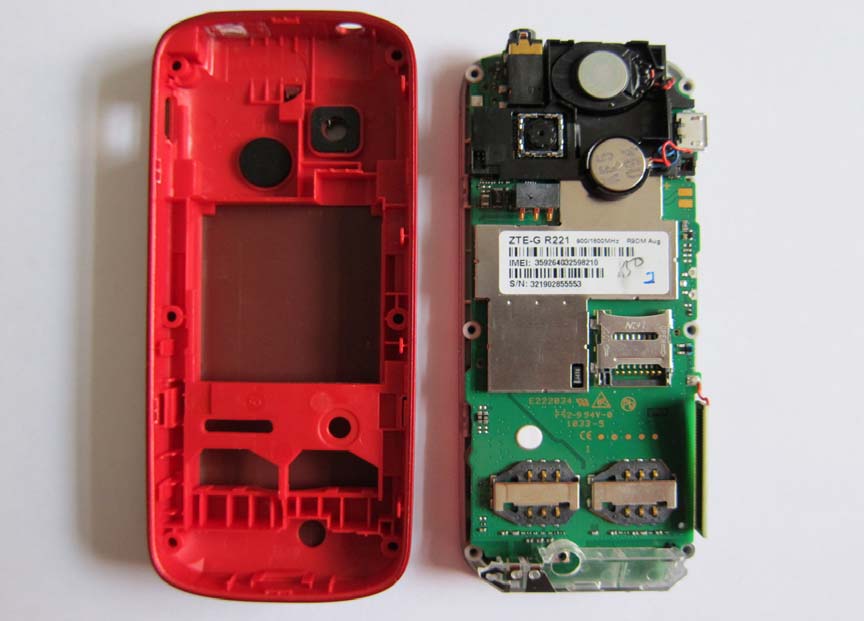

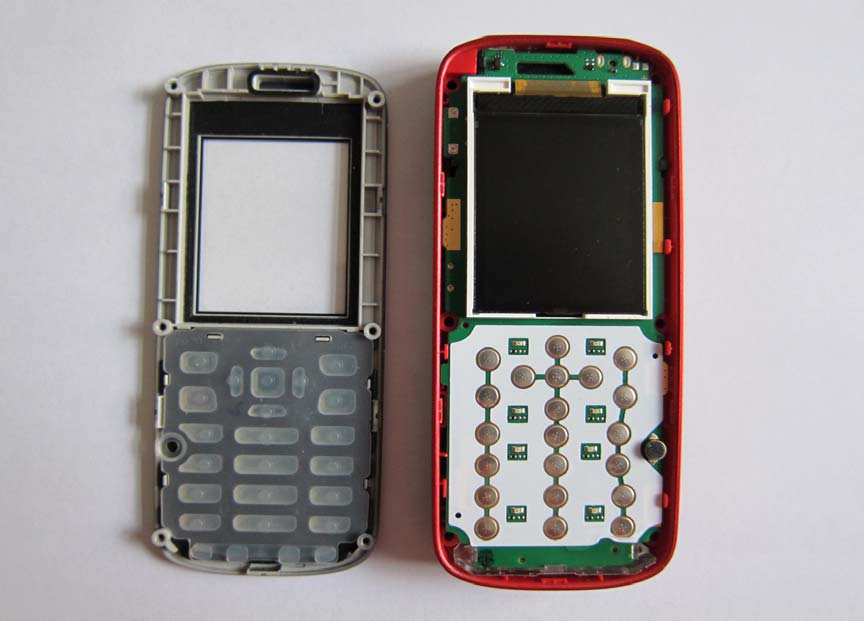

Q78-G--R221 Internal Photo

DAT-P-174/04-00 CNAS L0447 Registration No.910917 CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS Report No. : SRTC2011-H024-E0004 Product Name: GSM/GPRS Digital Mobile Phone Product Model: ZTE-G R221 Applicant: ZTE Corporation Manufacture: ZTE Corporation Specification: FCC OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01) 47CFR 2.1093 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2011-H024-E0004 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 81 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Executive summary Test report no.: SRTC2011-H024-E0004 Product Model: ZTE-G R221 Date of test: 2011.01.15 Date of report: 2011.01.18 Laboratory: The State Radio_monitoring_center Testing Center (SRTC) Test has been Carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 5 years at SRTC Result summary: This Test Report Is Issued by: Mr. Song Qizhu Director of the test lab Checked by: Mr. Wang Junfeng Deputy director of the test lab Tested by: Ms. Liu Jia Test engineer Issued date: 2011.02.11 Mode CH/f(MHz) Power Position Sar Limit (1g avg) (mW/g) Measured value (1g avg)(mW/g) Result GSM850 189/836.4 32.1dBm Left cheek 1.6 1.19 PASS No.: SRTC2011-H024-E0004 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 81 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Tables of contents 1. GENERAL INFORMATION......................................................................................................3 1.1 Notes of the test report ........................................................................................................3 1.2 Information about the testing laboratory .............................................................................3 1.3 Applicant’s details...............................................................................................................3 1.4 Manufacturer’s details.........................................................................................................3 1.5 Test Details .........................................................................................................................4 1.6 Maximum Results ...............................................................................................................4 1.6.1 Head Configuration ..................................................................................................4 1.6.2 Body Worn Configuration ........................................................................................4 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................5 2.1 Description of the Antenna .................................................................................................5 2.2 Picture of the EUT ..............................................................................................................5 2.3 Test Positions for the Device under test ..............................................................................6 2.4 Picture to demonstrate the required liquid depth.................................................................7 3. TEST CONDITIONS..................................................................................................................8 3.1 Temperature and Humidity.....................................................................................................8 3.2 Test Signal, Frequencies and Output Power .......................................................................8 4. DESCRIPTION OF THE TEST EQUIPMENT.......................................................................8 4.1 Measurement System and Components ..............................................................................8 4.1.1 Isotropic E-field Probe Type ES3DV3 .....................................................................9 4.2 Phantoms .............................................................................................................................9 4.3 Tissue Simulants .................................................................................................................9 4.3.1 Tissue Simulant Recipes ........................................................................................10 4.3.2 System Checking....................................................................................................10 4.3.3 Tissue Simulants used in the Measurements .......................................................... 11 5. DESCRIPTION OF THE TEST PROCEDURE...................................................................13 5.1 Device Holder ...................................................................................................................13 5.2 Test positions ....................................................................................................................13 5.2.1 Against Phantom Head ...........................................................................................13 5.2.2 Body Worn Configuration ...........................................................…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 CNAS L0447 Registration No.910917 TEST REPORT Report No.: SRTC2011-H024-E0001 Product Name: GSM/GPRS Digital Mobile Phone Product Model: ZTE-G R221 Applicant: ZTE Corporation Manufacture: ZTE Corporation Specification: FCC Part 24E, Part 22H, Part 2 (October 1, 2009 edition) FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2011-H024-E0001 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 48 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC CONTENTS 1．General information ................................................................................ 3 1.1 Notes of the test report...................................................................................................3 1.2 Information about the testing laboratory.......................................................................3 1.3 Applicant’s details............................................................................................................3 1.4 Manufacturer’s details.....................................................................................................3 1.5 Application details............................................................................................................4 1.6 Reference specification...................................................................................................4 1.7 Information of EUT..........................................................................................................4 1.7.1 General information..............................................................................................4 1.7.2 EUT details............................................................................................................5 1.7.3 Auxiliary equipment details..................................................................................5 2. Test information ........................................................................................ 6 2.1 Summary of the test results............................................................................................6 2.2 Test result..........................................................................................................................7 2.2.1 GSM850.................................................................................................................7 2.2.1.1 RF Power Output-FCC Part2.1046.................................................................7 2.2.1.2 Effective Radiated Power-FCC Part22.913(a)..............................................8 2.2.1.3 Occupied Bandwidth-FCC Part2.1049.........................................................10 2.2.1.4 Spurious Emissions at antenna terminal-FCC Part2.1051/22.917(a).....14 2.2.1.5 Band Edges Compliance-FCC Part2.1051/22.917(a)...............................18 2.2.1.6 Frequency Stability-FCC Part2.1055/Part22.355.......................................21 2.2.1.7 Radiated Spurious Emissions-FCC Part2.1053/22.917(a).......................23 2.2.2 PCS1900..............................................................................................................27 2.2.2.1 RF Power Output-FCC Part2.1046...............................................................27 2.2.2.2 Effective Isotropic Radiated Power-FCC Part24.232(c)............................28 2.2.2.3 Occupied Bandwidth-FCC Part2.1049.........................................................30 2.2.2.4 Spurious Emissions at antenna terminal-FCC Part2.1051/24.238(a).....34 2.2.2.5 Band Edges Compliance-FCC Part2.1051/24.238(a)...............................38 2.2.2.6 Frequency Stability-FCC Part2.1055/Part24.235.......................................41 2.2.2.7 Radiated Spurious Emissions-FCC Part2.1053/24.238(a).......................43 2.3. List of test equipments.................................................................................................47 Appendix................................................................................................................................48 No.: SRTC2011-H024-E0001 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 48 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1．General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel: +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] / [email protected] 1.3 Applicant’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Grantee Code: Q78 Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] 1.4 Manufacturer’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] No.: SRTC2011-H024-E0001 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 48 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.5 Application details Date of reception of test sample: 12 th Jan 201…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 CNAS L0447 Registration No.910917 Appendix1 TEST SETUP Report No.: SRTC2011-H024-E0001 Product Name: GSM/GPRS Digital Mobile Phone Product Model: ZTE-G R221 Applicant: ZTE Corporation Manufacture: ZTE Corporation Specification: FCC Part 24E, Part 22H, Part 2 (October 1, 2009 edition) FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2011-H024-E0001 FCC ID: Q78-G--R221 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Appendix1 Test Setup Radiated Spurious Emissions Test setup
