Q78-G650800 MHz CDMA2000 1X Mobile Phone

V2.73 1 Copyright © 2006 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Table of Contents 2 1 Before Use.............................................................................9 1.1 Introduction ...........................................................................................9 1.2 Safety Instructions.................................................................................9 1.3 Safety Warnings and Precautions.......................................................10 1.4 Parts Definition ....................................................................................15 1.5 Battery .................................................................................................17 1.5.1 Install the Battery ..................................................................17 1.5.2 Remove the Battery...............................................................18 1.5.3 Charge the Battery................................................................19 1.6 Insert and Remove R-UIM Card..........................................................20 1.7 Power on / off .......................................................................................21 1.7.1 Power on ...............................................................................21 1.7.2 Power off ...............................................................................22 1.8 Text Input .............................................................................................22 1.9 Interface Introduction ..........................................................................24 2 Make and Receive PTT Calls.................................................25 2.1 Make Private Calls...............................................................................25 2.1.1 Direct Dial..............................................................................26 2.1.2 Dial from Book ......................................................................26 2.1.3 Dial from Call History ............................................................26 2.2 Make Group Calls................................................................................27 2.2.1 Direct Dial..............................................................................27 2.2.2 Dial from Book ......................................................................28 2.2.3 Dial from Call History ............................................................28 3 2.3 Receive PTT Calls ...............................................................................29 2.4 End PTT Calls......................................................................................29 2.4.1 Exit from a Group Call...........................................................29 2.4.2 End a Group Call ..................................................................29 2.4.3 End a Private Call..................................................................30 2.5 PTT Emergency Calls..........................................................................30 2.6 Functions during PTT Calls.................................................................30 2.6.1 Group Members Status Query..............................................30 2.6.2 Group Members Management .............................................32 2.6.3 Upgrade Ordinary Calls to Emergency Calls .......................32 2.6.4 Downgrade Emergency Calls to Ordinary Calls...................32 2.6.5 Switch the Sound..................................................................32 3 Make and Receive Normal Calls...........................................33 3.1 Make Normal Calls..............................................................................33 3.1.1 Direct Dial..............................................................................33 3.1.2 Dial from Book ......................................................................33 3.1.3 Dial from Call History ............................................................34 3.2 Receive Normal Calls..........................................................................34 3.3 End Normal Calls ................................................................................34 3.4 Functions during Normal Calls ...........................................................34 3.4.1 Adjust the Volume.................................................................34 3.4.2 View the Book .......................................................................34 3.4.3 Set the Mute..........................................................................35 3.4.4 Switch the Sound..................................................................35 ZTE G650/G651/G420/G120 GoTa Digital Trunking Phone User Manual 4 4 Book....................................................................................36 4.1 Personal Book.....................................................................................36 4.1.1 Add........................................................................................37 4.1.2 Search...................................................................................38 4.1.3 View.......................................................................................39 4.1.4 Edit ........................................................................................39 4.1.5 Delete....................................................................................39 4.1.6 Set Ringtone .........................................................................40 4.1.7 Rename.................................................................................40 4.1.8 Move......…

Text truncated - open the document above for the full version.

中 兴 通 讯 股份有限公司 Z T EC O R P O R A T I O N 地址（Add）：深圳市高新技 术产业 园科技南路中 兴 通 讯 A座 电话 （Tel）: +86-755-26770000 传 真：+86-755-2677999 邮编 （Postcode）: 518057 网址: http: // www.zte.com.cn 电 子 邮 件： E-mail: [email protected] FCC Confidential Authorization Date: June 16, 2006 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: (Q78-G650). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: (BOM, Antenna Information, Technical Specification, Schematics, Block Diagram, Circuit Description, Turn up procedure) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Gong Bolin Title: Product Certification Director Company Name: ZTE Corporation

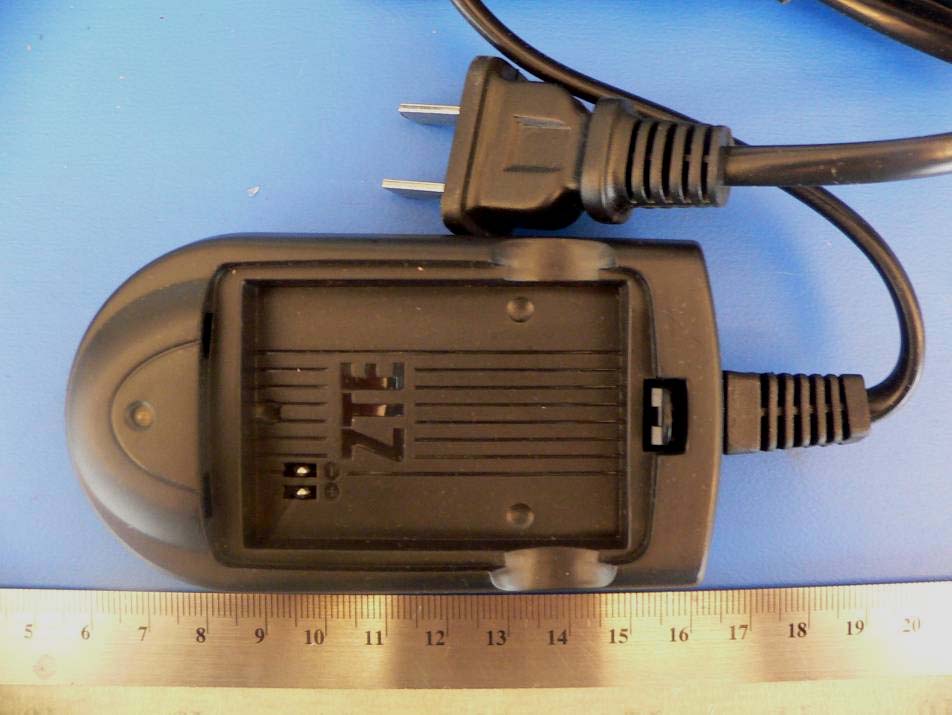

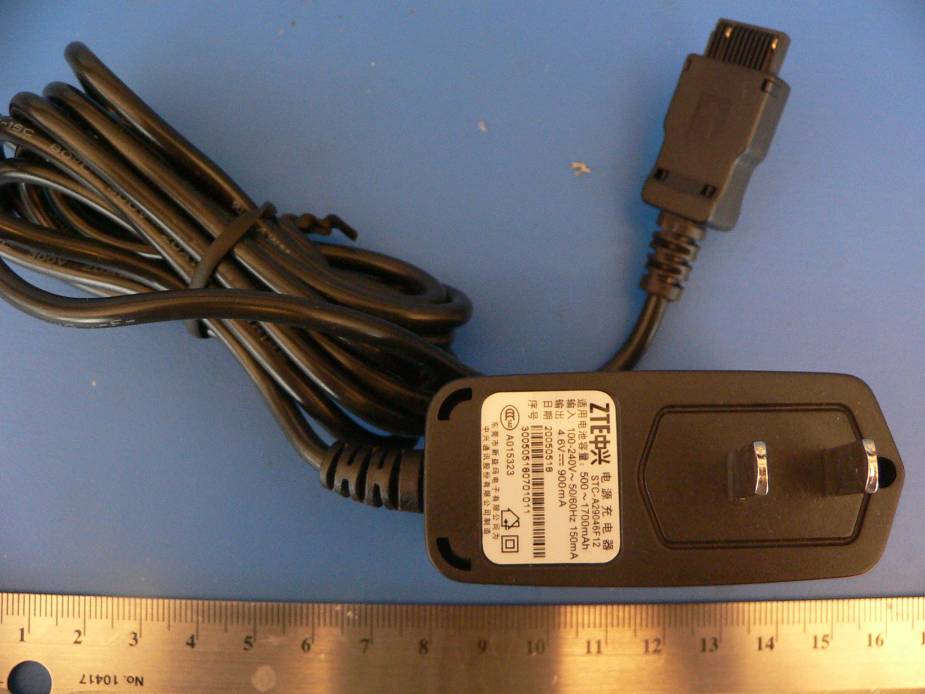

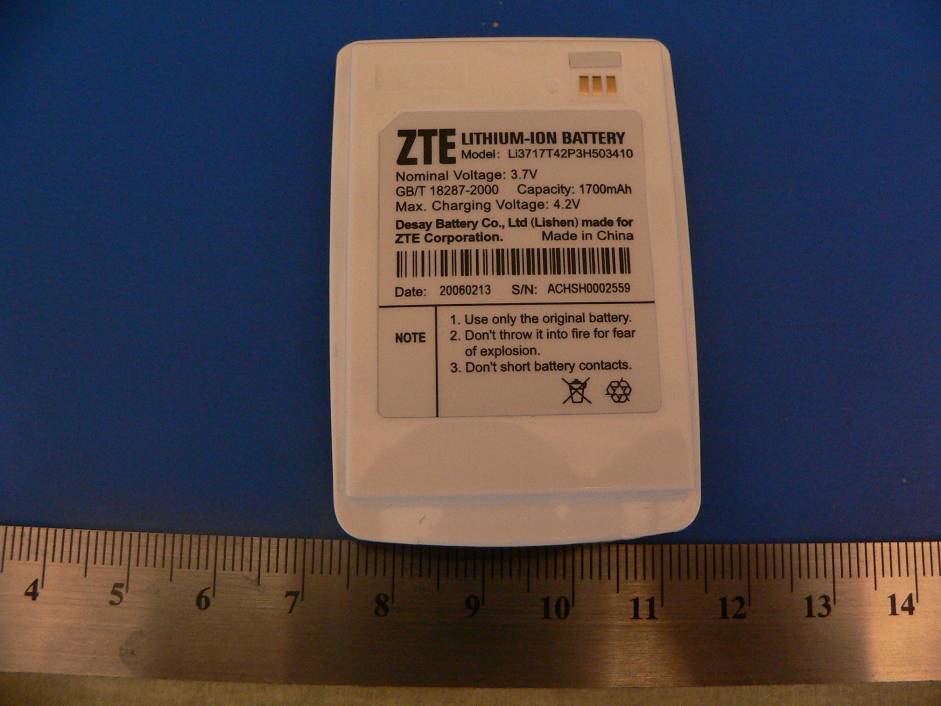

EUT Front View EUT Rear View EUT Port View EUT AC Adaptor View EUT Charger View EUT Battery View EUT Headset View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT FCC ID: Q78-G650 Industry Canada Industrie Canada IC: 5200A-G650

EUT Battery off View EUT Cover off View EUT Components View EUT Display and keyboard View EUT RF portion View EUT Antenna View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-G650 This Report Concerns: Original Report Product Type: 800 MHz CDMA2000 1X Mobile Phone Test Engineer: Eric Hong / Report No.: R0606165S Report Date: 2006-07-07 Reviewed By: Lab Manager Samuil Lisinker / Prepared By: Bay Area Compliance Laboratory Corporation 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 2 of 71 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): CFR47 §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C Device Classification: Licensed Mobile Transmitter Device Type: 800 MHz CDMA2000 1X Mobile Phone FCC ID: Q78G650 Modulation: CDMA 2000 1X TX Frequency Range: 824-849 MHz Max. Conducted Power Tested: 23.90 dBm Antenna Type(s): Internal Antenna Body-Worn Accessories: Earphone Face-Head Accessories: None Max. SAR Level(s) Measured: 0.343 mW/g (1.5cm Body) & 1.39 mW/g (Head) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in EN 50361:2001 and has been tested in accordance with the measurement procedures specified in ANSI IEEE C95.3:2002 All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Eric Hong Bay Area Compliance Laboratory Corp. ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 3 of 71 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................7 MEASUREMENT SYSTEM DIAGRAM.............................................................................................................................9 SYSTEM COMPONENTS...............................................................................................................................................11 TESTING EQUIPMENT............................................................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................21 SYSTEM ACCURACY VERIFICATION...........................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................22 SAR EVALUATION PROCEDURE.................................................................................................................................22 CONCLUSION ............................................................................................................................................................24 SAR TEST DATA........................................................................................................................................................24 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................25 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................27 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................38 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS .................................................................................44 LIQUID MEASUREMENT RESULT................................................................................................................................44 APPENDIX E - EUT SCANS .....................................................................................................................................47 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT ...............................................................60 PROVISION APPLICABLE.............................................................................................................................................60 TEST PROCEDURE......................................................................................................................................................60 TEST EQUIPMENT.......................................................................................................................................................60 TEST RESULTS.................................................................................................…

Text truncated - open the document above for the full version.

ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 36 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 37 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 38 of 71 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 39 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 40 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 41 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 42 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 43 of 71 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 44 of 71 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2006-07-03 Simulation Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 55.2 54.9 -0.54 ±5 σ 22.0 0.97 0.96 -1.03 ±5 Body 835 1g SAR 22.0 8.872 8.91 0.42 ±10 εr 22.0 41.5 41.6 0.24 ±5 σ 22.0 0.90 0.881 -2.11 ±5 Head 835 1g SAR 22.0 9.50 9.45 -0.53 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 45 of 71 Test Laboratory: Bay Area Compliance Lab Corp.(BACL) System Validation Check D835 Body DUT: Dipole 835 MHz; Type: D900V2; Serial: D900V2 - SN:122 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 5/2/2006 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=1W 2/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 9.4 mW/g d=15mm, Pin=1W 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 112.5 V/m; Power Drift = 0.059 dB Peak SAR (extrapolated) = 15.0 W/kg SAR(1 g) = 8.91 mW/g; SAR(10 g) = 5.68 mW/g Maximum value of SAR (measured) = 9.8 mW/g 0 dB = 9.8mW/g ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 46 of 71 Test Laboratory: Bay Area Compliance Lab Corp.(BACL) System Validation Check D835 Head DUT: Dipole 835 MHz; Type: D900V2; Serial: D900V2 - SN:122 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.881 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.6, 6.6, 6.6); Calibrated: 5/2/2006 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=1W 2/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.4 mW/g d=15mm, Pin=1W 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 112.5 V/m; Power Drift = 0.059 dB Peak SAR (extrapolated) = 15.0 W/kg SAR(1 g) = 9.45 mW/g; SAR(10 g) = 6.48 mW/g Maximum value of SAR (measured) = 10.8 mW/g 0 dB = 10.8mW/g ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 47 of 71 APPENDIX E - EUT SCANS Test Laboratory: Bay Area Compliance Lab Corp.(BACL) 1.5 cm separation to flat phantom with earphone DUT: ZTE; Type: G650; Serial: 350501810039 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 5/2/2006 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 1.5cm separation to flat phantom with headset/Area Scan (101x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.381 mW/g 1.5cm se with headset/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.4 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 0.472 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.242 mW/g Maximum value of SAR (measured) = 0.371 mW/g 0 dB = 0.371mW/g Plot #1 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 48 of 71 Low Channel Test Laboratory: Bay Area Compliance Lab Corp.(BACL) Left Head Tilt DUT Type: G650; Serial: 350501810039 Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.881 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.6, 6.6, 6.6); Calibrated: 5/2/2006 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Left Head Tilt/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Left Head Tilt/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.8 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.987 W/kg SAR(1 g) = 0.991 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g Plot #2 ZTE Corporation. FCC ID: Q78-G650 Report #R0606165S SAR Evaluation Report Page 49 of 71 Test…

Text truncated - open the document above for the full version.

FCC PART 22 TYPE APPROVALS EMI MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-G650 Model: G650 This Report Concerns: Original Report Product Type: 800 MHz CDMA2000 1X Mobile Phone Test Engineer: James Ma Report No.: R0606165 Report Date: 2006-07-05 Reviewed By: Test Engineer Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 §2.1053 - SPURIOUS RADIATED EMISSIONS .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULT.............................................................................................................................................................10 §2.1046, §22.913(A)– RF OUTPUT POWER ............................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST RESULTS...........................................................................................................................................................12 §2.1049, §22.917, §22.905 - OCCUPIED BANDWIDTH .........................................................................................15 APPLICABLE STANDARD............................................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................15 ENVIRONMENTAL CONDITIONS..................................................................................................................................15 TEST RESULTS...........................................................................................................................................................15 §2.1051, §22.917 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS.........................................................18 APPLICABLE STANDARD...............................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS AC Lines Conducted Emission-Front View AC Lines Conducted Emission- Side View Radiated Setup – Front View Radiated Setup – Rear View
