Q78-GR225GSM Dual-band GPRS Digital Mobile Phone

Vivi Mobile Phone User Manual 2 LEGAL INFORMATION Copyright © 2010 by ZTE CORPORATION All Rights Reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : Manual No. 3 :Table of Contents FUNDAMENTALS ........................ 4 Security ................................. 4 Safety Precautions ................. 4 FCC Compliance ..................10 Limitation of Liability .............15 GETTING STARTED .................. 16 Your Phone...........................16 Keys .....................................17 Turn on / off or wake up your phone ...................................18 Lock / unlock the keypad ......18 Interface icons ......................19 Battery ..................................20 Inserting the SIM card ...........23 COMMUNICATING ..................... 25 Address Book .......................25 Making and receiving calls ....28 Call center ............................29 Input Text .............................31 Messages .............................32 Mobile E-mail ........................35 ENTERTAINMENT ..................... 37 Games ................................. 37 MEdia Net ............................ 37 Multimedia ............................ 39 APPLICATIONS ......................... 40 User profiles ......................... 40 Settings ................................ 41 File manager ........................ 44 Organizer ............................. 45 Java ..................................... 46 APPENDIX ................................. 46 4 第4页 Fundamentals Security  To protect your mobile phone from illegal usage, take the following security measures:  Set the PIN code of the SIM card.  Set the phone lock code.  Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions  Please use your phone properly. When making or receiving a call, please hold your phone as when holding a standard wireline telephone. Make 5 第5页 sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting.  Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed.  Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if yo u have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-light feature on your phone. (The flashing-light feature is not available on all products.)  Keep the phone out of reach of small children. The phone may cause injury if used as a toy. Precautions While Driving  Please pay attention to traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them.  Use the hands-free function of the phone, if available.  Pull off the road and park before making or answering a call if required. Precautions for Medical Devices and Facilities 6 第6页  When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary.  Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing-aid manufacturer to discuss alternatives.  If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy.  In areas with special requirements, such as hospitals or health care facilities, please pay attention to the restrictions on the use of your mobile phone. Switch off your phone if required. Mobile Phone  Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause injury and may violate related local regulations for telecom terminals.  Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the 7 第7页 phone.  As your mobile phone can produce an electromagnetic field, do not place it near magnetic items such as computer disks.  Using the phone near electrical appliances such as TVs, telephones, radios and personal computers can cause interference.  Do not expose your mobile phone to direct sunlight or store in hot places. High temperatures can shorten the life of electronic devices.  Keep your phone dry. Any liquid may damage your phone.  Do not drop, knock or harshly treat the phone. Rough handling can damage internal circuit boards.  Do not connect the phone with any incompatible accessory or enhancement.  Do not attempt to disassemble the mobile phone or battery.  Do not store the phone with flammable or explosive articles.  Do not charge the mobile phone without the battery. Precautions for Potentially Explosive Atmospheres  Switch off your phone prior to entering any area with potentially explosive environments, such as fueling areas, fuel or chemical transfer or storage facilities.  Do not remove, install, or charge batteries in such areas. Spar…

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Mar 1,2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel ：0755-26770345 Fax ：0755-26770347 E-Mail：[email protected]

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Mar 1,2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-GR225 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Royce Wang ZTE CORPORATION Tel ：0755-26770345 Fax：0755-26770347 E-Mail ：[email protected]

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 ZTE CORPORATION 20 10-3-17 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: Q78-GR225 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days:
External Photos
Internal Photos
Test Setup Photos
User’s Manual The applicant also acknowledges that they will also provide appropriate notice to ATCB should either of the following occur: a) if the applicant requires additional 45 day extension periods they will notify ATCB with a new request letter at least 7 days prior to the short-term confidentiality expiration date - [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ATCB in the event the information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, MIN ZHANG CE RTIFICATION MANAGER ZTE CORPORATION

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION 2010-7-29 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: Q78-GR225 To Whom It May Concern, For some unexpected mistakes when the 1st round STC came to the end that FCC ID: Q78- GR225 didn’t continue to apply STC. ZTE know that all docs were viewable since 5/24/10. ZTE declare that this device IS NOT marketed and DOES NOT plan to be marketed until possibly. Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure tlil 2010-10-07:  ◆External Photos  ◆Internal Photos  ◆Test set-up photos  ◆Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Royce Wang Certification Mangager ZTE CORPORATION

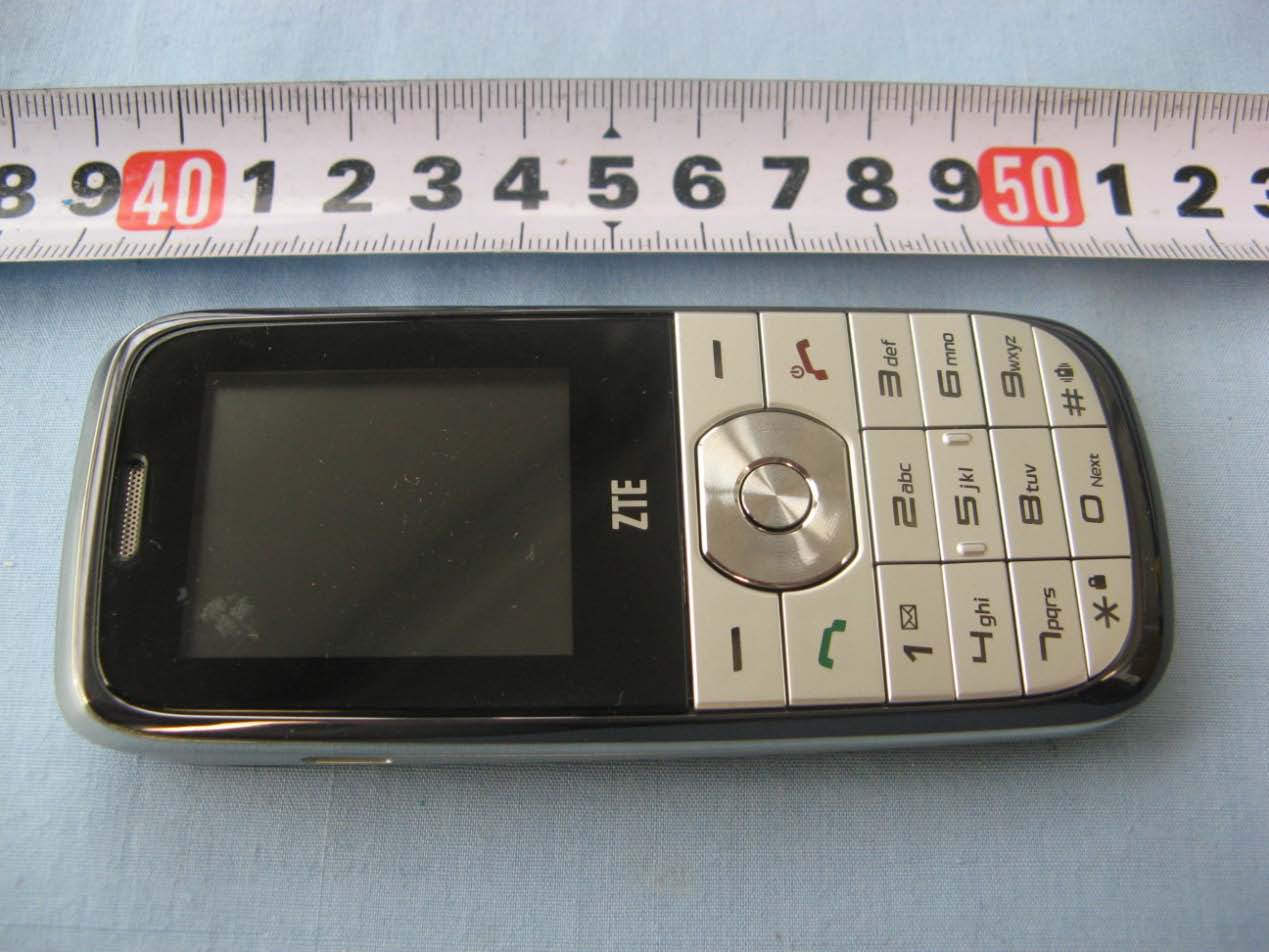

Q78-GR225, EUT External Photo

秘密▲5年 <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页

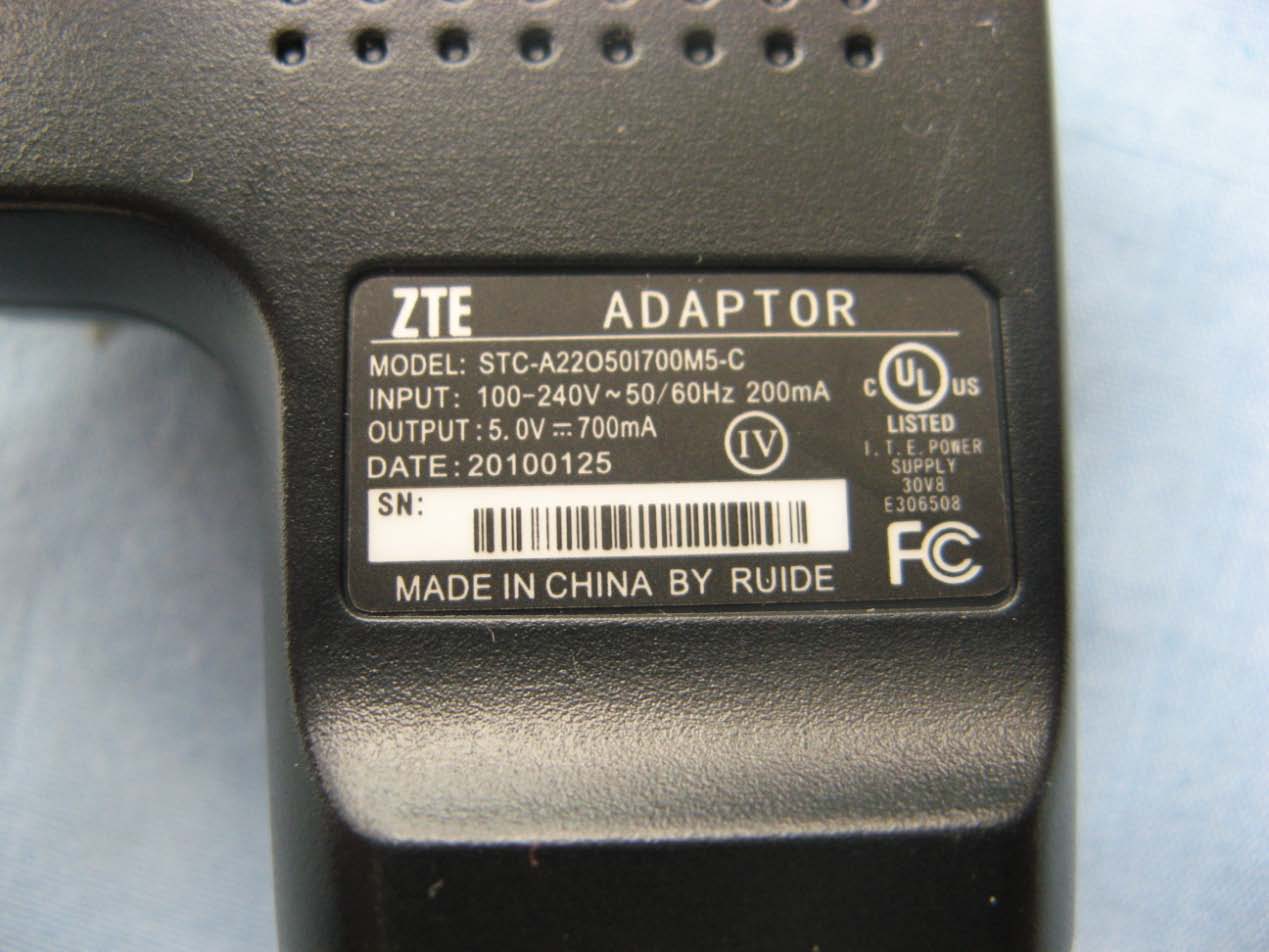

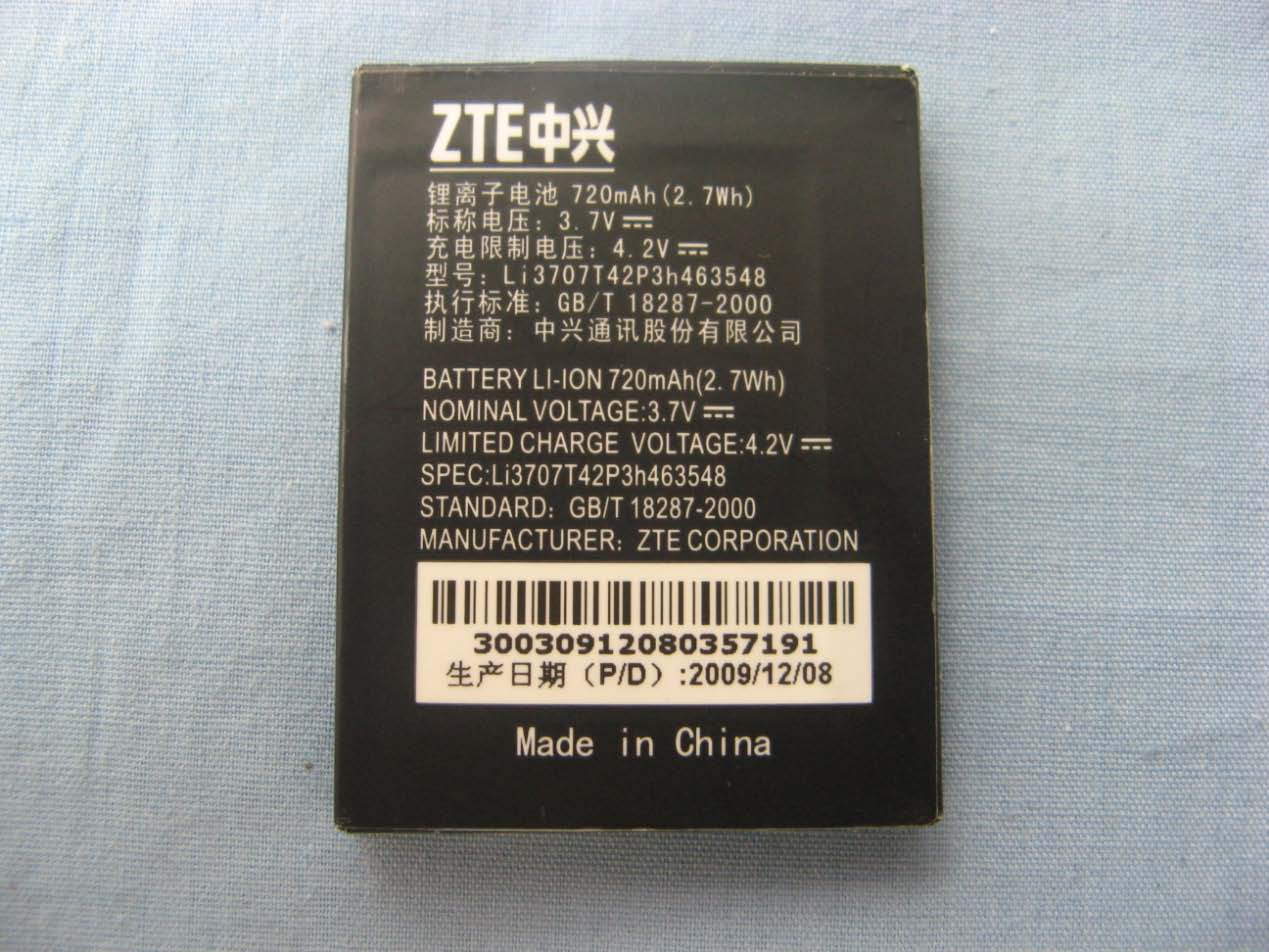

Q78-GR225, EUT Internal Photo

No.2010TAR079 Page1 of 16 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR079 for ZTE Corporation GSM Dual-band GPRS Digital Mobile Phone Model Name: ZTE-G R225 FCC ID: Q78-GR225 with Hardware Version: g9kB Software Version: ES-ATT-USA-P103D13V1.0.0 Issued Date: 2010-04-06 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR079 Page2 of 16 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 No.2010TAR079 Page3 of 16 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Mar 12th,2010 Testing End Date: Mar 16th,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR079 Page4 of 16 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR079 Page5 of 16 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM Dual-band GPRS Digital Mobile Phone Model Name ZTE-G R225 FCC ID Q78-GR225 Frequency GSM850/1900 Antenna Internal Power supply Battery or Charger (AC Adaptor) Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N02 012295000000010 g9kB ES-ATT-USA-P103D13V1.0.0 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Travel Adapter / AE1 Model Li3707T42P3h463548 Manufacturer ZTE CORPORATION Capacitance 720mAh Nominal Voltage 3.7V AE2 Model STC-A22O50I700M5-C Manufacturer RUIDE Length of DC line 150cm *AE ID: is used to identify the test sample in the lab internally. No.2010TAR079 Page6 of 16 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices July 10, 2008 Edition ANSI C63.4 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipm…

Text truncated - open the document above for the full version.

FCC test setup photos 1． Radiated Spurious Emission 2． Conducted Emission 3． Radiated Emission 4． Radiated Emission(part15B) 5． conducted emission( Part15B)
