Q78-GR228GSM (GPRS) Dual-Mode Digital Mobile Phone

ZTE-G R228 Mobile Phone User Manual 2 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : 03.30, 2011 Manual No. : 07958450**** Table of Contents SECURITY ........................................ 4 SAFETY PRECAUTIONS ............ 4 FCC COMPLIANCE .....................13 LIMITATION OF LIABILITY ......17 KEY FUNCTIONS .........................18 TURNING ON / OFF OR WAKING UP YOUR PHONE ....20 LOCKING / UNLOCKING THE KEYPAD ...........................................20 STATUS BAR ICONS ..................21 WRITING TEXT .............................22 BATTERY ........................................24 INSERTING THE SIM CARD ...27 INSERTING THE MEMORY CARD ................................................29 PHONEBOOK ................................31 MAKING AND RECEIVING CALLS.............................................. 32 CALL CENTER ............................. 34 SENDING AND RECEIVING MESSAGES ................................... 36 SENDING AND RECEIVING EMAIL............................................... 39 USE PROFILES ............................ 41 SETTINGS ...................................... 42 ORGANISER ................................. 45 BLUETOOTH ................................. 47 MULTIMEDIA ................................. 49 JAVA MIDLETS............................. 53 USING SERVICES ....................... 53 4 Security  To protect your mobile phone from illegal use, take the security measures as follows:  Set PIN codes of the SIM card.  Set handset lock code.  Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions  Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting.  Do not touch the antenna when the phone is in use. Touching the 5 第5页 antenna area affects call quality and may cause the phone to operate at a higher power level than needed.  Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-light feature on your phone. (The flashing-light feature is not available on all products.)  Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving  Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them.  Use hands-free function of the phone, if available.  Pull off the road and park before making or answering a call if conditions 6 require. Precautions for Medical Devices and Facilities  When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary.  Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to discuss alternatives.  If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy.  In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. Mobile Phone 7 第7页  Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone‟s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals.  Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone.  As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks.  Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference.  Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices.  Keep the environment temperatures within the range of -20ºC ~60ºC  Keep your phone dry. Any liquid may damage your phone. 8  Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards.  Do not connect the phone with any incompatible enhancement.  Do not attempt to disassemble the mobile phone or battery.  Do not store the phone with flammable or explosive articles.  Do not charge the mobile phone without battery.  Some electronic devices are susceptible to electromagnetic interference sent by phone if inadequately shielded. Please use phone at least 20 cm or as far away as you can from TV set, radio and other automated office equipment so as to avoid electromagnetic interference.  Operating phone may interfere with medical devices…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel:+86-755-26770345 ;Fax:+86-755-26770347 Date:April 7, 2011 Statement We,ZTECORPORATION, states that our device, FCC ID:Q78-GR228, has no space to put the label exceptthebattery compartmentof this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Royce Wang

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel:+86-755-26770345 ;Fax:+86-755-26770347 Date:April 7, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:Q78-GR228 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics(file:ZTE-G R228Schematic.pdf) Block Diagram(file:ZTE-G R228 block diagram.pdf) Parts List(file:ZTE-G R228 BOM.pdf) Operation Description(file:ZTE-G R228 operational description.pdf) Tuneup Procedure(file:ZTE-GR228Tune up procedure.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Royce Wang

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: April 18, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-GR228 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date:April 7, 2011 Federal Communications Commission Authorization and Evaluation Division RE: Certification Application FCC ID:Q78-GR228 To Whom It May Concern, Pursuant tosections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application betemporarily withheld from public disclosure for an initial period of180 days: External Photos Internal Photos Test set-up photos Users Manual The application contains technical information, whichZTE CORPORATIONdeems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person:Royce Wang Company:ZTECORPORATION Tel:+86-755-26770345 Fax:+86-755-26770347 E-mail:[email protected]

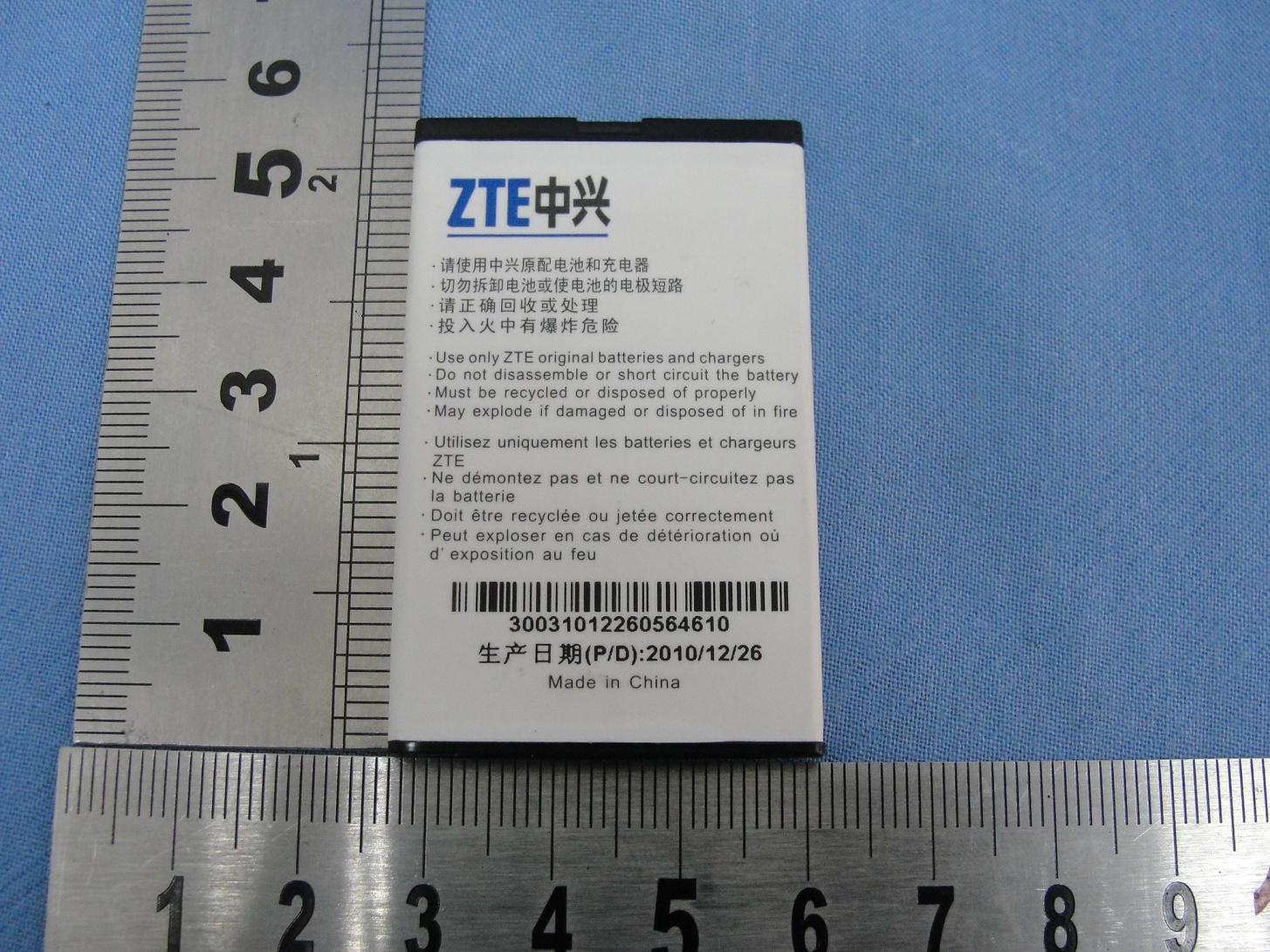

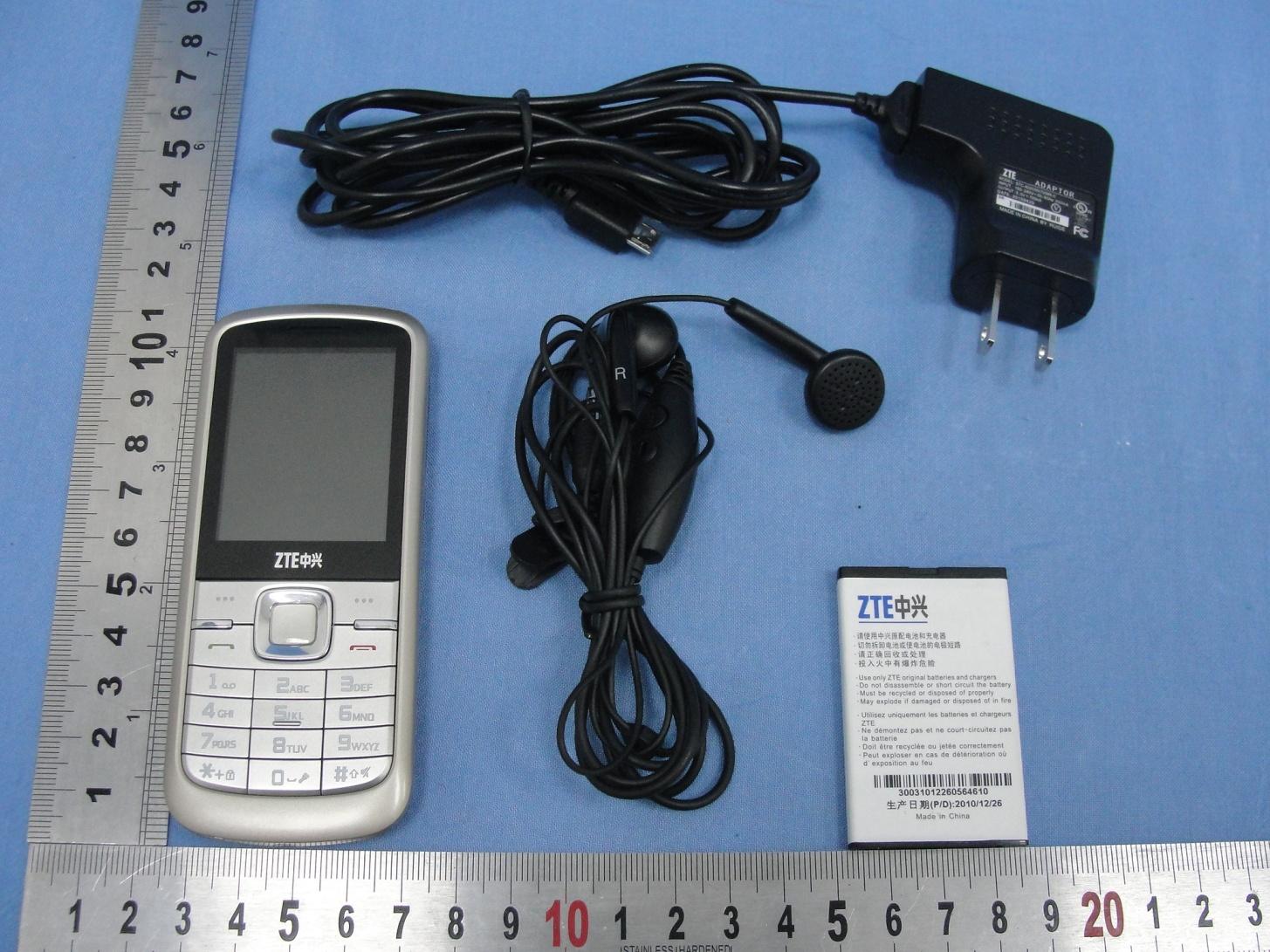

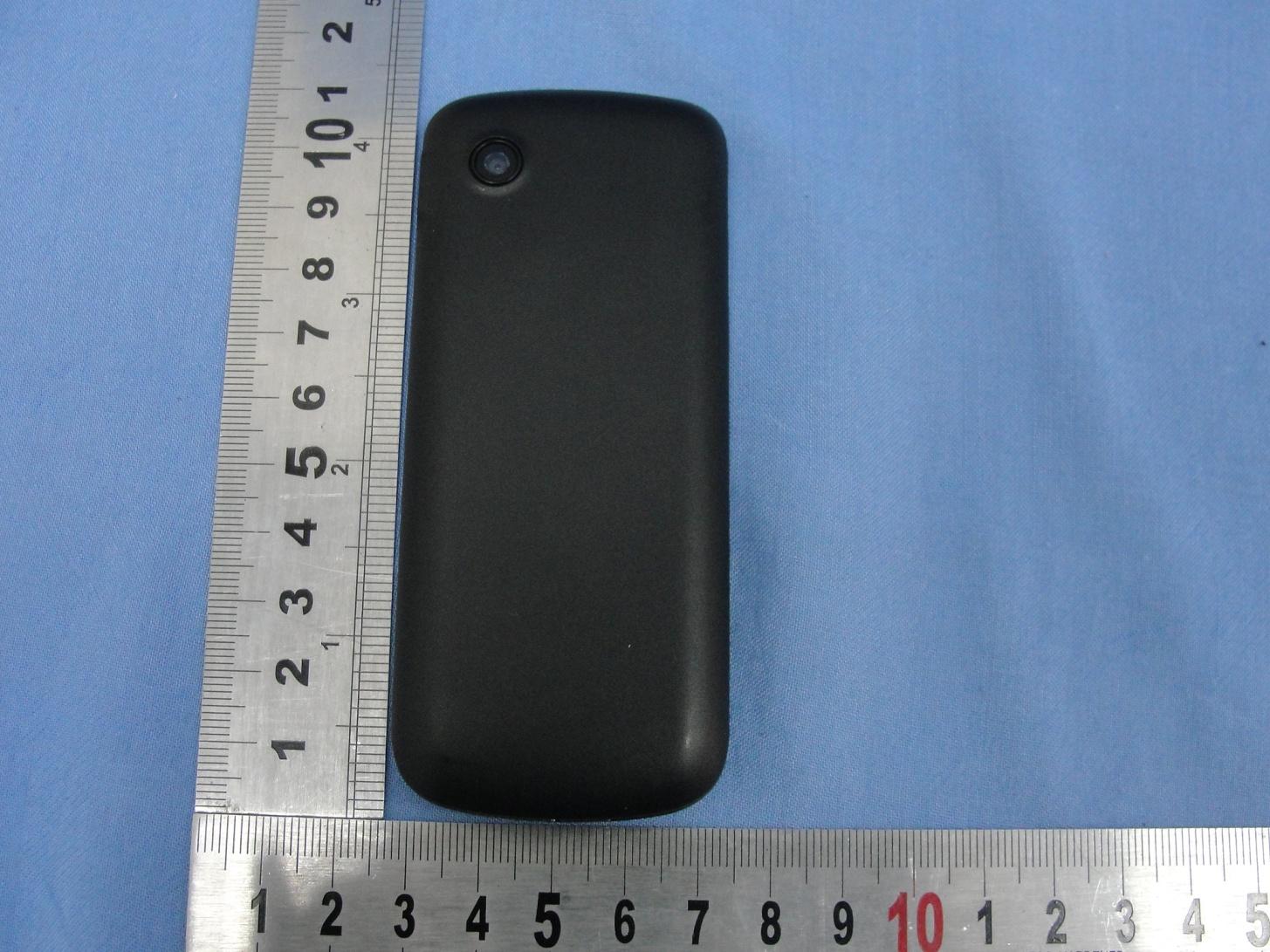

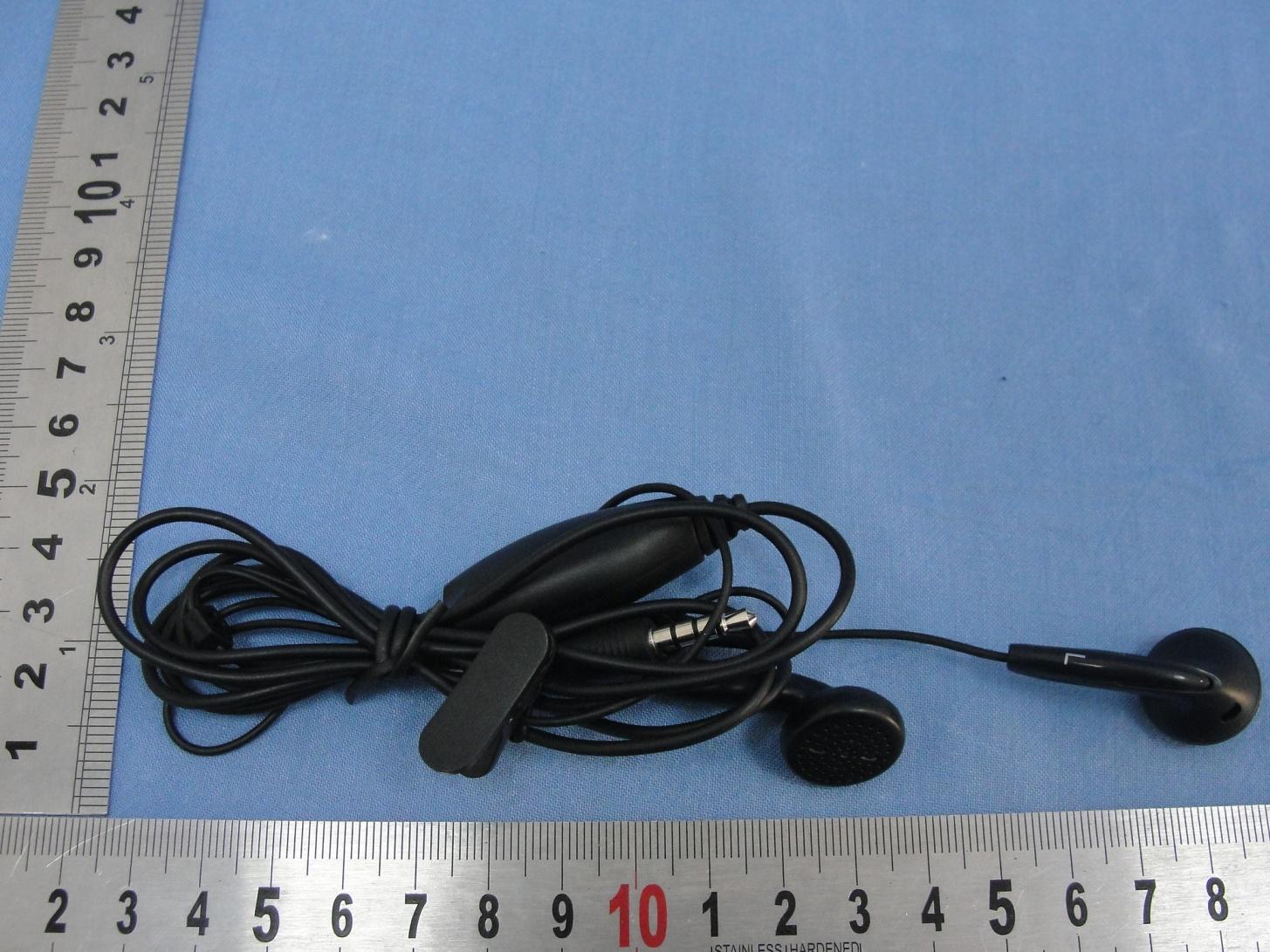

Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I700M5-C Battery Brand Name ZTE Model Name Li3707T42P3h553447 Earphone Brand Name ZTE Model Name HMZ1-OMTP-3.5 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 720510 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228

SIZE:31*19mm 机身标贴 device label ZTE-G R228 GSM 850/1900 MHz FCC IDQ78-GR228 Manufactured by ZTE in China

Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 3. Internal Photograph of EUT Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 720510 Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Bluetooth Antenna <Tx / Rx>

Photographs of EUT Report No.: EP131905 Brand Name: ZTE / Model Name: ZTE-G R228 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 1 TEL : 86-0512-5790-0158 Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 Bluetooth Antenna (Tx / Rx) WWAN Antenna (Tx / Rx) 6 cm

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 System Check_Head_835MHz_110409 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110409 Medium parameters used: f = 835 MHz; σ = 0.908 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.45 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52 V/m; Power Drift = 0.00126 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 2.27 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.45 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 System Check_Body_835MHz_110409 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110409 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.7 V/m; Power Drift = 0.0027 dB Peak SAR (extrapolated) = 3.7 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.7 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 System Check_Head_1900MHz_110409 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110409 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.73, 4.73, 4.73); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88 V/m; Power Drift = 0.0075 dB Peak SAR (extrapolated) = 19.7 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.44 mW/g Maximum value of SAR (measured) = 11.9 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 System Check_Body_1900MHz_110409 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110409 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.3, 4.3, 4.3); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.8 V/m; Power Drift = 0.0063 dB Peak SAR (extrapolated) = 18 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.4 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #01 GSM850_Right Cheek_Ch128 DUT: 131702 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110409 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.630 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.37 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 0.820 W/kg SAR(1 g) = 0.586 mW/g; SAR(10 g) = 0.407 mW/g Maximum value of SAR (measured) = 0.627 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #02 GSM850_Right Tilted_Ch128 DUT: 131702 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110409 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.396 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.486 W/kg SAR(1 g) = 0.369 mW/g; SAR(10 g) = 0.266 mW/g Maximum value of SAR (measured) = 0.392 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #03 GSM850_Left Cheek_Ch128 DUT: 131702 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110409 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.685 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.57 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.818 W/kg SAR(1 g) = 0.612 mW/g; SAR(10 g) = 0.427 mW/g Maximum value of SAR (measured) = 0.661 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #03 GSM850_Left Cheek_Ch128_2D DUT: 131702 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110409 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.685 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.57 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.818 W/kg SAR(1 g) = 0.612 mW/g; SAR(10 g) = 0.427 mW/g Maximum value of SAR (measured) = 0.661 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #04 GSM850_Left Tilted_Ch128 DUT: 131702 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110409 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.392 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = 0.0079 dB Peak SAR (extrapolated) = 0.488 W/kg SAR(1 g) = 0.371 mW/g; SAR(10 g) = 0.268 mW/g Maximum value of SAR (measured) = 0.395 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-9 #09 GSM1900_Right Cheek_Ch661 DUT: 131702 Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_110409 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.73, 4.73, 4.73); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch661/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.3 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement gri…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 22, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-GR228 FCC SAR Test Report Report No. : FA131905 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : GSM (GPRS) Dual-Mode Digital …
