Q78-GR235GSM Dual-band GPRS Digital Mobile Phone

GSM Dual-Band GPRS Digital Mobile Phone User Manual The manual is applicable for R235/S235 mobile phone. LEGAL INFORMATION Copyright © 2009 by ZTE CORPORATION All Rights Reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : Manual No. : 3 Contents Security .......................................... 4 Safety Precautions ........................ 4 FCC Compliance ......................... 10 Body Worn Operation ................. 13 Limiting Exposure to Radio Frequency (RF) Fields ................ 13 Limitation of Liability .................. 14 Key functions .............................. 15 ...................................................... 15 Indicator icons ............................ 17 Battery .......................................... 17 Inserting SIM card ....................... 19 Inserting memory card ............... 20 Powering on/ off phone .............. 21 Writing text ................................... 21 Adding a contact ......................... 22 Making and receiving calls ......... 23 Sending SMS ............................... 23 Sending MMS ............................... 24 Receiving messages ................... 25 Personalizing phone .................. 25 Setting alarm ............................... 26 *Using camera ............................. 26 WAP browser ............................... 27 *Using Bluetooth ......................... 27 *Java application ......................... 28 FM Radio ...................................... 28 4 Security „ To protect your mobile phone from illegal use, take the security measures as follows: ¾ Set PIN codes of the SIM card. ¾ Set handset lock code. ¾ Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions „ Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting. „ Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed. „ Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if you have a family 5 history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-light feature on your phone. (The flashing-light feature is not available on all products.) „ Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving „ Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them. „ Use hands-free function of the phone, if available. „ Pull off the road and park before making or answering a call if conditions require. Precautions for Medical Devices and Facilities „ When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary. „ Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to discuss alternatives. 6 „ If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy. „ In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. Mobile Phone „ Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals. „ Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone. „ As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks. „ Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference. „ Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices. „ Keep your phone dry. Any liquid may damage your phone. „ Do not drop, knock or harshly treat the phone. Rough handling can break 7 internal circuit boards. „ Do not connect the phone with any incompatible enhancement. „ Do not attempt to disassemble the mobile phone or battery. „ Do not store the phone with flammable or explosive articles. „ Do not charge the mobile phone without battery. Precautions for Potentially Explosive Atmospheres „ Switch off your phone prior to entering any area with potentially explosive atmospheres, such as fueling areas, fuel or chemical transfer or storage facilities. „ Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive atmosphere can cause an …

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Jan 05,2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel ：0755-26770345 Fax ：0755-26770347 E-Mail：[email protected]

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Jan 05,2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-GR235 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Royce Wang ZTE CORPORATION Tel ：0755-26770345 Fax：0755-26770347 E-Mail ：[email protected]

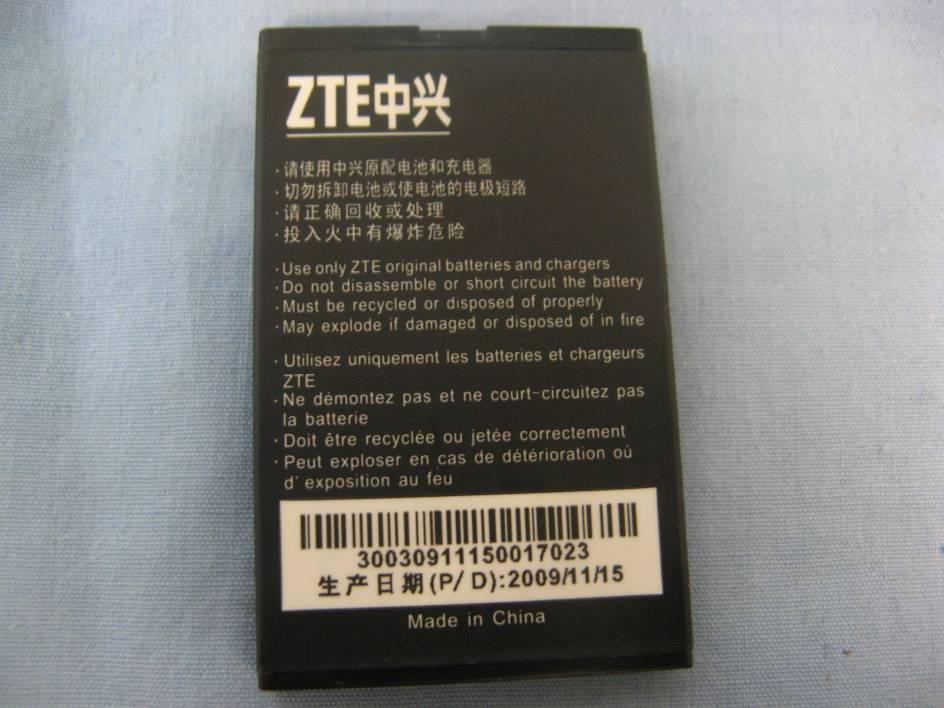

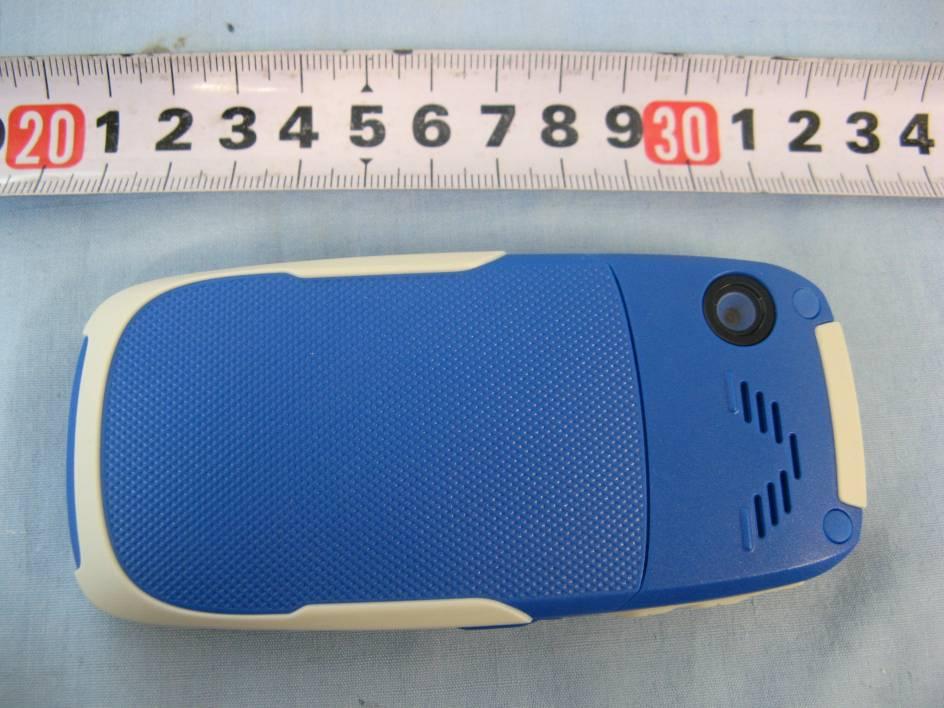

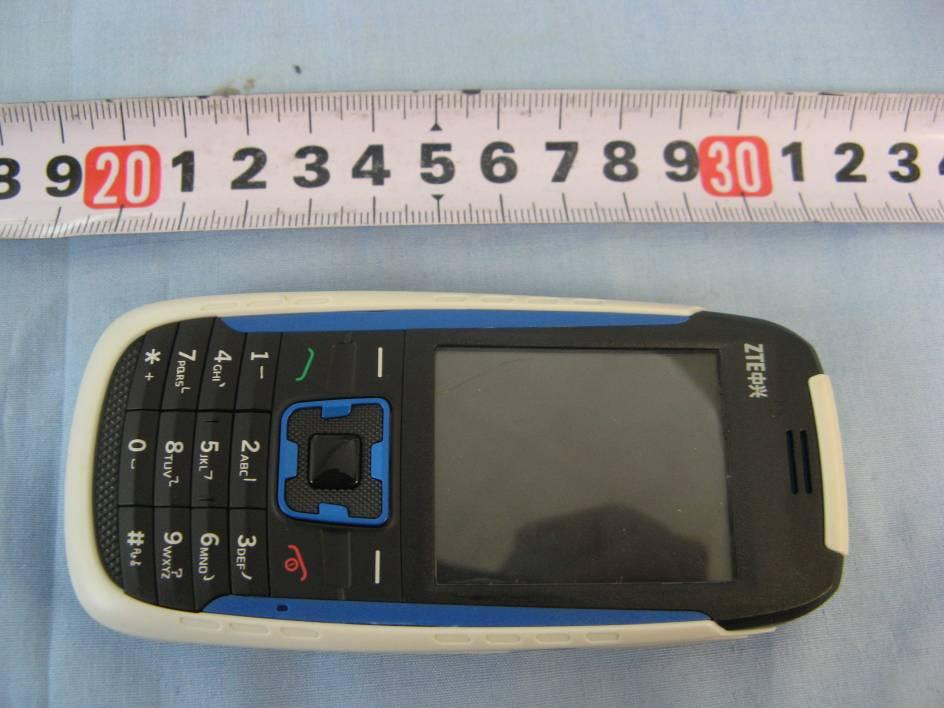

ZTE-G R235 external photo Battery Battery Charger Label of Charger Headset

Q78-GR235, FCC label placement label

ZTE-G R235_ internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2010TAR024 Page1 of 15 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR024 for ZTE CORPORATION GSM Dual-Band GPRS Digital Mobile Phone Model Name: ZTE-G R235 FCC ID: Q78-GR235 with Hardware Version: g8qA Software Version: EFSC-CN-ZTE8-P103D10V1.0.0 Issued Date: Jan 28th, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR024 Page2 of 15 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 No.2010TAR024 Page3 of 15 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 20th,2010 Testing End Date: Jan 26th,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR024 Page4 of 15 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR024 Page5 of 15 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM Dual-Band GPRS Digital Mobile Phone Model Name ZTE-G R235 FCC ID Q78-GR235 Frequency GSM 850MHz; PCS 1900MHz; Antenna Internal Power supply Battery or Charger (AC Adaptor) Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N05 358035030001113 g8qA EFSC-CN-ZTE8-P103D10V1.0.0 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Travel Adapter / AE3 Headset / AE1 Model Li3710T42P3h553457 Manufacturer ZTE CORPORATION Capacitance 1000mAh Nominal Voltage 3.7V AE2 Model STC-A22O50I700M5-C Manufacturer RUIDE Length of DC line 180cm AE3 Model HMZ6-mU5 Manufacturer ZTE CORPORATION Length of DC line 120cm *AE ID: is used to identify the test sample in the lab internally. No.2010TAR024 Page6 of 15 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FC…

Text truncated - open the document above for the full version.

ZTE-G R235 FCC test setup photo 1． Radiated Spurious Emission 2． Conducted Emission(Charging) 3． Conducted Emission(USB) 4． Radiated Emission(Charging) 5． Radiated Emission(USB) 6． Radiated Emission(part15C)
