Q78-GR620GSM Dual-Band GPRS Digital Mobile Phone

ZTE-G R620 Mobile Phone User Manual LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : Manual No. : 3 Table of Contents SECURITY ........................................ 5 SAFETY PRECAUTIONS ................. 5 LIMITATION OF LIABILITY ........... 17 KEY FUNCTIONS ........................... 18 LOCK AND UNLOCK THE KEYPAD ........................................................ 19 INTERFACE ICONS ....................... 19 BATTERY ........................................ 19 INSERTING THE SIM CARD .......... 21 INSERTING THE MEMORY CARD 22 CHARGING THE BATTERY ........... 24 POWERING YOUR PHONE ON/OFF ........................................................ 26 TURN THE TORCH ON/OFF .......... 26 WRITING TEXT .............................. 26 HOW TO ADD CONTACT TO THE PHONEBOOK ................................. 27 HOW TO MAKE AND RECEIVE CALLS ............................................ 28 HOW TO SEND MESSAGES ......... 29 HOW TO RECEIVE MESSAGES ... 29 HOW TO SET USER PROFILES ... 30 HOW TO VIEW CALL HISTORY .... 30 HOW TO CONFIGURE CALL SETTINGS ...................................... 30 HOW TO SET YOUR PHONE ........ 31 HOW TO SET YOUR ALARM ........ 31 FILE MANAGER ............................. 32 CAMERA ........................................ 32 VIEW IMAGE .................................. 32 HOW TO PLAY MUSIC .................. 33 HOW TO LISTEN TO FM ............... 33 GAMES ........................................... 34 HOW TO RECORD SOUNDS ........ 34 HOW TO USE SERVICES ............... 34 5 Security „ To protect your mobile phone from illegal use, take the security measures as follows: ¾ Set PIN codes of the SIM card. ¾ Set handset lock code. ¾ Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions „ Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting. „ Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed. „ Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing 6 video games. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-light feature on your phone. (The flashing-light feature is not available on all products.) „ Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving „ Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them. „ Use hands-free function of the phone, if available. „ Pull off the road and park before making or answering a call if conditions require. Precautions for Medical Devices and Facilities „ When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary. „ Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to 7 discuss alternatives. „ If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy. „ In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. Mobile Phone „ Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals. „ Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone. „ As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks. „ Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference. 8 „ Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices. „ Keep your phone dry. Any liquid may damage your phone. „ Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards. „ Do not connect the phone with any incompatible enhancement. „ Do not attempt to disassemble the mobile phone or battery. „ Do not store the phone with flammable or explosive articles. „ Do not charge the mobile phone without battery. „ Some electronic devices are susceptible to electromagnetic interference sent by phone if inadequately shielded. Please use phone at least 20 cm or as far away as you can from TV set, radio and other automated office equipment so …

Text truncated - open the document above for the full version.

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Nov 16, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-GR620 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Nov 11, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

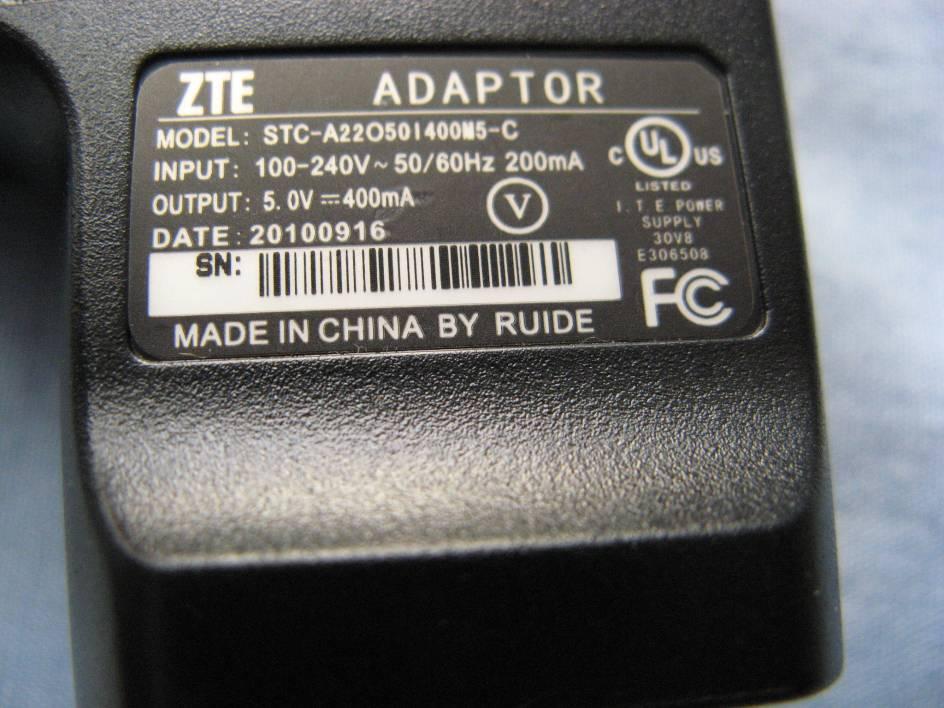

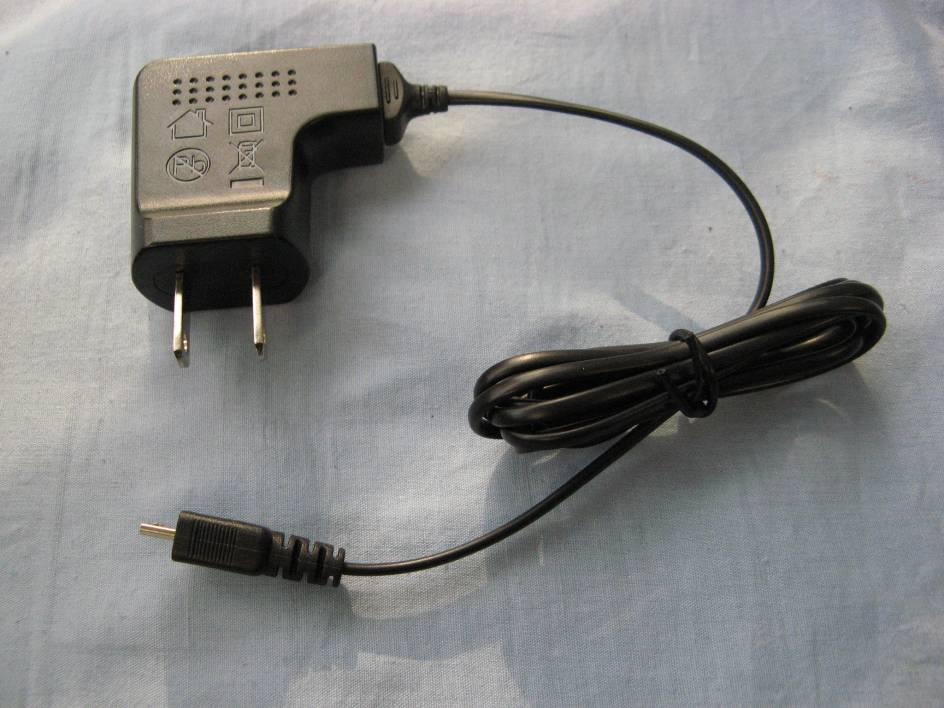

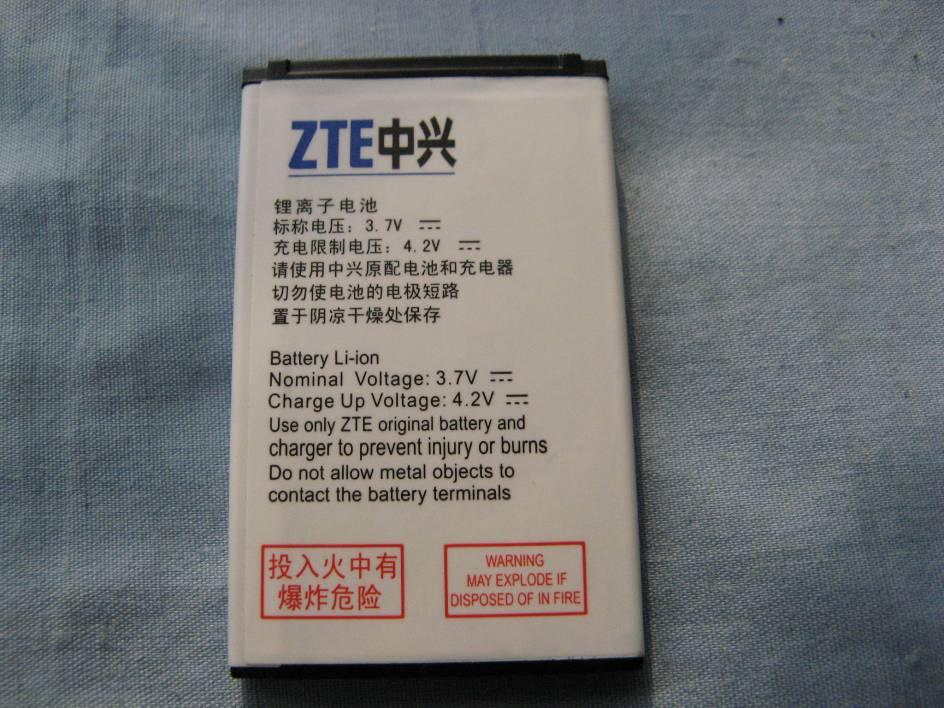

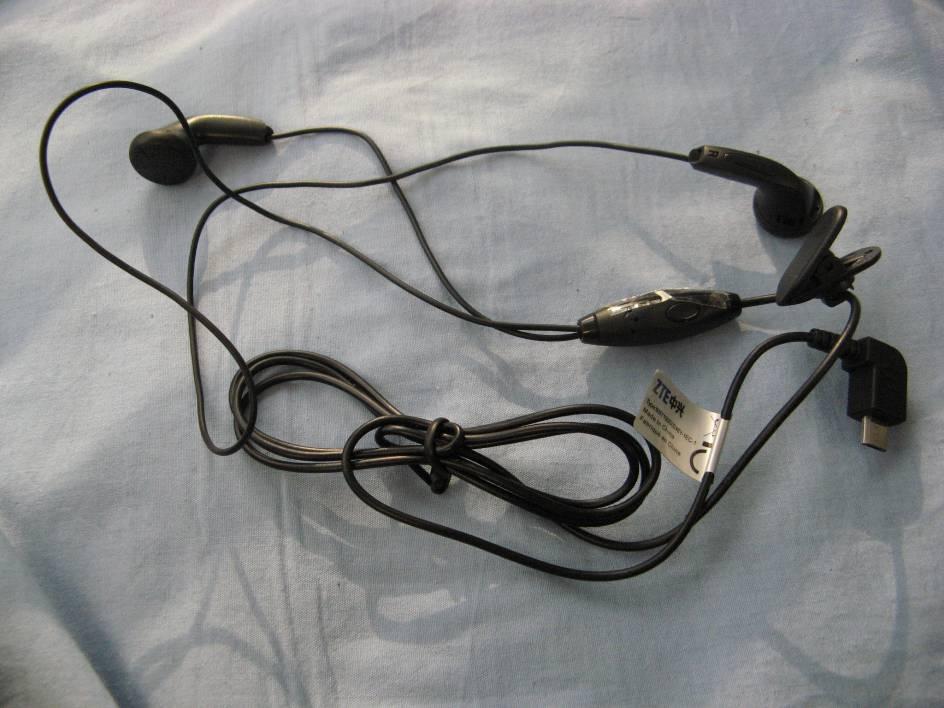

Q78-GR620 external photo Battery Battery Charger Label of Charger Headset

Q78-GR620, label placement

Q78-GR620 internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2010TAR453 Page1 of 14 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR453 for ZTE CORPORATION GSM Dual-Band GPRS Digital Mobile Phone Model Name: ZTE-G R620 FCC ID : Q78-GR620 with Hardware Version: GMAAb Software Version: EC-CN-ZTE8-P109B10V1.0.0 Issued Date: 2010-11-16 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633 , Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2010TAR453 Page2 of 14 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 No.2010TAR453 Page3 of 14 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Nov 10,2010 Testing End Date: Nov 15,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR453 Page4 of 14 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 No.2010TAR453 Page5 of 14 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM Dual-Band GPRS Digital Mobile Phone Model Name ZTE-G R620 FCC ID Q78-GR620 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N01 865117000000808 GMAAb EC-CN-ZTE8-P109B10V1.0.0 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Travel Adapter / AE3 Headset / AE1 Model Li3707T42P3h553447 Manufacturer ZTE Capacitance 770mAh Nominal Voltage 3.7V AE2 Model STC-A22O50I400M5-C Manufacturer RUIDE Length of DC line 120cm AE3 Model BST10050246Y-1EC-1 Manufacturer ZTE *AE ID: is used to identify the test sample in the lab internally. No.2010TAR453 Page6 of 14 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices July 10, 2008 Edition ANSI C63.4 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of …

Text truncated - open the document above for the full version.

Q78-GR620 FCC test setup photo 1． Radiated Spurious Emission 2． Conducted Emission(Charging) 3． Radiated Emission(Charging)
