Q78-GS202GSM Dual-Band Digital Mobile Phone

S202 GSM Mobile Phone User Guide ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : Manual No. : Confidential and Proprietary Information of ZTE CORPORATION 1 C h a p t e r 1 User Guide Security • To protect your mobile phone from illegal use, take the security measures as follows:  Set PIN codes of the SIM card.  Set handset lock code.  Set call restrictions. Safety Precautions This section includes some important information on safe and efficient operation. Please read this information before using the phone. Operational Precautions • Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline telephone. Make sure that the phone is at least one inch (about two point five centimeters) from your body when transmitting. • Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed. • Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-light feature on your phone. (The flashing-light feature is not available on all products.) • Keep the phone out of the reach of small children. The phone may cause injury if used as a toy. Precautions While Driving • Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area where you drive. Always obey them. • Use hands-free function of the phone, if available. • Pull off the road and park before making or answering a call if conditions require. Precautions for Medical Devices and Facilities • When using your phone near pacemakers, please always keep the phone more than eight inches (about twenty centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary. • Some phones may interfere with some hearing aids. In the event of such interference, you may consult your hearing aids manufacturer to discuss alternatives. • If you use any other personal medical device, please consult the manufacturer of your device to determine if it is adequately shielded from RF energy. • In those facilities with special demand, such as hospital or health care facilities, please pay attention to the restriction on the use of mobile phone. Switch off your phone if required. S202 GSM Mobile Phone User Guide 2 Confidential and Proprietary Information of ZTE CORPORATION Mobile Phone • Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your body and violate related local regulations about telecom terminals. • Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone. • As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks. • Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause interference. • Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the life of electronic devices. • Keep your phone dry. Any liquid may damage your phone. • Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards. • Do not connect the phone with any incompatible enhancement. • Do not attempt to disassemble the mobile phone or battery. • Do not store the phone with flammable or explosive articles. • Do not charge the mobile phone without battery. Precautions for Potentially Explosive Atmospheres • Switch off your phone prior to entering any area with potentially explosive atmospheres, such as fueling areas, fuel or chemical transfer or storage facilities. • Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death. • To avoid possible interference with blasting operations, switch off your phone when you are near electrical blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.” Obey all signs and instructions. Precautions for Electronic Devices • Some electronic devices are susceptible to electromagnetic interference sent by mobile phone if inadequately shielded, such as electronic system of vehicles. Please consult the manufacturer of the device before using the phone if necessary. Safety and General Use in Vehicles • Safety airbag, brake, speed control system and oil eject system shouldn’t be affected by wireless transmission. If you do meet problems above, please contact your automobile provider. Do not place your phone in the area over an airbag or in the airbag deployment area. Airbags inflate with great force. If a phone is placed in the airbag deployment area…

Text truncated - open the document above for the full version.

ZTE CORPORATION Declaration As the applicant of the below model, [ZTE Corporation] declares that the products, FCC ID: Q78-GS202 [ZTE Corporation] Don’t support data transfer through USB post. APPROVED BY: Min Date:2010-05-20 Company: ZTE Corporation Address: B109, #889, Bibo Rd, Zhangjiang Hi-Tech Park, Shanghai,China Tel:+86-21-68896840 Fax: +86-21-68896835

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: May 25, 2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: May 25, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-GS202 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

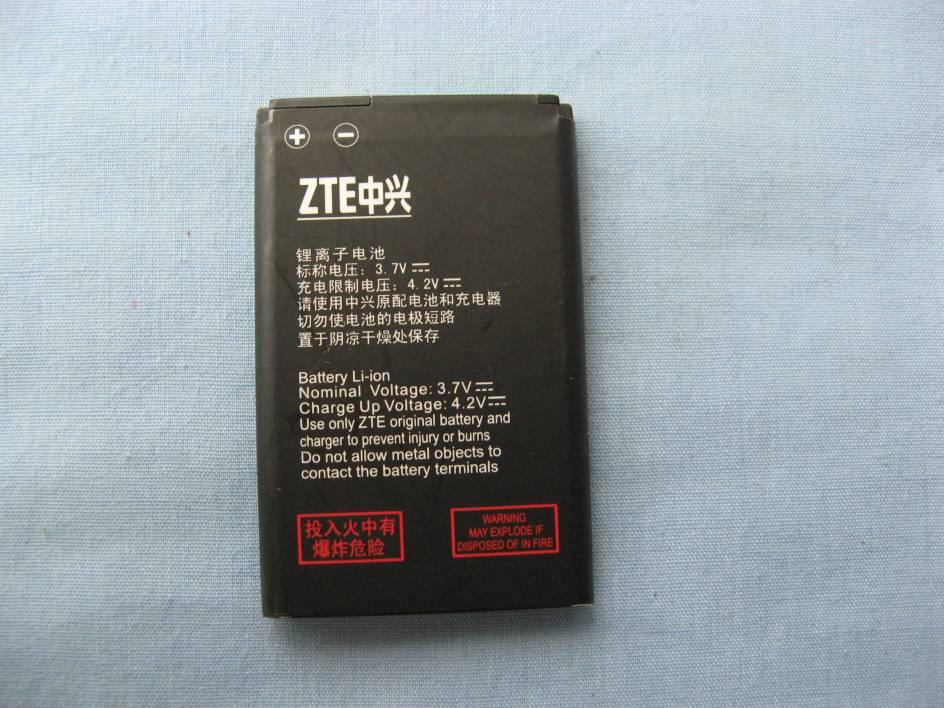

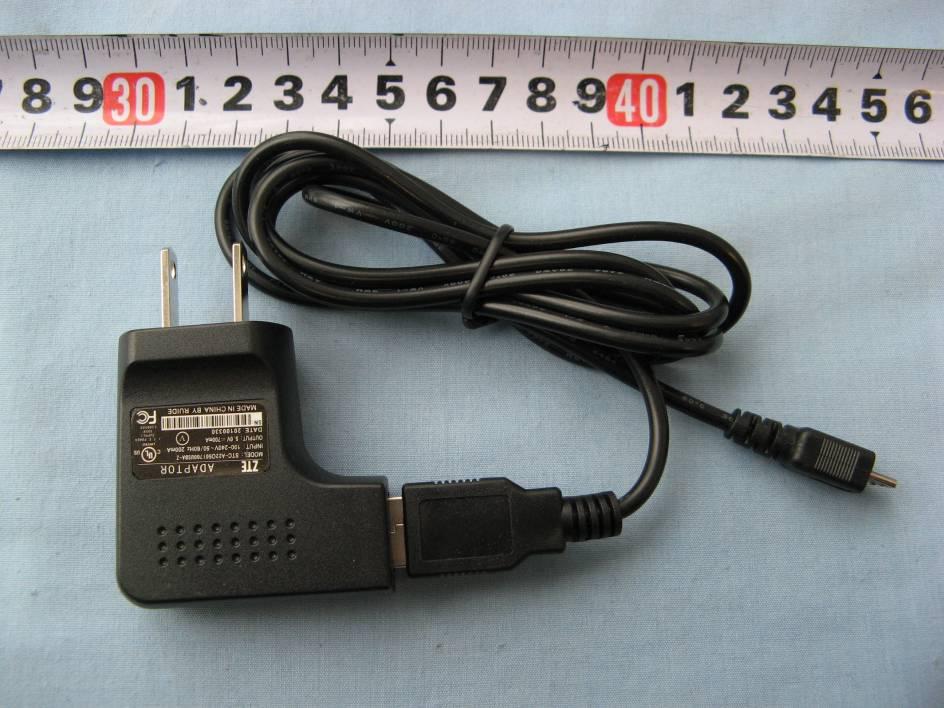

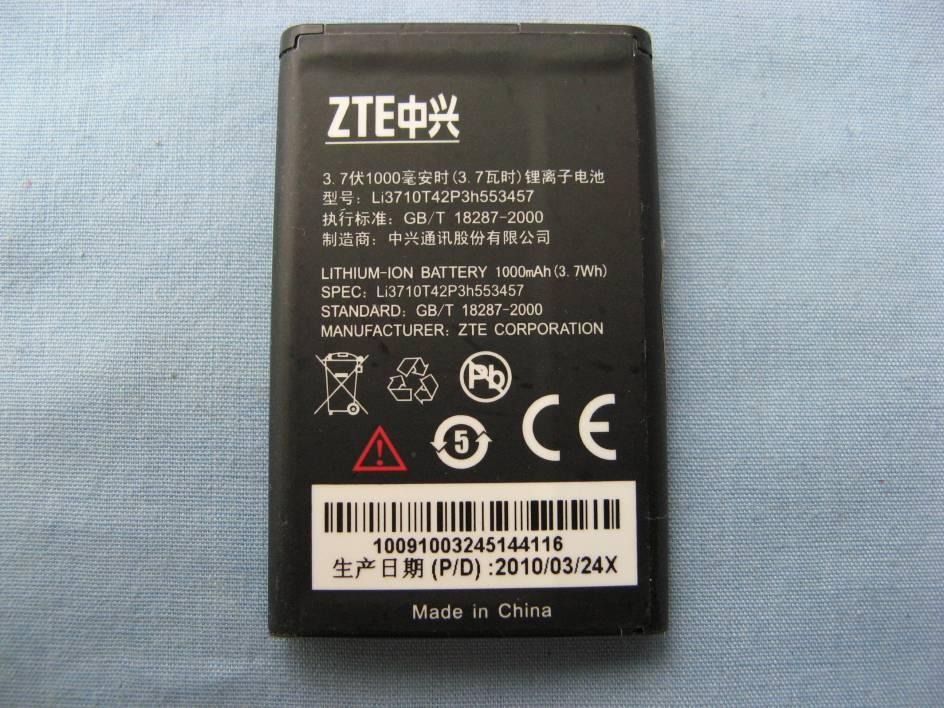

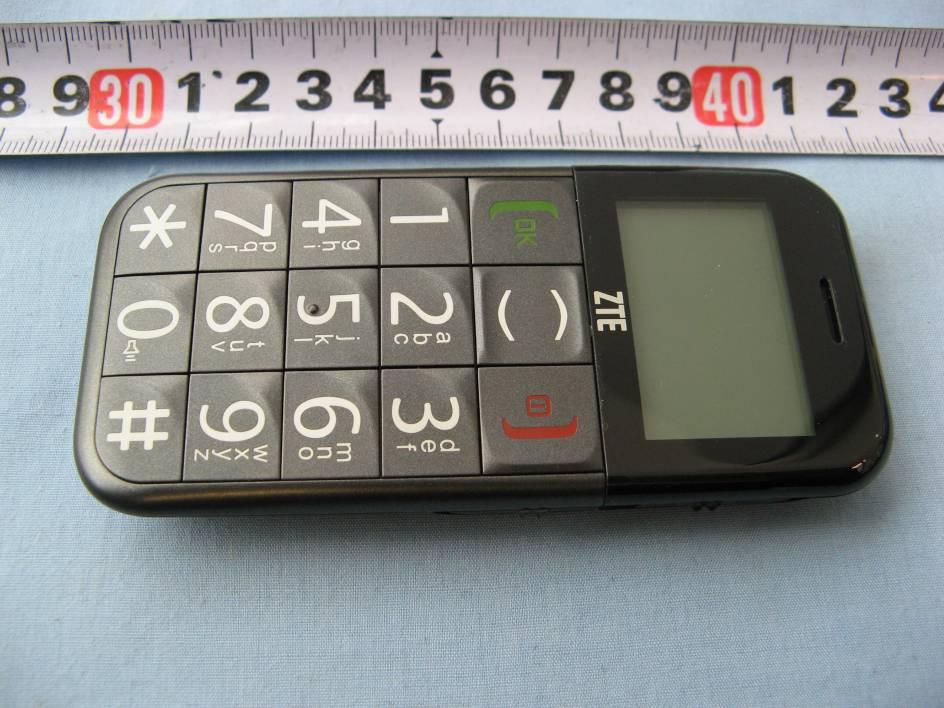

Q78-GS202 external photo Battery Battery Charger Label of Charger

Q78-GS202, FCC label placement label

Q78-GS202_ internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

Report No.: RZA2010-0695 TESTING No. L2264 OET 65 TEST REPORT Product Name GSM Dual-Band Digital Mobile Phone Model ZTE-G S202 FCC ID Q78-GS202 Client ZTE CORPORATION TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name GSM Dual-Band Digital Mobile Phone Model ZTE-G S202 FCC ID Q78-GS202 Report No. RZA2010-0695 Client ZTE CORPORATION Manufacturer ZTE CORPORATION Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass (Stamp) Date of issue: June 1 st , 2010 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Li Jinchang TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 3 of 103 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the test report......................................................................................................... 5 1.2. Testing laboratory ................................................................................................................. 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. Test Date .............................................................................................................................. 8 2. Operational Conditions during Test ..............................................................................................9 2.1. General description of test procedures ................................................................................. 9 2.2. GSM Test Configuration ........................................................................................................ 9 3. SAR Measurements System Configuration ................................................................................ 10 3.1. SAR Measurement Set-up .................................................................................................. 10 3.2. DASY4 E-field Probe System ............................................................................................. 11 3.2.1. EX3DV4 Probe Specification ....................................................................................... 11 3.2.2. E-field Probe Calibration .............................................................................................. 12 3.3. Other Test Equipment .........................................................................................................12 3.3.1. Device Holder for Transmitters .................................................................................... 12 3.3.2. Phantom...................................................................................................................... 13 3.4. Scanning procedure............................................................................................................ 13 3.5. Data Storage and Evaluation .............................................................................................. 15 3.5.1. Data Storage................................................................................................................ 15 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3.6. System check...................................................................................................................... 18 3.7. Equivalent Tissues ..............................................................................................................19 4. Laboratory Environment............................................................................................................. 20 5. Characteristics of the Test .......................................................................................................... 20 5.1. Applicable Limit Regulations ............................................................................................... 20 5.2. Applicable Measurement Standards................................................................................... 20 6. Conducted Output Power Measurement.................................................................................... 21 6.1. Summary ............................................................................................................................ 21 6.2. Conducted Power Results .................................................................................................. 21 7. Test Results ...............................................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 67 of 103 ANNEX D: Probe Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 68 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 69 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 70 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 71 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 72 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 73 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 74 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 75 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 76 of 103 ANNEX E: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 77 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 78 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 79 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 80 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 81 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 82 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 83 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 84 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 85 of 103 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 86 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 87 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 88 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 89 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 90 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 91 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 92 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 93 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 94 of 103 ANNEX G: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 95 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 96 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 97 of 103 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 98 of 103

No.2010TAR194 Page1 of 50 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR194 for ZTE CORPORATION GSM Dual-Band Digital Mobile Phone Model Name: ZTE-G S202 Marketing Name: ZTE-G S202 FCC ID : Q78-GS202 with Hardware Version: g8rA Software Version: 850-P109A13V0.0.2 Issued Date: May 26th, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR194 Page2 of 50 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION ................................................................................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 A.1 OUTPUT POWER .............................................................................................................. 10 A.2 EMISSION LIMT ................................................................................................................. 13 A.3 CONDUCTED EMISSION .................................................................................................. 26 A.4 FREQUENCY STABILITY .................................................................................................. 28 A.5 OCCUPIED BANDWIDTH .................................................................................................. 30 A.6 EMISSION BANDWIDTH ................................................................................................... 34 A.7 BAND EDGE COMPLIANCE .............................................................................................. 38 A.8 CONDUCTED SPURIOUS EMISSION .............................................................................. 40 No.2010TAR194 Page3 of 50 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: May 12,2010 Testing End Date: May 21,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR194 Page4 of 50 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR194 Page5 of 50 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM Dual-Band Digital Mobile Phone Model Name ZTE-G S202 Marketing Name ZTE-G S202 FCC ID Q78-GS202 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger(AC Adaptor) Maximum Output pow…

Text truncated - open the document above for the full version.

Q78-GS202 FCC test setup photo 1． Radiated Spurious Emission 2． Conducted Emission(Charging)

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 99 of 103 ANNEX H: The EUT Appearances and Test Configuration Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 100 of 103 Picture 7: Left Hand Touch Cheek Position Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 101 of 103 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 102 of 103 Picture 11: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm (The spacer was removed during testing) Picture 12: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm (The spacer was removed during testing) TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0695 Page 103 of 103 Picture 13: Body with earphone, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm
