Q78-K3570-ZUSB Stick

Quick Start Guide Vodafone Mobile Broadband USB Stick Designed for Vodafone Welcome to the world of mobile communications 1 Welcome 2 Set up your USB Stick 3 Start the application 4 Connect – Standard window 5 Settings – Advanced window 6 SMS text messaging 8 SMS contacts 9 USB Stick LED lights 9 Signal strength 10 Hints and tips 12 Glossary 13 Safety Information Quick Start Guide Vodafone Mobile Broadband USB Stick Designed for Vodafone Welcome to the world of mobile communications 1 Welcome 2 Set up your USB Stick 3 Start the application 4 Connect – Standard window 5 Settings – Advanced window 6 SMS text messaging 8 SMS contacts 9 USB Stick LED lights 9 Signal strength 10 Hints and tips 12 Glossary 13 Safety Information 12 Your new Vodafone Mobile Broadband USB Stick lets you connect your computer to the internet over the Vodafone high- speed mobile phone network. Browse the web You can now access the web and any other internet service wherever there’s a mobile phone network. Pick up emails Keep up to date with your emails, wherever you are. You can also access your personal email accounts – even web-based accounts like Hotmail. Send and receive SMS text messages You can send and receive SMS text messages straight from your computer. The SMS application provides an easy way to view messages, write new ones, and manage contact details. System Requirements To use this USB Stick and the Vodafone Mobile Broadband application, you need: A computer running Microsoft ® Windows ® ™atsiV swodniW ,7 (SP1 recommended), or Windows ® XP SP3, or an Apple Mac running Mac OS ® X 10.4.11 (Intel ® ) or 10.5.8, or above. 10.6.2 or above recommended - 10.4.11 not supported on PowerPC. At least 100 MB free disk space and 256 MB RAM memory A USB socket Administrator rights on your computer. – – – – Welcome Insert your SIM as shown. Plug the USB S tick fi rmly into your computer’s USB port. • • Set up your USB Stick Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267, 261; 5,544,196; 5,267, 262; 5,568,483; 5,337, 338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 12 Your new Vodafone Mobile Broadband USB Stick lets you connect your computer to the internet over the Vodafone high- speed mobile phone network. Browse the web You can now access the web and any other internet service wherever there’s a mobile phone network. Pick up emails Keep up to date with your emails, wherever you are. You can also access your personal email accounts – even web-based accounts like Hotmail. Send and receive SMS text messages You can send and receive SMS text messages straight from your computer. The SMS application provides an easy way to view messages, write new ones, and manage contact details. System Requirements To use this USB Stick and the Vodafone Mobile Broadband application, you need: A computer running Microsoft ® Windows ® ™atsiV swodniW ,7 (SP1 recommended), or Windows ® XP SP3, or an Apple Mac running Mac OS ® X 10.4.11 (Intel ® ) or 10.5.8, or above. 10.6.2 or above recommended - 10.4.11 not supported on PowerPC. At least 100 MB free disk space and 256 MB RAM memory A USB socket Administrator rights on your computer. – – – – Welcome Insert your SIM as shown. Plug the USB S tick fi rmly into your computer’s USB port. • • Set up your USB Stick Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307; 5,490,165; 5,056,109; 5,504,773; 5,101,501; 5,506,865; 5,109,390; 5,511,073; 5,228,054; 5,535,239; 5,267, 261; 5,544,196; 5,267, 262; 5,568,483; 5,337, 338; 5,600,754; 5,414,796; 5,657,420; 5,416,797; 5,659,569; 5,710,784; 5,778,338 34 On Microsoft Windows computers The fi rst time you plug your USB Stick into your computer, it should be set up automatically. If for some reason setup does not start, right-click on the VMC Lite 10.x.x.x drive in ‘My Computer’, (Start menu>Computer on Vista), select ‘Explore’ and double- click the fi le called setup_vmb_lite.exe on the USB Stick. Follow the on-screen instructions. Setting up your USB Stick may take a few minutes, but once setup is complete, the Vodafone Mobile Broadband Lite application should start automatically. If for some reason it does not start, select Vodafone Mobile Broadband from the Windows Start menu. On Mac OS X computers The fi rst time you plug in your USB Stick, it will show up on your desktop as a Vodafone Mobile Broadband disk. Drag the Vodafone Mobile Broadband icon from the disk window into the Applications folder on your hard disk. Double-click the Vodafone Mobile Broadband icon in your Applications folder to start the application. The application will start, identify your device, create the correct mobile connection settings and select a mobile network. Once the application is ready to connect, the Connect button w ill be enabled. For further details, select Vodafone Mobile Broadband Help in the Help menu. Start the application The first time you run the application, your USB Stick will usually be set as the current device. If it is not, open the ‘Devices’ view, and select your USB Stick there. Connect/Disconnect Connect to the internet via the mobile phone network or Wi-Fi, to browse the web or use email Status Check the status of the current connection Start SMS application Send, receive and manage SMS messages and contacts Advanced Switch to Advanced to show more detail Help View Help topics 5 1 4 2 3 4 5 3 1 2 As a rule, anywhere you can make a call on your mobile phone, you should be able to open a mobile connection. Connect – Standard window 34 On Microsoft Windows computers The fi rst time you plug your USB Stick into your computer, it should be set up automatically. If for some reason setup does not start, right-click on the VMC Li…

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Mar 10, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-K3570-Z To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

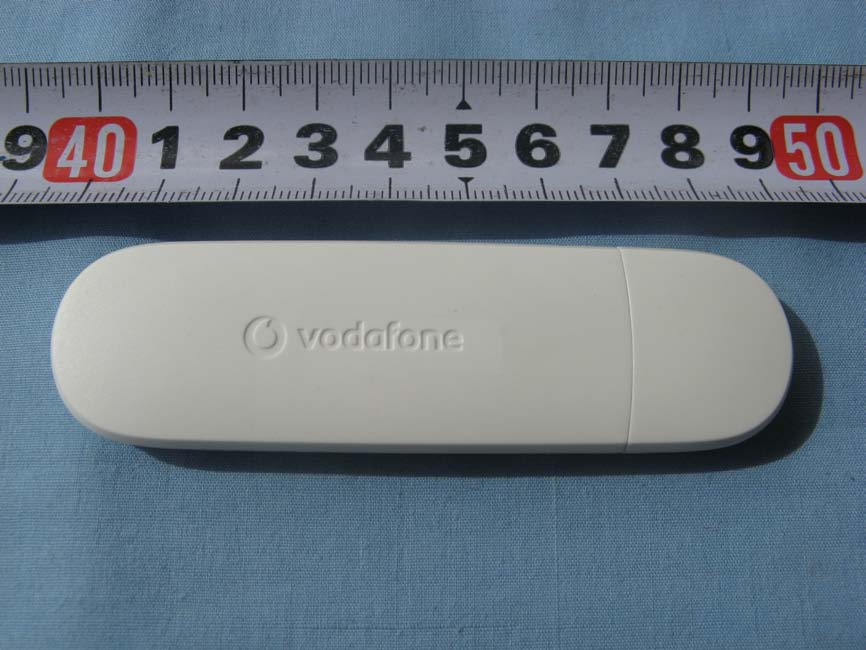

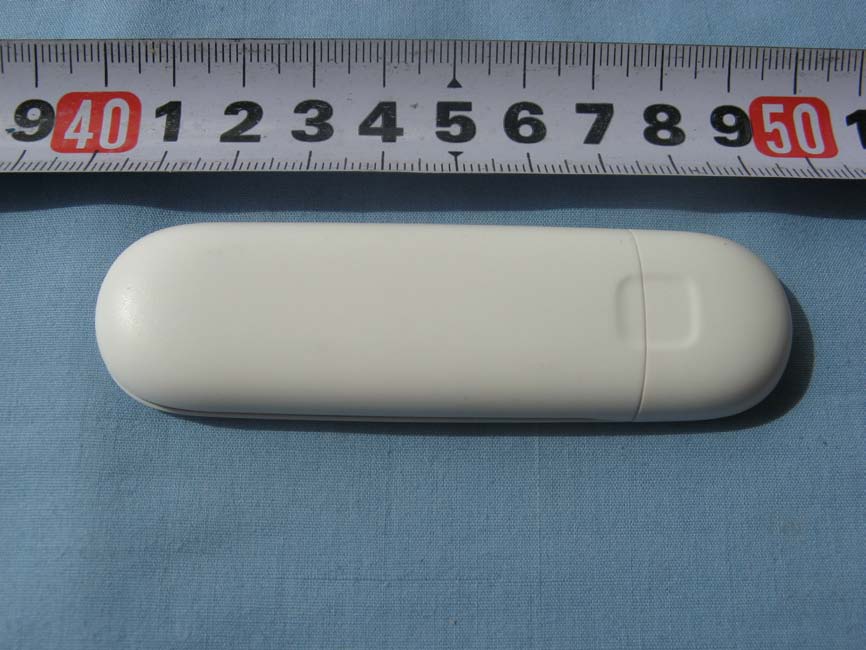

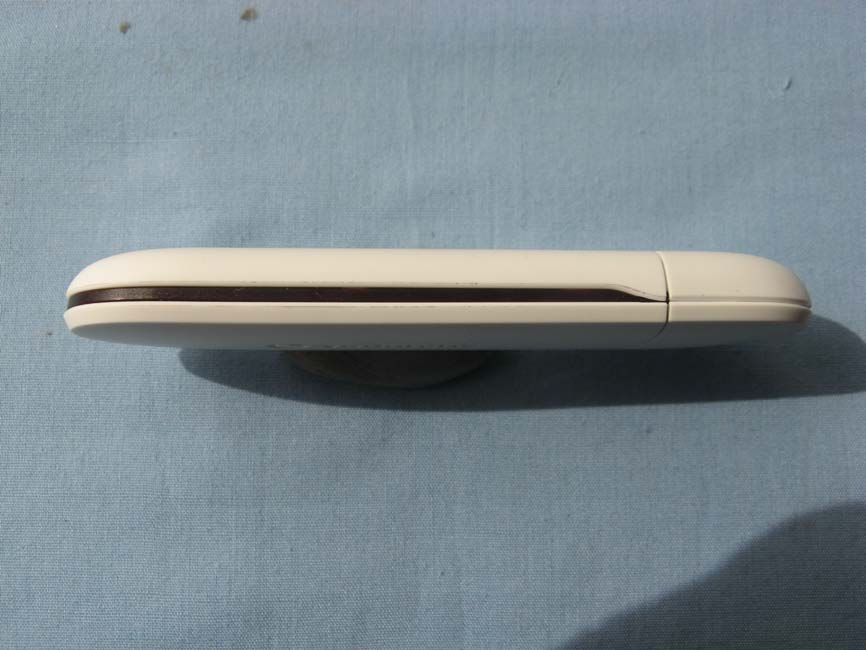

EUT External Photos

V1.0 ZX673.96JA-01/02 P680A8后壳丝印1 正面丝印 (绿色PANTONE:354C) 正面丝印 (银色PANTONE:877C) Z X 6 3 . 6 J - 0 / 0 2 7 9 A 1

EUT Internal Photos

Report No.: RZA2010-0223FCC TESTING No. L2264 OET 65 TEST REPORT Product Name USB Stick Model K3570-Z FCC ID Q78-K3570-Z Client ZTE CORPORATION TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name USB Stick Model K3570-Z FCC ID Q78-K3570-Z Report No. RZA2010-0223FCC Client ZTE CORPORATION Manufacturer ZTE CORPORATION Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions IEC 62209-2 Ed.1(2008-10): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR)for wireless communication devices used in close proximity to the human body .( frequency rang of 30MHz to 6GHz ) KDB 447498 D02:2009-11-13 Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: March 16 th , 2010 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Li Jinchang TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0223FCC Page 3of 90 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the test report............................................................................................................ 5 1.2. Testing laboratory .................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. Test Date ................................................................................................................................. 7 2. Operational Conditions during Test ................................................................................................. 8 2.1. General description of test procedures .................................................................................... 8 2.2. GSM Test Configuration ........................................................................................................... 8 2.3. Position of module in Portable devices .................................................................................... 9 2.4. Picture of host product ........................................................................................................... 10 3. SAR Measurements System Configuration ....................................................................................11 3.1. SAR Measurement Set-up ..................................................................................................... 11 3.2. Dasy4 E-field Probe System .................................................................................................. 12 3.2.1. EX3DV4 Probe Specification .......................................................................................... 12 3.2.2. E-field Probe Calibration ................................................................................................. 13 3.3. Other Test Equipment ............................................................................................................13 3.3.1. Device Holder for Transmitters ....................................................................................... 13 3.3.2. Phantom .........................................................................................................................14 3.4. Scanning procedure............................................................................................................... 14 3.5. Data Storage and Evaluation ................................................................................................. 16 3.5.1. Data Storage...................................................................................................................16 3.5.2. Data Evaluation by SEMCAD ......................................................................................... 16 3.6. System check......................................................................................................................... 19 3.7. Equivalent Tissues ................................................................................................................. 20 4. Laboratory Environment................................................................................................................ 20 5. Characteristics of the Test ............................................................................................................. 21 5.1. Applicable Limit Regulations .................................................................................................. 21 5.2. Applicable Measurement Standards...................................................................................... 21 6. Conducted Output Power Measurement....................................................................................... 22 6.1. Summary .…

Text truncated - open the document above for the full version.

No.2010TAR088 Page1 of 71 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR088 for ZTE CORPORATION USB Stick Model Name: K3570-Z FCC ID: Q78-K3570-Z with Hardware Version: P680A8-1.0.1 Software Version: BD_P680A8V1.0.0B03 Issued Date: Mar 23th, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR088 Page2 of 71 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. GENERAL DESCRIPTION ................................................................................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 A.1 OUTPUT POWER .............................................................................................................. 10 A.2 EMISSION LIMT ................................................................................................................. 15 A.3 FREQUENCY STABILITY .................................................................................................. 29 A.4 OCCUPIED BANDWIDTH ................................................................................................ 31 A.5 EMISSION BANDWIDTH .................................................................................................. 43 A.6 BAND EDGE COMPLIANCE .............................................................................................. 55 A.7 CONDUCTED SPURIOUS EMISSION .............................................................................. 61 No.2010TAR088 Page3 of 71 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Mar 3,2010 Testing End Date: Mar 20,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR088 Page4 of 71 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR088 Page5 of 71 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description USB Stick Model Name K3570-Z FCC ID Q78-K3570-Z Frequency GSM 850MHz; PCS 1900MHz; EGSM900; DCS1800; WCDMA Band I Antenna Internal Power supply USB Output power 28.11 dBm maximum EIRP measured for PCS1900 Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5.0VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republ…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0223FCC Page 89of 90 Picture 6: Test position 1 Picture 7: Test position 2 5mm 5mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0223FCC Page 90of 90 Picture 8: Test Position 3 Picture 9: Test Position 4 5mm 5mm

RSE: Part 15B CE: Part 15B:
