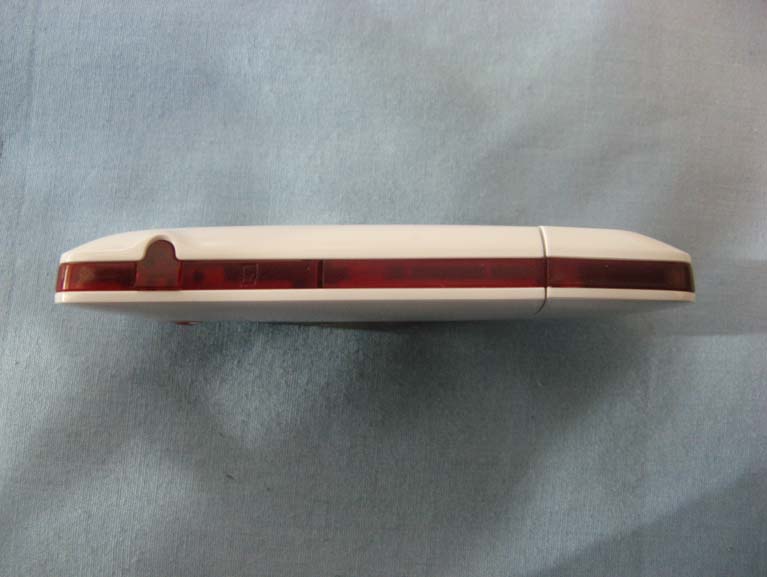

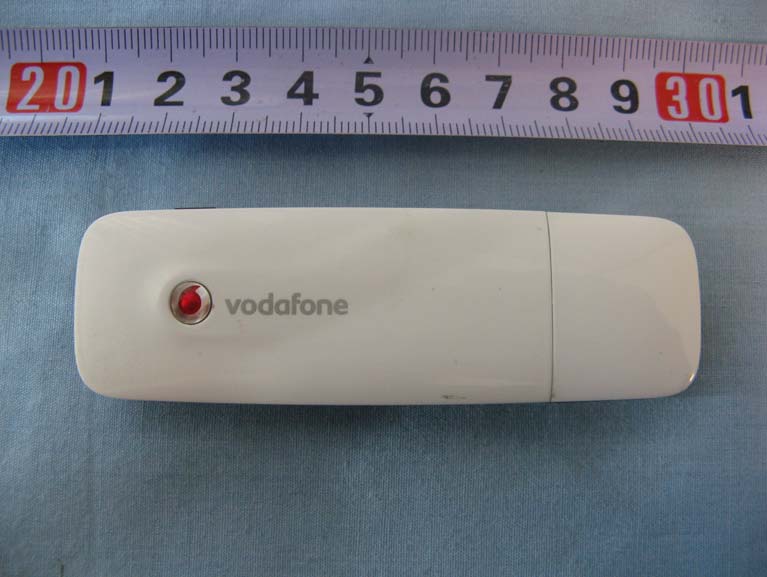

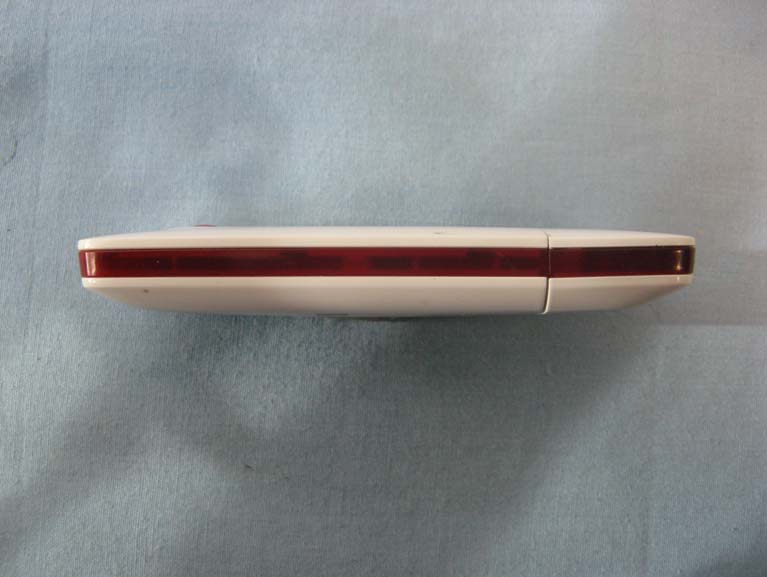

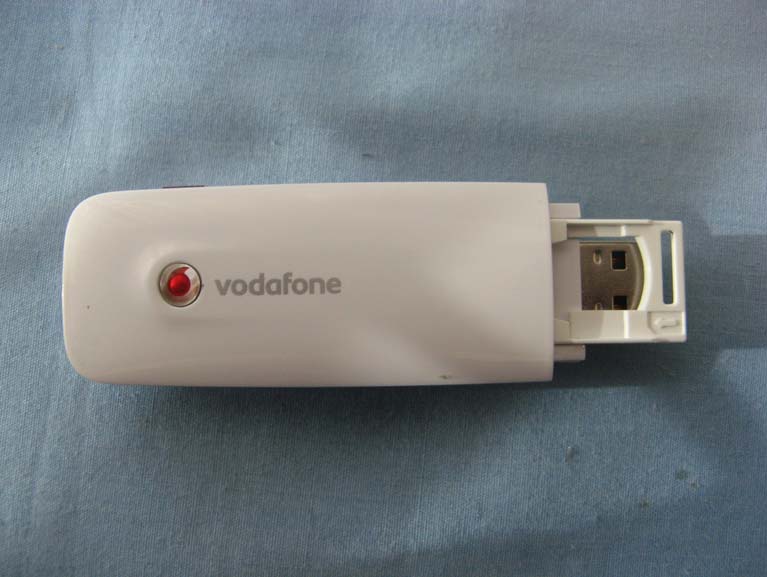

Q78-K3805-ZK3805-Z HSPA USB Modem

Quick Start Guide Vodafone Mobile Broadband USB Stick Designed for Vodafone Welcome to the world of mobile communications 1 Welcome 2 Set up your USB Stick 3 Start the application 4 Connect – Standard window 5 Settings – Advanced window 6 SMS text messaging 8 SMS contacts 9 USB Stick LED lights 9 Signal strength 10 Hints and tips 12 Glossary 1 Your new Vodafone Mobile Broadband USB Stick lets you connect your computer to the internet over the Vodafone high- speed mobile phone network. Browse the web You can now access the web and any other internet ser vice wherever there’s a mobile phone network. Pick up emails Keep up to date with your emails, wherever you are. You can also access your personal email accounts – even web-based accounts like Hotmail. Send and receive SMS text messages You can send and receive SMS text messages straight from your computer. The SMS application provides an easy way to view messages, write new ones, and manage contact details. System Requirements To use this USB Stick and the Vodafone Mobile Broadband application, you need: A computer running Microsoft ® Windows ® 7, Windows Vista™ (SP1 recommended), or Windows ® XP SP3, or an Apple Mac running Mac OS ® X 10.4.11 (Intel ® ) or 10.5.8, or above. 10.6.2 or above recommended - 10.4.11 not supported on PowerPC. At least 100 MB free disk space and 256 MB RAM memory A USB socket Administrator rights on your computer. – – – – Welcome 2 Insert your SIM as shown. If you are using a MicroSD memory card with your Stick (to allow your Stick to behave as a fl ash memory drive), insert the card as shown. Plug the USB Stick fi rmly into your computer’s USB port. • • • Set up your USB Stick 3 On Microsoft Windows computers The fi rst time you plug your USB Stick into your computer, it should be set up automatically. If for some reason setup does not start, right-click on the VMC Lite 10.x.x.x drive in ‘My Computer’, (Start menu>Computer on Vista), select ‘Explore’ and double- click the fi le called setup_vmb_lite.exe on the USB Stick. Follow the on-screen instructions. Setting up your USB Stick may take a few minutes, but once setup is complete, the Vodafone Mobile Broadband Lite application should start automatically. If for some reason it does not start, select Vodafone Mobile Broadband from the Windows Start menu. On Mac OS X computers The fi rst time you plug in your USB Stick, it will show up on your desktop as a Vodafone Mobile Broadband disk. Drag the Vodafone Mobile Broadband icon from the disk window into the Applications folder on your hard disk. Double-click the Vodafone Mobile Broadband icon in your Applications folder to start the application. The application will start, identify your device, create the correct mobile connection settings and select a mobile network. Once the application is ready to connect, the Connect button will be enabled. For further details, select Vodafone Mobile Broadband Help in the Help menu. Start the application The first time you run the application, your USB Stick will usually be set as the current device. If it is not, open the ‘Devices’ view, and select your USB Stick there. 4 Connect/Disconnect Connect to the internet via the mobile phone network or Wi-Fi, to browse the web or use email Status Check the status of the current connection Start SMS application Send, receive and manage SMS messages and contacts Advanced Switch to Advanced to show more detail Help View Help topics 5 1 4 2 3 4 5 3 1 2 As a rule, anywhere you can make a call on your mobile phone, you should be able to open a mobile connection. Connect – Standard window 5 9 8 10 6 7 The connection type icons are animated whenever a connection is open. Application menu View Options, Support and Updates, or exit the application Views Check the status of all connections, prioritise connections, check your usage, and manage devices or shortcuts Ribbon Customise settings for the items in each view Connections View the status of all connection types Standard Switch to Standard to show just the current connection Settings – Advanced window 6 7 8 9 10 6 Click SMS on the Shortcuts bar at the bottom of the V odafone Mobile Broadband Lite application to open the SMS application. To send an SMS Click New at the left-hand end of the SMS toolbar to create a new SMS text message. Address Enter the recipients here, or choose them from Contacts Message Write your message here Send Click on the Send button to send your message. After your SMS has been sent, it will be stored in the Sent list. 2 1 3 The number displayed to the person who receives your message will be from your data SIM, not your mobile phone. Use a short ‘signature’ to make sure people know you sent them a message: Settings/Messages/ Signature. 2 3 SMS Text Messaging 1 7 Receiving SMS When you receive a new message, an SMS Notifi cation is shown briefl y so you can respond to it directly. The received message can also be read from the Inbox in the main SMS window. The SMS application will receive text messages whenever you have mobile network coverage. 8 Click Contacts on the SMS navigation bar to open the Contacts list, in which you can save SMS numbers that you use frequently as contacts with names. New SMS Contact Clicking the New button on the SMS toolbar opens a new contact window. Enter the name and number of your contact using the international format for the number, eg. +447774477000. SMS Contacts 9 Signal strength The LED light on your USB Stick shows which kind of mobile network has been found, and whether the USB Stick is connected to that network. Green blinking A GPRS network has been found – you could connect Green solid Connected via GPRS Blue blinking A 3G network has been found – you could connect Blue solid Connected via 3G Light blue solid Connected via 3G Broadband. The strength of the mobile or Wi-Fi network signal is shown by the symbol to the left of the Connect button, and by the icon in the Windows Notifi cation area. The more bars that are fi lle…
