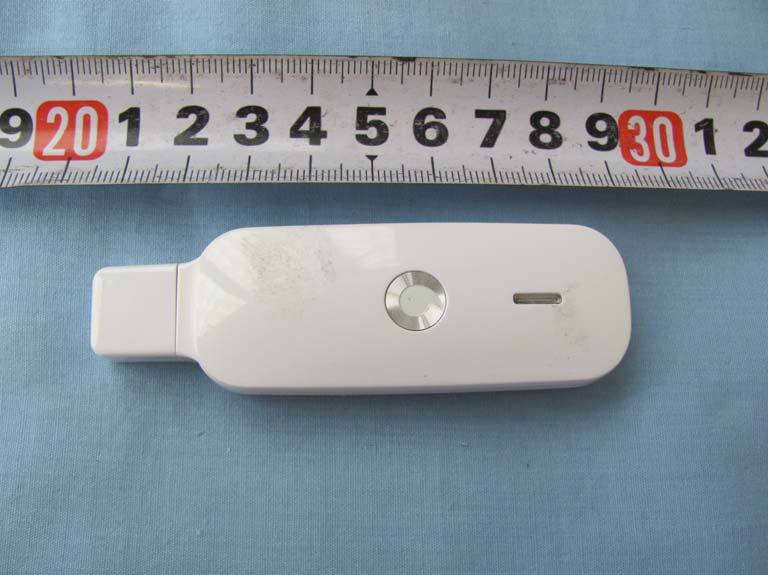

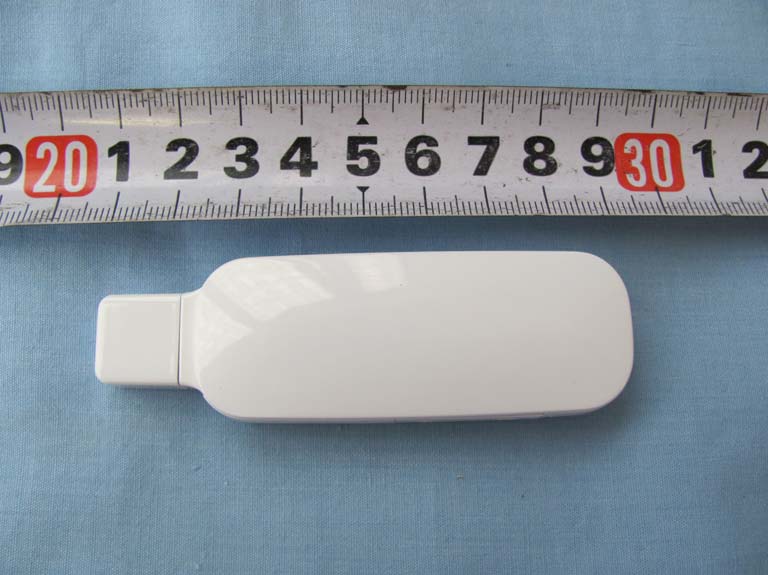

Q78-K3806-ZHSPA USB Modem

K3806-Z USB Modem Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Confidential and Proprietary Information of ZTE CORPORATION 1 C h a p t e r 1 Quick Guide Introduction The ZTE USB modem is a multi-mode USB modem, working in HSPA+/HSUPA/HSDPA/ WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Specification The following table shows the specification of your device. Interface Type USB 2.0 HIGH SPEED Systems supported Supports most types of laptop and desktop PC. Operating systems supported Windows XP(SP2 and later), Vista(32bit and 64 bits), Windows 7 MAC 10.4 later Functions SMS service, Data service, Applications management, support microSD card, etc. Network Standards HSPA+/HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM Transmission speed (Max) HSUPA: 5.76Mbps UL HSDPA: 14.4Mbps DL Temperature Storage: -40 ~ +80°C°C Operation:-10 ~ +55°C°C Dimension 74mm*26mm*12mm Weight About 26g microSD capability Support up to 32GB microSD card Notes: microSD is a trademark of SD Card Association. Getting to know your device The following figure shows the appearance of the MF652. It is only for your reference. The actual product may be different. MF652 Quick Guide 2 Confidential and Proprietary Information of ZTE CORPORATION 1. Modem Cap 2. Front Cover 3. Indicator 4. microSD card slot 5. External antenna port 6. SIM/USIM card slot Hardware Installation 1. Slide the front cover and remove it. Notes: Do not open the front cover rudely so as to avoid the damage of the front cover. 2. Insert the SIM/USIM card into the SIM/USIM card slot. Insert the SIM/USIM card with the metal contact area facing downwards into the slot, shown as the following picture. MF652 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 3 3. Put the front cover of the modem flatly upon the body of modem. Direct the front cover towards the locking catches on the sides of the modem, and then push the front cover of the modem to lock the front cover into its place. 4. Insert the microSD card into the USB modem if you want to use the microSD card. i. Open the cover of the microSD card slot. Notes: Do not pull the cover rudely for it is connected with the modem. ii. Insert your microSD card into the microSD card slot, shown as the following picture. iii. Close the cover of microSD card slot and then you can use the microSD card freely. 5. Connect the Modem to your laptop or desktop PC. Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted. The OS automatically detects and recognizes new hardware and starts the installation wizard. Software Installation Guide On different operating systems, the installation procedures may be difference. Follow the system prompts during operation. For Windows OS Your system will start the software setup process automatically when you connect the modem to your MF652 Quick Guide 4 Confidential and Proprietary Information of ZTE CORPORATION computer correctly. Follow the system prompts to complete the software installation. Notes: If the system does not launch installation automatically, you can run the installation program in path of My Computer > VMB Lite 10.x.x.x. For Mac OS The system will automatically display a CD-ROM icon on the desktop, when you connect the modem to your computer correctly. Double click the installation software package in the CD-ROM, and follow the system prompts to complete the software installation. Safe removal from your system Please close the application software, and then you can pull out the USB Modem safely. How to use your modem Various icons are presented to enable quick operation of the following functions: Status In this view you can open and monitor connections, and various indicators show the status of these connections. Prioritize This view shows all possible connection types in two Location lists of connection modules, which are prioritised from the top downwards. Usage This view displays how much data you have sent or received over the current or most recent connection, or how long it has been or was open. Devices This view lists your Mobile and WLAN devices. Shortcut In this view you can add additional icons for your own applications to the Vodafone Mobile Broadband application’s Shortcuts bar. Some permanent application modules may already be present in the list, eg. SMS*, VPN* and WLAN*. Help Show the help information. Warning and Notice FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. MF652 Quick Guide Confidential and Proprietary Information of ZTE CORPORATION 5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer…
