Q78-MC315800 MHz CDMA PCMCIA Card

MC315 User Guide 2005-3-7 ZTE Corporation page1 http://www.zteit.com ZTE MC315 Wireless Network Card User Guide （ Version: V4.1-TY ） MC315 User Guide 2005-3-7 ZTE Corporation page2 http://www.zteit.com Contents 1. Introduction...............................................................................................................................3 2. Specifications ............................................................................................................................3 3. Care for your card .....................................................................................................................3 4. Features .....................................................................................................................................4 Insert R-UIM card to MC315....................................................................................................4 5. Setup and Uninstall ...................................................................................................................4 5.1 System Requirements.........................................................................................................4 5.2 Setup for Windows 2000 ....................................................................................................5 5.2.1 Setup.........................................................................................................................5 5.2.2 Uninstall ...................................................................................................................8 5.3 Setup for Windows XP........................................................................................................9 5.3.1 Setup.........................................................................................................................9 5.3.2 Uninstall .................................................................................................................13 6. The Main Window and Icons ..................................................................................................14 7. Connect/Disconnect ................................................................................................................15 8. Connection Record..................................................................................................................16 9. Voice call.................................................................................................................................17 10. Call History .............................................................................................................................18 11. Send Short Messages ..............................................................................................................18 12. Read Short Messages ..............................................................................................................19 13. Phone Book .............................................................................................................................20 14. Settings....................................................................................................................................21 15. Trouble Shooting.....................................................................................................................21 16. FCC RF EXPOSURE INFORMATION .................................................................................23 MC315 User Guide 2005-3-7 ZTE Corporation page3 http://www.zteit.com 1. Introduction ZTE MC315 PCMCIA wireless network card fits into a standard Type II PC Card slot (available on most notebook PCs) and can function as a wireless network card, a modem, and a mobile phone. This card allows you to connect to the Internet, send and receive SMS messages, and make phone calls, without the need of a network cable or phone line. With the design of the UIM card separate from the body, MC315 PCMCIA wireless network card can make the operation more flexible. 2. Specifications Transmit Frequency 824.04~848.97MHz Receive Frequency 869.04~893.37MHz Freq. Stability FA±300Hz Dimension 86*54*5 mm Weight 33g Data Transmission MAX 153.6 kbps Voltage 3.3V from PCMCIA Slot Current Dormancy: 90mA Maximum: 850mA Transmitter Power 200mW 3. Care for your card ¾ Protect the card from liquids, dust, and excessive heat. ¾ Optimal signal strength is usually obtained when the antenna is perpendicular to the modem. The antenna should bend easily. Do not forcefully bend the antenna or plugs the antenna in and out MC315 card frequently. ¾ The MC315 card should fit easily into your PC slot. Forcing the card into a slot may damage connector pins. MC315 User Guide 2005-3-7 ZTE Corporation page4 http://www.zteit.com 4. Features Insert R-UIM card to MC315 When MC315 card start up, the lamp is in YELLOW. After a few seconds, the PCMCIA card will ready to work, the lamp is in GREEN. 5. Setup and Uninstall 5.1 System Requirements The MC315 wireless network card is supported on: • Windows 98 • Windows 2000 • Windows XP To install the MC315, you will require these system resources at the minimum: CPU Pentium-II/233MHz Card Slots 1 Type II PCMCIA (PC Card) Slot Disk Drive CD-ROM (for installation only) Memory 64 MB MC315 User Guide 2005-3-7 ZTE Corporation page5 http://www.zteit.com Disk Space 30 MB 5.2 Setup for Windows 2000 5.2.1 Setup Note: Don’t insert the ZTE MC315 Wireless network Card before setup. 1. Please find “autosetup.exe” first in ZTE MC315 CD, and double click the icon of autosetup.exe, then choose “English” when the picture displayed in the screen. 2. When you see this window, please click “next”. MC315 User Guide 2005-3-7 ZTE Corporation page6 http://www.zteit.com 3. Select the location where the program is to be installed, then click “Next”. 4. When you see this window, please click “next”. 5. When you see this window, please click “install”. MC315 User Guide 2005-3-7 ZTE Corporation page7…

Text truncated - open the document above for the full version.

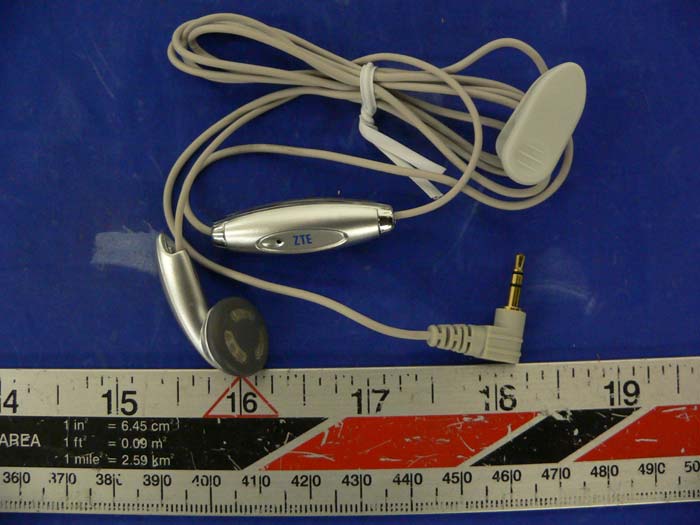

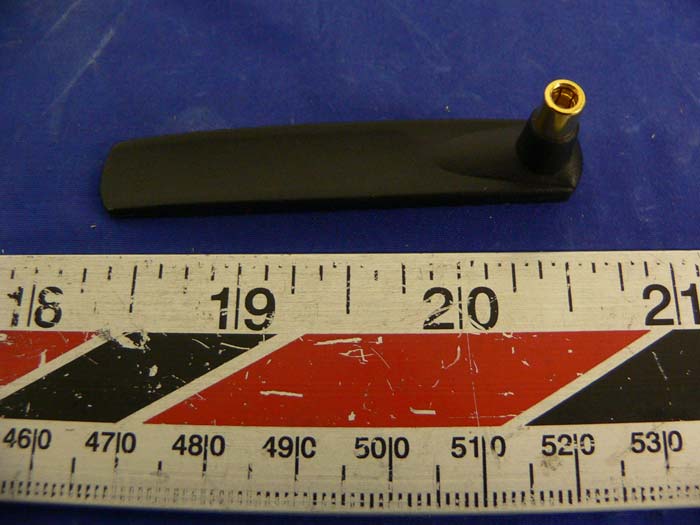

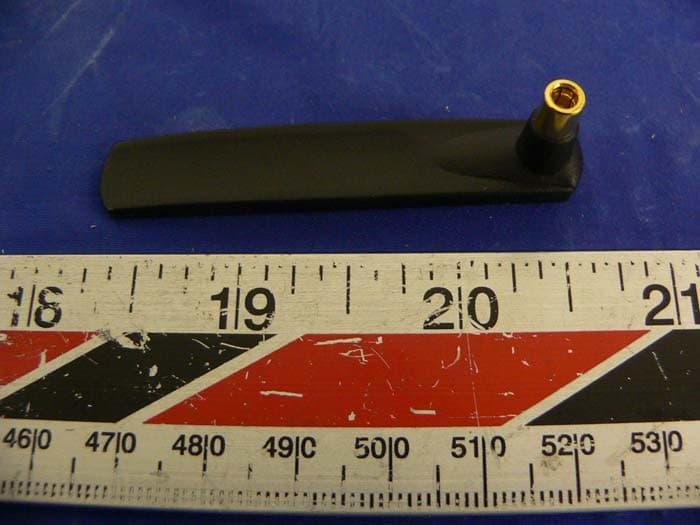

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT – Rear View Antenna View Earphone View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q78-MC315 Trade Name Model Number

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Component View EUT – Solder View EUT – Port View 1 EUT – Port View 2 EUT – Component View with RF Shield off

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-MC315 This Report Concerns: Original Report Equipment Type: 800MHz CDMA PCMCIA Card Test Engineer: Hang Tan / Report No.: R0506012S Report Date: 2005-06-12 Reviewed By: Richard Lee / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 2 of 59 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Classification: Licensed Portable Transmitter Device Type: 800MHz CDMA PCMCIA Card FCC ID: Q78-MC315 Modulation: CDMA TX Frequency Range: 824.04~848.97MHz Max. Conducted Power Tested: 0.383W Antenna Type(s): External Antenna Body-Worn Accessories: Earphone Face-Head Accessories: N/A Max. SAR Level(s) Measured: 0.552W/kg (Body-Worn) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in EN 50361:2001 and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 Supplement C and ANSI IEEE C95.3:2002 All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Hang Tan Bay Area Compliance Laboratory Corp. ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 3 of 59 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................7 MEASUREMENT SYSTEM DIAGRAM.............................................................................................................................9 SYSTEM COMPONENTS...............................................................................................................................................11 TESTING EQUIPMENT ............................................................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................21 SYSTEM ACCURACY VERIFICATION...........................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................22 SAR EVALUATION PROCEDURE.................................................................................................................................22 CONCLUSION ............................................................................................................................................................23 SAR BODY WORST-CASE TEST DATA.......................................................................................................................23 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................24 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................26 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................37 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS .................................................................................41 LIQUID MEASUREMENT RESULT................................................................................................................................41 APPENDIX E - EUT SCANS .....................................................................................................................................44 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT ...............................................................50 PROVISION APPLICABLE.............................................................................................................................................50 TEST PROCEDURE......................................................................................................................................................50 TEST EQUIPMENT.......................................................................................................................................................50 TEST RESULTS......................................................................................…

Text truncated - open the document above for the full version.

ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 31 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 32 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 33 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 34 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 35 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 36 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 37 of 59 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 38 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 39 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 40 of 59 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 41 of 59 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2005-06-09 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 55.2 55.9 1.27 ±5 σ 22.0 0.97 0.96 -1.03 ±5 Body 835 1g SAR 22.0 8.872 8.10 -8.70 ±10 ε r 22.0 41.5 41.5 0.00 ±5 σ 22.0 0.90 0.89 -1.11 ±5 Head 835 1g SAR 22.0 9.5 9.65 1.58 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 42 of 59 Date/Time: 6/8/2005 11:02:48 AM Test Laboratory: Bay Area Compliance Lab Corp. File Name: 050608_ET_1604_SystemValidationCheck_D835_Body.da4 DUT: Dipole 835 MHz; Type: CD835V3; Serial: CD835V3 - SN:1012 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn456; Calibrated: 6/1/2004 - Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=15mm, Pin=1W/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 8.16 mW/g d=15mm, Pin=1W/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.5 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 11.6 W/kg SAR(1 g) = 8.10 mW/g; SAR(10 g) = 4.91 mW/g Maximum value of SAR (measured) = 8.34 mW/g ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 43 of 59 Date/Time: 6/9/2005 5:52:04 PM Test Laboratory: Bay Area Compliance Lab Corp. File Name: 050608_ET_1604_SystemValidationCheck_D835_Head.da4 DUT: Dipole 835 MHz; Type: CD835V3; Serial: CD835V3 - SN:1012 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1604; ConvF(6.62, 6.62, 6.62); Calibrated: 3/18/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn456; Calibrated: 6/1/2004 - Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=15mm, Pin=1W 4/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.3 mW/g d=15mm, Pin=1W 4/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 112.7 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 14.8 W/kg SAR(1 g) = 9.65 mW/g; SAR(10 g) = 6.13 mW/g Maximum value of SAR (measured) = 10.5 mW/g 0 dB = 10.5mW/g ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 44 of 59 APPENDIX E - EUT SCANS Date/Time: 6/9/2005 2:35:24 PM Test Laboratory: Bay Area Compliance Lab Corp. File Name: 050609_ZTE_Body_Mid chn_Compaq Notebook.da4 DUT: DUT; Type: Sample; Serial: 300511194096 Program Name: ZTE Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn456; Calibrated: 6/1/2004 - Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1.5cm Body position - Middle chn_V/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (interpolated) = 0.014 mW/g 1.5cm Body position - Middle chn_V/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.98 V/m; Power Drift = -0.244 dB Peak SAR (extrapolated) = 0.030 W/kg SAR(1 g) = 0.013 mW/g; SAR(10 g) = 0.00748 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.015 mW/g 0 dB = 0.015mW/g Plot #1 ZTE Corporation. FCC ID: Q78-MC315 Report #R0506012S SAR Evaluation Report Page 45 of 59 Date/Time: 6/9/2005 2:18:22 PM Test Laboratory: Bay Area Compliance Lab Corp. File Name: 050609_ZTE_Body_Mid chn_Compaq Notebook.da4 DUT: DUT; Type: Sample; Serial: 300511194096 Program Name: ZTE Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3…

Text truncated - open the document above for the full version.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 22 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-MC315 This Report Concerns: Original Report Equipment Type: 800MHz CDMA PCMCIA Card Test Engineer: Snell Leong / Report No.: R0506012 Report Date: 2005-06-10 Reviewed By: Richard Lee / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 ZTE Corporation FCC ID: Q78-MC315 Report # R0506012RptRpt Page 2 of 22 FCC Part 22 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................11 §2.1046, §22.913(A) - RF POWER OUTPUT............................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST RESULTS..........................................................................................…

Text truncated - open the document above for the full version.
