MC315+ User Guide 2005-3-7 ZTE Corporation page1 http://www.zteit.com ZTE MC315+ Wireless Network Card User Guide （Version: V4.1-TY） PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com MC315+ User Guide 2005-3-7 ZTE Corporation page2 http://www.zteit.com Contents 1. Introduction...............................................................................................................................3 2. Specifications............................................................................................................................3 3. Care for your card.....................................................................................................................3 4. Features.....................................................................................................................................4 Insert R-UIM card to MC315+.................................................................................................4 5. Setup and Uninstall...................................................................................................................4 5.1 System Requirements.........................................................................................................4 5.2 Setup for Windows 2000....................................................................................................5 5.2.1 Setup........................................................................................................................5 5.2.2 Uninstall...................................................................................................................8 5.3 Setup for Windows XP........................................................................................................9 5.3.1 Setup........................................................................................................................9 5.3.2 Uninstall.................................................................................................................13 6. The Main Window and Icons..................................................................................................14 7. Connect/Disconnect................................................................................................................15 8. Connection Record.................................................................................................................16 9. Voice call.................................................................................................................................17 10. Call History.............................................................................................................................18 11. Send Short Messages..............................................................................................................18 12. Read Short Messages..............................................................................................................19 13. Phone Book.............................................................................................................................20 14. Settings...................................................................................................................................21 15. Trouble Shooting....................................................................................................................21 16. FCC RF Exposure Information...............................................................................................23 PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com MC315+ User Guide 2005-3-7 ZTE Corporation page3 http://www.zteit.com 1. Introduction ZTE MC315+ PCMCIA wireless network card fits into a standard Type II PC Card slot (available on most notebook PCs) and can function as a wireless network card, a modem, and a mobile phone. This card allows you to connect to the Internet, send and receive SMS messages, and make phone calls, without the need of a network cable or phone line. With the design of the UIM card separate from the body, MC315+ PCMCIA wireless network card can make the operation more flexible. 2. Specifications Transmit Frequency 824.04~848.97MHz Receive Frequency 869.04~893.37MHz Freq. Stability FA±300Hz Dimension 86*54*5 mm Weight 33g Data Transmission MAX 153.6 kbps Voltage 3.3V from PCMCIA Slot Current Dormancy: 90mA Maximum: 850mA Transmitter Power 200mW 3. Care for your card ÿ Protect the card from liquids, dust, and excessive heat. ÿ Optimal signal strength is usually obtained when the antenna is perpendicular to the modem. The antenna should bend easily. Do not forcefully bend the antenna or plugs the antenna in and out MC315+ card frequently. ÿ The MC315+ card should fit easily into your PC slot. Forcing the card into a slot may damage connector pins. PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com MC315+ User Guide 2005-3-7 ZTE Corporation page4 http://www.zteit.com 4. Features Insert R-UIM card to MC315+ When MC315+ card start up, the lamp is in YELLOW. After a few seconds, the PCMCIA card will ready to work, the lamp is in GREEN. 5. Setup and Uninstall 5.1 System Requirements The MC315+ wireless network card is supported on: • Windows 98 • Windows 2000 • Windows XP To install the MC315+, you will require these system resources at the minimum: CPU Pentium-II/233MHz Card Slots 1 Type II PCMCIA (PC Card) Slot Disk Drive CD-ROM (for installation only) Memory 64 MB PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com MC315+ User Guide 2005-3-7 ZTE Corporation page5 http://www.zteit.com Disk Space 30 MB 5.2 Setup for Windows 2000 5.2.1 Setup Note: Don’t insert the ZTE MC315+ Wireless network Card before setup. 1. Please find “autosetup.exe” first in ZTE MC315+ CD, and double click the icon of autosetup.exe, then choose “English” when the picture displayed in the screen. 2. When you see this window, please click …

Text truncated - open the document above for the full version.

中兴通讯股份有限公司 Z T EC O R P O R A T I O N 地址（Add）：深圳市高新技术产业园科技南路中兴通讯 A 座 电话（Tel）: +86-755-26770000 传真：+86-755-2677999 邮编（ Postcode ）: 518057 网址: http : // www.zte.com.cn 电子邮件：E-mail: [email protected] FCC Confidential Authorization Date: November 14, 2005 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: (Q78-MC315PLUS). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: (BOM, Antenna Information, Technical Specification, Schematics, Block Diagram, Circuit Description, Turn up procedure) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Gong Bolin Title: Product Certification Director Company Name: ZTE Corporation

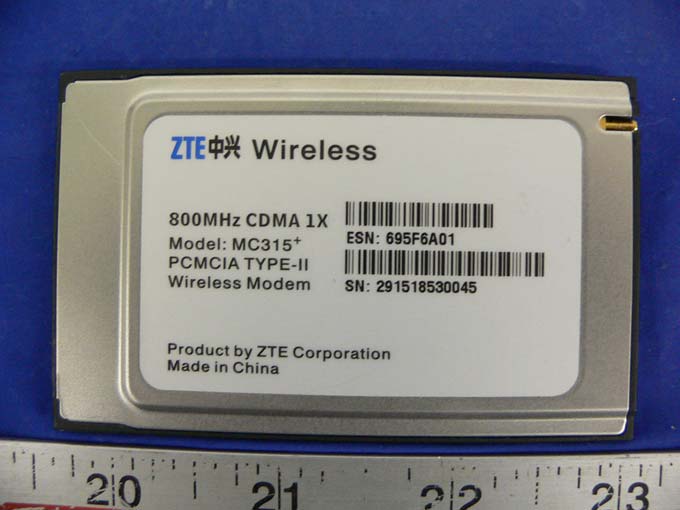

ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EXHIBIT C - EUT PHOTOGRAPHS EUT - Front View EUT – Rear View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q78-MC315PLUS Industry Canada Industrie Canada IC: 5200A-MC315P Model Name: SIP-ATA Made by: ZTE Corporation.

ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EUT – Cover off View EUT – Component View ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EUT – Solder View EUT – Port View 1 ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EUT – Port View 2 EUT – Port View 3 ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EUT – Transmitter Closer View Antenna View ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report Earphone View

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-MC315PLUS This Report Concerns: Original Report Equipment Type: CDMA2000 1X PCMCIA Wireless Card Test Engineer: Daniel Du / Report No.: R0511167S Report Date: 2005-11-23 Reviewed By: Richard Lee / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 2 of 60 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Classification: Licensed Portable Transmitter Device Type: CDMA2000 1X PCMCIA Wireless Card FCC ID: Q78-MC315PLUS Modulation: CDMA TX Frequency Range: 824.7~848.3MHz Conducted Power Tested: 0.285W Antenna Type(s): External Antenna Body-Worn Accessories: Earphone Face-Head Accessories: N/A Max. SAR Level(s) Measured: 0.150 mW/g (Body-Worn) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in FCC 2.1093 and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 Supplement C and ANSI IEEE C95.3:2002 All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Daniel Du Bay Area Compliance Laboratory Corp. ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 3 of 60 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................7 MEASUREMENT SYSTEM DIAGRAM.............................................................................................................................9 SYSTEM COMPONENTS...............................................................................................................................................11 TESTING EQUIPMENT............................................................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................21 SYSTEM ACCURACY VERIFICATION...........................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................22 SAR EVALUATION PROCEDURE.................................................................................................................................22 CONCLUSION ............................................................................................................................................................23 SAR BODY WORST-CASE TEST DATA.......................................................................................................................23 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................24 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................26 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................37 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS .................................................................................43 LIQUID MEASUREMENT RESULT................................................................................................................................43 APPENDIX E - EUT SCANS .....................................................................................................................................45 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT ...............................................................51 PROVISION APPLICABLE.............................................................................................................................................51 TEST PROCEDURE......................................................................................................................................................51 TEST EQUIPMENT.......................................................................................................................................................51 TEST RESULTS............................................................…

Text truncated - open the document above for the full version.

ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 31 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 32 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 33 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 34 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 35 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 36 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 37 of 60 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 38 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 39 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 40 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 41 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 42 of 60 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 43 of 60 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2005-11-16 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 55.2 56.0 1.45 ±5 σ 22.0 0.97 0.96 -1.03 ±5 Body 835 1g SAR 22.0 8.872 8.24 -7.12 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 44 of 60 Date/Time: 11/16/2005 4:17:19 PM Test Laboratory: Bay Area Compliance Lab Corp. SystemValidationCheck_D835_Body DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:122 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 56; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 d=15mm, Pin=1W/Area Scan: Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 8.77 mW/g d=15mm, Pin=1W/Zoom Scan(7x7x7): Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.9 V/m; Power Drift = -0.100 dB Peak SAR (extrapolated) = 12.3 W/kg SAR(1 g) = 8.24 mW/g; SAR(10 g) = 5.27 mW/g Maximum value of SAR (measured) = 8.92 mW/g 0 dB = 8.92mW/g ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 45 of 60 APPENDIX E - EUT SCANS Date/Time: 11/17/2005 1:32:54 PM Test Laboratory: Bay Area Compliance Lab Corp. ZTE_Body_MidCH DUT: ZTE MC315+; Type: CDMA Network Card; Serial: 291518530050 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.97 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Body Laptop Touch MidCH Data/Area Scan: Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.160 mW/g Body Laptop Touch MidCH Data/Z Scan: Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (interpolated) = 0.085 mW/g Body Laptop Touch MidCH Data/Zoom Scan: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.69 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.243 W/kg SAR(1 g) = 0.130 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (measured) = 0.150 mW/g 0 dB = 0.150mW/g Plot # 1 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 46 of 60 Date/Time: 11/17/2005 2:38:39 PM Test Laboratory: Bay Area Compliance Lab Corp. ZTE_Body_MidCH DUT: ZTE MC315+; Type: CDMA Network Card; Serial: 291518530050 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.97 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) • Electronics: DAE3 Sn456; Calibrated: 10/18/2005 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Body Laptop Touch MidCH Voice/Area Scan: Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.173 mW/g Body Laptop Touch MidCH Voice/Z Scan: Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (interpolated) = 0.084 mW/g Body Laptop Touch MidCH Voice/Zoom Scan: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.23 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.295 W/kg SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.172 mW/g 0 dB = 0.172mW/g Plot #2 ZTE Corporation. FCC ID: Q78-MC315PLUS Report #R0511167S SAR Evaluation Report Page 47 of 60 Date/Time: 11/17/2005 5:07:15 PM Test Laboratory: Bay Area Compliance Lab Corp. ZTE_Body_MidCH DUT: ZTE MC315+; Type: CDMA Network Card; Serial: 291518530050 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.97 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.27, 6.27, 6.27); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical…

Text truncated - open the document above for the full version.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 22 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-MC315PLUS This Report Concerns: Original Report Equipment Type: CDMA2000 1X PCMCIA Wireless Card Test Engineer: Snell Leong / Report No.: R0511167 Report Date: 2005-11-23 Reviewed By: Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Rpt Page 2 of 25 FCC Part 22 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................11 §2.1046, §22.913(A) - RF POWER OUTPUT............................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST RESULTS............................................................................…

Text truncated - open the document above for the full version.

ZTE Corporation FCC ID: Q78-MC315PLUS Report # R0511167Exhibits FCC Part 22 Type Approval Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
