Q78-MF197MF197 HSPA USB Stick

MF197 MF197 HSPA USB Stick Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2012 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time: 2012.08 Manual No. : Confidential and Proprietary Information of ZTE CORPORATION 1 Quick Guide Introduction The ZTE MF197 USB modem is a multi-mode USB modem, working in HSPA+/HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Getting to know your device The following figure shows the appearance of the MF197. It is only for your reference. The actual product may be different. 1. Modem Cap 2. Front Cover 3. USB Connector 4. (U)SIM card slot 5. microSD card slot Hardware Installation 1. Press and push the front cover and remove it. Notes: Do not open the front cover rudely so as to avoid the damage of the front cover. 2 Confidential and Proprietary Information of ZTE CORPORATION 2. Insert the SIM/USIM card into the SIM/USIM card slot. Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push SIM/USIM card as far as possible, shown as the following picture. 3. Insert the microSD card into the microSD card slot. Notes: This modem only supports microSD card. Insert your microSD card into the microSD card slot, shown as the following picture. 4. Put the front cover flatly upon the body of modem and push the front cover to lock the cover in its place. 5. Connect the Modem to your laptop or desktop PC.  Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted. Confidential and Proprietary Information of ZTE CORPORATION 3  The OS automatically detects and recognizes new hardware and starts the installation wizard. System Requirements Operating System Windows XP (SP3 and later), Vista, Windows 7 MAC 10.4.11 and later Linux (Kernel 2.6.20 later) USB 2.0 HIGH SPEED Configuration (Recommended) CPU: 1 GHz Pentium or above Hard Disk: 50 M or above RAM: 512 M or above The performance of the modem may be influenced if configuration is under the recommended requirement. Access the management software Following example based on Windows System is only reference. 1.Exit other Windows programs. 2.Connect the device with your computer. 3. When you connect properly, the system will automatically detect and recognize the new hardware. After a few seconds, the new icon is show on the desktop, and then the management software interface will display as the following picture: 4 Confidential and Proprietary Information of ZTE CORPORATION Notes: If the system does not launch installation automatically, you can run the installation program in path of My Computer > ZTEMODEM > Windows > AutoRun.exe. Then double click icon. How to Use Your Modem Various icons are presented to enable quick operation of the following functions: Connect to the Internet. Set WAN connection mode and APN. Manage the contacts information. Send and receive text messages. Configure the USB modem. View the network related information. LED Lights Indication Modem Status Red Power on, but not registered to a network Green bright Register to 2G/3G network Green twinkling Connect to 2G/3G network Confidential and Proprietary Information of ZTE CORPORATION 5 Warning and Notice To the Owner • Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary. • Operating the modem may interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem. • Be aware of the usage limitation when using a modem at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your modem if required. • The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals. Please observe and obey all warning signs and switch off your modem in these conditions. • Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s performance. • Store the modem out of the reach of little children. The modem may cause injury if used as a toy. • Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is working. Use Your USB Modem • Please use original accessories or accessories that are authorized. Using any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals. • Avoid using the modem near or inside metallic structures or establishments that can emit electromagnetic waves. Otherwise it may influence signal reception. • The modem is not waterproof. Please keep it dry and store in a shady and cool place. • Do not use the modem immediately after a sudden temperature change. In such case, it will 6 Confidential and Proprietary Information of ZTE CORPORATION produce dew inside and outside the modem, so don’t use it until i…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: February 1, 2013 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Chen Yanli in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Chen Yanli in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-MF197 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-86360734 ; Fax: +86-755-86360734 Date: February 1, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-MF197 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: MF197_Schem.pdf) Block Diagram (file: MF197_BlkDia.pdf) Parts List (file: MF197_PartsLst.pdf) Operation Description (file: MF197_OpDes.pdf) Tune up Procedure (file: MF197_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yanli Chen

1/1 ZTE CORPORATION Date: February 1, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-MF197 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Yanli Chen Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-MF197 is a MF197 HSPA USB Stick which supports GSM 850/900/1800/1900, CDMA/HSDPA/HSUPA band I/II / band V. However, GSM900/1800 and WCDMA band I are not available in USA. Contact Person: Yanli Chen Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 1. External Photograph of EUT Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197

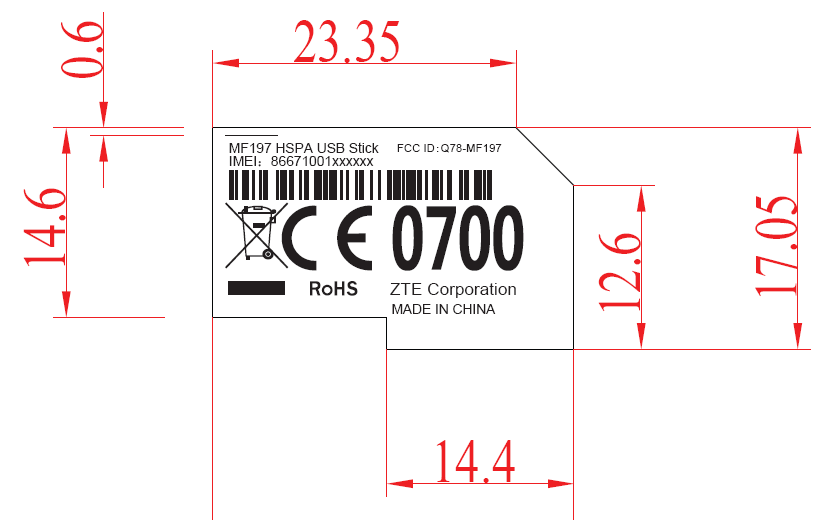

Back View Label location

Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 2. Internal Photograph of EUT Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 WWAN Antenna Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 Photographs of EUT Report No.: EP2N3001 Brand Name: ZTE; Model Name: MF197 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 WWAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : C1 of C1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC SAR Test Report Report No. : FA2N3001 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 53.449 6.9277 -22.401 47.82 7.1133 11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC SAR Test Report Report No. : FA2N3001 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : MF197 HSPA USB Stick BRAND NAME : ZTE MODEL NAME : MF197 FCC ID : Q78-MF197 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jan. 22, 2013. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC SAR Test Report Report No. : FA2N3001 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Product Photos .......................................................................................................................................................7 3.4 Applied Standard .....................................................................................................................................................8 3.5 Device Category and SAR Limits ............................................................................................................................8 3.6 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR System Validation ................................................................................................................................................18 7.1 Purpose of System Performance check ................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 97 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC RF Test Report Report No. : FG2N3001 FCC RF Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : MF197 HSPA USB Stick BRAND NAME : ZTE MODEL NAME : MF197 FCC ID : Q78-MF197 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Nov. 30, 2012 and completely tested on Jan. 31, 2013. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 97 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC RF Test Report Report No. : FG2N3001 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 6 1.6 Testing Site ....................................................................................................................................... 7 1.7 Applied Standards ............................................................................................................................. 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 9 2.3 Support Unit used in test configuration and system ........................................................................ 10 2.4 Measurement Results Explanation Example .................................................................................. 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 Conducted Output Power Measurement ......................................................................................... 11 3.2 Peak-to-Average Ratio .................................................................................................................... 13 3.3 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 21 3.4 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 27 3.5 Band Edge Measurement ................................................................................................................ 47 3.6 Conducted Spurious Emission Measurement ................................................................................. 60 3.7 Field Strength of Spurious Radiation Measurement ....................................................................... 76 3.8 Frequency Stability Measurement ................................................................................................... 91 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 96 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 97 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 97 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC RF Test Report Report No. : FG2N3001 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG2N3001 Rev. 01 Initial issue of report Feb. 04, 2013 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 97 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 04, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF197 FCC RF Test Report Report No. : FG2N3001 SUMMARY OF TEST RESULT Report Section…

Text truncated - open the document above for the full version.
