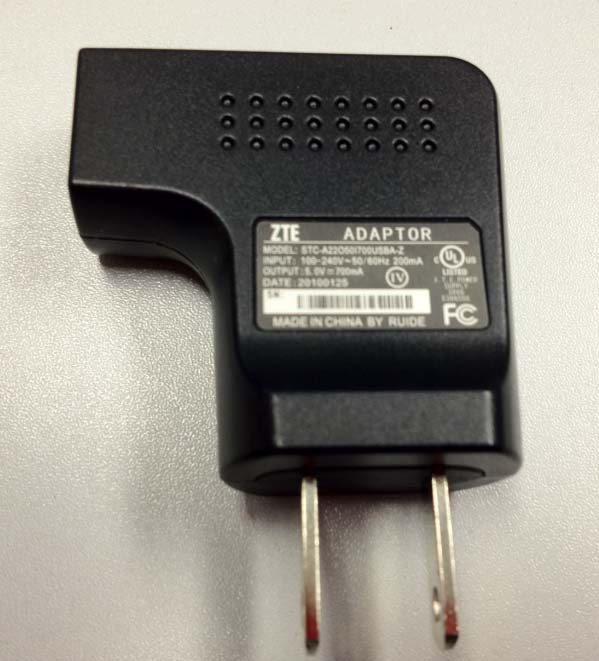

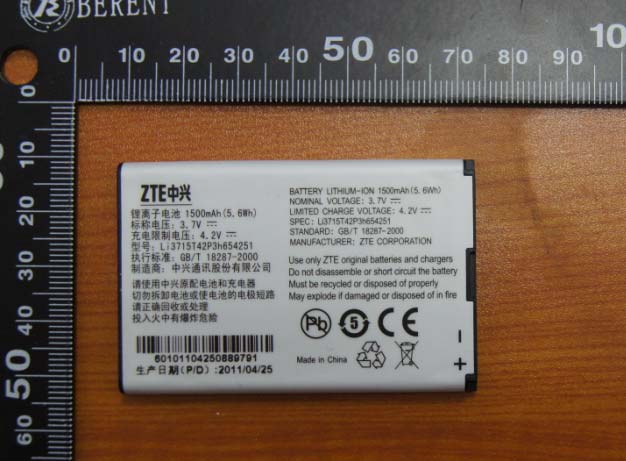

ZTE MF51 Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Confidential and Proprietary Information of ZTE CORPORATION 1 Quick Guide Introduction ZTE MF51 is a 3G mobile hotspot device, working in GPRS/EDGE/WCDMA/HSPA network. It provides Internet connection via USB or Wi-Fi to clients, enabling you to communicate anytime and anywhere. Specification Data Service HSPA: DL 14.4 Mbps UL 5.76 Mbps WCDMA CS: UL 64 kbps/DL 64kbps WCDMA PS: UL 384 kbps/DL 384kbps Interface USB and Wi-Fi Wi-Fi Standard 802.11b/g/n Wi-Fi Security WEP/WPA/WPA2 USB Version USB 2.0 HIGH SPEED USB Interface Type Micro USB Weight 80 g Dimensions (W×H×D): 102.5 mm*51 mm*13.5 mm microSD card Support up to 32 GB microSD card Battery 1500mAh Li-ion battery *Standby time 100 hours *Working time 4 hours Charge time 3 hours Operate system Windows 7, Windows Vista, Windows XP (SP2 or later), Mac OS (10.5 or later) Web Browser IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome (10.0 or later) Working temperature -10 °C ~ +60°C Storage temperature -20 °C ~ +70 °C 2 Confidential and Proprietary Information of ZTE CORPORATION Charging temperature 0 °C ~ +40 °C Humidity 5%~ 95% Notes: microSD is a trademark of SD Card Association. The device’s standby and working time are only for your reference, and based on ideal working environment. Getting to Know Your Device The following figure shows the appearance of the device. It is only for your reference. The actual device may be different. Interface and Buttons 1.WPS This button is used to start Wi-Fi Protected Setup authentication process and enable/disable the Wi-Fi function. z Hold it for about five seconds to activate the WPS process. z Hold it for about two seconds to enable/disable Wi-Fi function. 2.Charger/USB port z Charge your device. z Connect the client to your device via USB cable. Confidential and Proprietary Information of ZTE CORPORATION 3 3.Power Hold the Power button to switch on/off the device. 4. Indicators Indicates the status of your device. Notes: • Press WPS and Power buttons simultaneously, and hold on about three seconds until all LEDs are off, then release the buttons, the device will restart automatically and restore to the factory default settings. Indicators When the device is powered on, the following icons will light, with the corresponding indications listed in the table below: Indicators Status Description Battery Indication RED glittering Please charge. RED bright The voltage of battery is low. GREEN bright The voltage of battery is high. Fully charged. GREEN glittering Charging when power on Power off Low power mode LED off Fully charged when power off without USB cable No charging or fully charged under low power mode without USB cable No battery Wi-Fi Indication BLUE glittering Wi-Fi is active. BLUE bright WPS is active. LED off Wi-Fi is inactive or low power mode. Network Indication BLUE glittering 2G Modem data transferring. BLUE bright Register on 2G network. GREEN glittering 3G Modem data transferring. GREEN bright Register on 3G network. LED off ERROR or NO network service or No SIM or low power mode. Hardware Installation Inserting SIM Card, Memory Card and Battery 1. Use the thumb catch on the device to open the battery cover. 4 Confidential and Proprietary Information of ZTE CORPORATION 2. Insert SIM Card into the slot. Warning: Please power off the device and remove the external power adapter before removing or inserting the SIM card, if not, the device or SIM card may be damaged. 3. Insert the memory card into the memory card holder. 4. Insert the battery as shown with the contacts located against the gold springs. Confidential and Proprietary Information of ZTE CORPORATION 5 5. Line the battery cover up correctly and press gently to close the case. Switching On/Off Your Device Press and hold the Power button to switch on/off the device. Notes: Please install battery before power on. Charging Your Device 1. Insert the charger lead carefully with the correct orientation to the charger port. The plug only fits one way. Do not use excessive force to insert the plug. 2. Connect the charger to a mains socket. 3. Disconnect when the battery is fully charged. 6 Confidential and Proprietary Information of ZTE CORPORATION Working Mode Your device supports three working modes. For the client, we only use PC or laptop as the example in this document. USB Mode: Connect the device to your PC or laptop via the included USB cable, then power on your device. And the following picture is one application example: Wi-Fi Mode: Power on directly, and then connect the device to your PC or laptop via Wi-Fi. And the following picture is one application example: Mixed Mode: Connect to the device with the above two connection methods. The following picture is the application example. All of the client devices can surf on the Internet at the same time. Confidential and Proprietary Information of ZTE CORPORATION 7 Establish a connection between your device and the client Via USB Cable 1.Connect your device and the client with the USB cable. 2.Install software. After the installation, the connection between your device and the client will be established successfully a moment later. Via Wi-Fi 1. Power on your device directly. It will take 1~2 minutes to initialize, and then Wi-Fi status icon will light. 2. If the Wi-Fi status shown is blue twink…
