MF656A USB Modem User Manual Introduction The USB modem is a multi-mode 3G modem. With a USB interface connecting to your laptop or desktop computer, it supports data and SMS services through the mobile USB modem network, helping you realize mobile communication anytime and anywhere. Hardware Installation Installing the SIM/USIM Card 1. Remove the back cover on the modem. 2. Hold your SIM/USIM card with the cut corner oriented as shown and then slide it into the card holder with the metal contacts facing the modem. 3. Replace the back cover. Installing the Memory Card Only microSD card is supported by the modem and do not insert other memory cards into the modem. Insert the microSD card, orientated as shown, into the holder until you hear a click. Notes: The logo is a trademark. Connecting the USB Modem to Your Computer Remove the modem cap and plug the modem firmly into a USB port on your computer. Software Installation On different operating systems, the software installation procedures may be different. Please follow the general guide below and the system prompts during installation. • For Windows XP, Vista and Windows 7 When you connect the modem to your PC correctly, the system automatically recognizes it as a CD-ROM and starts the software installation wizard. If the system does not launch the installation wizard automatically, please start it by running the executable file in the new CD-ROM directory. • For Mac OS The system will automatically display a new CD-ROM icon on the desktop, when you connect the modem to your Mac correctly. Double click the installation software package in the CD-ROM, and follow the system prompts to complete the software installation. Functions Click the following buttons to access each function. Connect Connect to the Internet. SMS Send and receive text messages. USB modembook Manage contacts information. Settings Configure the USB modem settings. Data records Show connection information. LED Lights IndicationModem Status Red Power on, but not registered to a network Green solid Registered to a network Green blinking Active data transfer on the network Warning and notice Health and safety information Radio Frequency (RF) Energy This model USB modem meets the government’s requirements for exposure to radio waves. This USB modem is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government: The exposure standard for wireless mobile USB modems employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the USB modem transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the USB modem while operating can be well below the maximum value. This is because the USB modem is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the model USB modem as reported to the FCC is 1.13 W/kg (Body-worn measurements) While there may be differences between the SAR levels of various USB modems and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model USB modem with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model USB modem is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: Q78-MF656A For body worn operation, this USB modem has been tested and meets the FCC RF exposure guidelines and the positions the modem with a minimum of 0.5 cm from the body. FCC Compliance (only Part 15B) This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. To the owner • Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary. • Operating of laptop and desktop PCs and the modem may interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem. • Be aware of the usage lim…
Text truncated - open the document above for the full version.
内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息,未经允许,不得外传 第1页,共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Nov. 5, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-MF656A To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

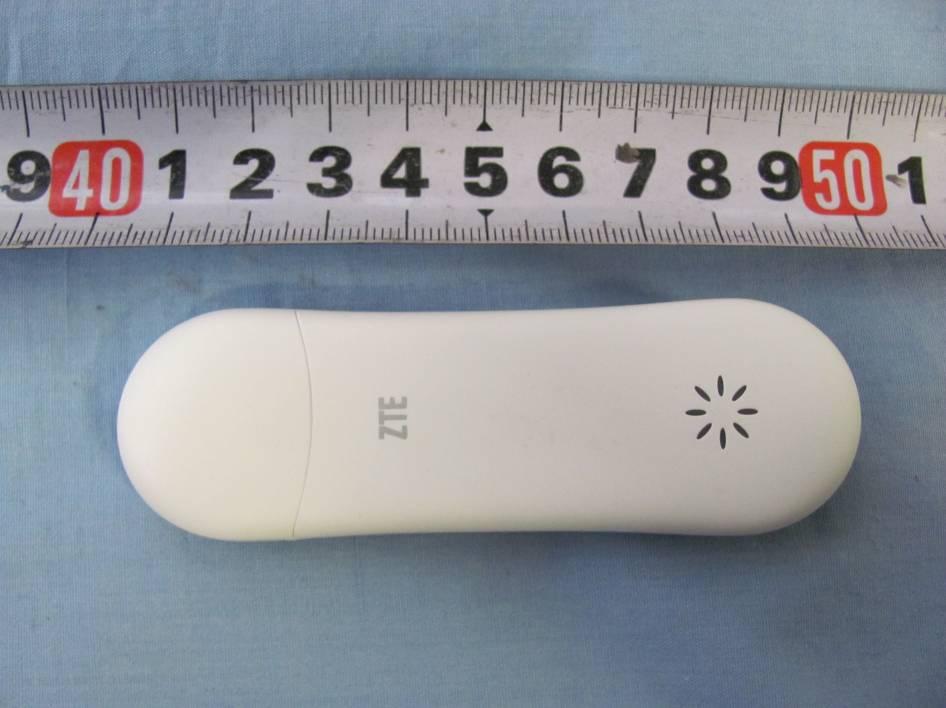

ANNEX A: EUT photograph Pic A-1 USB Modem Pic A-2 USB Modem
MF656A Label Location: Label
ANNEX A: EUT photograph Pic A-3 USB Modem Pic A-4 USB Modem Disassembly Pic A-5 USB Modem Disassembly Pic A-6 USB Modem Disassembly Pic A-7 USB Modem Disassembly Pic A-8 USB Modem Disassembly Pic A-9 USB Modem Disassembly
SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 03 FCC ID : Q78-MF656A FCC SAR Test Report Report No. : FA0O1417 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : HSPA USB Modem BRAND NAME : ZTE MODEL NAME : MF656A FCC ID : Q78-MF656A STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 14, 2010 and completely tested on Oct. 31, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 18, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 03 FCC ID : Q78-MF656A FCC SAR Test Report Report No. : FA0O1417 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ................................…
Text truncated - open the document above for the full version.
TEST REPORT No. 2010TAR436 for ZTE CORPORATION HSPA USB Modem Model Name: MF656A FCC ID : Q78-MF656A with Hardware Version: d17C Software Version: M6600ASCAUTSZ1565 Issued Date: Nov 4th, 2010 Note: Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2010TAR436 Page2 of 62 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 5 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 5 5. LABORATORY ENVIRONMENT ..................................................................................................... 6 6. SUMMARY OF TEST RESULTS ....................................................................................................... 7 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 8 ANNEX A: MEASUREMENT RESULTS .................................................................................................. 9 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ................................................................................. 9 A.2 EMISSION LIMT (§2.1051/§24.238) .......................................................................................... 15 A.3 FREQUENCY STABILITY (§2.1055/§24.235) ........................................................................... 20 A.3 FREQUENCY STABILITY (§2.1055/§24.235) ........................................................................... 20 A.4 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 21 A.5 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 34 A.6 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................................................. 46 A.7 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........................................... 52 No.2010TAR436 Page3 of 62 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Oct 22,2010 Testing End Date: Nov 4,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR436 Page4 of 62 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR436 Page5 of 62 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA USB Modem Model Name MF656A FCC ID Q78-MF656A Frequency GSM 850MHz; PCS 1900MHz; EGSM900; DCS1800; WCDMA Band I WCDMA Band II; WCDMA Band V Antenna Internal Power supply USB Output power 28.97 dBm maximum ERP measured for GSM850 Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Te…
Text truncated - open the document above for the full version.
TEST REPORT No. 2010TAR437 for ZTE CORPORATION HSPA USB Modem Model Name: MF656A FCC ID : Q78-MF656A with Hardware Version: d17C Software Version: M6600ASCAUTSZ1565 Issued Date: Nov 4th, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2010TAR437 Page2 of 39 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 10 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ............................................................................... 10 A.2 EMISSION LIMT (§2.1051/§24.238) .......................................................................................... 14 A.3 FREQUENCY STABILITY (§2.1055/§24.235) ........................................................................... 19 A.4 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 21 A.5 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 25 A.6 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................................................. 29 A.7 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ............................................... 31 No.2010TAR437 Page3 of 39 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Oct 22, 2010 Testing End Date: Nov 4, 2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR437 Page4 of 39 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2010TAR437 Page5 of 39 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA USB MODEM Model Name MF656A FCC ID Q78-MF656A Frequency GSM 850MHz; PCS 1900MHz; EGSM900; DCS1800; WCDMA Band I WCDMA Band II; WCDMA Band V Antenna Internal Power supply USB Output power 17.6 dBm maximum ERP measured for WCDMA BAND V Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used durin…
Text truncated - open the document above for the full version.
Test set up photos: FCC ID: Q78-MF656A Part 15B_CE: Part15B_RE1: Part15B_RE2: RSE:
