Q78-MF820BLTE USB MODEM

MF820B LTE USB Modem Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 LEGAL INFORMATION Copyright © 2012 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No.: R1.0 Date: March 2012 Manual No.: 07958450xxx Confidential and Proprietary Information of ZTE CORPORATION 1 Introduction The ZTE USB modem is a multi-mode USB modem, working in LTE FDD/WCDMA networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Specification The following table shows the specification of your device. Interface Type USB 2.0 HIGH SPEED Systems supported Supports most types of laptop and desktop PC. Operating systems supported Windows XP, Vista, Windows 7 MAC 10.4, 10.5, 10.6 Functions SMS service, Data service, Connection management, etc. Network Standards LTE FDD/WCDMA Transmission speed (Max) LTE FDD: DL 100Mbps, UL 50Mbps HSDPA: DL 42Mbps HSUPA: UL 5.76Mbps Temperature Storage: -40°C ~ +80°C Operation:-10°C ~ +55°C Dimension 94mm×37mm×14.5mm Notes: SMS service is only supported on WCDMA network. Getting to know your device The following figure shows the appearance of the MF820B. It is only for your reference. The actual product may be different. 2 Confidential and Proprietary Information of ZTE CORPORATION 1. USB Connector 2. Front Cover 3. Indicator 4. (U)SIM card slot Hardware Installation 1. Put finger on the bottom finger grip, and then lift the front cover of the modem to release and remove. Notes: Do not open the front cover rudely so as to avoid the damage of the front cover. 2. Insert the SIM/USIM card into the SIM/USIM card slot. Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push SIM/USIM card as far as possible, shown as the following picture. 3. Put the front cover of the modem flatly upon the body of modem. Direct the front cover towards the locking catches on the sides of the modem and push the front cover of the modem to lock the front cover into its place. 4. Connect the Modem to your laptop or desktop PC.  Rotate the USB connecter and plug the modem firmly into a USB port on your computer.  Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted.  The OS automatically detects and recognizes new hardware and starts the installation wizard. Confidential and Proprietary Information of ZTE CORPORATION 3 Warning and Notice To the owner • Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary. • Operating of laptop and desktop PCs and the modem may interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem. • Be aware of the usage limitation when using a modem at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your modem if required. • The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals. Please observe and obey all warning signs and switch off your modem in these conditions. • Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s performance. • Store the modem out of the reach of little children. The modem may cause injury if used as a toy. • Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is working. Using your USB Modem • Please use original accessories or accessories that are authorized. Using any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals. • Avoid using the modem near or inside metallic structures or establishments that can emit electromagnetic waves. Otherwise it may influence signal reception. • The modem is not waterproof. Please keep it dry and store in a shady and cool place. • Do not use the modem immediately after a sudden temperature change. In such case, it will produce dew inside and outside the modem, so don’t use it until it becomes dry. • Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be damaged. • No dismantling by non-professionals and only qualified technicians can undertake repair work. • Operating temperature range of -10°C ~ +55°C and humidity range of 5% ~ 95% are recommended. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-29-88458594 ; Fax: +86-29-88458594 Date: April 10, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-MF820B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: MF820B_Schem.pdf) Block Diagram (file: MF820B_BlkDia.pdf) Parts List (file: MF820B_PartsLst.pdf) Operation Description (file: MF820B_OpDes.pdf) Tune up Procedure (file: MF820B_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Yang Zhao

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: April 10, 2012 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Jones Tsai in Sporton International Inc. and Yang Zhao in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. and Yang Zhao in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-MF820B If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: April 10, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-MF820B To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Ya n g Z h a o Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: May 11, 2012 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-MF820B. The label will be printed on the exterior of the housing case, while the label and the location will be consistent with the “label sample and location” exhibits. Sincerely yours, _______________ Yang Zhao

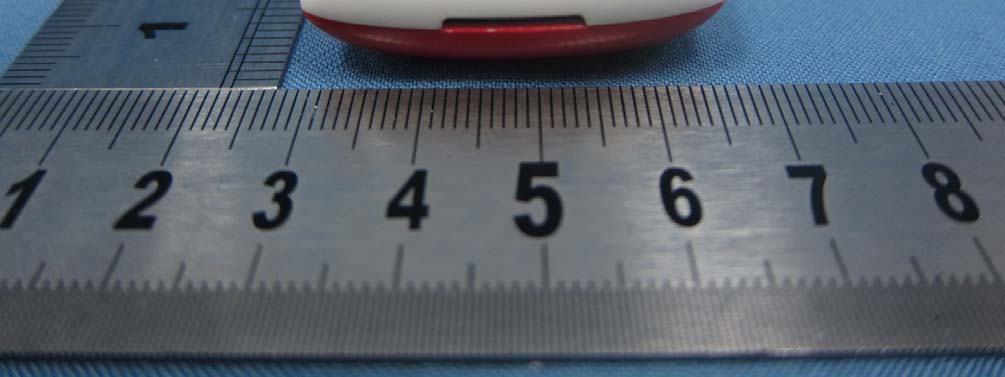

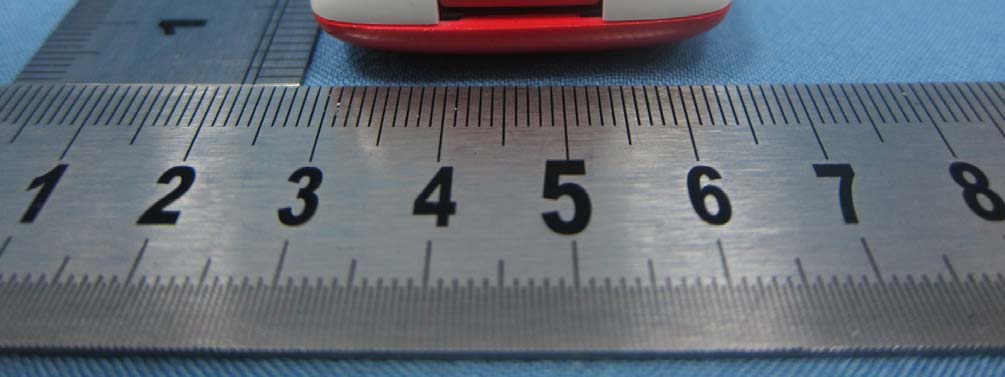

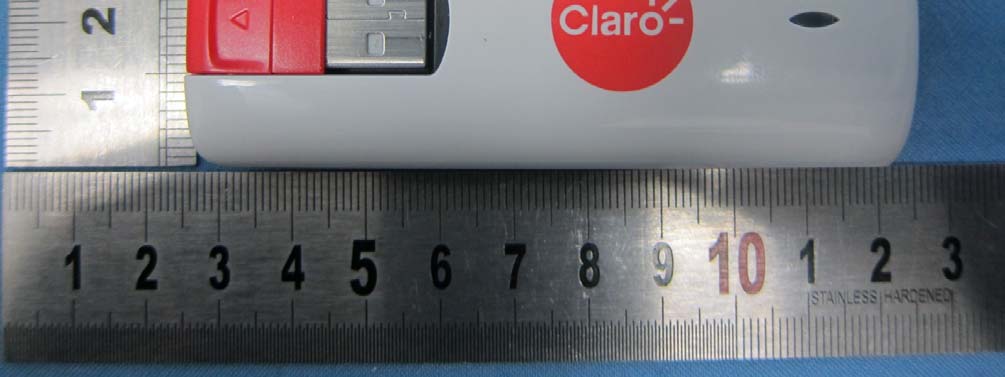

Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B 1. External Photograph of EUT Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B

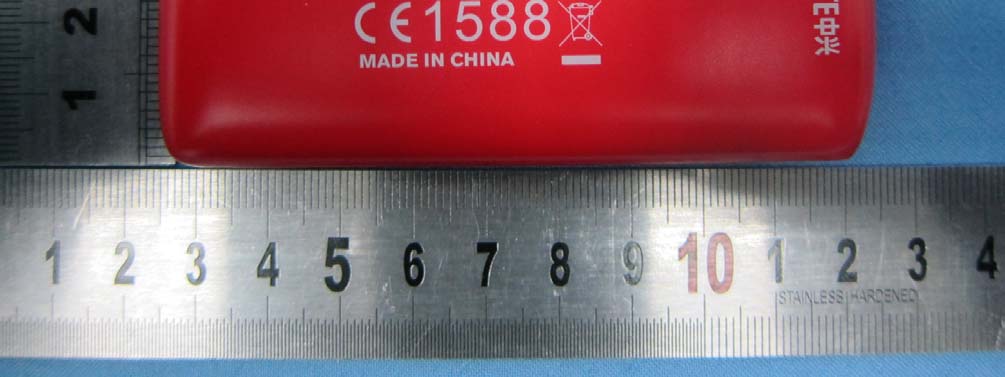

Back of EUT Label Location

Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B 2. Internal Photograph of EUT Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B WWAN Main Antenna Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B Photographs of EUT Report No.: EP1D3102 Brand Name: ZTE / Model Name: MF820B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B WWAN Diversity Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : +886-3-327-3456 Report Issued Date : Apr. 02, 2012 FAX : +886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC Test Report Report No. : FC1D3102 FCC Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : LTE USB Modem BRAND NAME : ZTE MODEL NAME : MF820B FCC ID : Q78-MF820B STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Dec. 31, 2011 and completely tested on Mar. 27, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : +886-3-327-3456 Report Issued Date : Apr. 02, 2012 FAX : +886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC Test Report Report No. : FC1D3102 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 5 1.4. Test Site ............................................................................................................................................ 6 1.5. Applied Standards ............................................................................................................................. 6 1.6. Ancillary Equipment List .................................................................................................................... 6 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 6 2.1. Test Mode ......................................................................................................................................... 7 2.2. Connection Diagram of Test System ................................................................................................ 9 2.3. Test Software .................................................................................................................................... 9 3. TEST RESULT ........................................................................................................................................... 10 3.1. Test of AC Conducted Emission Measurement .............................................................................. 10 3.2. Test of Radiated Emission Measurement ....................................................................................... 14 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 19 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 20 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : +886-3-327-3456 Report Issued Date : Apr. 02, 2012 FAX : +886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC Test Report Report No. : FC1D3102 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC1D3102 Rev. 01 Initial issue of report Apr. 02, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : +886-3-327-3456 Report Issued Date : Apr. 02, 2012 FAX : +886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC Test Report Report No. : FC1D3102 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.107 AC Conducted Emission< 15.107 limits PASS Under limit 19.5 dB at 0.190000 MHz 3.2 15.109 Radiated Emission < 15.109 limits PASS Under limit 13.48 dB at 515.60 MHz SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : +886-3-327-3456 Report Issued Date : Apr. 02, 2012 FAX : +886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC Test Report Report No. : FC1D3102 1. General Description 1.1. Applicant ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China 1.2. Manufacturer ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China 1.3. Feature of Equipment Under Test Product Feature & Specification Equipment LTE USB Modem Brand Name ZTE Model Name MF820B FCC ID Q78-MF820B Tx Frequency Range WCDMA Band V : 824 MHz ~ 849 MHz WCDMA Band IV : 1710 MHz ~ 1755 MHz WCDMA Band II : 1850 MHz ~ 1910 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 12: 698 MHz ~ 716 MHz LTE Band 4: 1710MHz ~ 1755 MHz Rx Frequency Range WCDMA Band V : 869 MHz ~ 894 MHz WCDMA Band IV : 2110 MHz ~ 2155 MHz WCDMA Band II : 1930 MHz ~ 1990 MHz LTE Band 17 : 734 MHz ~ 746 MHz LTE Band 12: 728 MHz ~ 746 MHz LTE Band 4 : 2110 MHz ~ 2155 MHz Antenna Type PIFA Antenna HW Version xl3A+xi8A SW Version EN_CLA_MF820BV1.0.0B01 Type of Modulation WCDMA : QPSK (Uplin…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MF820B FCC RF Test Report Report No. : FG1D3102A Appendix B. Setup Photographs <Radiated Emission> LF HF
