1 Movistar One WCDMA/GSM Mobile Phone User Manual 2 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. Other trademarks and trade names are the property of their respective owners. Version No.: R1.0 Edition Time : 2011.09.16 3 Contents For Your Safety ........................................................ 9 General Safety ................................................................. 9 FCC Compliance............................................................ 10 Distraction ...................................................................... 13 Driving ...................................................................... 13 Operating Machinery ................................................ 13 Product Handling ........................................................... 14 General Statement on Handling and Use ................. 14 Small Children .......................................................... 15 Demagnetization ...................................................... 15 Electrostatic Discharge (ESD) .................................. 15 Antenna .................................................................... 15 Normal Use Position ................................................. 16 Air Bags .................................................................... 16 Seizures/ Blackouts .................................................. 16 Repetitive Motion Injuries ......................................... 16 Emergency Calls ...................................................... 17 Loud Noise ............................................................... 17 Phone Heating .......................................................... 17 Electrical Safety ............................................................. 17 Accessories .............................................................. 17 Connection to a Car ................................................. 18 Faulty and Damaged Products ................................. 18 Interference .................................................................... 18 General Statement on Interface ............................... 18 4 Pacemakers ............................................................. 18 Hearing Aids ............................................................ 19 Medical Devices ....................................................... 19 Hospitals .................................................................. 19 Aircraft ...................................................................... 19 Interference in Cars ................................................. 20 Explosive Environments ................................................ 20 Petrol Stations and Explosive Atmospheres ............ 20 Blasting Caps and Areas ......................................... 20 Getting Started ....................................................... 21 Overview ....................................................................... 21 Keys Explained .............................................................. 22 Starting up ..................................................................... 22 Installing the SIM/microSD Card and Battery .......... 22 Removing the Battery and SIM/microSD Card ........ 25 Charging the Battery ................................................ 25 Switching Your Phone On/Off ....................................... 26 Setting Up Your Phone for the First Time ................ 26 Switching to Sleep Mode ......................................... 27 Waking Up Your Phone ........................................... 27 Getting Around Your Phone .......................................... 27 Touch Control .......................................................... 27 Home Screen ........................................................... 28 Status and Notification Icons ................................... 29 Using the Notification Panel ..................................... 31 Applications and Settings Preview ........................... 31 5 Phone Calls ............................................................ 36 Making Calls .................................................................. 36 Calling from the Phone ............................................. 36 Calling from Your Contacts ...................................... 36 Calling from Your Call History .................................. 37 Calling from a Text Message .................................... 37 Receiving Calls .............................................................. 37 Answering a Call ...................................................... 37 Rejecting a Call ........................................................ 38 Muting a Call ............................................................ 38 Putting a Call on Hold ............................................... 38 Turning the Speakerphone On/Off ........................... 38 Ending a Call ............................................................ 38 Contacts ................................................................. 39 Creating a Contact ......................................................... 39 Searching for a Contact ................................................. 39 Using the Virtual Keyboard to Enter Text ............ 40 Touch Input Settings ...................................................... 41 Messaging .............................................................. 42 The Message Box ...............................................…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE 1. External Photograph of EUT Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I700USBA-Z Battery Brand Name ZTE中兴 Model Name Li3711T42P3h654246 Earphone 1.43 meter, non-shielded cable, without core USB Cable 1.22 meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE

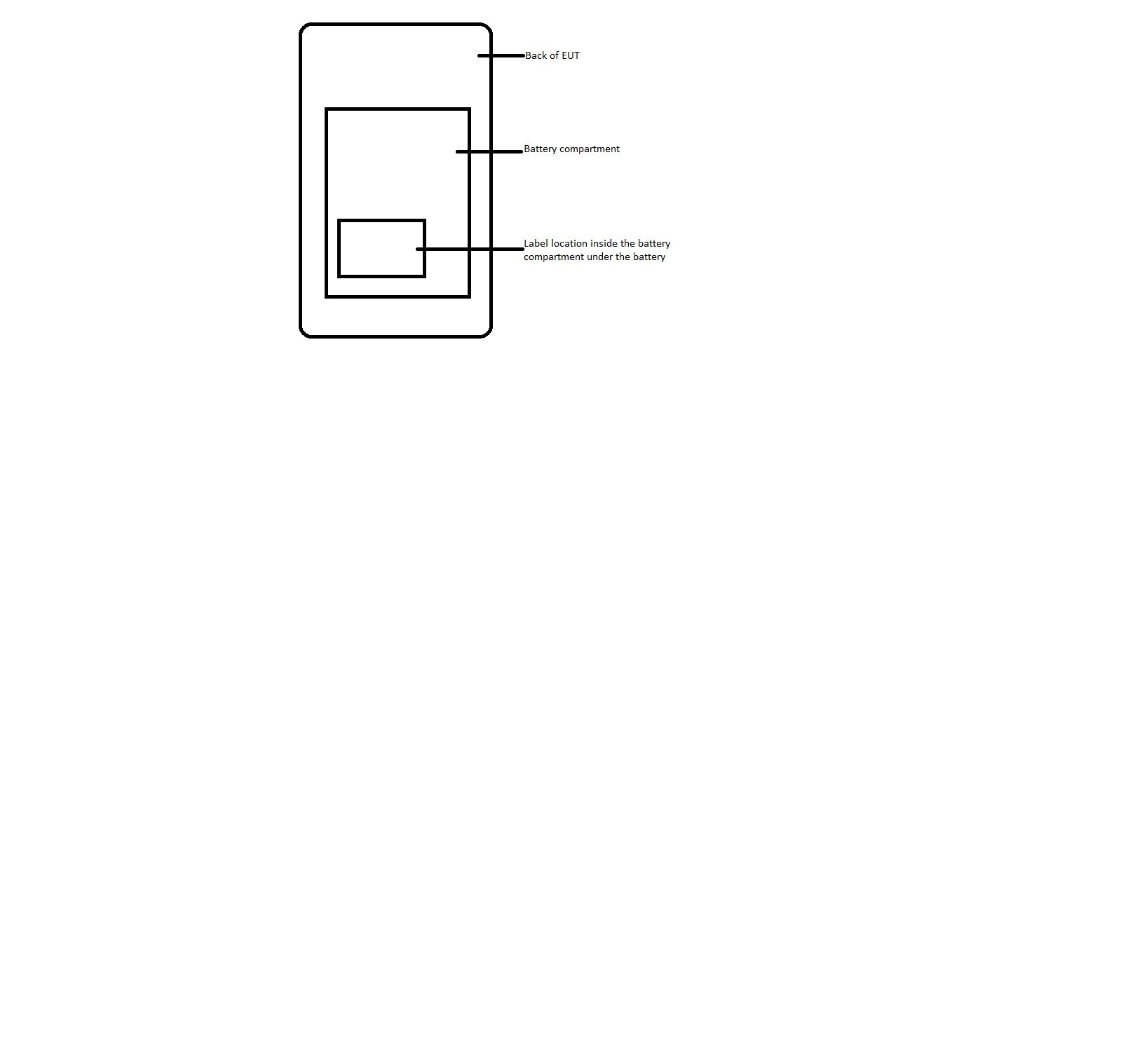

Movistar One TELEFONE MOVIL DIGITAL 86728200XXXXXXX FCC IDQ78-MOVISTARONE 078761000438 SIZE:31*19mm

Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE 3. Internal Photograph of EUT Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE Bluetooth & WIFI Antenna Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE GPS Antenna Photographs of EUT Report No.: EP192004 Brand Name: ZTE / Model Name: Movistar One SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 18, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-MOVISTARONE WWAN Antenna

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 System Check_Head_835MHz_111012 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_111012 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 41.806; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.561 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.368 V/m; Power Drift = 0.0057 dB Peak SAR (extrapolated) = 3.525 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.5 mW/g Maximum value of SAR (measured) = 2.562 mW/g 0 dB = 2.560mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 System Check_Body_835MHz_111012 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_111012 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 54.413; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.556 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.302 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.252 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.552 mW/g 0 dB = 2.550mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-13 System Check_Head_1900MHz_111013 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_111013 Medium parameters used: f = 1900 MHz; σ = 1.427 mho/m; ε r = 41.191; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.996 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.360 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 16.518 W/kg SAR(1 g) = 9.34 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SAR (measured) = 10.490 mW/g 0 dB = 10.490mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 System Check_Body_1900MHz_111012 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_111012 Medium parameters used: f = 1900 MHz; σ = 1.535 mho/m; ε r = 54.565; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.48, 4.48, 4.48); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.611 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.064 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 18.009 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 11.912 mW/g 0 dB = 11.910mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-14 System Check_Head_2450MHz_111014 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_111014 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.753; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.216 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.594 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 32.179 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.19 mW/g Maximum value of SAR (measured) = 15.419 mW/g 0 dB = 15.420mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-14 System Check_Body_2450MHz_111014 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111014 Medium parameters used: f = 2450 MHz; σ = 2.002 mho/m; ε r = 53.464; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(3.96, 3.96, 3.96); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 1…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #36 GSM850_Right Cheek_Ch128 DUT: 192004 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.879 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.610 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 1.065 W/kg SAR(1 g) = 0.814 mW/g; SAR(10 g) = 0.587 mW/g Maximum value of SAR (measured) = 0.846 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #37 GSM850_Right Tilted_Ch128 DUT: 192004 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.392 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.875 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.426 W/kg SAR(1 g) = 0.365 mW/g; SAR(10 g) = 0.278 mW/g Maximum value of SAR (measured) = 0.385 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #38 GSM850_Left Cheek_Ch128 DUT: 192004 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.030 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.684 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 1.136 W/kg SAR(1 g) = 0.955 mW/g; SAR(10 g) = 0.706 mW/g Maximum value of SAR (measured) = 1.008 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #39 GSM850_Left Tilted_Ch128 DUT: 192004 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.366 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.997 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 0.411 W/kg SAR(1 g) = 0.349 mW/g; SAR(10 g) = 0.267 mW/g Maximum value of SAR (measured) = 0.366 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #40 GSM850_Right Cheek_Ch189 DUT: 192004 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.795; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.879 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.161 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 1.069 W/kg SAR(1 g) = 0.810 mW/g; SAR(10 g) = 0.580 mW/g Maximum value of SAR (measured) = 0.844 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-12 #41 GSM850_Right Cheek_Ch251 DUT: 192004 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_111012 Medium parameters used: f = 849 MHz; σ = 0.92 mho/m; ε r = 41.646; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.949 mW/g…
