Q78-R1010WCDMA/GSM(GPRS) Dual-Mode digital mobile phone

R1010 WCDMA/GSM/GPRS Mobile Phone User Manual Copyright © 2009 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District, Shenzhen, P. R. China Postal Code: 518057 Website: http://www.zte.com.cn Version No.: R1.0 Manual No.: 079584500551 Edition Time: 08.25. 2009 3 LIMITED WARRANTY ZTE warrants to the original purchaser that the cellular product and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: 1. WHAT THIS WARRANTY COVERS: (1) The limited warranty for the handset remains in effect for a period of 24 months based on the date of purchase (except for the battery, where the warranty period shall be 6 months). (2) The limited warranty extends only to the original purchaser (end user) and is not assignable or transferable to any subsequent purchaser/end user. (3) During the warranty period, ZTE or officially appointed service agent will repair or replace any defective product or parts thereof at its discretion. (4) This limited warranty is applicable to the customer/end user that purchased the product from an official dealer. (5) The purchaser (end user) must retain the original purchase invoice/till slip in order to enforce this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from the misuse of this product. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized repair, neglect, abuse, accident, alteration, improper installation, blown fuses, food or liquid spillage, acts of God and shipping damage. (3) The cost of delivery or transportation of the product to the dealer of officially appointed service center will be borne by the purchaser (end user). (4) Products received for repair by the dealer or authorized service center after the product warranty has expired. (5) Products that have had the serial number removed or defaced. (6) THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED IN TERMS OF MARKETABILITY OR FITNESS FOR A PARTICULAR USE. SPECIFICALLY THE COMPANY WILL ACCEPT NO DAMAGE CAUSED BY OR DUE TO FAILURE OF OPERATION OR MALFUNCTION OF THE PRODUCT, OR ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT. 4 (7) Damage resulting from the use of non-ZTE approved accessories. (8) Scratches and damage caused by normal use. (9) Products used outside published maximum rations. (10) Consumables such as fuses. (11) Products that have been subject to an unauthorized removal or deactivation of the network operator-lock function. Product Safety Information Read the Safety Information section of this user guide on this page Do not use while re-fuelling Do not use hand-held while driving This device may produce a bright or flashing light For body-worn operation maintain a separation of 15 mm Do not dispose of it in a fire Small parts may cause a choking hazard Avoid contact with magnetic media This device may produce a loud sound Avoid Extreme Temperatures Keep away from pacemakers and other personal medical devices Avoid any contact with liquid, keep it dry Switch off when instructed in hospitals and medical facilities Do not attempt to disassemble Switch off when instructed in aircrafts and airports Do not rely on this device for emergency communications Switch off in explosive environments Only use approved accessories 5 RF Exposure Health and safety information Radio Frequency (RF) Energy This model phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government: The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.682 W/kg and when worn on the body, as described in this user guide, is 0.609 W/kg (Body-worn measurements differ among phone models, depending upon available enhancements and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: Q78-R1010. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other enhancements may not ensure compliance with FCC RF ex…

Text truncated - open the document above for the full version.

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Dec 10, 2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Dec 10, 2009 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-R1010 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

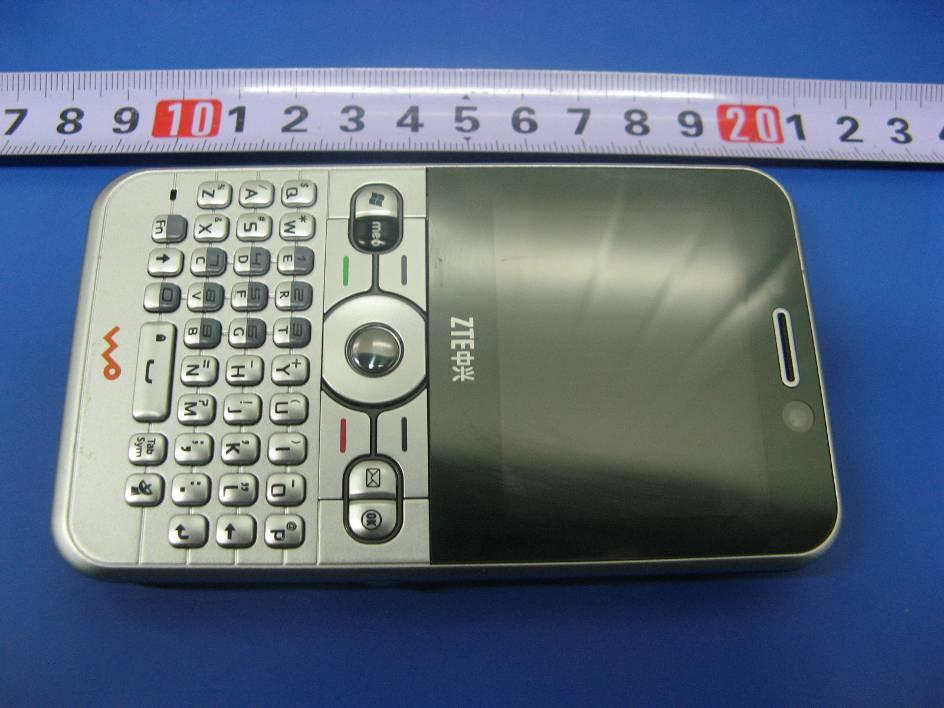

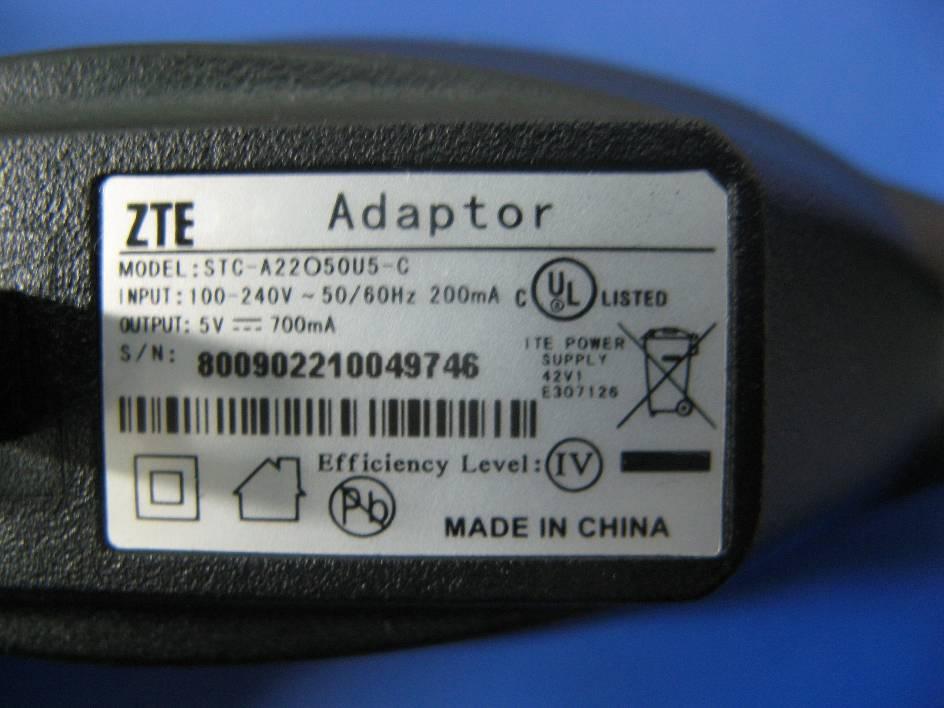

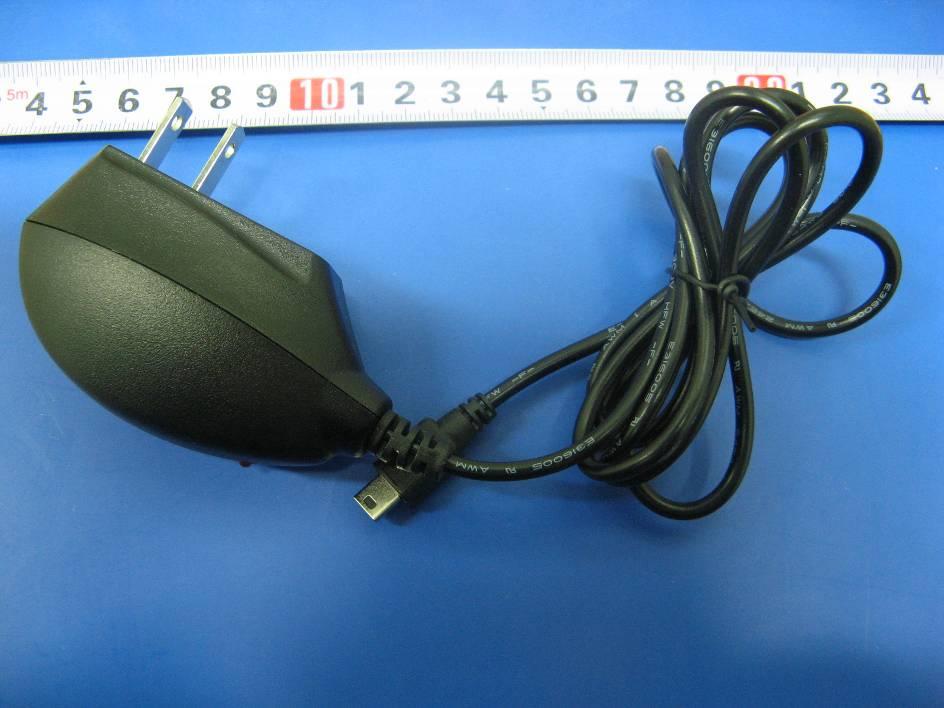

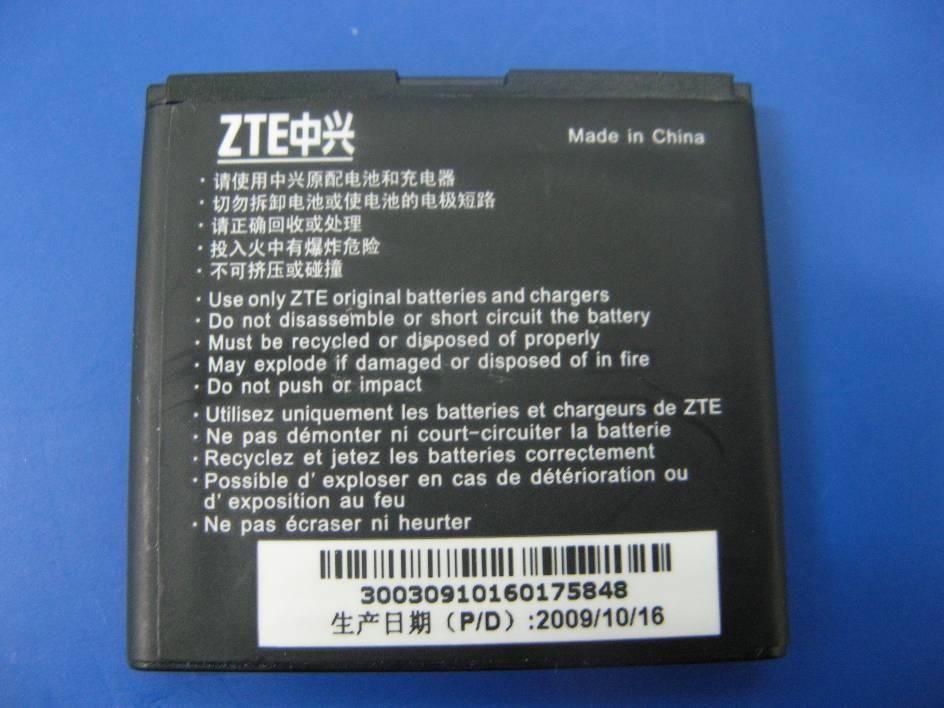

R1010 external photo Battery Battery Charger Label of Charger

Q78-R1010, FCC label placement label

R1010 internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

Report No.: RZA2009-1631 TESTING No. L2264 OET 65 TEST REPORT Product Name WCDMA/GSM(GPRS) Dual-Mode digital mobile phone Model R1010 FCC ID Q78-R1010 Client ZTE CORPORATION TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name WCDMA/GSM(GPRS) Dual-Mode digital mobile phone Model R1010 FCC ID Q78-R1010 Report No. RZA2009-1631 Client ZTE CORPORATION Manufacturer ZTE CORPORATION Reference Standard(s) ANSI/IEEE Std C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-1:2006: Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear. (frequency range of 300 MHz to 3 GHz). IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body. ( frequency rang of 30MHz to 6GHz ) Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: December 16 th , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Wang Lu TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 3of 213 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the test report.........................................................................................................5 1.2. Testing laboratory .................................................................................................................5 1.3. Applicant Information ............................................................................................................6 1.4. Manufacturer Information ......................................................................................................6 1.5. Information of EUT................................................................................................................7 1.6. Test Date ..............................................................................................................................8 2. Operational Conditions during Test ..............................................................................................9 2.1. General description of test procedures .................................................................................9 2.2. GSM Test Configuration ........................................................................................................9 2.3. WCDMA Test Configuration ..................................................................................................9 2.3.1. Output power Verification ..............................................................................................9 2.3.2. Head SAR Measurements ...........................................................................................10 2.3.3. Body SAR Measurements ...........................................................................................10 2.4. HSDPA Test Configuration ..................................................................................................10 2.5. HSUPA Test Configuration ..................................................................................................12 3. SAR Measurements System Configuration ................................................................................ 14 3.1. SAR Measurement Set-up ..................................................................................................14 3.2. DASY4 E-field Probe System .............................................................................................15 3.2.1. EX3DV4 Probe Specification .......................................................................................15 3.2.2. E-field Probe Calibration ..............................................................................................16 3.3. Other Test Equipment .........................................................................................................16 3.3.1. Device Holder for Transmitters ....................................................................................16 3.3.2. Phantom......................................................................................................................17 3.4. Scanning procedure............................................................................................................17 3.5. Data Storage and Evaluation ..............................................................................................19 3.5.1. Data Storage................................................................................................................19 3.5.2. Data Evaluation by SEMCAD ......................................................................................19 3.6. System check................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 151of 213 Figure 114 Z-Scan at power reference point (Body, Towards Phantom, WCDMA Band V Channel 4183) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 152of 213 WCDMA Band V with Earphone Towards Ground Middle Date/Time: 12/13/2009 12:12:05 PM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 – SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.492 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.31 V/m; Power Drift = 0.155 dB Peak SAR (extrapolated) = 2.04 W/kg SAR(1 g) = 0.560 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.506 mW/g Figure 115 Body, Towards Ground, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 153of 213 Figure 116 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V Channel 4132) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 154of 213 WCDMA Band V+HSDPA Towards Ground Middle Date/Time: 12/13/2009 12:48:42 PM Communication System: WCDMA Band V+HSDPA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 – SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.399 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.54 V/m; Power Drift = 0.139 dB Peak SAR (extrapolated) = 0.481 W/kg SAR(1 g) = 0.382 mW/g; SAR(10 g) = 0.284 mW/g Maximum value of SAR (measured) = 0.405 mW/g Figure 117 Body, Towards Ground, WCDMA Band V HSDPA Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 155of 213 Figure 118 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V HSDPA Channel 4132) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 156of 213 WCDMA Band V+HSUPA Towards Ground Middle Date/Time: 12/13/2009 1:10:44 PM Communication System: WCDMA Band V+HSUPA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 – SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.397 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.56 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 0.465 W/kg SAR(1 g) = 0.372 mW/g; SAR(10 g) = 0.277 mW/g Maximum value of SAR (measured) = 0.391 mW/g Figure 119 Body, Towards Ground, WCDMA Band V HSUPA Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 157of 213 Figure 120 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V HSUPA Channel 4132) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 158of 213 802.11b Towards Ground High Date/Time: 12/15/2009 10:31:29 AM Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.94 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 – SN3677; ConvF(7.28, 7.28, 7.28); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.018 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.93 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 0.035 W/kg SAR(1 g) = 0.017 mW/g; SAR(10 g) = 0.008 mW/g Maximum value of SAR (measured) = 0.019 mW/g Figure 121 Body, Towards Ground, 802.11b Channel 11 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 159of 213 Figure 122 Z-Scan at power reference point (Body, Towards Ground, 802.11b Channel 11) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1631 Page 160of 213 802.11b Towards Ground Middle Date/Time: 12/15/2009 9:25:57 AM Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.91 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 – SN3677; ConvF(7.28, 7.28, 7.28); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-…

Text truncated - open the document above for the full version.

No.2009TAR203 Page1 of 48 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR203 for ZTE CORPORATION WCDMA/GSM（GPRS）Dual-Mode Digital Mogile Phone Model Name: R1010 FCC ID : Q78-R1010 with Hardware Version: p2qB Software Version: P721DV1.0.0B02_MP Issued Date: Dec 17th, 2009 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR203 Page2 of 48 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 6 5. LABORATORY ENVIRONMENT ............................................................................................ 7 6. SUMMARY OF TEST RESULTS ............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 A.1 OUTPUT POWER ............................................................................................................. 10 A.2 EMISSION LIMT ............................................................................................................... 13 A.3 CONDUCTED EMISSION ................................................................................................. 25 A.4 FREQUENCY STABILITY ................................................................................................. 28 A.5 OCCUPIED BANDWIDTH ................................................................................................ 30 A.6 EMISSION BANDWIDTH .................................................................................................. 34 A.7 BAND EDGE COMPLIANCE ............................................................................................ 38 A.8 CONDUCTED SPURIOUS EMISSION ............................................................................. 40 No.2009TAR203 Page3 of 48 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Nov 27,2009 Testing End Date: Dec 14,2009 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2009TAR203 Page4 of 48 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2009TAR203 Page5 of 48 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description WCDMA/GSM（GPRS）Dual-Mode Digital Mogile Phone Model Name R1010 FCC ID Q78-R1010 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band IV Antenna Internal Power supply Battery or Charger(AC Adaptor) Output power 30.25 dBm maximum ERP measured for GSM850 Extreme vol. Lim…

Text truncated - open the document above for the full version.

No.2009TAR202 Page1 of 73 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR202 for ZTE CORPORATION WCDMA/GSM（GPRS）Dual-Mode Digital Mogile Phone Model Name: R1010 FCC ID : Q78-R1010 with Hardware Version: p2qB Software Version: P721DV1.0.0B02_MP Issued Date: Dec 17th, 2009 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR202 Page2 of 73 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 6 5. LABORATORY ENVIRONMENT ............................................................................................ 7 6. SUMMARY OF TEST RESULTS ............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 A.1 OUTPUT POWER ...........................................................................................…
