User Guide Vodafone Mobile Wi-Fi R203-Z Designed by Vodafone Welcome to the world of mobile communications 1 Welcome 2 Device overview 3 Getting started: Step 1 4 Getting started: Step 2 5 Mobile Wi-Fi web UI application screen 6 Current network panel 7 Mobile Wi-Fi view 8 Storage view 9 SMS view 10 Account view 11 Device status screen icons 12 Hints and tips 17 Glossary 1 The Vodafone Mobile Wi-Fi R203-Z creates a personal portable Wi-Fi zone which allows several Wi-Fi enabled devices (for example PCs, Apple ® iPhone, iPad or iPod touch, or mobile gaming devices such as Nintendo ® DSi, Android devices including the Samsung ® Galaxy Tab) to share a secure mobile internet connection. The device is battery, mains or USB powered, and this fl exibility allows the device to be positioned for best mobile coverage and then share this coverage between several devices via Wi-Fi. Note: you will get better Wi-Fi performance when the device is being charged compared to when it is running from the battery. Advanced confi guration using a cable or Wi-Fi To perform advanced confi guration of the device browse to the web UI http://VodafoneMobile.wifi or http://192.168.0.1 from a computer running Microsoft ® Windows ® 7 (SP1 recommended), Windows Vista™ (SP2 recommended), or Windows ® XP (SP3 recommended), a computer running Linux (Wi-Fi confi guration only, not cable), or an Apple Mac running Mac OS ® X 10.5 (Intel ® ), 10.6 or 10.7 (all with latest updates). Advanced confi guration for iPhone / iPad / iPod Touch / smartphone / tablet users Apple device users should use the Safari browser to browse to the web UI http://VodafoneMobile.wifi or http://192.168.0.1 , or download the Vodafone Mobile Wi-Fi Monitor app. Smartphone and tablet users can check the device status by downloading the Vodafone Mobile Wi-Fi Monitor app from the App Store in iTunes or the Android Market / Google Play. See Page 16 for sample app screenshots. Welcome System requirements To use the Vodafone Mobile Wi-Fi R203-Z you need a device with Wi-Fi capability. 2 Status Display End User Licence Agreement (EULA) Please ensure that you have read and accepted the software EULA for your country before using the Vodafone Mobile Wi-Fi application or device. The EULA is available here: www.support.vodafone.com/VodafoneMobileWiFi/R203-Z Device overview Tip: To save power the display is dimmed after 10 seconds and switched off after a further 5 seconds. The screen can be displayed by briefly touching the power on/off button. The screen will also be displayed whenever the status of the device changes. Wi-Fi status and number of users Unread messages Network signal Micro USB slot Power on/off Status display Back cover release Battery Network operator or additional information Connect duration Upload & download data volume Bearer 3 To prepare the Vodafone Mobile Wi-Fi R203-Z, you need to 1. insert your SIM (and MicroSDHC card if you are using one for fi le storage and sharing) and battery before use. Unclip the back of the device and insert the SIM as shown. 2. If using a MicroSD card then insert as shown, and insert the battery. Before replacing the back cover please make a note of your Wi-Fi security details. These are a secure Wi-Fi network key and a Wi-Fi network name (SSID). The Key and the SSID are unique to your device and can be found on a label on the inside of the back cover. The device is now ready to use - plug it into the mains or your 3. PC. The battery will be charged in the background. Make sure the device is fully charged (approximately 3 hours) before using it in battery mode. Getting started: Step 1 of 2 Note: Once setup is complete, when connected to the R203-Z via USB (and you have installed the software onto your PC) you can access the R203-Z configuration screen by clicking on the Mobile Wi-Fi desktop icon . Alternatively, if you are connected over Wi-Fi, you can enter the following addresses into your browser: http://VodafoneMobile. wifi or http://192.168.0.1 You may want to save these addresses as favourites in your browser so you can access the Mobile Wi-Fi web UI application screen easily. SIM card MicroSD card (if used) Battery 4 Switch on the device by pressing and holding the power 4. button for 3 seconds. The device will go through its start-up sequence, and will automatically connect to the network unless a PIN code is required. Check the display for connection status. Use the normal Wi-Fi application on your computer or device 5. to connect. Select the Mobile Wi-Fi network from the list of available Wi-Fi networks, click Connect and enter the WPA2 password (secure Wi-Fi network key) noted earlier. Congratulations – you now have internet access via Vodafone Mobile Wi-Fi. When you are connected to the Vodafone Mobile Wi-Fi R203-Z 6. via Wi-Fi or a USB cable, you can access the Vodafone Mobile Wi-Fi confi guration screen by clicking on the Mobile Wi-Fi desktop icon (if you have installed via USB), or by typing either http://VodafoneMobile.wifi or http://192.168.0.1 into your web browser. You can change settings and check the device and network status from this browser page. Getting started: Step 2 of 2 Tip: A double tap of the power key will show the current Wi-Fi network name and Wi-Fi network key on the device display. The Vodafone Mobile Wi-Fi R203-Z will automatically connect to the Mobile Broadband network when it is powered on. If required, this default automatic network connection can be changed to a manual connection via the web UI of the device. 5 Note: Every window in the Mobile Wi-Fi web UI application has this same standard layout. Context-sensitive help for each window is always available at the bottom of the window. Sometimes an additional Menu bar will appear on the left of the window. Navigation tabs: Select Mobile Wi-Fi, Storage, SMS or Account view Navigation bar: Select an area within each view Current network panel: Status of mobile broadband network connection, battery and Wi-Fi status and connec…

Text truncated - open the document above for the full version.

Safety Manual Vodafone Mobile Wi-Fi R203-Z RF Exposure 5 Specifi c Absorption Rate (SAR) 5 Body worn operation 5 CE Approval (European Union) 6 FCC Statement 6 FCC Compliance 6 Distraction 8 Driving 8 Operating machinery 8 Product Handling 8 Small Children 9 Air Bags 9 Emergency Situations 10 Device Heating 10 WEEE Approval 10 Electrical Safety 10 Accessories 10 Connection to a Car 10 Faulty and Damaged Products 11 Table of contents Interference 11 Pacemakers 11 Hearing Aids 11 Medical devices 12 Hospitals 12 Aircraft 12 Interference in cars 12 Explosive environments 13 Petrol stations and explosive atmospheres 13 Blasting Caps and Areas 13 Read the Safety Information section of this safety manual on page 5 Do not use hand-held while driving Small parts may cause a choking hazard Keep away from pacemakers and other personal medical devices Switch off when instructed in hospitals and medical facilities Switch off when instructed in aircrafts and airports Switch off in explosive environments Do not use while re-fuelling For body-worn operation maintain antenna separation of 1.5 cm Do not dispose of in a fi re Avoid contact with magnetic media Avoid Extreme Temperatures Avoid contact with liquid, keep dry Do not try and disassemble Do not rely on this device for emergency communications Only use approved accessories Safety Information 5 RF Exposure Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits. Specifi c Absorption Rate (SAR) Your wireless device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specifi c Absorption Rate, or SAR. The SAR limit for wireless devices is 2 W/kg and the highest SAR value for this device when tested complied with this limit. Body worn operation Important safety information regarding radio frequency radiation (RF) exposure To ensure compliance with RF exposure guidelines the device must be used with a minimum of 1.5 cm separation from the body. Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits. is 1.13 W/kg The highest SAR value for this model device as reported to the FCC when worn on the body, Safety Information 6 CE Approval (European Union) The wireless device is approved to be used in the member states of the EU. ZTE declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). FCC Statement FCC Compliance Federal Communications Commission Notice (United States): Before a wireless device model is available for sale to the public, it must be tested and certifi ed to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The SAR limit for battery operated standalone wireless routers adopted by the USA and Canada is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The highest SAR value reported to the FCC and IC for this device type was compliant with this limit. Safety Information 7 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Safety Information 8 Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident. Using this device while driving causes distraction and can lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving. Operating machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident. Product Handling You alone are responsible for how you use your device and any consequences of its use. You must always switch off your device wherever the use of a mobile phone is prohibited. Do not use the device without the clip-on covers attached, and do not remove or change the covers while using the device. Use of your device is subject to safety measures designed to protect users and their environment. • Always treat your device and its accessories with care and keep it in a clean and dust- free place. • Do not expose your device or its accessories to open fl ames or lit tobacco products. • Do not expose your device or its acces…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: May 3, 2012 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Min Zhang in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Min Zhang in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-R203-Z If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68897541 Date: May 3, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-R203-Z Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: R203-Z_Schem.pdf) Block Diagram (file: R203-Z_BlkDia.pdf) Parts List (file: R203-Z_PartsLst.pdf) Operation Description (file: R203-Z_OpDes.pdf) Tune up Procedure (file: R203-Z_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Min Zhang

1/1 ZTE CORPORATION Date: May 3, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-R203-Z To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68897541 E-mail: [email protected]

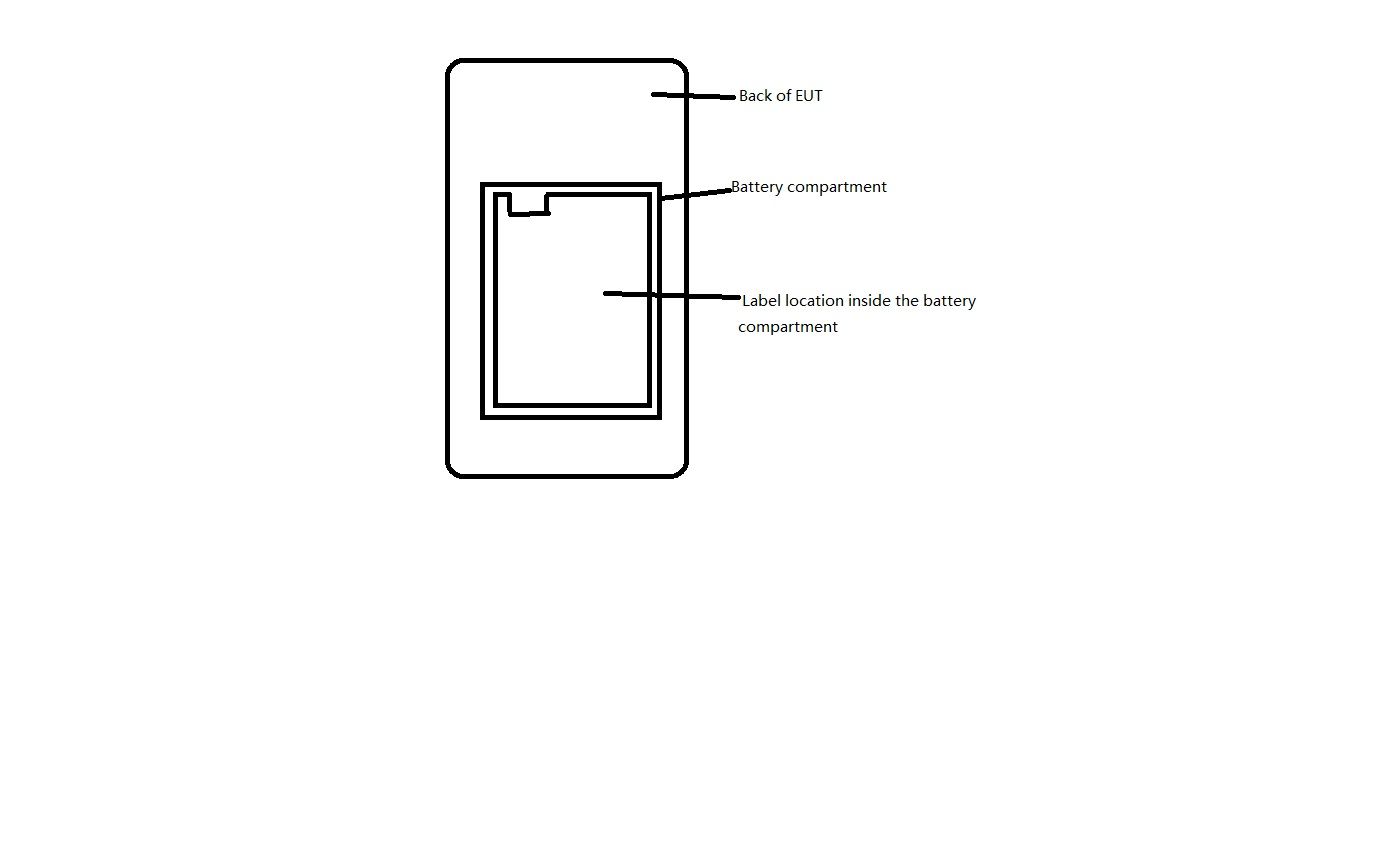

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-21-68897541 ; Fax: +86-21-68897541 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-R203-Z , has no space to put the label except the surface of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Min Zhang Company: ZTE CORPORATION TEL: +86-21-68897541 FAX: +86-21-68897541 E-mail: [email protected]

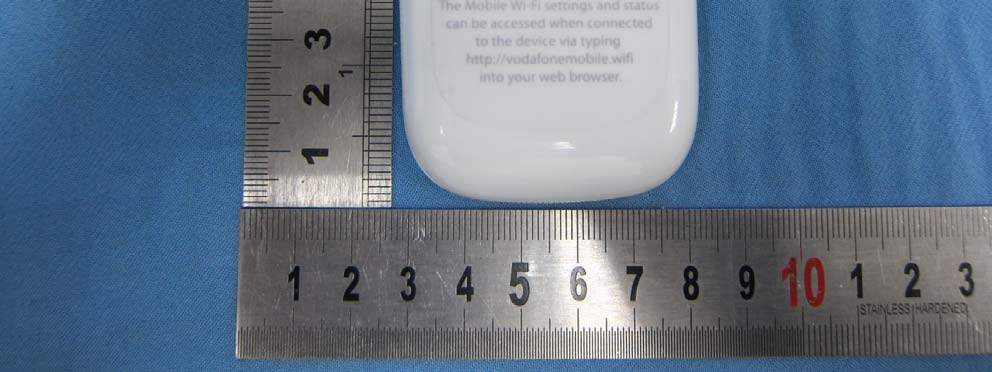

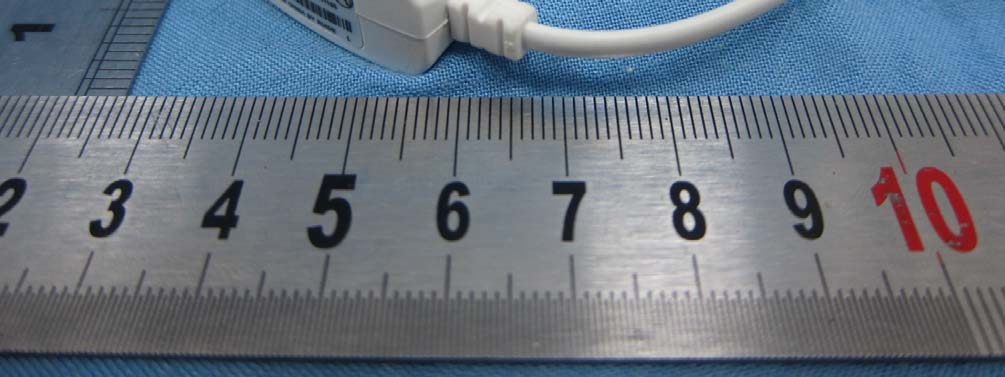

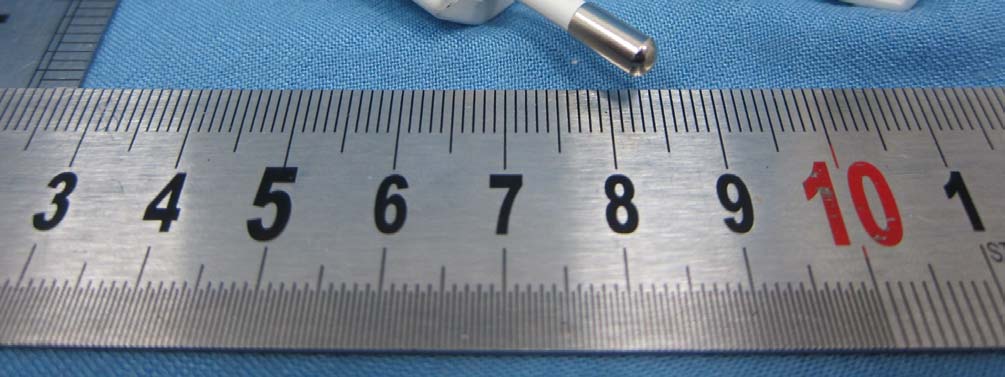

Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I700USBA-A Battery Brand Name ZTE 中兴 Model Name Li3715T42P3h654251 USB Cable Type 1.2m non-shielded cable without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z Photographs of EUT Report No.: EP1D0202 Brand Name: ZTE / Model Name: R203-Z SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 27, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-R203-Z
