Q78-R8860EGU198BOutdoor GSM/UMTS Dual Mode Remote Radio Unit

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Authorization Date:2011-1-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ZTE Corporation , the undersigned, Hereby authorizes Branch to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Louis Lin of Tü V Sü D China Shenzhen Branch our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation Louis Lin of TüV SüD China Shenzhen

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Confidential Authorization Date: 2011-6-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: Q78-R8860EGU19 8B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics --- (Long term)  Block Diagram--- (Long term)  Part list--- (Long term)  Turn-up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation

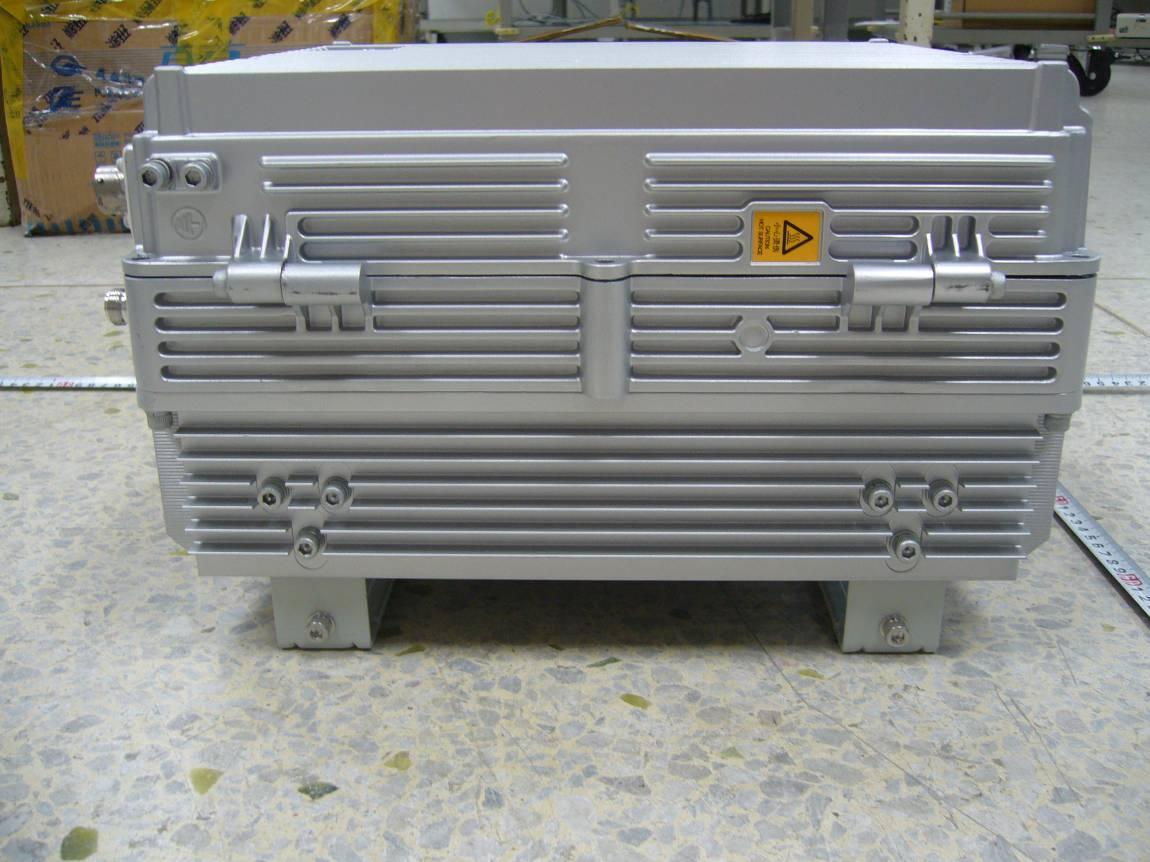

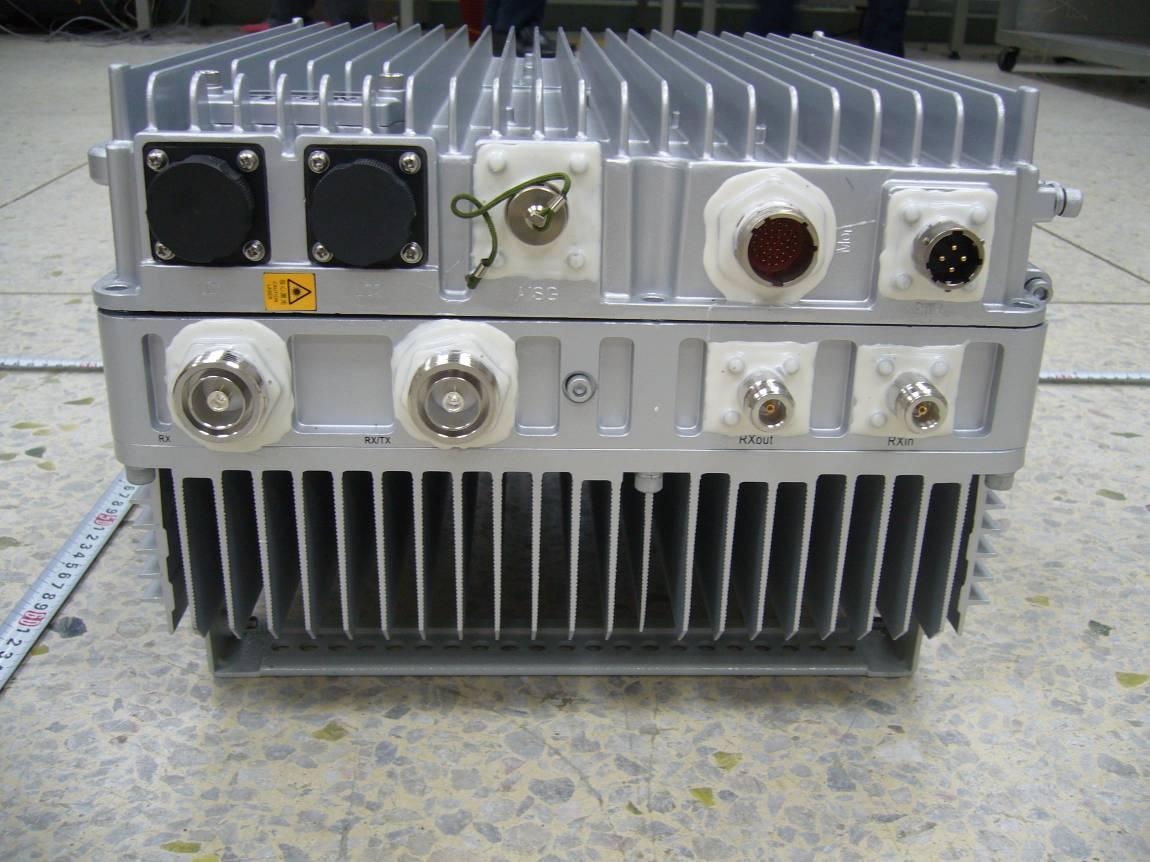

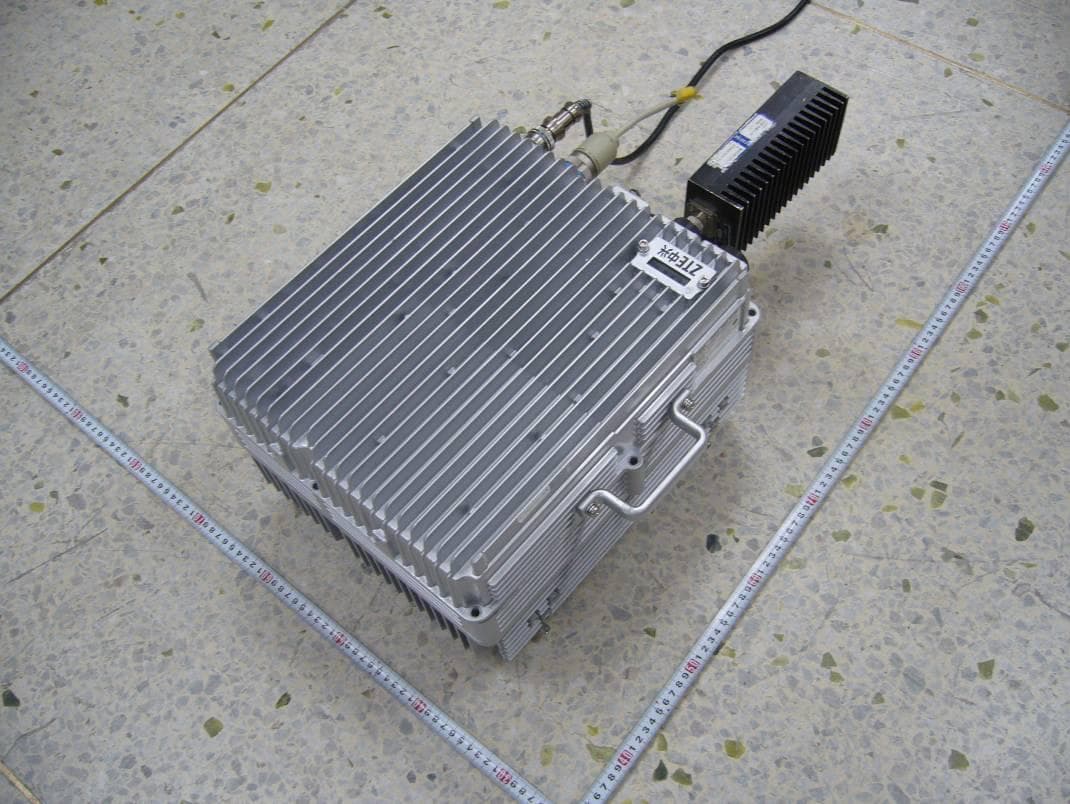

Confidential▲ Attachment 1 for Test Report SAF****** ZTE Corporation Copyright Reserved page 1 of 7 PHOTO for ZXSDR R8860E GU198 Overview of ZXSDR R8860E GU198 Overview of ZXSDR R8860E GU198 Confidential▲ Attachment 1 for Test Report SAF****** ZTE Corporation Copyright Reserved page 2 of 7 Top view of ZXSDR R8860E GU198 Input and output terminal Confidential▲ Attachment 1 for Test Report SAF****** ZTE Corporation Copyright Reserved page 3 of 7 Hot warning marked on the case

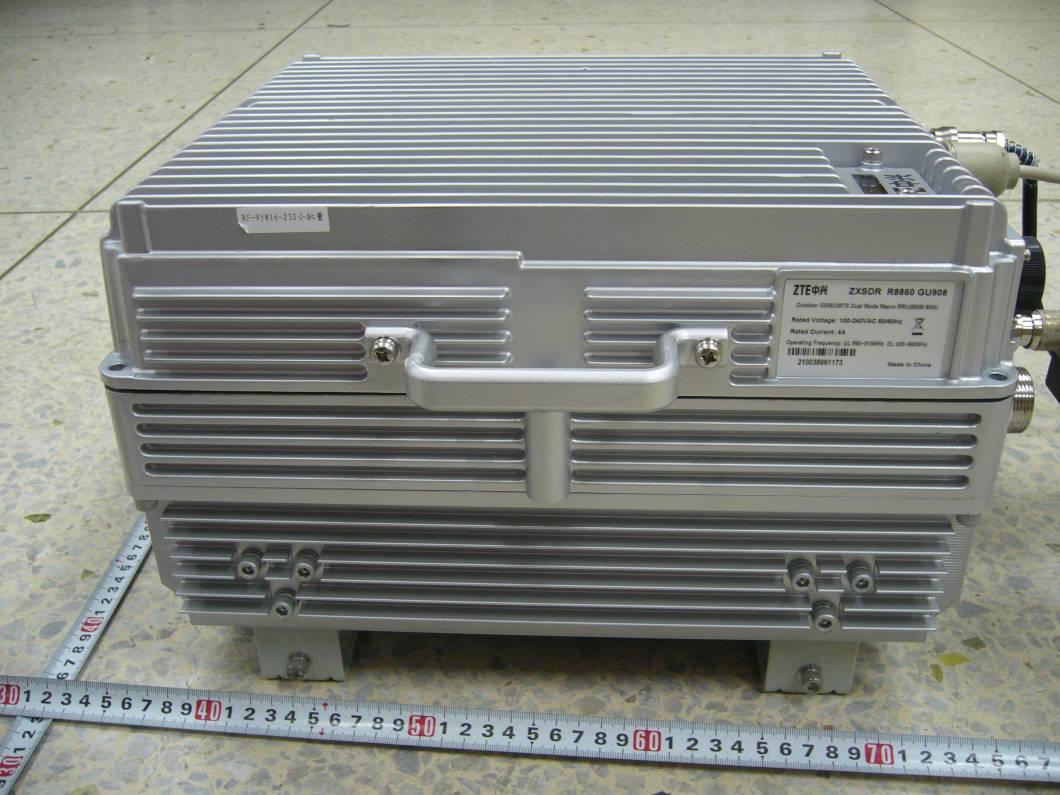

Confidential▲ Attachment 1 for Test Report SAF****** ZTE Corporation Copyright Reserved page 1 of 7 PHOTO for ZXSDR R8860E GU198 Overview of ZXSDR R8860E GU198 Label location of ZXSDR R8860E GU198

ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 91 of 180 Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 1951.1 1950.2/1950.8/1951.4/1952 48.97 1971.1 1970.2/1970.8/1971.4/1972 48.94 1988.9 1988/1988.6/1989.2/1989.8 48.99 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 92 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 93 of 180 Three carriers Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 1950.8 1950.2/1950.8/1951.4 47.02 1970.8 1970.2/1970.8/1971.4 47.03 1989.2 1988.6/1989.2/1989.8 47.03 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 94 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 95 of 180 Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 1950.8 1950.2/1950.8/1951.4 48.95 1970.8 1970.2/1970.8/1971.4 48.95 1989.2 1988.6/1989.2/1989.8 49.05 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 96 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 97 of 180 Two carriers Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 1950.5 1950.2/1950.8 47.04 1970.5 1970.2/1970.8 47.04 1989.5 1989.2/1989.8 47.01 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 98 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 99 of 180 Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 1950.5 1950.2/1950.8 48.95 1970.5 1970.2/1970.8 49.02 1989.5 1989.2/1989.8 49.02 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 100 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 101 of 180 One carrier Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 1950.2 1950.2 46.93 1970.2 1970.2 47.05 1989.8 1989.8 47.07 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 102 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 103 of 180 Modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 1950.2 1950.2 48.97 1970.2 1970.2 49.03 1989.8 1989.8 49.06 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 104 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 105 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 106 of 180 4.2 RF EXPOSURE Applicable standard: FCC §2.1091 and §1.1037 Limit According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) Test Data Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = EIRP/ 4лR² Where: S = power density EIRP= equivalent isotropically radiated power=ERP+2.15dB R = distance to the center of radiation of the antenna= [(ERP+2.15dB)/4лS] 1/2 Maximum EIRP, In general, the equivalent isotropically radiated power (EIRP) of base transmitters and cellular repeaters must not exceed 1640 Watts. Frequency is between 1500MHz and 100000MHz, and the Maximum S=1.0mW/cm 2 R=3.61m. This equipment should be installed and operated with minimum distance 3.61m between the radiator& your body. Test Result: pass ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 107 of 180 4.3 MODULATION CHARACTERISTIC Applicable Standard: FCC §2.1047 Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Agilent MXA Series Spectrum Analyzer N9020A MY48011941 2011-4-8 2012-4-7 DTS DTS100 40dB Attenuator DTS100-40dB-N N/A N/A N/A Hewlett Packard Hewlett Packard RF Cable 8120-6192 01428251 N/A N/A *statement of traceability: ZTE Corporation Reliability Testing Center attest that all calibration have been performed per the NVLAP requirements , traceable to NIST. Test Procedure GSM digital mode is used by EUT. Test Data Environmental Conditions Temperature: 20 °C Relative Humidity: 53 % ATM Pressure: 1009 mbar Test Result: Pass Test Mode: Transmitting GSM ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 108 of 180 Test Data: Modulation Frequency (MHz) Phase Error(°) Frequency Error(Hz) 8PSK 1950.2 4.048% 0.66 1970.2 3.844% 0.73 1989 4.278% 0.017 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 109 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 110 of 180 Modulation Frequency (MHz) Phase Error(°) Frequency Error(Hz) GMSK 1950.2 1.89 0.18 1970.2 1.78 0.06 1989.8 1.86 0.05 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 111 of 180 ZTE Corporation FCC ID:Q78-R8860EGU198B report #FCC-2011-033 FCC PART 24 TYPE APPROVAL Report Page 112 of 180 4.4 SPURIOUS RADIATED EMISSIONS Applicable Standard: FCC CFR 47, §2.1053 Test Equipment List and Details Manufacturer Equipment Model Serial Number Last Cal. Cal. Interval Albatross Anechoic Chamber 3m Site A00017354 2010-6-30 1 year R&S EMI Test Receiver ESI26 100058 2010-10-29 1 year R&S Log periodic Antenna HL562 100022 2010-8-5 1 year R&S Double-Ridged Waveguide Horn Antenna HF9…
