Q78-R8860EGU858GSM/UMTS Dual Mode Remote Radio Unit

ZXSDRR8860EGU858 OutdoorGSM&UMTSDualModeMacroRRU UserManual HV2.0 ZTECORPORATION NO.55,Hi-techRoadSouth,ShenZhen,P.R.China Postcode:518057 Tel:(86)75526771900 Fax:(86)75526770801 URL:http://ensupport.zte.com.cn E-mail:[email protected] LEGALINFORMATION Copyright©2010ZTECORPORATION. Thecontentsofthisdocumentareprotectedbycopyrightlawsandinternationaltreaties.Anyreproductionor distributionofthisdocumentoranyportionofthisdocument,inanyformbyanymeans,withoutthepriorwritten consentofZTECORPORATIONisprohibited.Additionally,thecontentsofthisdocumentareprotectedby contractualconfidentialityobligations. Allcompany,brandandproductnamesaretradeorservicemarks,orregisteredtradeorservicemarks,ofZTE CORPORATIONoroftheirrespectiveowners. Thisdocumentisprovided“asis”,andallexpress,implied,orstatutorywarranties,representationsorconditions aredisclaimed,includingwithoutlimitationanyimpliedwarrantyofmerchantability,fitnessforaparticularpurpose, titleornon-infringement.ZTECORPORATIONanditslicensorsshallnotbeliablefordamagesresultingfromthe useoforrelianceontheinformationcontainedherein. ZTECORPORATIONoritslicensorsmayhavecurrentorpendingintellectualpropertyrightsorapplications coveringthesubjectmatterofthisdocument.ExceptasexpresslyprovidedinanywrittenlicensebetweenZTE CORPORATIONanditslicensee,theuserofthisdocumentshallnotacquireanylicensetothesubjectmatter herein. ZTECORPORATIONreservestherighttoupgradeormaketechnicalchangetothisproductwithoutfurthernotice. UsersmayvisitZTEtechnicalsupportwebsitehttp://ensupport.zte.com.cntoinquirerelatedinformation. TheultimaterighttointerpretthisproductresidesinZTECORPORATION. RevisionHistory RevisionNo.RevisionDateRevisionReason R1.02010-12-06Firstedition R1.12010-12-14Updated R1.22010-12-20Updated SerialNumber:SJ-20101210110401-001 PublishingDate:2010-12-06 Contents AboutThisManual.........................................................................................I Chapter1SystemOverview......................................................................1-1 1.1SystemBackground...........................................................................................1-1 1.2SystemPositions................................................................................................1-1 1.2.1SystemPositioninNetwork....................................................................... 1-1 1.2.2BBUandRRU..........................................................................................1-2 1.3SystemRunningEnvironment.............................................................................1-3 1.4RRUAppearance...............................................................................................1-5 1.5SystemFeatures................................................................................................ 1-5 1.6ServicesandFunctions......................................................................................1-6 1.7SystemOperationandMaintenance....................................................................1-8 Chapter2TechnicalIndices......................................................................2-1 2.1PhysicalIndices.................................................................................................2-1 2.2RadioPerformanceIndices................................................................................. 2-2 2.3InterfaceandTransmissionIndices...................................................................... 2-3 Chapter3StructureandPrinciples..........................................................3-1 3.1StructureLayout................................................................................................. 3-1 3.1.1ExternalInterfaces................................................................................... 3-1 3.1.2IndicatorsandButtons.............................................................................. 3-2 3.2HardwarePrinciple............................................................................................. 3-4 3.2.1HardwareArchitecture.............................................................................. 3-4 3.2.2BoardFunctions....................................................................................... 3-5 3.3SoftwareSystem................................................................................................ 3-7 3.3.1SoftwareArchitecture...............................................................................3-7 3.3.2SoftwareFunctions...................................................................................3-7 Chapter4Installation.................................................................................4-1 4.1SafteyDescription..............................................................................................4-1 4.1.1SafetySpecificationsGuide......................................................................4-1 4.1.2SafetySymbols........................................................................................ 4-2 4.1.3SafetyInstructions....................................................................................4-3 4.2Preparation........................................................................................................ 4-7 4.2.1EngineeringConditionInspection.............................................................. 4-7 4.2.2RequirementstoOnsitePersonnel............................................................ 4-8 I 4.2.3TechnicalDocumentPreparation...............................................................4-9 4.2.4ToolsandInstrumentsPreparation............................................................4-9 4.3UnpackingandChecking..................................................................................4-15 4.3.1ContainerofR8860EGU858................................................................... 4-15 4.3.2FlowofUnpackingandChecking............................................................4-16 4.4InstallationOverview...................................…

Text truncated - open the document above for the full version.

ZXSDRR8860EGU858UserManual NameShapeFunction Clampassembly forpolemounted installation Forthepolewith 1or2R8860E GU858polemounted installation Mountingbracket assemblyfor polemounted installation Forthepolewith3 R8860EGU858pole mountedinstallation MountingBaseUsedbypole mountedinstallation ofR8860EGU858 MountingPieceUsedbyfixingonthe pole 4-22 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation NameShapeFunction Lightningpretector piece Usedbypole mountedinstallation ofLightningpretector box ExpansionpieceForthepolewith thethirdR8860E GU858polemounted installation ProtectionshadeToshieldR8860E GU858fromdirect sunlight 4.5.2.2WallMountedInstallation Fixtheassemblyforwallmountedinstallationonthewall,andthenfixR8860EGU858on theassemblywithbolts,asshowninFigure4-7. 4-23 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-7WALLMOUNTEDINSTALLATIONFORR8860EGU858 4.5.2.3PoleMountedInstallation(PoleMountingKit) Ifthereareonly1or2R8860EGU858s,usetheclampassemblytofixit/themonthepole, asshowninFigure4-8. 4-24 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-8POLEMOUNTEDINSTALLATIONFOR1OR2R8860EGU858s Ifthereare3R8860EGU858s,usethemountingbracketassemblytofixthemonthepole, asshowninFigure4-9. Figure4-9POLEMOUNTEDINSTALLATIONFOR3R8860EGU858s 4.5.2.4PoleMounting(UniversalSheet-MetalKit) InthesingleR8860EGU858solutiontheunitisfixedonthepolebyanuniversalmounting kit,asshowninFigure4-10. 4-25 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-10TheSingleR8860EGU858MountingSolution InthedoubleR8860EGU858solutiontheunitisfixedonthepolebyanuniversalmounting kit,asshowninFigure4-11. Figure4-11TheDoubleR8860EGU858MountingSolution InthetripleR8860EGU858solutiontheunitisfixedonthepolebyanuniversalmounting kit,asshowninFigure4-12. 4-26 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-12TheTripleR8860EGU858MountingSolution 4.5.3R8860EGU858Installation TheinstallationofR8860EGU858includestwoparts,thatis,mainpartinstallationand cableinstallation.TheinstallationflowisshowninFigure4-13. 4-27 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-13R8860EGU858INSTALLATIONFLOW 4.5.3.1WallMountedInstallationforR8860EGU858 Steps 1.DrillholesonthewallwithholingtemplateaccordingtotheR8860EGU858installation positionspecifiedintheengineeringdesigndocuments,andinstalltheexpansion bolts.Thedepthoftheholeshouldbeabout60mm.Theholingtemplateisshownin Figure4-14. 4-28 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-14HOLINGTEMPLATE 2.Assemblethewallmountedinstallationassembly,asshowninFigure4-15.Fixthe assemblyonthewallwithbolts. 4-29 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-15ASSEMBLINGWALL-MOUNTEDINSTALLATIONASSEMBLY 1.Expansionbolt 2.Insulationplate 3.Wall-mountingplate 4.Insulationflange 5.Flatwasher 6.Springwasher 7.Nut 3.HangtheR8860EGU858cabinetonthewallmountedinstallationassembly(alignit withtheclamps),andfixthecabinettotheassemblywith2M6bolts,asshownin Figure4-16. 4-30 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-16FIXINGTHECABINET 1.Wall-mountinginstallat ioncomponentsclamp 2.Screw 3.Fixationboard –EndofSteps– 4.5.3.2PoleMountedInstallationforR8860EGU858PoleMountingKit 4.5.3.2.1Installing1R8860EGU858 Steps 1.Install2setsofclampassembliesonthepole,andfastenthemjustalittle.Adjustthe distancebetweenthepoleclampassembliesaccordingtothescrewholesandthen fastenM8bolts.Finally,fastenthescrewsonthepoleclampassemblies,asshown inFigure4-17. 4-31 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-17INSTALLINGCLAMPASSEMBLY 1.M8nut 2.Springwasher 3.Flatwasher 4.Insulationflange 5.Wall-mounting installationassemblies 6.Insulationboard 7.Hoop 8.Bolt 9.Pole 10.Plainwasher 11.Springwasher 12.NutHoop 13.Hoop 2.HangtheR8860EGU858cabinetonthewallmountedinstallationassembly(alignit withtheclamps),andfixthecabinettotheassemblywith2M6bolts,asshownin Figure4-18. 4-32 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-18FIXINGTHECABINET 1.Screw2.Clipboard3.Fixationboard –EndofSteps– 4.5.3.2.2Installing2R8860EGU858s Steps 1.Install4setsofclampassembliesonthepole,andfastenthemjustalittle,asshown inFigure4-19. 4-33 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual Figure4-19INSTALLINGCLAMPASSEMBLY 1.Nut 2.Springwasher 3.Plainwasher 4.Hoop 5.Bolt Note Wheninstalling2R8860EGU858s,decidethelengthofclampassemblybolts accordingtotheresultofengineeringsurvey.Ifthepolediameterisintherange60 mm~90mm,useboltswiththelength80mm.Ifthepolediameterisintherange90 mm~120mm,useboltswiththelength130mm. 2.Assemble2setsofwallmountedinstallationassembliesandfastentheM8bolts,as showninFigure4-20.Fastentheboltsoftheclampassemblies. 4-34 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential Chapter4Installation Figure4-20ASSEMBLINGWALL-MOUNTEDINSTALLATIONASSEMBLY 1.Bolt 2.Springwasher 3.Plainwashe 4.Insulationflange 5.Wall-mounting installationassemblies 6.Insulationwasher 7.Hoop 3.HangtheR8860EGU858cabinetonthewallmountedinstallationassembly(alignit withtheclamps),andfixthecabinettotheassemblywith2M6bolts,asshownin Figure4-21. Figure4-21FIXINGTHECABINET 1.Screw2.Wall-mounting installationassemblies 4-35 SJ-20101210110401-001|2010-12-06ZTEProprietaryandConfidential ZXSDRR8860EGU858UserManual 3.Fixationboard –EndofSteps– 4.5.3.2.3Installing3R8860EGU858s Steps 1.Install4setsofmountingbracketassembliesonthepole,backtoback,andfasten themjustalittle,asshowninFigure4-22. Figure4-22INSTALLINGMOUNTINGBRACKETASSEMBLY 1.Fixationplate 2.Nut 3.Springwasher 4.Plainwasher 5.Bolt 2.Assemble3setsofwallmountedinstallationassembliesandfastentheM8bolts,as showninFigure4-23.F…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Confidential Authorization Date: 2011-1-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: Q78-R8860EGU858 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics --- (Long term)  Block Diagram--- (Long term)  Part list--- (Long term)  Turn-up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Authorization Date:2011-1-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ZTE Corporation , the undersigned, Hereby authorizes TÜV SÜD China Shenzhen Branch to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by TÜV SÜD China Shenzhen Branch our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation

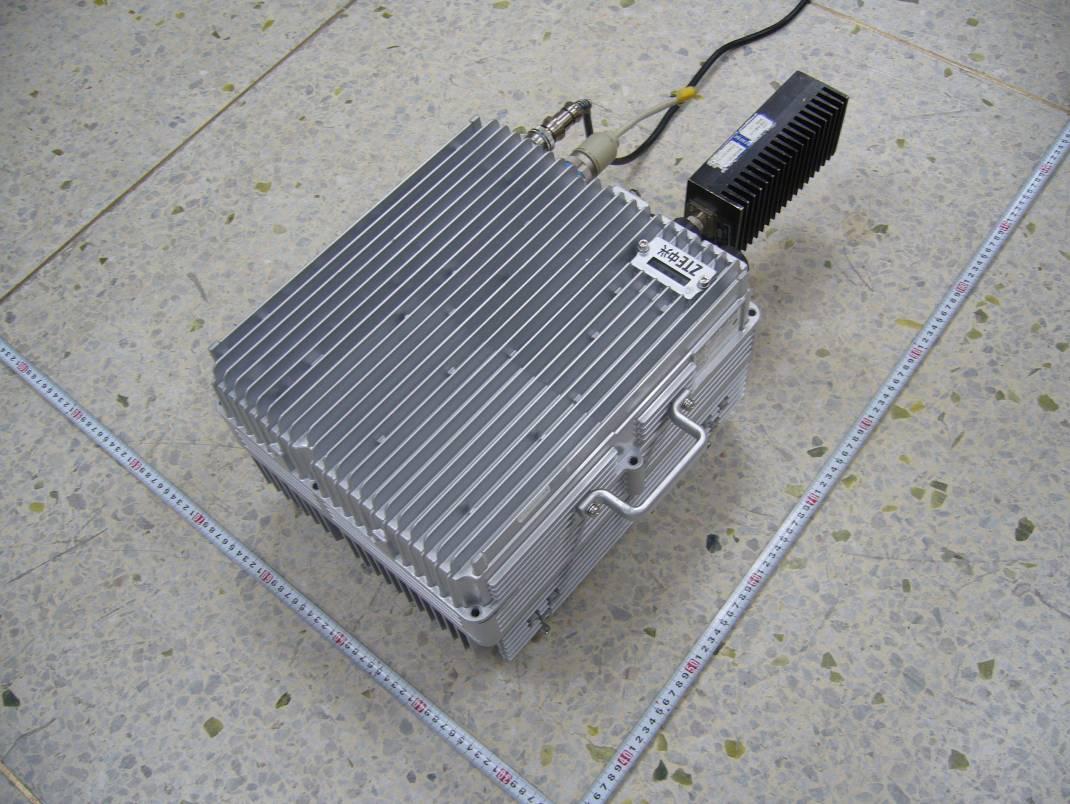

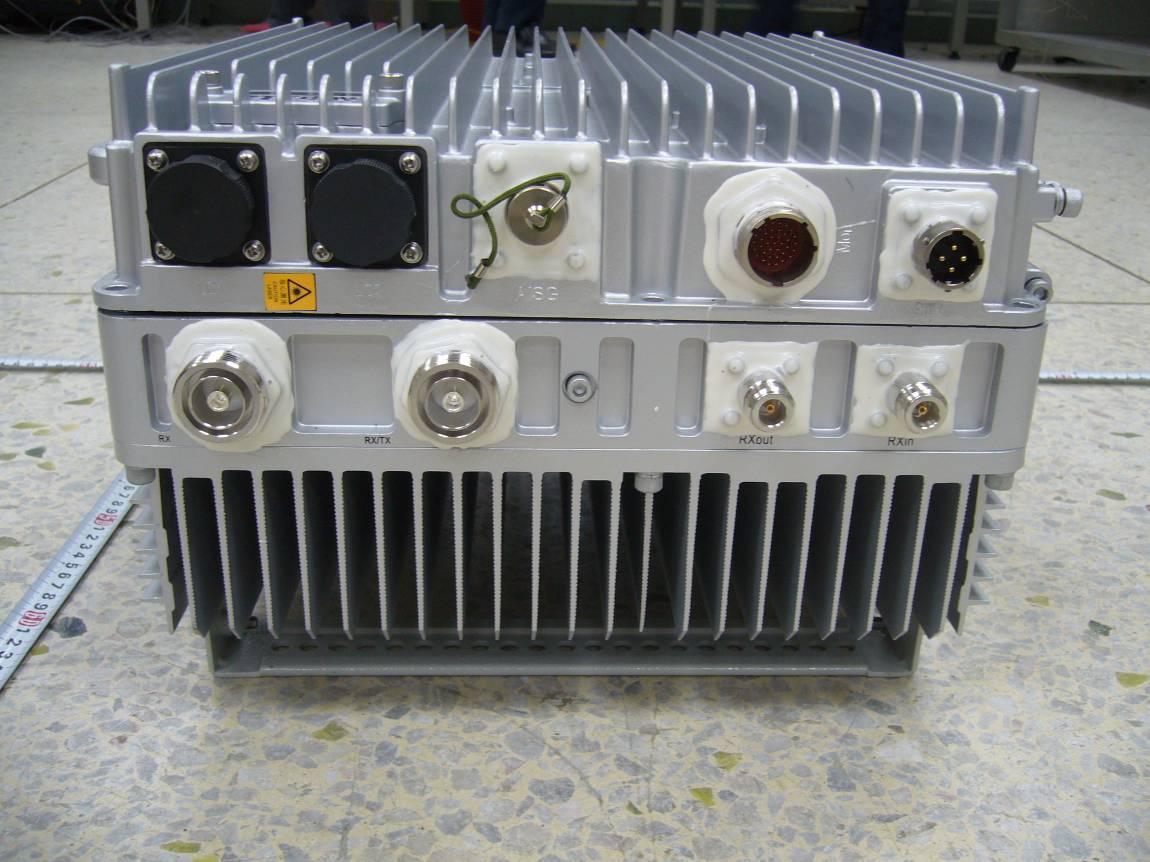

Confidential▲ ZTE Corporation Copyright Reserved page 1 of 7 PHOTO for ZXSDR R8860E GU858 Overview of ZXSDR R8860E GU858 Overview of ZXSDR R8860E GU858 Confidential▲ ZTE Corporation Copyright Reserved page 2 of 7 Top view of ZXSDR R8860E GU858 Input and output terminal Confidential▲ ZTE Corporation Copyright Reserved page 3 of 7 Hot warning marked on the case

Confidential▲ ZTE Corporation Copyright Reserved page 1 of 7 PHOTO for ZXSDR R8860E GU858 Internal view of ZXSDR R8860E GU858 Confidential▲ ZTE Corporation Copyright Reserved page 2 of 7 Internal view of ZXSDR R8860E GU858 without power module PE terminal of internal view of ZXSDR R8860E GU858 Confidential▲ ZTE Corporation Copyright Reserved page 3 of 7 Front view of ADTR board Rear view of ADTR board Confidential▲ ZTE Corporation Copyright Reserved page 4 of 7 AC power module Front view of DC power module Confidential▲ ZTE Corporation Copyright Reserved page 5 of 7 Rear view of DC power module

ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 1 FCC MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-R8860EGU858 Feb 23, 2011 This Report Concerns: Original Report Equipment Type: GSM/UMTS Dual Mode Remote Radio Unit Test Engineer: Report No.: FCC-2011-001 Test Date: Nov ,28 – Feb 22, 2011 Reviewed By: Prepared By: ZTE Corporation. ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057, P.R.China Tel: +86-755-26770000 Fax: +86-755-26771999 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of ZTE Corporation. This report must not be used by the client to claim product certification 、approval 、or endorsement by any agency of the US Government. ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 2 TABLE OF CONTENTS TABLE OF CONTENTS .................................................................................................................................................... 2 1 GENERAL INFORMATION ....................................................................................................................................... 6 Product Description for Equipment Under Test (EUT) .......................................................................................... 6 Objective ...................................................................................................................................................................... 7 Related Submittal(s)/Grant(s) ................................................................................................................................... 7 Test Methodology ....................................................................................................................................................... 7 Test Facility .................................................................................................................................................................. 7 2 SYSTEM TEST CONFIGURATION ......................................................................................................................... 8 Description of Test Configuration ............................................................................................................................. 8 3 UMTS OF TEST RESULTS ...................................................................................................................................... 9 3.1 TRANSMITTER OUTPUT POWER ........................................................................................................................ 10 Applicable Standard：FCC §2.1046 §22.913 ...................................................................................................... 10 Test Equipment List and Details ............................................................................................................................. 10 Test Procedure .......................................................................................................................................................... 10 Environmental Conditions ....................................................................................................................................... 11 Test Result: Pass ...................................................................................................................................................... 11 Test Mode: Transmitting UMTS .............................................................................................................................. 11 Test Data: ................................................................................................................................................................... 11 3.2 RF EXPLOSURE .................................................................................................................................................... 19 Applicable standard: FCC §2.1091 and §1.1037 ................................................................................................ 19 Limit ............................................................................................................................................................................ 19 Test Data .................................................................................................................................................................... 19 3.3 MODULATION CHARACTERISTIC........................................................................................................................ 20 Applicable Standard: FCC §2.1047 .................................................................................................................... 20 Test Equipment List and Details ............................................................................................................................. 20 Test Procedure .......................................................................................................................................................... 20 Test Data Environmental Conditions ..................................................................................................................... 20 Test Result: Pass ...................................................................................................................................................... 21 Test Mode: Transmitting UMTS .............................................................................................................................. 21 Test Data: ................................................................................................................................................................... 21 3.4 SPURIOUS RADIATED EMISSIONS .....................…

Text truncated - open the document above for the full version.

ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 88 Three carriers modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 869.8 869.2/869.8/ 870.4 46.90 882 881.4/882/882.6 47.03 893.2 892.6/893.2/893.8 46.95 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 89 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 90 modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 869.8 869.2/869.8/ 870.4 48.87 882 881.4/882/882.6 49 893.2 892.6/893.2/893.8 49.1 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 91 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 92 Two carriers modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 869.5 869.2/869.8 47.08 881.7 881.4/882 47.03 893.5 893.2/893.8 46.99 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 93 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 94 modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 869.5 869.2/869.8 48.94 881.7 881.4/882 49.16 893.5 893.2/893.8 49.13 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 95 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 96 One carrier modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm 8PSK 869.2 869.2 46.90 881.4 881.4 47.01 893.8 893.8 47.06 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 97 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 98 modulation Center Freq. (MHz) Frequency (MHz) Max output Power in dBm GMSK 869.2 869.2 49.28 881.4 881.4 49.27 893.8 893.8 49.22 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 99 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 100 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 101 4.2 RF EXPLOSURE Applicable standard: FCC §2.1091 and §1.1037 Limit According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) Test Data Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = EIRP/ 4лR² Where: S = power density EIRP= equivalent isotropically radiated power=ERP+2.15dB R = distance to the center of radiation of the antenna= [(ERP+2.15dB)/4лS] 1/2 Maximum ERP, In general, the effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts. Frequency is between 300MHz and 1500MHz,and the Maximum S=894/1500=0.596mW/cm 2 R=3.31m. This equipment should be installed and operated with minimum distance 3.31m between the radiator& your body . Test Result: pass ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 102 4.3 MODULATION CHARACTERISTIC Applicable Standard: FCC §2.1047 Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Agilent MXA Series Spectrum Analyzer N9020A MY48011941 2010-4-10 2011-4-9 DTS DTS100 40dB Attenuator DTS100-40dB-N N/A N/A N/A Hewlett Packard Hewlett Packard RF Cable 8120-6192 01428251 N/A N/A *statement of traceability: ZTE Corporation Reliability Testing Center attest that all calibration have been performed per the NVLAP requirements , traceable to NIST. Test Procedure GSM digital mode is used by EUT. Test Data Environmental Conditions Temperature: 20 °C Relative Humidity: 53 % ATM Pressure: 1009 mbar Test Result: Pass Test Mode: Transmitting GSM ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 103 Test Data: Modulation Frequency (MHz) EVM 8PSK 869.2 2.29% 881.4 2.53% 893.8 3.17% ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 104 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 105 Modulation Frequency (MHz) Phase Error(°) Frequency Error(Hz) GMSK 869.2 0.35 -0.54 881.4 0.37 -2.5 893.8 0.39 1.60 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 106 ZTE Corporation FCC ID:Q78-R8860EGU858 Report #FCC-2011-001 FCC PART 22 TYPE APPROVAL Report 107 4.4 SPURIOUS RADIATED EMISSIONS Applicable Standard: FCC CFR 47, §2.1053 Test Equipment List and Details Manufacturer Equipment Model Serial Number Last Cal. Cal. Interval Albatross Anechoic Chamber 3m Site A00017354 2010-6-30 1 year R&S EMI Test Receiver ESI26 100058 2010-10-29 1 year R&S Log periodic Antenna HL562 100022 2010-8-5 1 year R&S Double-Ridged Waveguide Horn Antenna HF906 TX 100032 2010-8-5 1 year *statement of traceability: ZTE Corporation Testing lab attest that all calibration have been performed per the NVLAP requirements, traceable to NIST. Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are spectrum analyzer, cable loss, antenna factor calibration, antenna directivity, antenna factor variation with height, antenna phase center variation, antenna factor frequency interpolation, measurement distance variation, site imperfections, mismatch (average), and system repeatability. Based on NIS 81, The Treatment of Uncertainty in EMC Measurements, the best estimate of the uncertainty of a radiated emissions measurement at the EMC lab of ZTE Corp. is 3.6dB. EU…

Text truncated - open the document above for the full version.
