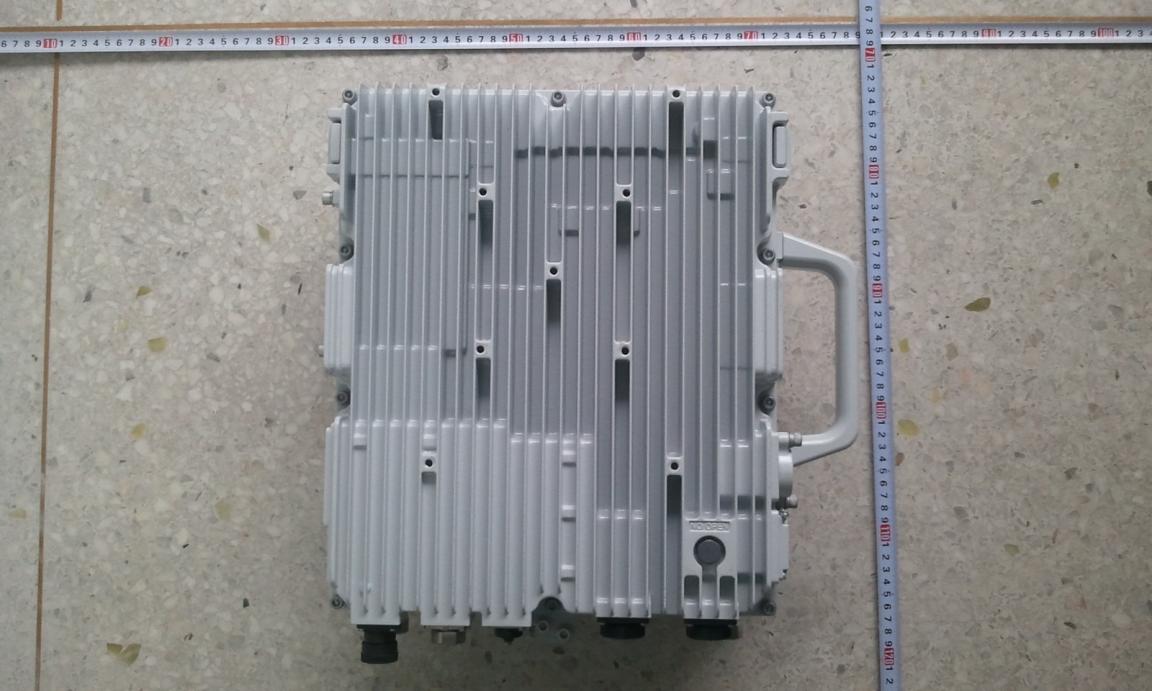

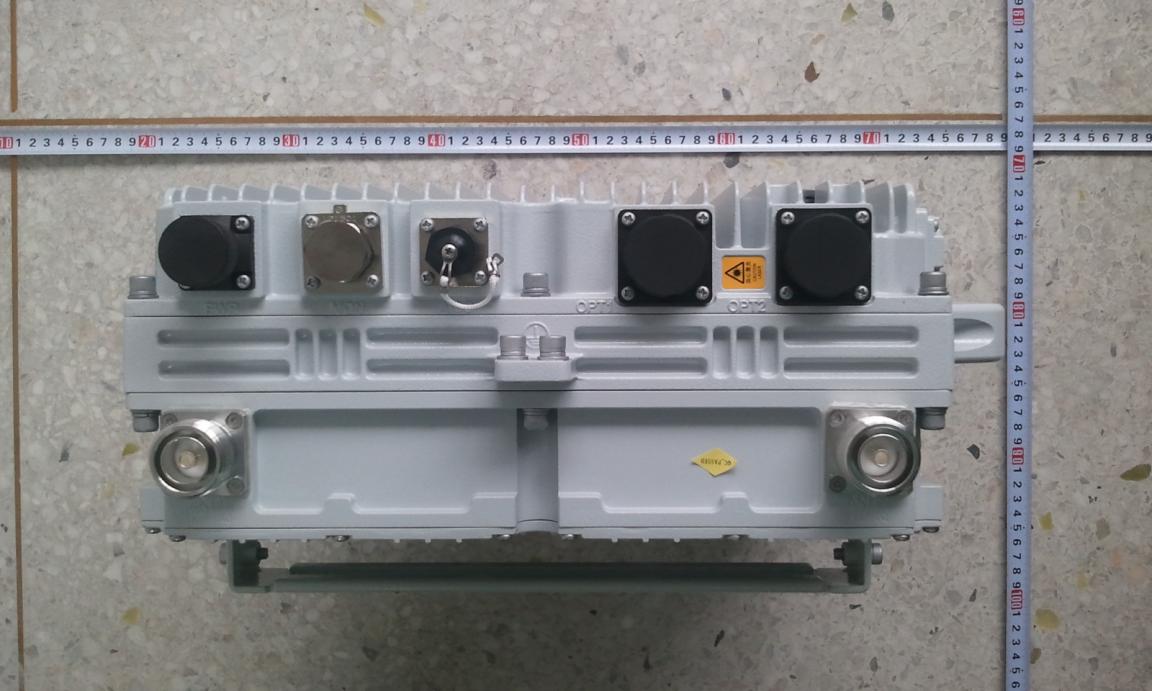

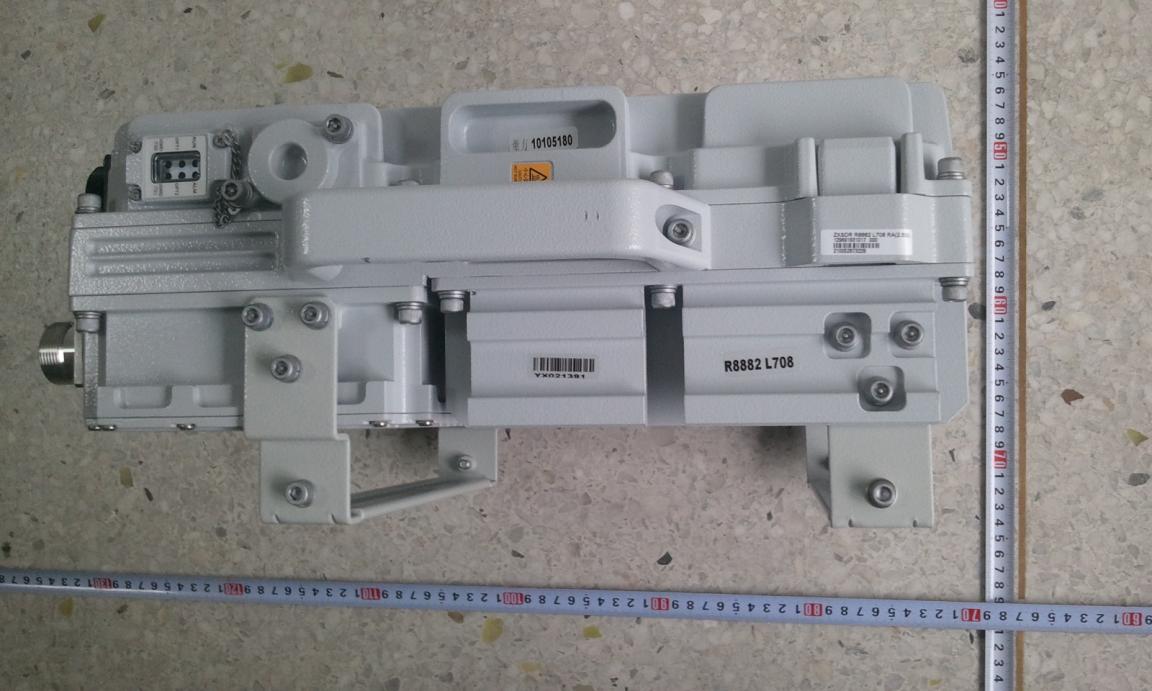

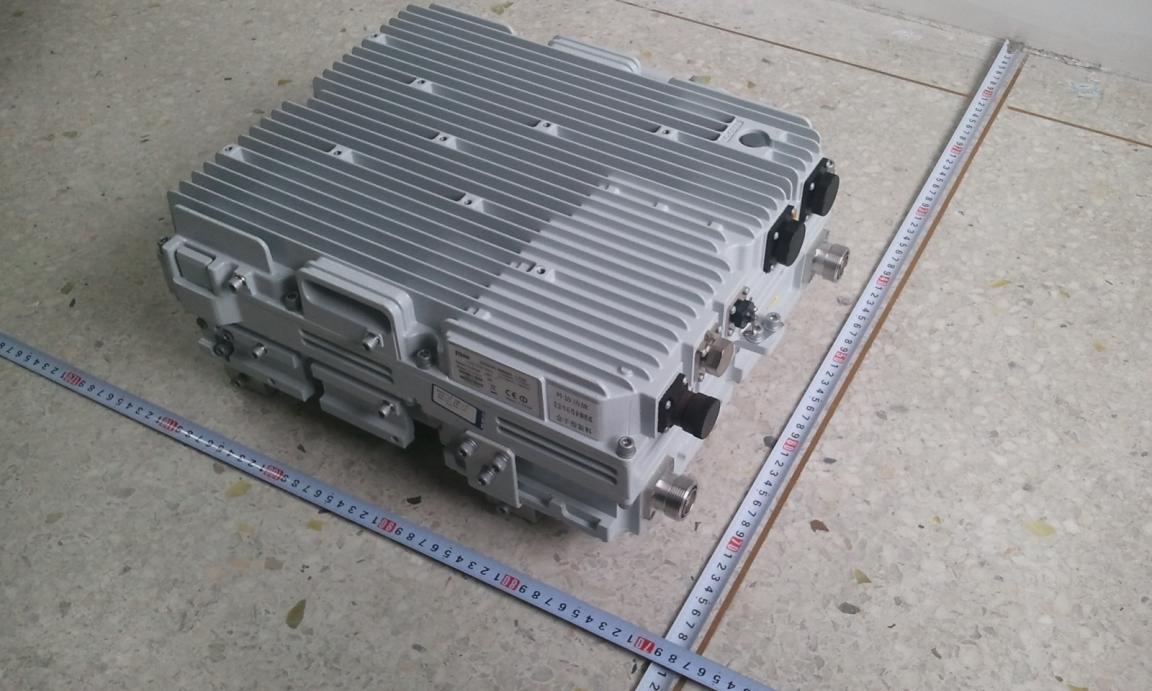

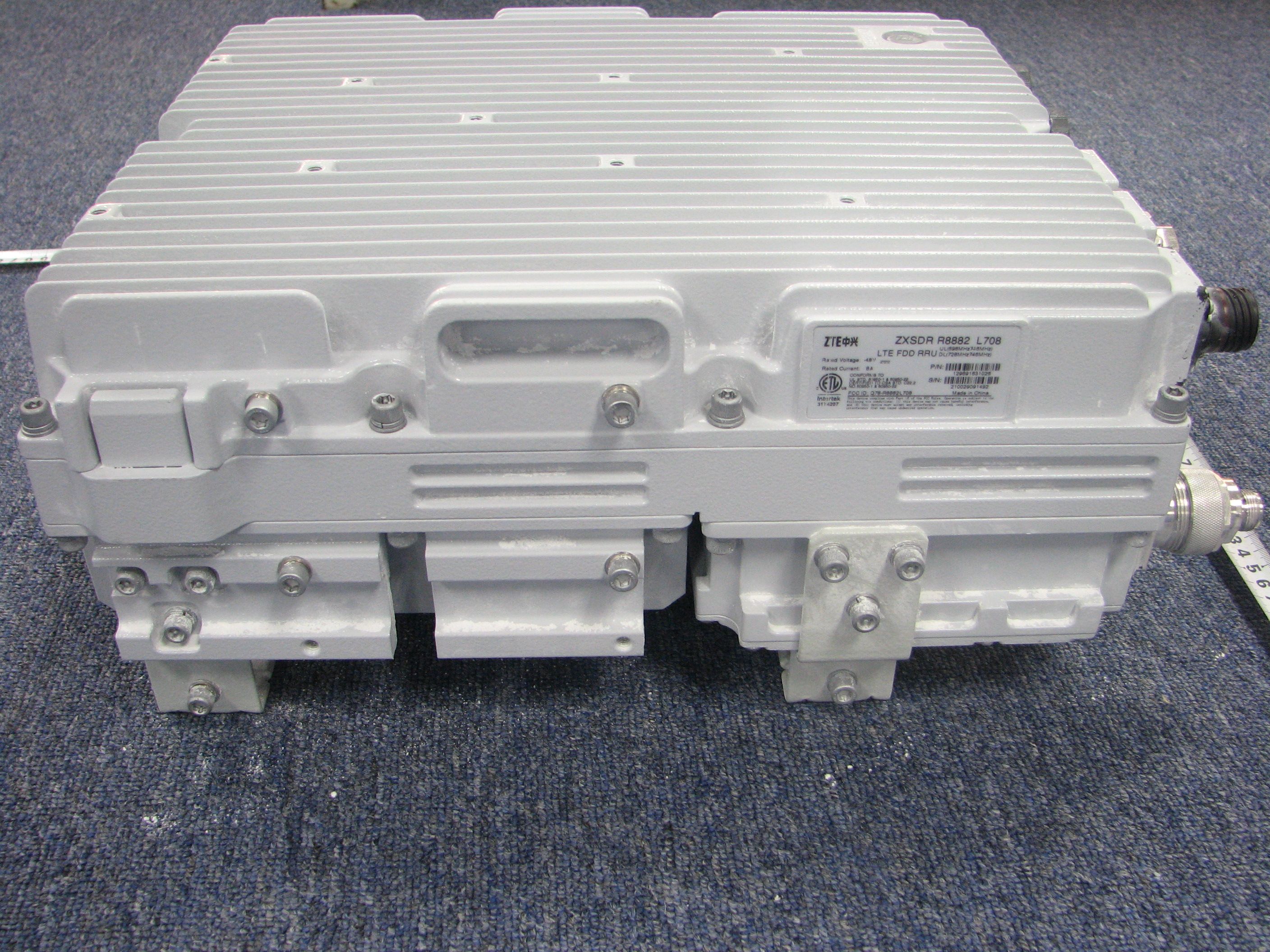

Q78-R8882L708LTE Remote Radio Unit

ZXSDR R8882 L708 LTE Remote Radio Unit User Manual Version: V2.00 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://ensupport.zte.com.cn E-mail: [email protected] FCC Statements Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NOTE: Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 6.5m between the radiator & your body. SJ-20110104194923-001|2011-1-15(R1.0) ZTE Proprietary and Confidential Chapter 1 Product Overview Table of Contents Distributed eNodeB Solution.......................................................................................1-1 Product Position in Network........................................................................................1-3 Product Features........................................................................................................1-4 Product Functions ......................................................................................................1- 4 Product Appearance...................................................................................................1-5 Installation Scenario ...................................................................................................1-5 Product Networking ....................................................................................................1- 5 Operation and Maintenance Introduction ....................................................................1-6 Product External Interfaces ........................................................................................1-7 Product Indicators ......................................................................................................1- 9 1.1 Distributed eNodeB Solution To supply customers with more competitive communication equipment and solution in the market, ZTE develops and promotes ZTE SDR eBBU (baseband unit) and eRRU (remote radio unit) distributed eNodeB solution timely, which jointly perform LTE eNodeB service. ZTE distributed eNodeB solution is shown in Figure 1-1. SJ-20110104194923-001|2011-1-15(R1.0) ZTE Proprietary and Confidential 1-1 SJ-20110104194923-001|2011-1-15(R1.0) ZTE Proprietary and Confidential ZXSDR R8882 L200 User Manual Figure 1-1 ZTE Distributed eNodeB Solution ZTE's LTE eBBU+eRRU distributed eNodeB solution has the following predominance: 1. Saving labor cost and engineering cost for networking. eBBU+eRRU distributed eNodeB equipment is small in size, light in weight, and easy for transportation and engineering construction. 2. Fast networking, also saving the fees of renting equipment room. eBBU+eRRU distributed eNodeB is applicable to various sites, such as mounted on steel tower, on building top, or on wall, etc. It's more flexible in selecting installation site, and not restricted by the space of equipment room. It can help operators to deploy network rapidly. It can also save the fees of renting equipment room, and the network operation cost. 3. Convenient in upgrade and capacity expansion; saving the initial stage cost of the network. eRRU can be mounted as close to antenna as possible, to save the cost of feed cable and decrease the loss of feed cable. It also can enhance the output power of eRRU and increase the coverage. 4. Low power consumption, power-saving. 1-2 SJ-20110104194923-001|2011-1-15(R1.0) ZTE Proprietary and Confidential Chapter 1 Product Overview Compared with traditional eNodeB, eBBU+eRRU distributed eNodeB has lower power consumption, which can greatly reduce the investment and cost on electric power, and thus save the network operation cost. 5. Distributed networking, making good use of operators' network resources supporting eBBU+eRRU distributed networking; supporting star networking mode between eBBU and eRRU. 6. Adopting a more perspective and generalized eNodeB platform. eBBU adopts the platform designed for the future B3G and 4G. One hardware platform can realize different standard modes, and several standard modes can coexist in one eNodeB. In this way, operators' management can be simplified, and several eNodeBs to be invested can be integrated into one eNodeB (multimode eNodeB). The operators can select the evolution direction of the future network more flexibly. 1.2 Product Position in Network ZXSDR R8882 L708 is a remote radio unit (eRRU) of distributed eNodeB. The signal is transmitted or received through ZXSDR R8882 L708 to and from base band processing unit for further processing through CPRI interface. By applying the distributed system, the feeder loss will be reduced when the remote radio unit is positioned close to the antenna. The coverage is enlarged with this solution. Figure 1-2 Product Location 1-3 SJ-20110104194923-001|2011-1-15(R1.0) ZTE Proprietary and Confidential ZXSDR R8882 L200 User Manual 1.3 Product Features Multi-Mode eRRU ZXSDR R8882…

Text truncated - open the document above for the full version.

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Authorization Date:2011-10-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ZTE Corporation , the undersigned, Hereby authorizes Louis Lin of Jiangsu TUV Prodcut service Ltd Shenzhen branch to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Louis Lin our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation

ZTE Corporation ZTE Plaza, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Confidential Authorization Date: 2011-10-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: Q78-R8882L708 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics --- (Long term)  Block Diagram--- (Long term)  Part list--- (Long term)  Tune-up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Zhihui,Wang Title: Certification Director Company Name: ZTE Corporation

ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 1 of 212 1 FCC MEASUREMENT AND TEST REPORT For ZTE Corporation ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, China 518057 FCC ID: Q78-R8882L708 Sept 30, 2011 This Report Concerns: Original Report Equipment Type: LTE Remote Radio Unit Test Engineer: Report No.: FCC-2011-060 Test Date: Sept 20 – Sept 30, 2011 Reviewed By: Prepared By: ZTE Corporation. ZTE Plaza, Hi-tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China, 518057 Tel: +86-755 26777735 Fax: +86-755-26770347 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of ZTE Corporation. This report must not be used by the client to claim product certification 、approval 、or endorsement by any agency of the US Government. ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 2 of 212 2 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ............................................................................................................................................ 2 2 GENERAL INFORMATION ....................................................................................................................................... 4 Product Description for Equipment Under Test (EUT) .......................................................................................... 4 Objective ...................................................................................................................................................................... 4 Related Submittal(s)/Grant(s) ................................................................................................................................... 5 Test Methodology ....................................................................................................................................................... 5 Test Facility .................................................................................................................................................................. 5 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 6 Description of Test Configuration ............................................................................................................................. 6 4 SUMMARY OF TEST RESULTS ............................................................................................................................. 7 5 TRANSMITTER OUTPUT POWER ........................................................................................................................ 8 Applicable Standard：FCC §2.1046 ,§27.50 ......................................................................................................... 8 Test Equipment List and Details ............................................................................................................................... 8 Test Procedure ............................................................................................................................................................ 8 Environmental Conditions ......................................................................................................................................... 8 Test Result: Pass ........................................................................................................................................................ 9 Test Mode: Transmitting LTE ................................................................................................................................. 9 Test Data: ..................................................................................................................................................................... 9 6 RF EXPOSURE ............................................................................................................................................................. 19 Applicable standard: FCC §2.1091 §1.1037 ........................................................................................................ 19 Limit ............................................................................................................................................................................ 19 Test Data .................................................................................................................................................................... 19 Test Result: pass .......................................................................................................................................................... 19 7 MODULATION CHARACTERISTIC ........................................................................................................................... 20 Applicable Standard: FCC §2.1047 .................................................................................................................... 20 Test Equipment List and Details ............................................................................................................................. 20 Test Procedure .......................................................................................................................................................... 20 Test Data Environmental Conditions ..................................................................................................................... 20 Test Result: Pass ...................................................................................................................................................... 20 Test Mode: Transmitting LTE .................................................................................................................................. 20 Test Data: .............................…

Text truncated - open the document above for the full version.

ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 121 of 212 10M-Port 2 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 122 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 123 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 124 of 212 10M-Port 2 -741MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 125 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 126 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 127 of 212 Channel Bandwidth :5M 5M-Port 1 -730.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 128 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 129 of 212 5M-Port 1 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 130 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 131 of 212 5M-Port 1 -743.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 132 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 133 of 212 5M-Port 2 -730.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 134 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 135 of 212 5M-Port 2 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 136 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 137 of 212 5M-Port 2 -743.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 138 of 212 ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 139 of 212 10 OCCUPIED BANDWIDTH Applicable Standard: FCC §2.1049 Test Equipment List and Details: Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Agilent MXA Series Spectrum Analyzer N9030A MY49431143 2011.09.26 2012.09.14 DTS DTS 40dB Attenuator DTS100-40-3-1 09112005 2011.07.19 2012.07.19 *statement of traceability:ZTE Corporation Reliability Testing Center attest that all calibration have been performed per the NVLAP requirements, traceable to NIST. ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 140 of 212 Test Procedure The RF out of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. 99%Power bandwidth was recorded. Environmental Conditions Temperature: 20 ° C Relative Humidity: 53% ATM Pressure: 1009mbar Test Result: Pass Test Mode: Transmitting LTE Test Data Channel Bandwidth :15M Port Center Freq. (MHz) 99% Power Bandwidth (MHz) Limit (MHz) 1 735.5 13.378 15 737 13.377 15 738.5 13.381 15 2 735.5 13.378 15 737 13.383 15 738.5 13.374 15 15M-Port 1 -735.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 141 of 212 15M-Port 1 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 142 of 212 15M-Port 1 -738.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 143 of 212 15M-Port 2-735.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 144 of 212 15M-Port 2 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 145 of 212 15M-Port 2 -738.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 146 of 212 Channel Bandwidth :10M Port Center Freq. (MHz) 99% Power Bandwidth (MHz) Limit (MHz) 1 733 8.9239 10 737 8.9290 10 741 8.9287 10 2 733 8.9267 10 737 8.9254 10 741 8.9260 10 10M-Port 1 -733MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 147 of 212 10M-Port 1 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 148 of 212 10M-Port 1 -741MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 149 of 212 10M-Port 2 -733MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 150 of 212 10M-Port 2 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 151 of 212 10M-Port 2 -741MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 152 of 212 Channel Bandwidth :5M Port Center Freq. (MHz) 99% Power Bandwidth (MHz) Limit (MHz) 1 730.5 4.4734 5 737 4.4717 5 743.5 4.4747 5 2 730.5 4.4736 5 737 4.4723 5 743.5 4.4752 5 5M-Port 1 -730.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 153 of 212 5M-Port 1 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 154 of 212 5M-Port 1 -743.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 155 of 212 5M-Port 2 -730.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 156 of 212 5M-Port 2 -737MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 157 of 212 5M-Port 2 -743.5MHz ZTE Corporation FCC ID: Q78-R8882L708 Report #FCC-2011-060 FCC PART 27 TYPE APPROVAL Report Page 158 of 212 11 BAND EDGES Applicable Standard: FCC §2.1051 ,§2…
