Q78-RSU60EGU198B

ZTE Corporation

Outdoor GSM/UMTS Dual Mode Remote Radio Unit

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Nov 01, 2011
Application Purpose: Original Equipment
Date of Application: Nov 01, 2011
Equipment Note: Outdoor GSM/UMTS Dual Mode Remote Radio Unit
Frequency Range: 1950.00000000 - 1990.00000000
Company: ZTE Corporation
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

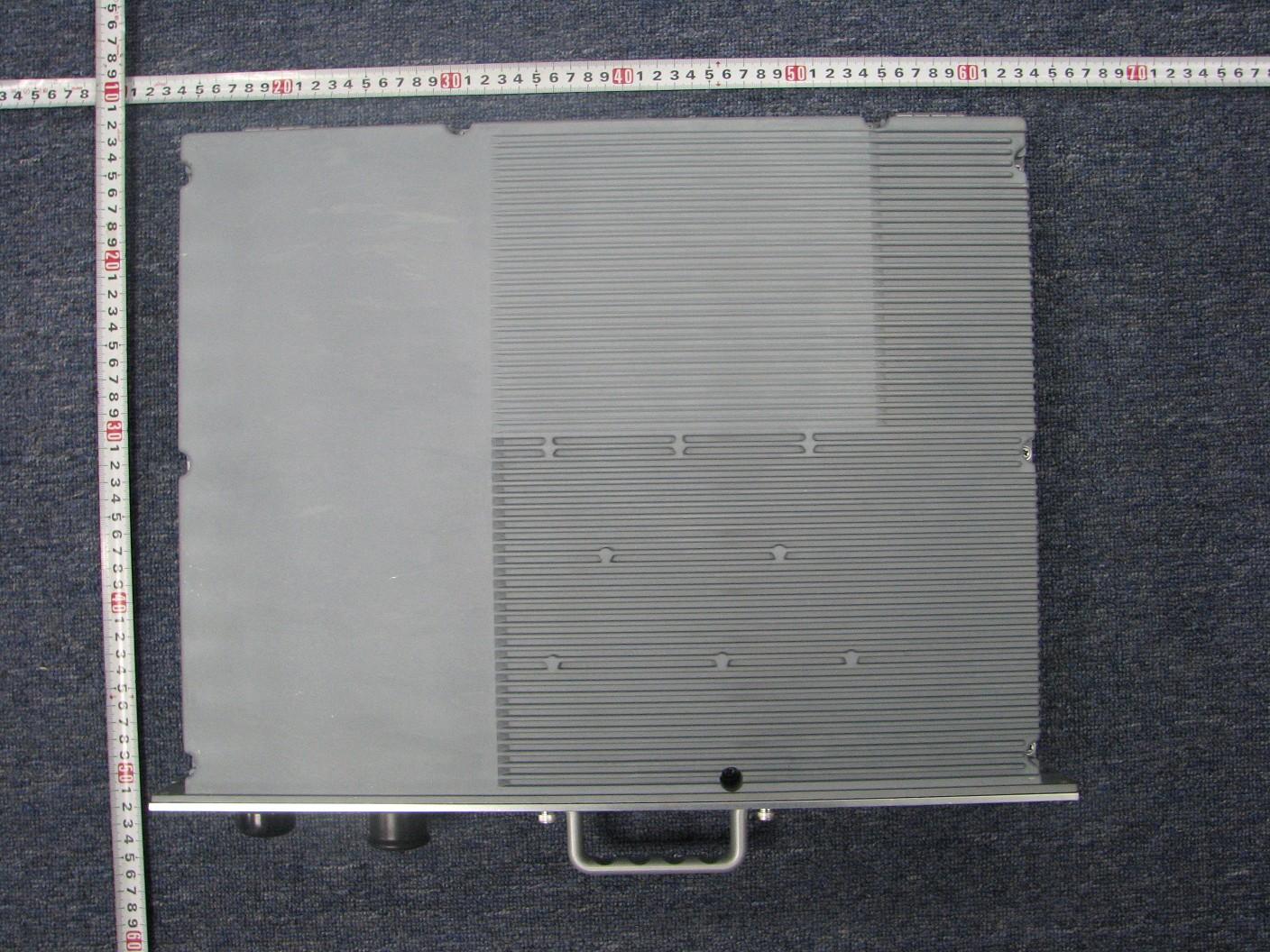

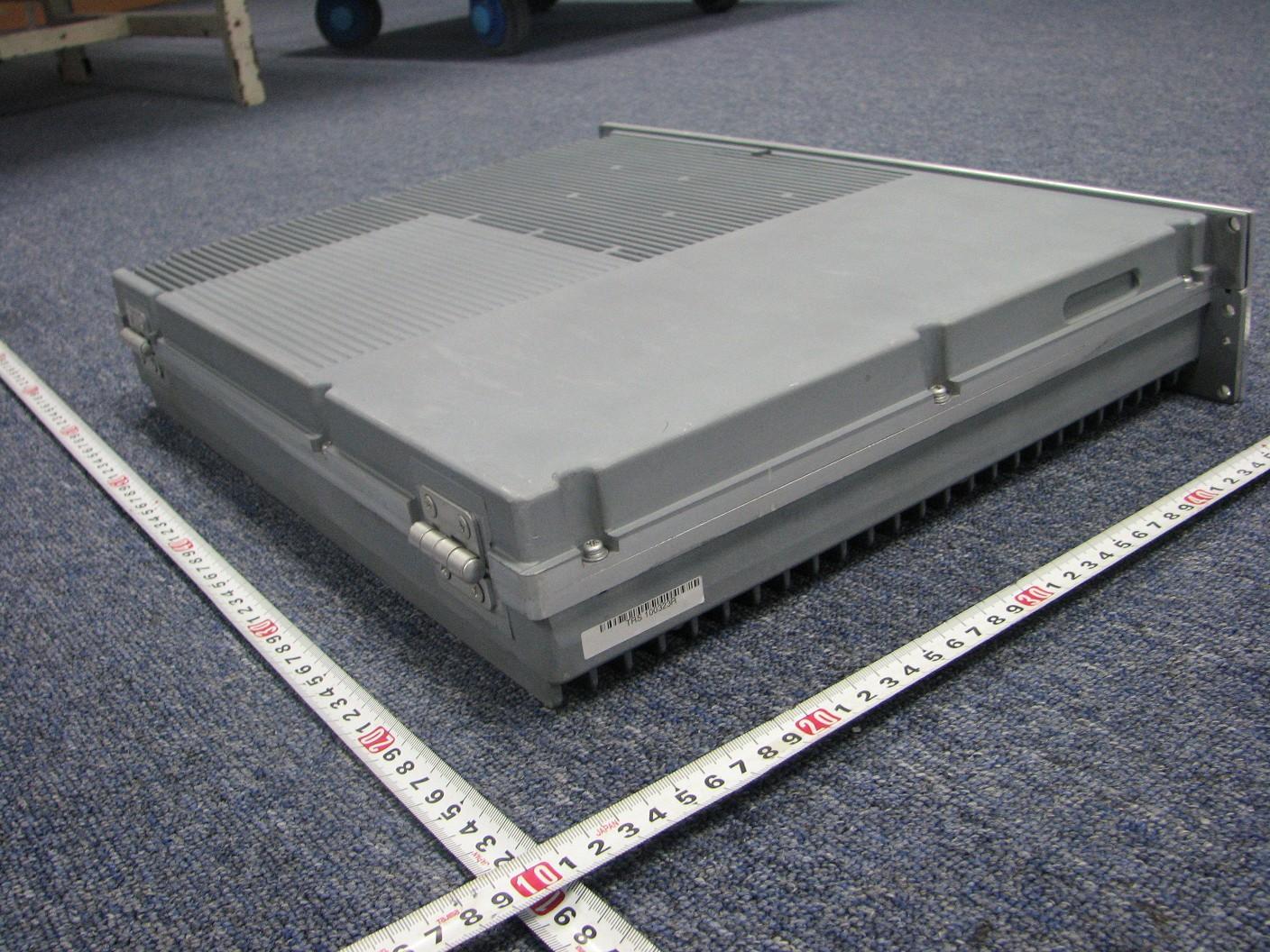

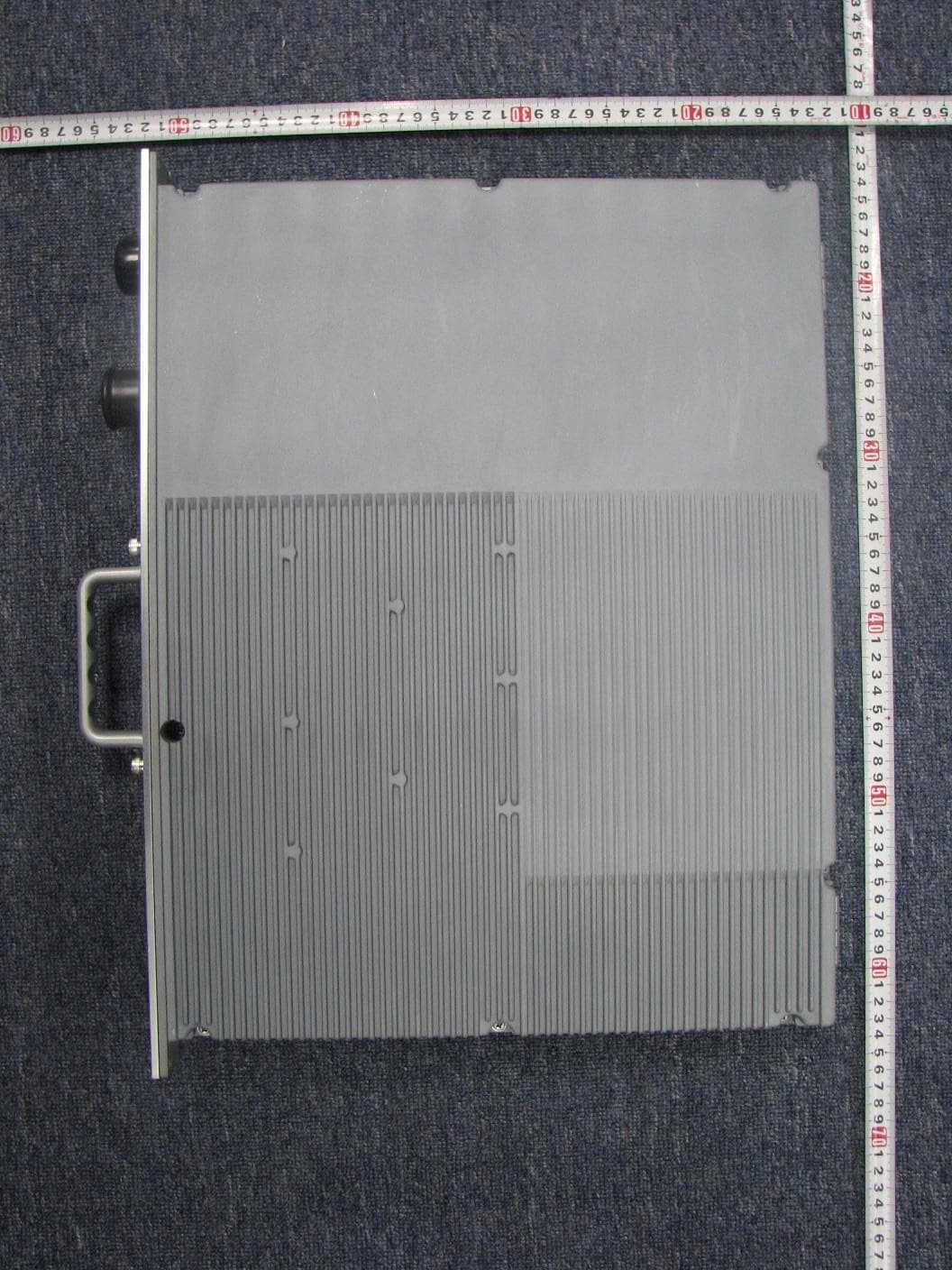

External Photos

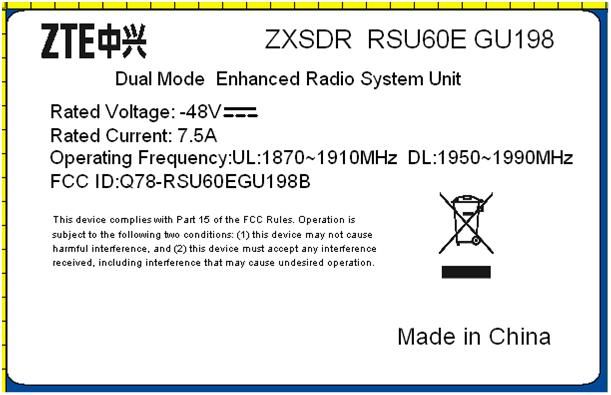

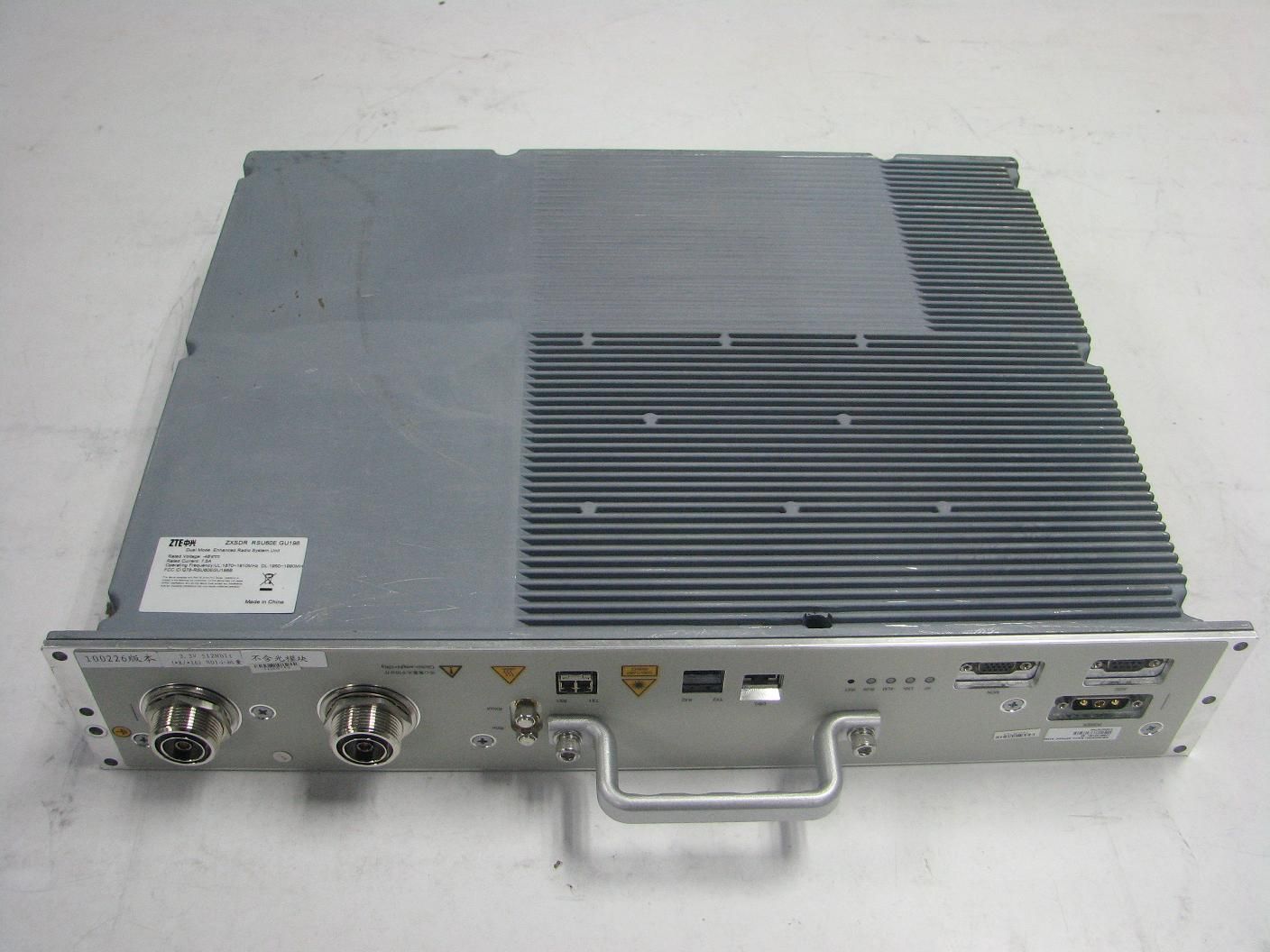

ID Label/Location Info

Internal Photos

Test Report

Contact Information

Applicant

Cary Kong(Product Certification Manager)

[email protected]0086-755-26777740Fax: 0086-755-26770347

Test Firm

ZRT EMC Shenzhen LaboratoryBright Xie

[email protected]86-755-26771609Fax: 86-755-26770347

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
18	24E	1.95 GHz - 1.99 GHz	72.11 W	6M44F9W	0.05 ppm

Confidentiality

Long Term

Grant Notes

Output Power listed is conducted. The transmitter has provision for multi carrier and dual mode of operation. The first 4 powers listed are for 4, 3, 2 & 1 carrier UMTS. The 5th to 16th power listed is for 6, 5, 4, 3, 2 & 1 carrier GSM. The 17th power listed is for 2GSM+2UMTS carriers. The 18th power listed is for 4GSM+1UMTS carrier. The antenna(s) used for this transmitter must be fixed mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s) including antenna co-locating requirements of 1.1307.
