Q78-UV857WCDMA GSM (GPRS) Dual-Mode Digital Mobile Phone

1 ZTE-U V857 WCDMA GSM（GPRS） Dual-Mode Digital Mobile Phone User Manual 2 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. Other trademarks and trade names are the property of their respective owners. Version No.: R1.0 Edition Time : 2011.09.16 3 Contents For Your Safety ........................................................ 9 General Safety ................................................................. 9 FCC Compliance............................................................ 10 Distraction ...................................................................... 13 Driving ...................................................................... 13 Operating Machinery ................................................ 13 Product Handling ........................................................... 14 General Statement on Handling and Use ................. 14 Small Children .......................................................... 15 Demagnetization ...................................................... 15 Electrostatic Discharge (ESD) .................................. 15 Antenna .................................................................... 15 Normal Use Position ................................................. 16 Air Bags .................................................................... 16 Seizures/ Blackouts .................................................. 16 Repetitive Motion Injuries ......................................... 16 Emergency Calls ...................................................... 17 Loud Noise ............................................................... 17 Phone Heating .......................................................... 17 Electrical Safety ............................................................. 17 Accessories .............................................................. 17 Connection to a Car ................................................. 18 Faulty and Damaged Products ................................. 18 Interference .................................................................... 18 General Statement on Interface ............................... 18 4 Pacemakers ............................................................. 18 Hearing Aids ............................................................ 19 Medical Devices ....................................................... 19 Hospitals .................................................................. 19 Aircraft ...................................................................... 19 Interference in Cars ................................................. 20 Explosive Environments ................................................ 20 Petrol Stations and Explosive Atmospheres ............ 20 Blasting Caps and Areas ......................................... 20 Getting Started ....................................................... 21 Overview ....................................................................... 21 Keys Explained .............................................................. 22 Starting up ..................................................................... 22 Installing the SIM/microSD Card and Battery .......... 22 Removing the Battery and SIM/microSD Card ........ 25 Charging the Battery ................................................ 25 Switching Your Phone On/Off ....................................... 26 Setting Up Your Phone for the First Time ................ 26 Switching to Sleep Mode ......................................... 27 Waking Up Your Phone ........................................... 27 Getting Around Your Phone .......................................... 27 Touch Control .......................................................... 27 Home Screen ........................................................... 28 Status and Notification Icons ................................... 29 Using the Notification Panel ..................................... 31 Applications and Settings Preview ........................... 31 5 Phone Calls ............................................................ 36 Making Calls .................................................................. 36 Calling from the Phone ............................................. 36 Calling from Your Contacts ...................................... 36 Calling from Your Call History .................................. 37 Calling from a Text Message .................................... 37 Receiving Calls .............................................................. 37 Answering a Call ...................................................... 37 Rejecting a Call ........................................................ 38 Muting a Call ............................................................ 38 Putting a Call on Hold ............................................... 38 Turning the Speakerphone On/Off ........................... 38 Ending a Call ............................................................ 38 Contacts ................................................................. 39 Creating a Contact ......................................................... 39 Searching for a Contact ................................................. 39 Using the Virtual Keyboard to Enter Text ............ 40 Touch Input Settings ...................................................... 41 Messaging .............................................................. 42 The Message Box .........................…

Text truncated - open the document above for the full version.

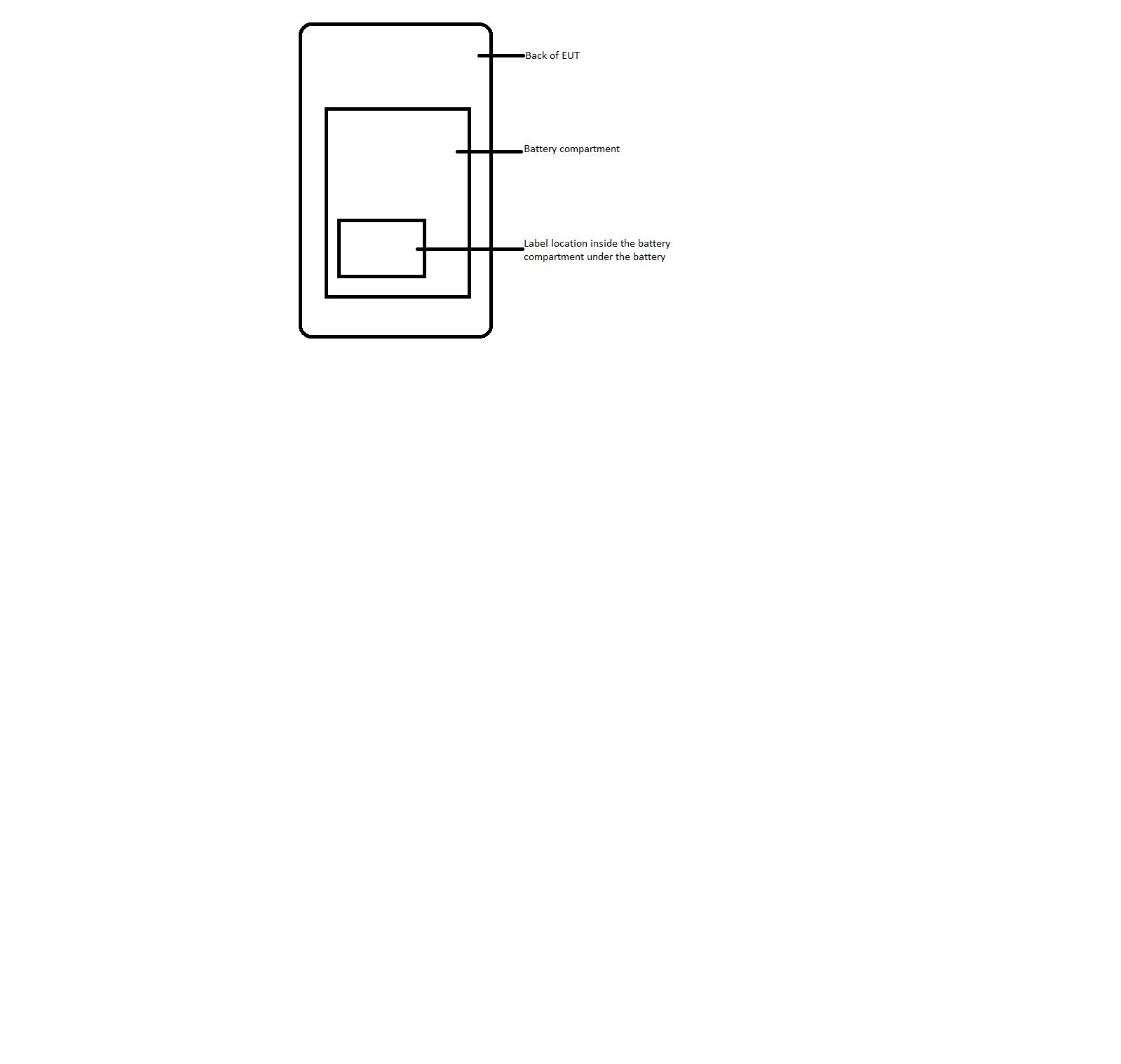

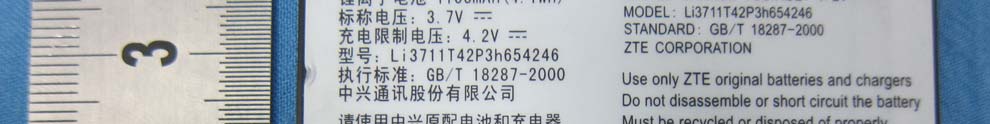

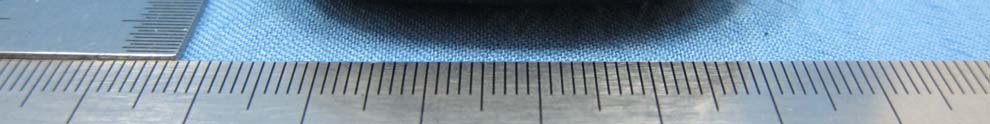

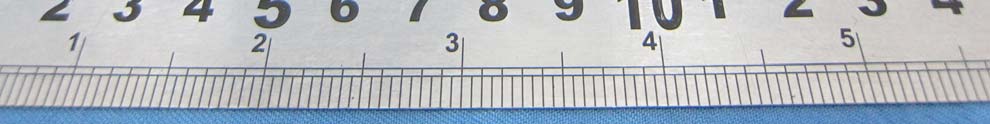

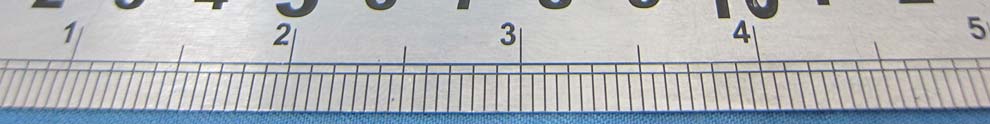

Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 1. External Photograph of EUT Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I700M5-C Battery Brand Name ZTE中兴 Model Name Li3711T42P3h654246 Earphone 1.40 meter, non-shielded cable USB Cable 1.20 meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857

Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 3. Internal Photograph of EUT Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 GPS Antenna Photographs of EUT Report No.: EP220201 Brand Name: ZTE / Model Name: ZTE-U V857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 FCC SAR Test Report Report No. : FA220201 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : WCDMA GSM (GPRS) Dual-Mode Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : ZTE-U V857 FCC ID : Q78-UV857 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 23, 2011 and completely tested on Feb. 03, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 FCC SAR Test Report Report No. : FA220201 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. Uncertainty Assessment .............................................................................................................................................19 8. SAR Measurement Evaluation ....................................................................................................................................21 8.1 Purpose o…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 FCC SAR Test Report Report No. : FA220201 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-01 System Check_Head_835MHz_120201 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_120201 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 41.806; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.543 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.413 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.469 W/kg SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.442 mW/g 0 dB = 2.440mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-01 System Check_Head_1900MHz_120201 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120201 Medium parameters used: f = 1900 MHz; σ = 1.453 mho/m; ε r = 39.136; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.46, 7.46, 7.46); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.110 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.252 V/m; Power Drift = -0.0025 dB Peak SAR (extrapolated) = 18.536 W/kg SAR(1 g) = 9.81 mW/g; SAR(10 g) = 5.05 mW/g Maximum value of SAR (measured) = 11.039 mW/g 0 dB = 11.040mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-03 System Check_Head_2450MHz_120203 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_120203 Medium parameters used: f = 2450 MHz; σ = 1.823 mho/m; ε r = 37.961; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.67, 6.67, 6.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.127 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.105 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 30.857 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 15.783 mW/g 0 dB = 15.780mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-02 System Check_Body_835MHz_120202 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_120202 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 54.388; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.662 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.731 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.627 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.556 mW/g 0 dB = 2.560mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-02 System Check_Body_1900MHz_120202 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120202 Medium parameters used: f = 1900 MHz; σ = 1.535 mho/m; ε r = 54.579; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.215 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.338 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 20.089 W/kg SAR(1 g) = 10.7 mW/g; SAR(10 g) = 5.51 mW/g Maximum value of SAR (measured) = 12.028 mW/g 0 dB = 12.030mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-03 System Check_Body_2450MHz_120203 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120203 Medium parameters used: f = 2450 MHz; σ = 2.002 mho/m; ε r = 53.464; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.6 °C D…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 03, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UV857 FCC SAR Test Report Report No. : FA220201 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-2-1 #01 GSM850_Right Cheek_Ch128 DUT: 192004-01 Communication System: General GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120201 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.598 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.245 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.705 W/kg SAR(1 g) = 0.543 mW/g; SAR(10 g) = 0.393 mW/g Maximum value of SAR (measured) = 0.571 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-2-1 #02 GSM850_Right Tilted_Ch128 DUT: 192004-01 Communication System: General GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120201 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.287 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.872 V/m; Power Drift = 0.009 dB Peak SAR (extrapolated) = 0.337 W/kg SAR(1 g) = 0.271 mW/g; SAR(10 g) = 0.206 mW/g Maximum value of SAR (measured) = 0.284 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-2-1 #03 GSM850_Left Cheek_Ch128 DUT: 192004-01 Communication System: General GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120201 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.651 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.775 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.740 W/kg SAR(1 g) = 0.590 mW/g; SAR(10 g) = 0.427 mW/g Maximum value of SAR (measured) = 0.622 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-2-1 #03 GSM850_Left Cheek_Ch128_2D DUT: 192004-01 Communication System: General GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120201 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid T…

Text truncated - open the document above for the full version.
