Q78-UX720GSM Dual Band GPRS Digital Mobile Phone

WCDMA Digital Mobile Phone User Manual The manual is applicable for ZTE-U X720 mobile phone. Copyright © 2011 by ZTE Corporation All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The Bluetooth ® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license. Other trademarks and trade names are the property of their respective owners. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Version 1.0 in Aug. 2011 Contents Before Use ............................................................................................................... 1 Safety Instructions ................................................................................................ 1 Precautions for using the mobile phone ........................................................ 2 Precautions for using the battery .................................................................. 5 Precautions for using the charger ................................................................. 7 Parts Definition ..................................................................................................... 9 Note: .................................................................................................................. 10 Insert and Remove SIM Card ............................................................................. 11 Insert and Remove Memory Card ...................................................................... 12 Battery ................................................................................................................ 13 Install the battery ........................................................................................ 13 Remove the battery .................................................................................... 13 Charge the battery ...................................................................................... 14 Power On/Off ..................................................................................................... 15 Menu Tree .............................................................................................................. 16 Descriptions of common functions ..................................................................... 17 Make and receive calls ....................................................................................... 17 Make a Voice call ....................................................................................... 17 Make a Video call ....................................................................................... 17 Dial extension ............................................................................................. 18 Dial international calls ................................................................................ 18 Receive a call ............................................................................................. 18 Adjust the volume ....................................................................................... 18 Hands-free ................................................................................................. 19 Call options ................................................................................................ 19 Write messages ................................................................................................. 19 View messages .................................................................................................. 20 Add new entry .................................................................................................... 20 Send and receive Email ..................................................................................... 21 Use the phone as a U disk ................................................................................. 22 Main Function list ................................................................................................. 23 Input Methods ....................................................................................................... 31 Appendix ............................................................................................................... 32 Clearance and Maintenance ............................................................................... 32 health and safety ................................................................................................ 34 Regulaciones FCC ............................................................................................. 36 declaration of RoHS compliance ........................................................................ 40 disposal of your old phone ................................................................................. 41 Failure Analysis .................................................................................................. 42 Before Use 1 Before Use Thank you for choosing ZTE-U X720 WCDMA/GSM Dual-Mode Digital Mobile Phone (referred to as the “mobile phone” in this manual). To guarantee your mobile phone is always in its best condition, please read this manual carefully and keep it for future reference. The pictures in this user manual are only used to demonstrate the mobile phone’s functions, so they may be different from what you see on your mobile phone. Safety Instructions If your mobile phone is lost or stolen, notify your service provider immediately to prevent others from abusing it. To protect your mobile phone against abuse, take the following precautions:  Set a PIN code and modify it from time to time.  Keep your mobile phone with you at all times. Before Use 2 Precautions for using the mobile phone on the road  Us…

Text truncated - open the document above for the full version.

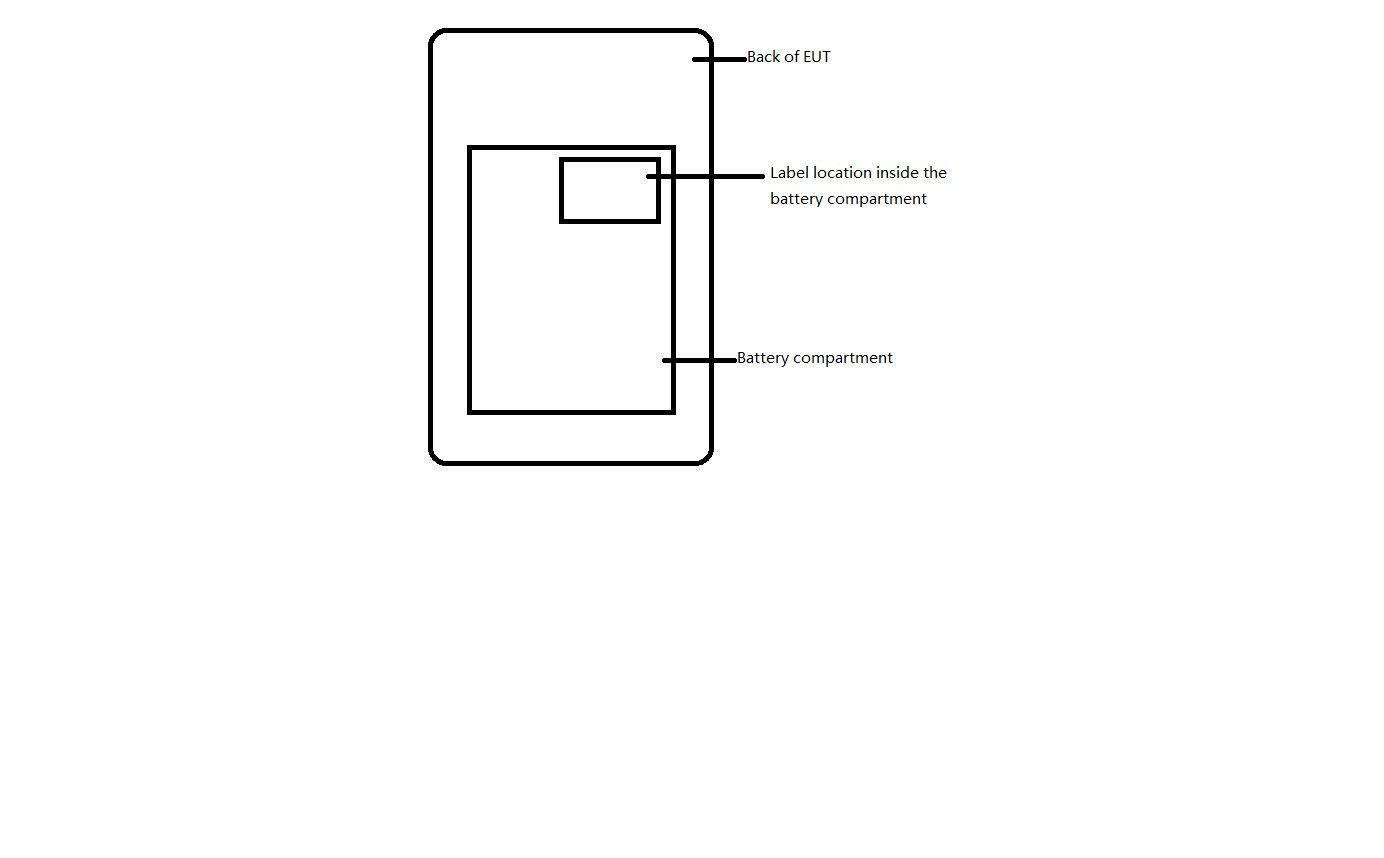

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-UX720, has no space to put the label except the surface of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. _______________________ Contact Person: David. Gong Company: ZTE CORPORATION Tel: +86-755-86360379 Fax: +86-755-86360298 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-UX720 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE-U X720 _Schem.pdf) Block Diagram (file: ZTE-U X720 _BlkDia.pdf) Parts List (file: ZTE-U X720_PartsLst.pdf) Operation Description (file: ZTE-U X720 _OpDes.doc) Tune Up Procedure (file: ZTE-U X720 _TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Gong

1/1 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: September 5, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-UX720 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: ZTE-U X720_ExtPho.pdf)  Internal Photos (file: ZTE-U X720_IntPho.pdf)  Test Setup Photos (file: ZTE-U X720_Tsup.pdf)  User Manual (file: ZTE-U X720_UserMan.pdf) The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Date: September 8, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang have designated Michael Lin in Sporton International (KunShan) Inc. and David Gong in ZTE CORPORATION as the persons responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International (KunShan) Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: Q78-UX720 Any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Royce Wang ZTE CORPORATION Tel: +86-755-26770345 Fax: +86-755-26770347 E-Mail: [email protected]

Annex Declaration for Bluetooth Device acc to Part 15.247 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device has no influence on the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according to the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04- E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period). This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. Therefor all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Te…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: September 9, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-UX720 To Whom It May Concern: We, ZTE CORPORATION, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sporton Report No: FD180801 Test Site FCC Registration No: TW1022 Sincerely yours, David Gong

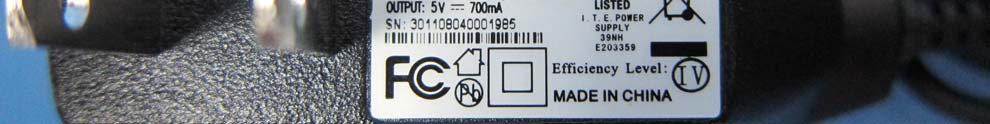

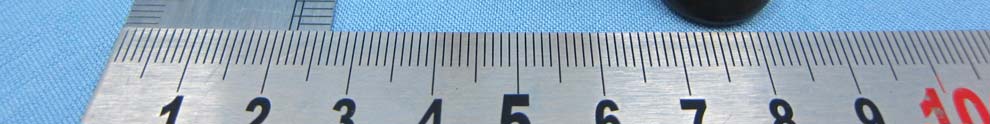

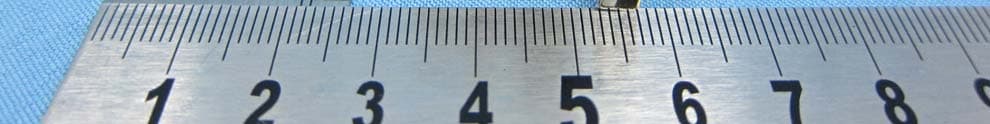

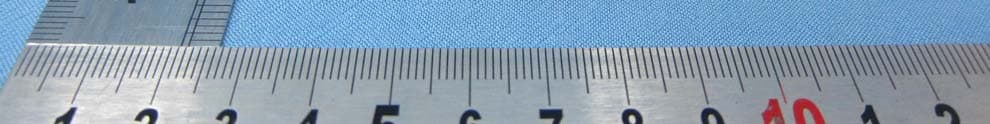

Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 1. External Photograph of EUT Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50M5-C Battery Brand Name ZTE Model Name Li3710T42P3h504057 Earphone Signal Line 1.4 meter, non-shielded cable, without core USB Cable Signal Line 1.2 meter, non-shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720

Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 3. Internal Photograph of EUT Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 Bluetooth Antenna Photographs of EUT Report No.: EP180801 Brand Name: ZTE / Model Name: ZTE-U X720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 FCC RF Test Report Report No. : FR180801 FCC RF Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : GSM Dual band GPRS Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : ZTE-U X720 FCC ID : Q78-UX720 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Spread Spectrum (DSS) The product was received on Aug. 08, 2011 and completely tested on Aug. 12, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 30, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX720 FCC RF Test Report Report No. : FR180801 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 RF Output Power ............................................................................................................................... 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 RF Utility .......................................................................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 20dB Bandwidth Measurement ....................................................................................................... 14 3.3 Hopping Channel Separation Measurement ................................................................................... 21 3.4 Dwell Time Measurement ................................................................................................................ 24 3.5 Peak Output Power Measurement .................................................................................................. 26 3.6 Band Edges Measurement .............................................................................................................. 29 3.7 Spurious Emission Measurement .................................................................................................... 40 3.8 AC Conducted Emission Measurement................................................…

Text truncated - open the document above for the full version.
