Q78-UX991WCDMA Digital mobile phone

WCDMA Digital Mobile Phone User Manual The manual is applicable for ZTE-U X991 mobile phone. Copyright © 2010 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of Viettel Group. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Version 1.0 in Aug. 2010 Contents Before Use ............................................................................................................... 1 Safety Instructions ................................................................................................ 1 Precautions for using the mobile phone ........................................................ 2 Precautions for using the battery .................................................................. 6 Precautions for using the charger ................................................................. 7 Parts Definition ..................................................................................................... 9 Insert and Remove SIM Card ............................................................................. 12 Insert and Remove Memory Card ...................................................................... 13 Battery ................................................................................................................ 14 Install the battery ........................................................................................ 14 Remove the battery .................................................................................... 14 Charge the battery ...................................................................................... 15 Power On/Off ..................................................................................................... 16 Desktop Shortcuts .............................................................................................. 17 Enter main menu ................................................................................................ 17 Menu Tree .............................................................................................................. 18 Descriptions of common functions ..................................................................... 19 Make and receive calls ....................................................................................... 19 Make a Voice call ....................................................................................... 19 Make a Video call ....................................................................................... 19 Dial extension ............................................................................................. 20 Dial international calls ................................................................................ 20 Receive a call ............................................................................................. 20 Adjust the volume ....................................................................................... 20 Hands-free ................................................................................................. 21 Call options ................................................................................................ 21 Write messages ................................................................................................. 21 View messages .................................................................................................. 22 Add new entry .................................................................................................... 23 Send and receive Email ..................................................................................... 23 Use the phone as a U disk ................................................................................. 25 Main Function list ................................................................................................. 26 Input Methods ....................................................................................................... 36 Appendix ............................................................................................................... 37 Clearance and Maintenance ............................................................................... 37 health and safety ................................................................................................ 39 declaration of RoHS compliance ........................................................................ 41 disposal of your old phone ................................................................................. 42 Failure Analysis .................................................................................................. 43 FCC Regulations ................................................................................................ 44 錯誤! 使用 [常用] 索引標籤將 标题 1 套用到您想要在此處顯示的文字。 1 Before Use Thank you for choosing ZTE-U X991 WCDMA/GSM Dual-Mode Digital Mobile Phone (referred to as the “mobile phone” in this manual). To guarantee your mobile phone is always in its best condition, please read this manual carefully and keep it for future reference. The pictures in this user manual are only used to demonstrate the mobile phone‟s functions, so they may be different from what you see on your mobile phone. Safety Instructions If your mobile phone is lost or stolen, notify your service provider immediately to prevent others from abusing it. To protect your mobile phone against abuse, take the following precautions:  Set a PIN code and modify it from time to time.  Keep your mobile phone with you at all times. 2 Precautions for using the mobile phone Road Safety  Pay attention to road safety and follow all local relevant laws and regulations while dri…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District,Shenzhen, Guangdong P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-UX991, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Royce Wang Company: ZTE CORPORATION Tel: +86-755-26770345 Fax: +86-755-26770347 E-Mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District,Shenzhen, Guangdong P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: August 13, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-UX991 To Whom It May Concern: We, ZTE CORPORATION, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, David Gong

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District,Shenzhen, Guangdong P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: August 13, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-UX991 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE-U X991_Schem.pdf) Block Diagram (file: ZTE-U X991_BlkDia.pdf) Parts List (file: ZTE-U X991_PartsLst.pdf) Operation Description (file: ZTE-U X991_OpDes.pdf) Tune up Procedure (file: ZTE-U X991_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: August 13, 2010 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Roy Wu in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-UX991 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: August 13, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-UX991 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

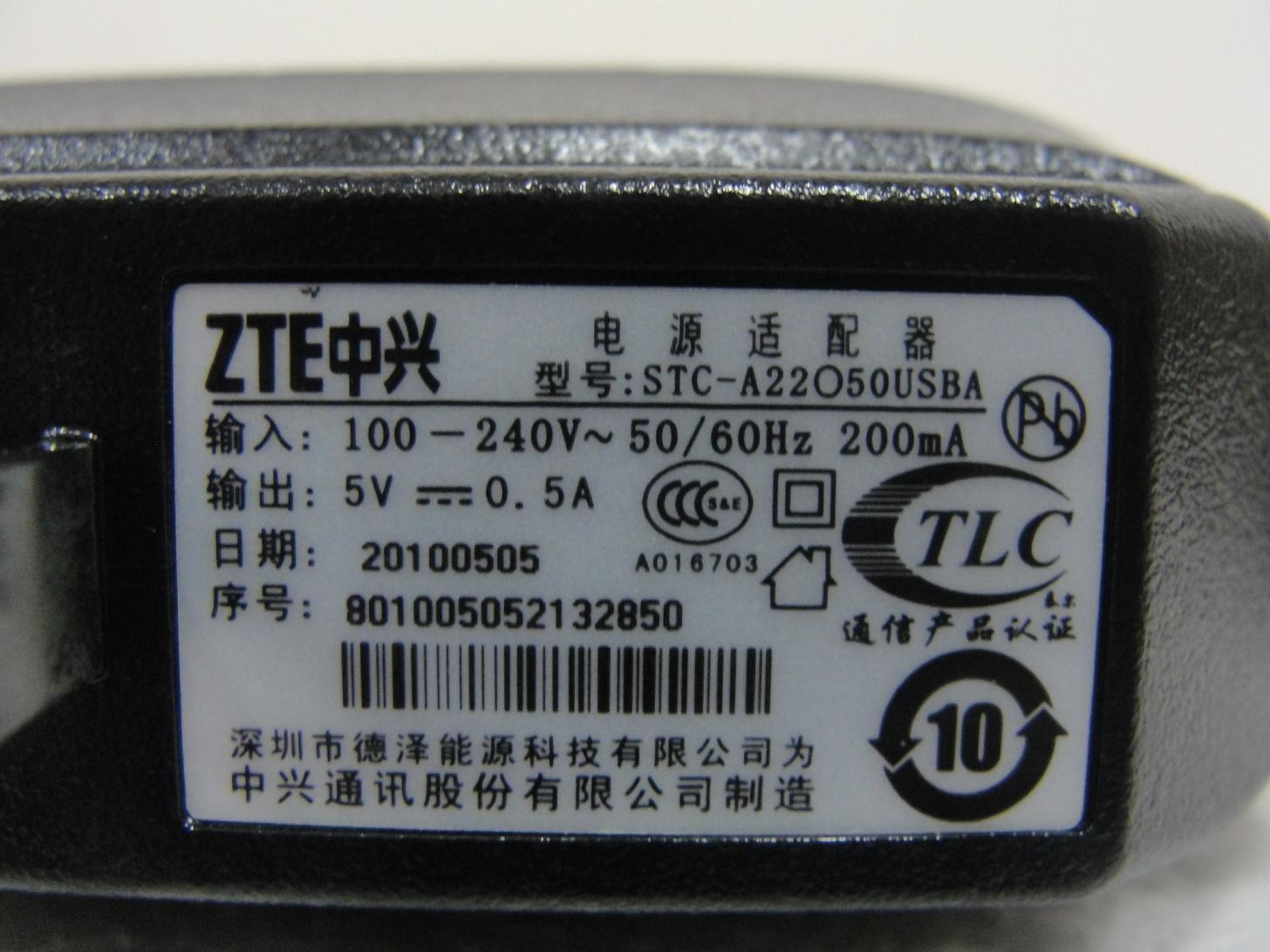

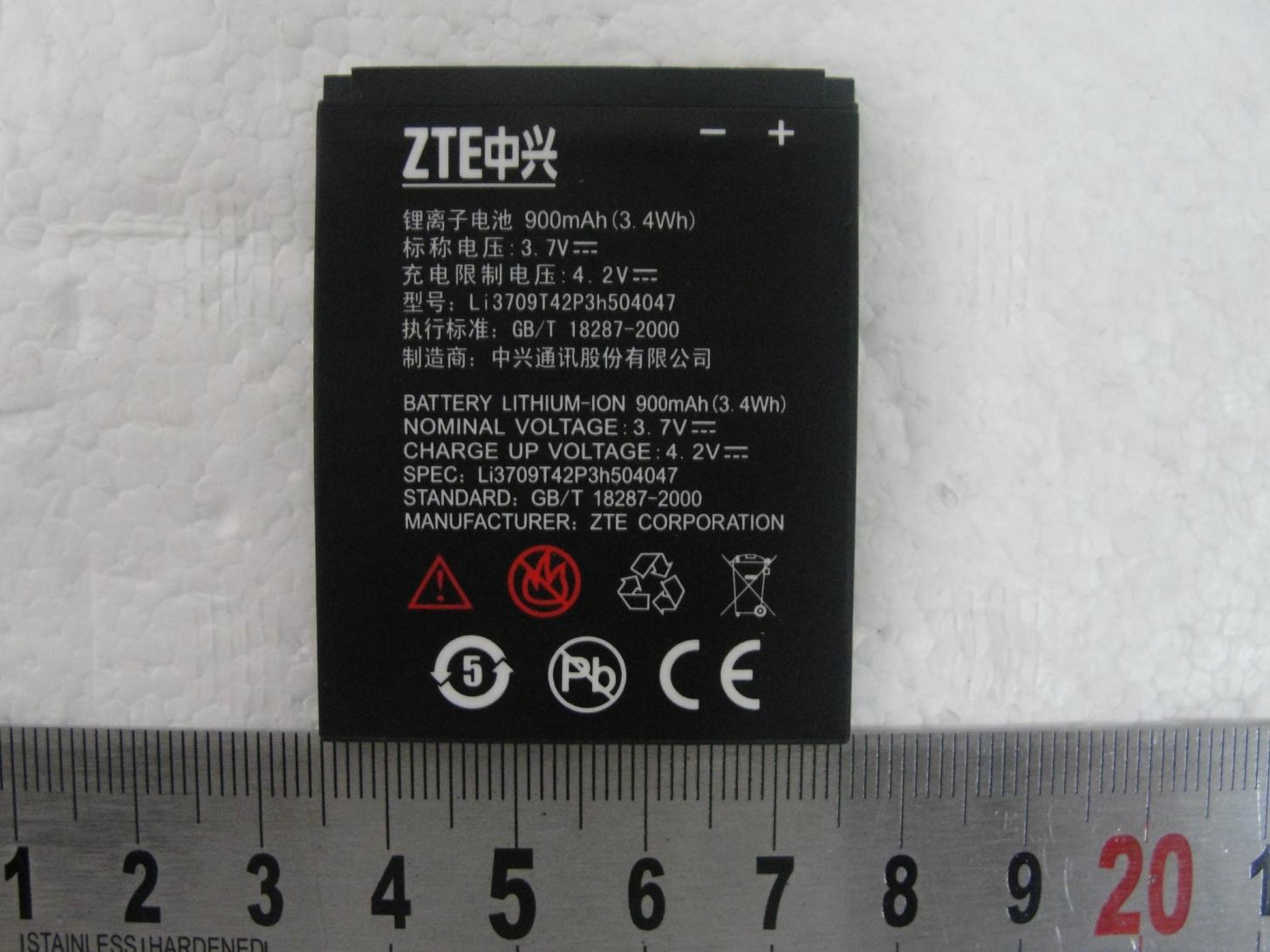

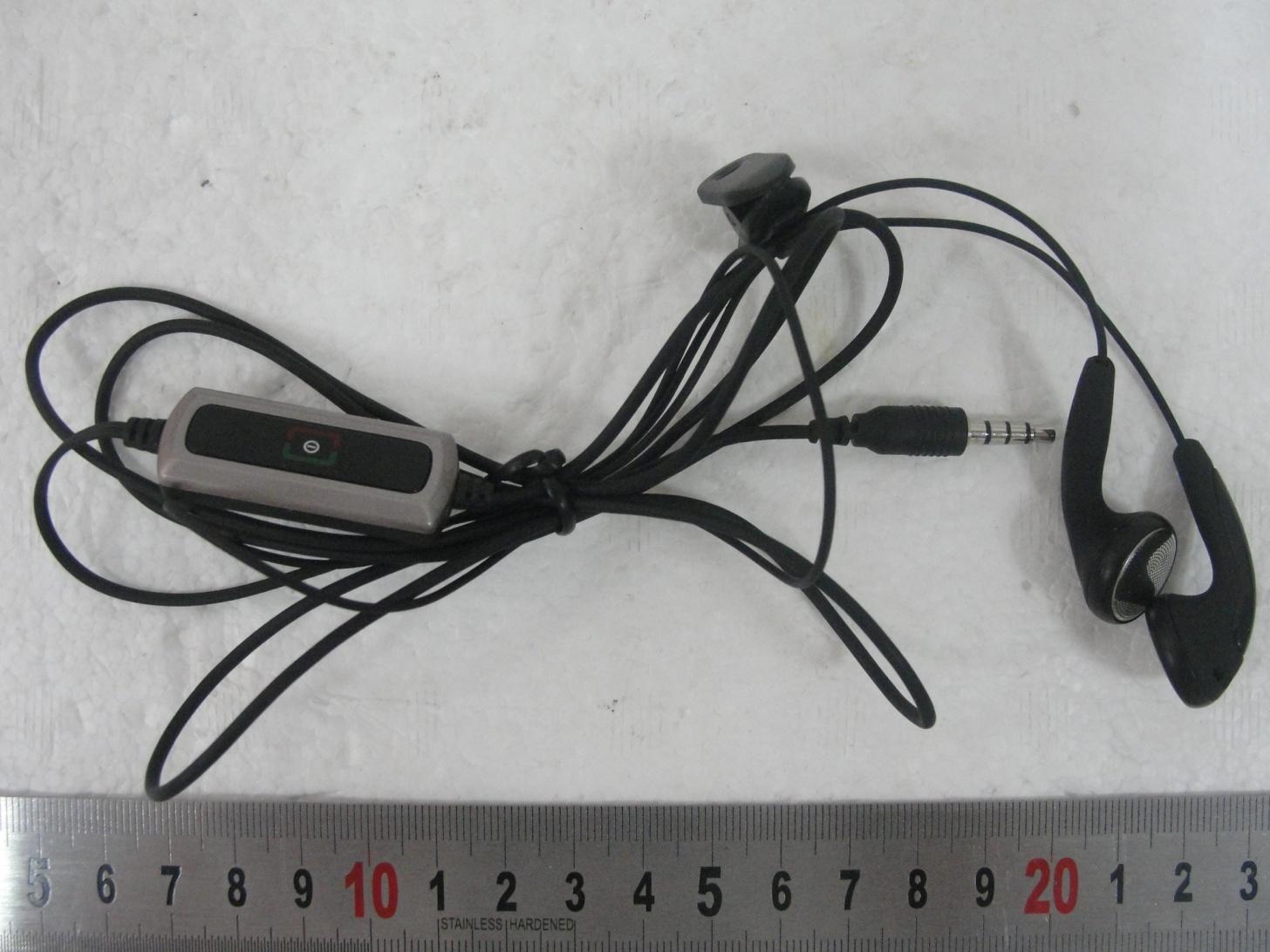

Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 1. External Photograph of EUT Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 720510 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50USBA Battery Brand Name ZTE Model Name Li3709T42P3h504047 Earphone Signal Line Type 1.6 meter non-shielded cable without ferrite core USB Cable Signal Line Type 1.2 meter non-shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 720510

Label Location Battery compartment and label location

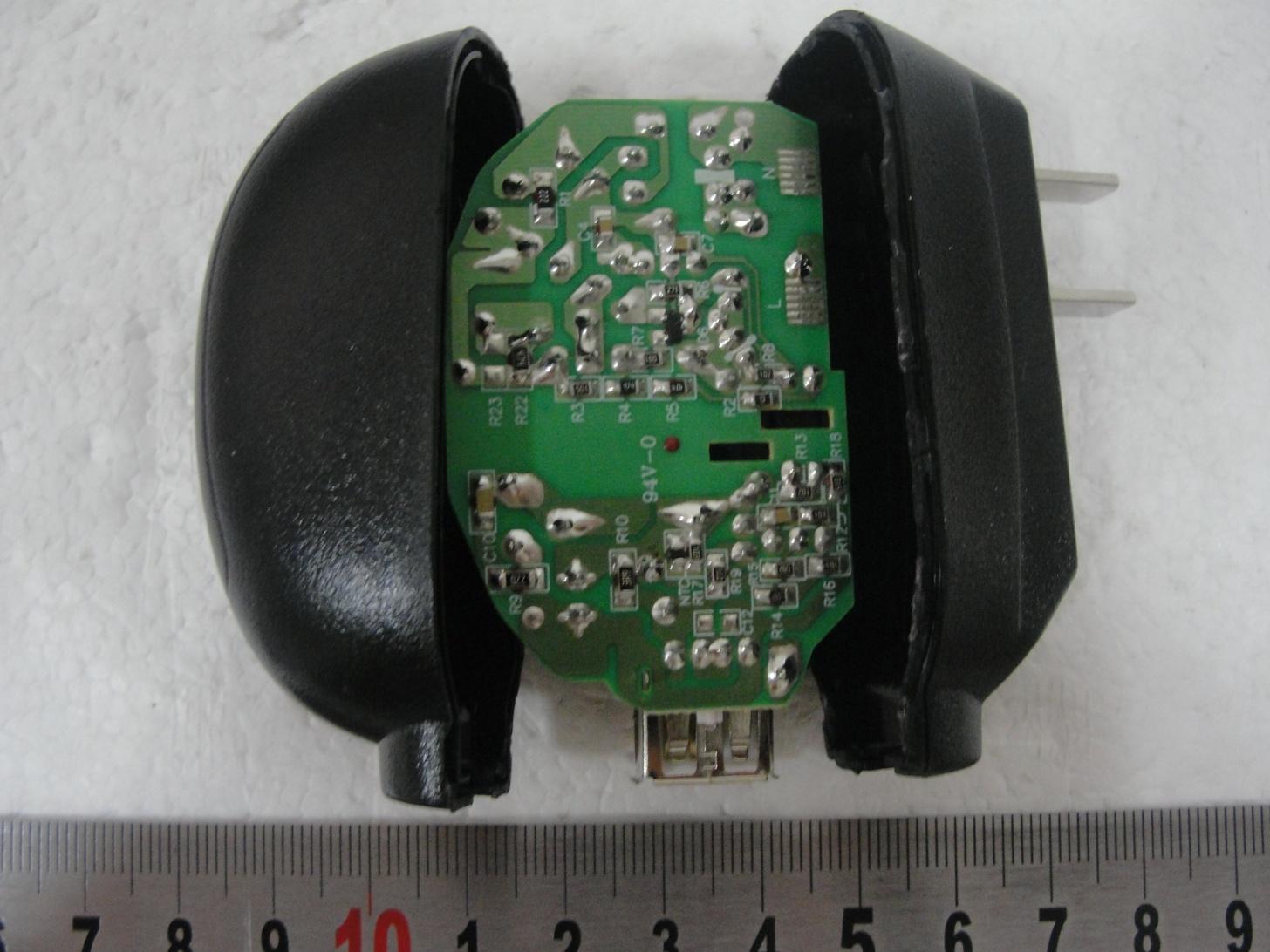

Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 3. Internal Photograph of EUT Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP080210 Brand Name: ZTE / Movistar Model Name: ZTE-U X991 / Movistar Chat SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 29 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 720510 Bluetooth Antenna <Tx/Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 FCC SAR Test Report Report No. : FA080210 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : WCDMA Digital mobile phone BRAND NAME : ZTE / Movistar MODEL NAME : ZTE-U X991 / Movistar Chat FCC ID : Q78-UX991 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 02, 2010 and completely tested on Aug. 03, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-UX991 FCC SAR Test Report Report No. : FA080210 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .........................................................................................................................................16 5.7.2 Data Evaluati…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/08/02 System Check_Head_835MHz_100802 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100802 Medium parameters used: f = 835 MHz; σ = 0.897 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.02 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.7 V/m; Power Drift = 0.00121 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.942 mW/g; SAR(10 g) = 0.615 mW/g Maximum value of SAR (measured) = 1.01 mW/ g 0 dB = 1.01mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/08/03 System Check_Body_835MHz_100803 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100803 Medium parameters used: f = 835 MHz; σ = 0.991 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.08 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.6 V/m; Power Drift = -0.0102 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 0.995 mW/g; SAR(10 g) = 0.657 mW/g Maximum value of SAR (measured) = 1.07 mW/ g 0 dB = 1.07mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/08/03 System Check_Head_1900MHz_100803 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100803 Medium parameters used: f = 1900 MHz; σ = 1.46 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.73 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = 0.0034 dB Peak SAR (extrapolated) = 7.72 W/kg SAR(1 g) = 4.04 mW/g; SAR(10 g) = 2.08 mW/g Maximum value of SAR (measured) = 4.52 mW/ g 0 dB = 4.52mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/08/03 System Check_Body_1900MHz_100803 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100803 Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.04, 7.04, 7.04); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (…

Text truncated - open the document above for the full version.
