Q78-V8110WCDMA Digital Mobile Phone

-1- Android Mobile Phone User Manual The manual is applicable for the V8110 mobile phone. -2- Using your phone Thanks for choosing ZTE Corporation’s digital mobile phone, which we’ll simply call ‘phone’ from now on. Under Android operating system, the phone supports 3G high-speed Internet access, which brings you brandnew experiences. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions they show that matter. This quick start guide is designed to help you familiarise yourself with the phone’s basic functions. For details, please refer to the User Manual. For more information about how to use your phone, refer to the User manual on the phone. To read the user manual, do as follows: 1. Hold the Power/Lock key to turn on your phone. 2. Swipe up to unlock the screen. Click to enter the Launcher, select User manual. -3- Search Key Touch Menu k Back key Home k Earpiece Speak Camera Power/Lock Headset jk Volume k USB Flash Microphone Front camera Getting to know your phone -4- Descriptions of Keys Keys Functions Power/Lock key Long press: open the “Phone options” menu. You can select “Silent mode”, “Airplane mode” or “Power off”. Press: switch to the sleep mode or wake up the phone from the sleep mode. Home key Long press: open the list of applications which have been used recently. Press: return to the home screen from any menu. Menu key Open the menu on the current interface. Back key Return to the previous menu. Search key Open the Google searching interface. Volume keys Adjust the volume. Long press the UP key to adjust to the maximum volume, and long press the DOWN key to adjust to the silence mode. -5- Onscreen icons Icons Descriptions IconsDescriptions Signal strength No signal Full battery Charging Warning battery In a call Connected on 3G You have an unread message. Speakerphone on Connected to a PC Call held Missed calls Meeting mode Music playing Silent mode Flight mode Outdoor mode Alarm clock on WLAN function on Bluetooth ® function is on -6- Before getting started Inserting and removing the SIM/USIM Insert the SIM/USIM card as follows: 1. Switch off your phone and disconnect any external power. 2. Remove the back cover and then the battery. 3. Hold your SIM/USIM on the cut corner, and slide it face down into the card holder. 4. Insert the battery. 5. Replace the back cover. Note: The two card slots of the phone support both SIM card (GSM network) and USIM card (WCDMA network). However, when the USIM cards are used at the same time, the phone supports one USIM card (WCDMA network) only. Inserting a memory card 1. Open the battery cover on the back of your phone. 2. Push tightly until the card is installed in the right position and close the cover. -7- Using the battery Inserting the battery 1. Open the battery cover on the back of your phone. 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover clicking it back into position. Removing the battery 1. Switch off your phone. 2. Open the battery cover. 3. Lift the battery up and out of your phone. Charging the battery The battery is not fully charged when you unpack it for the first time. Please exhaust the capacity of the battery before you recharge it for the first time.To ensure the battery is always in its best condition, please charge the battery 8 hours for the first time and recharge it later at -8- least 2 hours each time. 1. Connect the charger to the mobile phone, and insert the charger to the standard power socket. 2. Please disconnect the charger from the power socket after the charging is completed. Tips:  To charge the battery, you can also connect the phone to the PC through the USB cable.  During charging, the phone and charger may normally become hot. Power on/off Powering on Long press the Power/Lock key until the power-on animation appears. Tips: PIN is the password provided by your operator. If PIN is enable, you need input the correct PIN to use the SIM/USIM card. After receiving the PIN, the phone will automatically search for the designated networks. The searching process might last for a few seconds. Powering off Long press the Power/Lock key to display the menu Phone options and select Power off. Use the SD card as USB storage device 1. Insert the SD card into the card slot on the phone. -9- 2. Connect the phone to the PC through the USB cable. The PC will automatically recognize the SD card as removable storage device. 3. Touch “Turn on USB storage”. Now you can exchange data between the PC and the SD card. -10- Basic Operation Screen control You can control your phone through a series of operations on the screen.  Touch: you can touch the items on the screen to select them, to open the applications, or using the keyboard to input characters.  Slide: you can scroll up/down the page or scroll the page left/right by sliding vertically or horizontally on the screen.  Touch & hold: you can touch & hold some items to get the item’s available menu.  Drag: you can drag some items on the screen to realize some operations.  Switch between landscape mode and portrait mode: you can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as text input interface, message viewing interface, etc.  Pinch: In some apps (such as Maps, Browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in). Open and close the Launcher On the home screen, touch the icon to open the Launcher. You can slide the Launcher up or down to view more. -11- After opening the Launcher, touch an icon to enter the corresponding application. Press the Back key to return to the previous screen. Press the Home key to return to the home screen. Switch to a recently used application Touch & hold the Home k…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-86360734 ; Fax: +86-755-86360734 Date: November 15, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-V8110 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE V8110_Schem.pdf) Block Diagram (file: ZTE V8110_BlkDia.pdf) Parts List (file: ZTE V8110_PartsLst.pdf) Operation Description (file: ZTE V8110_OpDes.pdf) Tune up Procedure (file: ZTE V8110_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Gong Bolin

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: November 15, 2012 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Gong Bolin in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Gong Bolin in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-V8110 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: November 15, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-V8110 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  Test set-up photos  External photos  Internal photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Gong Bolin Company: ZTE CORPORATION TEL: +86-755-86360734 FAX: +86-755-86360734 E-mail: [email protected]

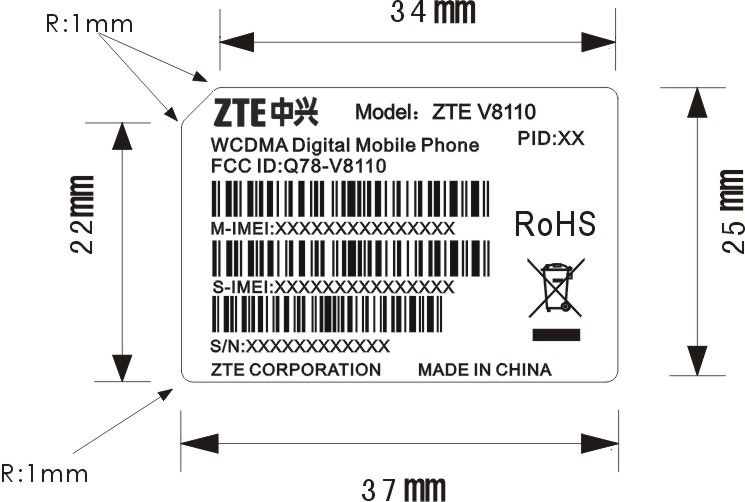

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-86360734 ; Fax: +86-755-86360734 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-V8110. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Contact Person: Gong Bolin Company: ZTE CORPORATION TEL: +86-755-86360734 FAX: +86-755-86360734 E-mail: [email protected]

Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 1. External Photograph of EUT Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I700USBA-Z Battery Brand Name ZTE中兴 Model Name Li3717T42P3h644161 USB Cable Signal Line Type 1.20 meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 AC Adapter Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Battery Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110

Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 3. Internal Photograph of EUT WWAN Antenna WLAN & Bluetooth Antenna GPS Antenna Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 WLAN & Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O1506 Brand Name: ZTE; Model Name: ZTE V8110 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 38 TEL : 86-755-8637-9589 Report Issued Date : Nov. 28, 2012 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : Q78-V8110 FCC SAR Test Report Report No. : FA2O1506 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : WCDMA Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : ZTE V8110 FCC ID : Q78-V8110 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Nov. 26, 2012. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanglong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 38 TEL : 86-755-8637-9589 Report Issued Date : Nov. 28, 2012 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : Q78-V8110 FCC SAR Test Report Report No. : FA2O1506 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standard .....................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. SAR Measurement Evaluation ....................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup ............…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Nov. 28, 2012 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : Q78-V8110 FCC SAR Test Report Report No. : FA2O1506 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 53.449 6.9277 -22.401 47.82 7.1133 11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 2450 MHz – Body

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 98 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 FCC RF Test Report Report No. : FG2O1506 FCC RF Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : WCDMA Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : ZTE V8110 FCC ID : Q78-V8110 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter Held to Ear (PCE) The product was received on Oct. 15, 2012 and completely tested on Oct. 31, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 98 TEL : 86-0512-5790-0158 Report Issued Date : Nov. 28, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-V8110 FCC RF Test Report Report No. : FG2O1506 TABLE OF CONTENT…

Text truncated - open the document above for the full version.
