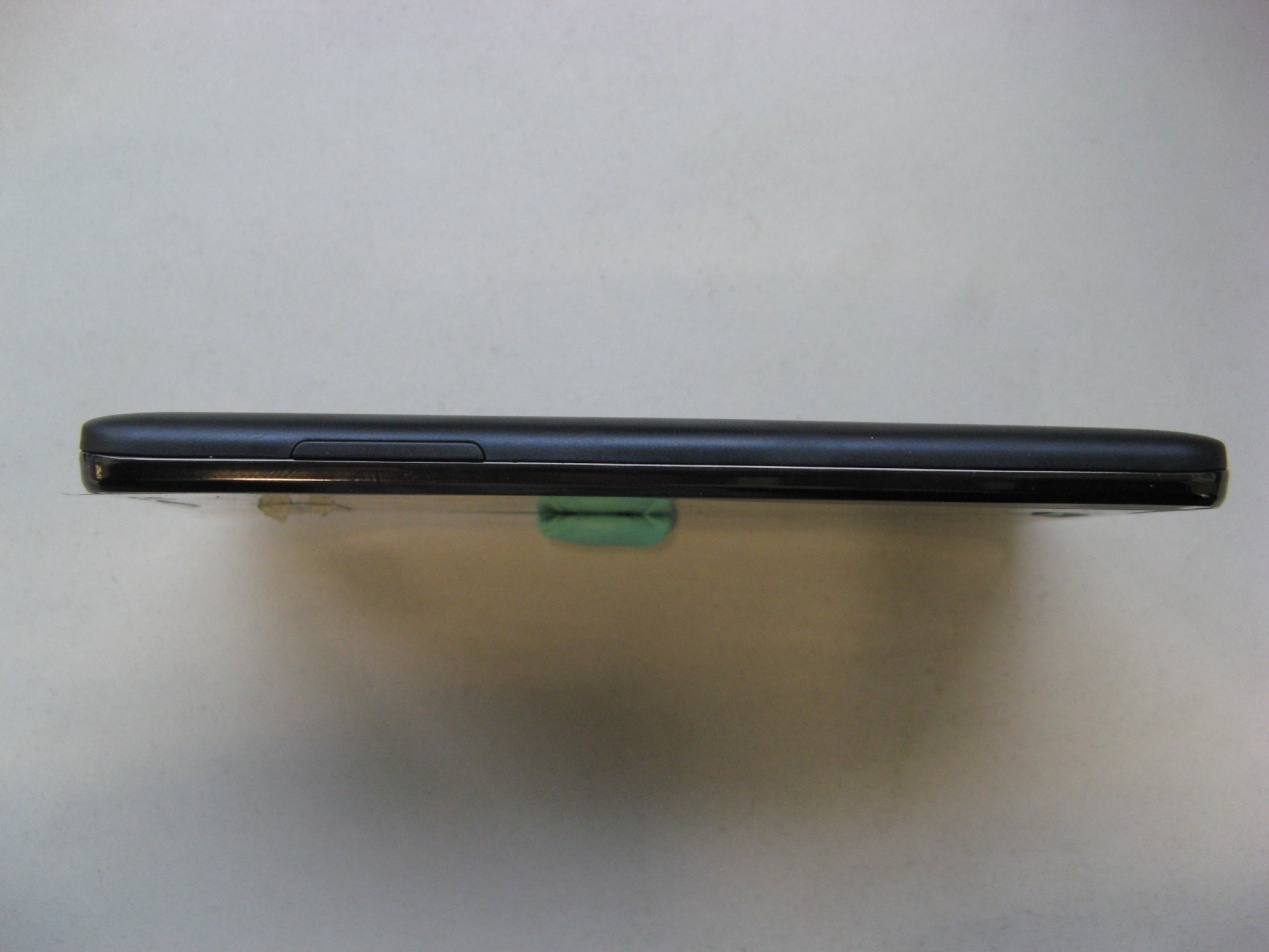

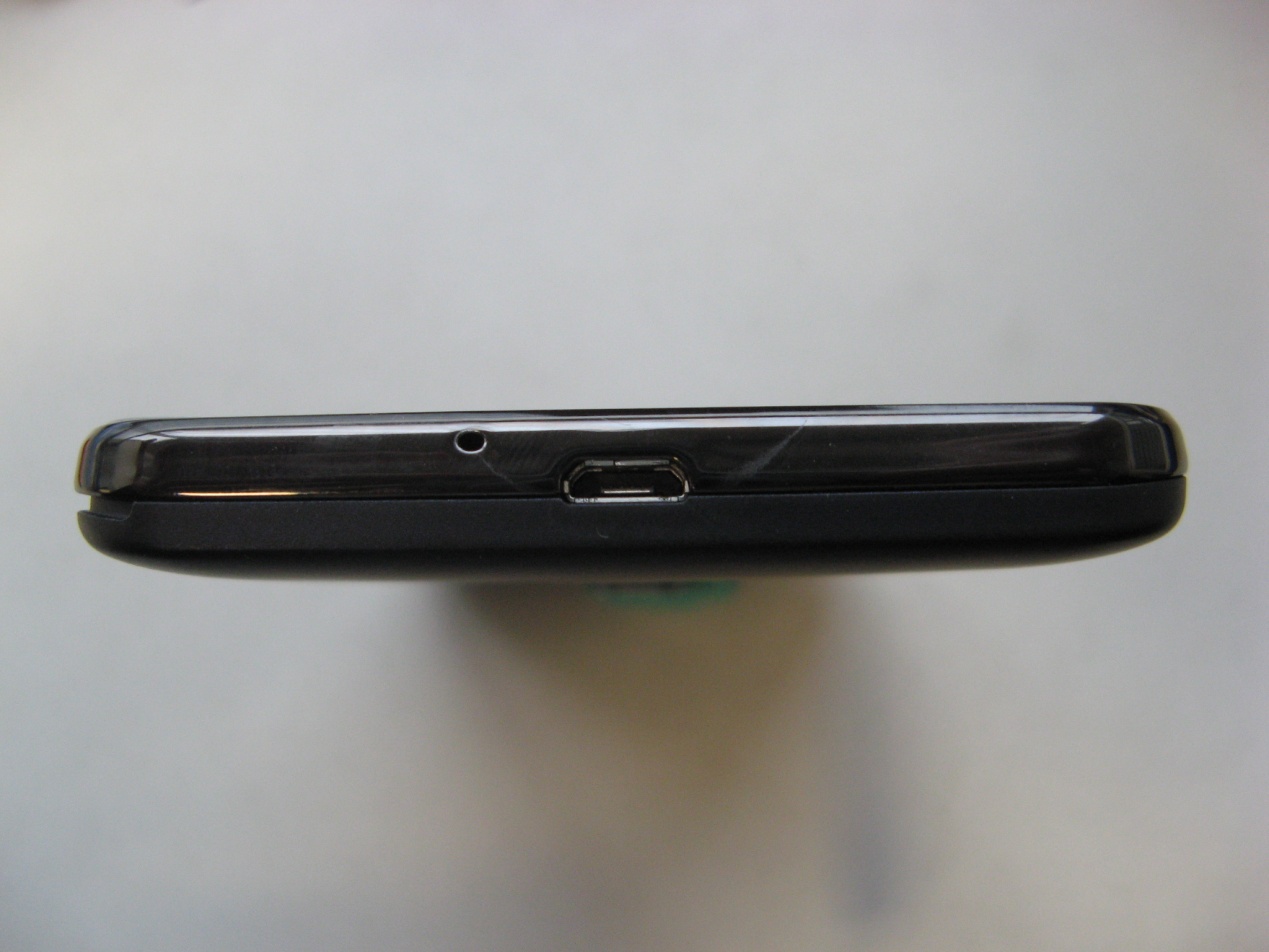

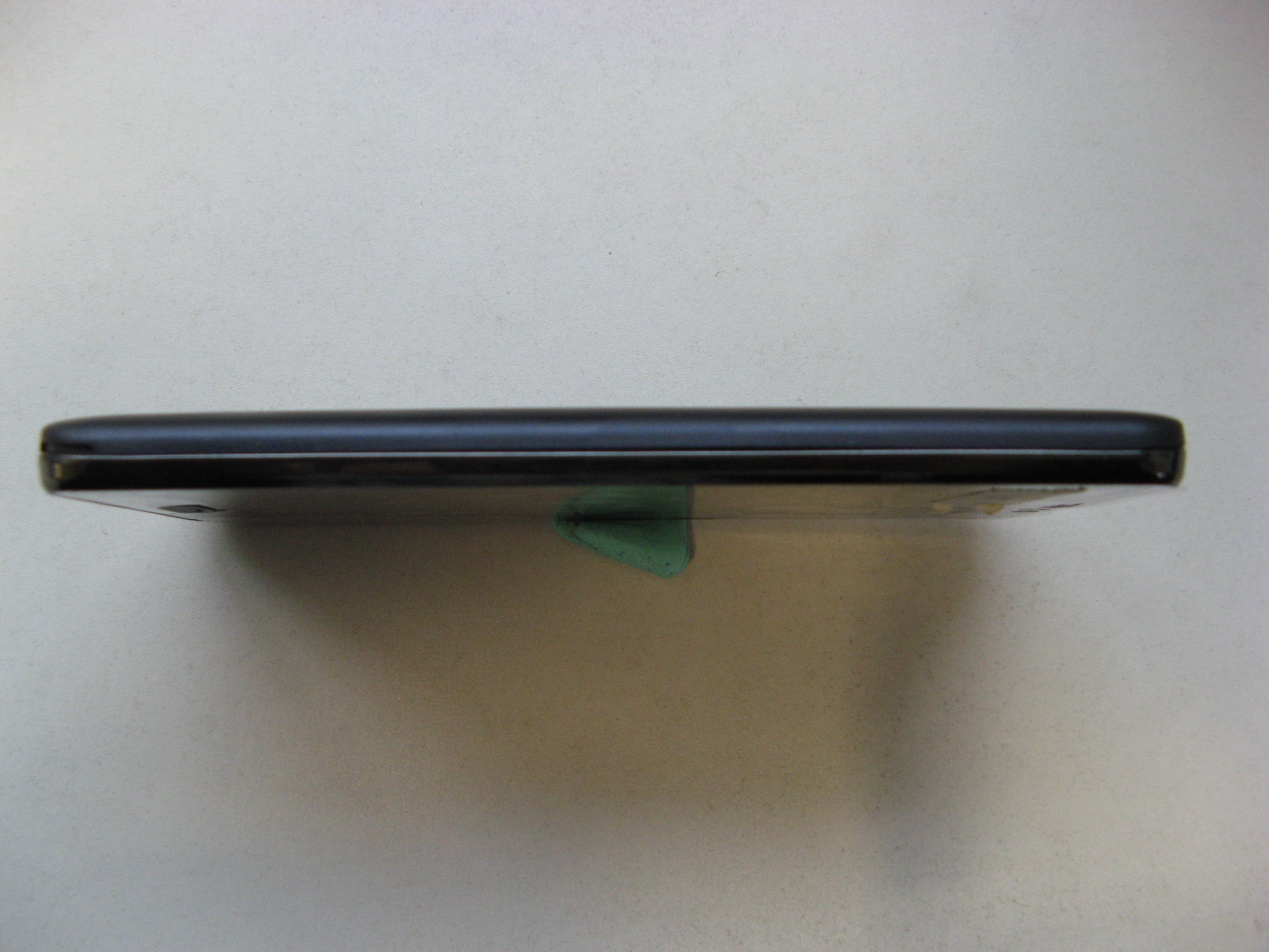

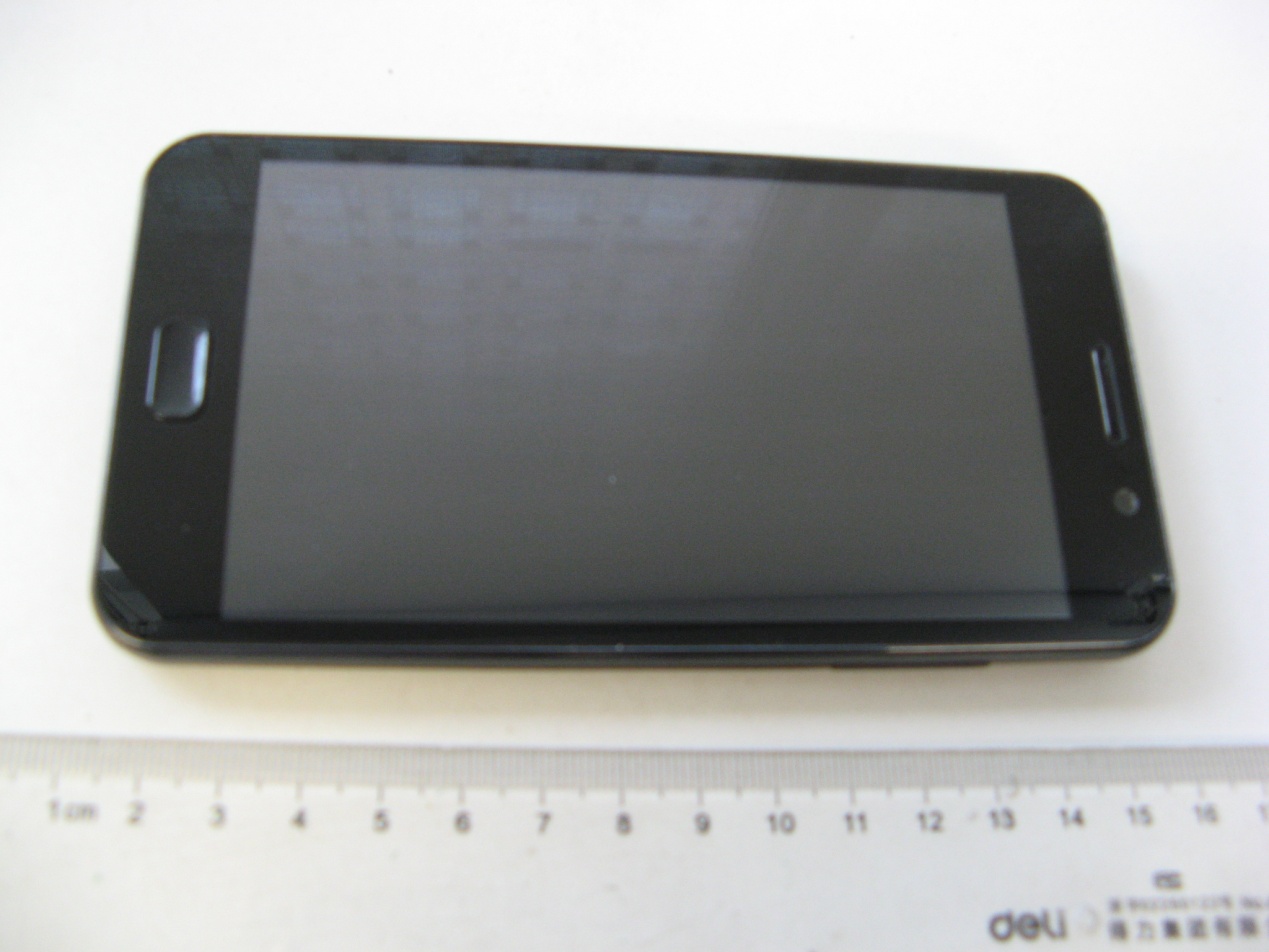

-1- 第1页 Android Mobile Phone User Manual The manual is applicable for the V865M mobile phone. -2- Document information vers ion Revised data revise r software note 1.0 2013.2 zhaoqio ng -1- 第1页 Copyright © 2013 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Third-party Software Statement When you install the software from a third-party, the phone might be restarted repeatedly or the software might not be used normally due to the incompatibility of the software itself. It is not the fault of the phone itself. Version 1.0 in Feb. 2013 -2- Using your phone Thanks for choosing the ZTE V865M. It’s a WCDMA Digital Mobile Phone, which will refer to as ‘phone’ from now on. Powered by Android TM , the phone supports 3G high-speed Internet access, which brings you brand new experiences. Don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions that matter. -3- 第3页 Power key Front Side keys Touch Back k Home key Menu k Headset Camer Speak er USB t Earpiec Getting to know your phone -4- Descriptions of Keys Keys Functions Power key Press it to turn on/off the display. Long press it to open a menu with options for Airplane mode, for Silent mode, and for powering off the phone Home key Touch it to open the home screen. If you’re viewing the left or right extended home screen, Touch it to open the central home screen. Touch & hold the key to open the most recently used applications screen. Menu key Touch it to open a menu with items that affect the current screen or application. Back key Touch it to open the previous screen you were working in. If the onscreen keyboard is open, Touch it to close the keyboard. Volume keys Adjust the volume. Long press the UP key to adjust to the maximum volume, and long press the DOWN key to adjust to the silence mode. -5- 第5页 Onscreen icons Icons Descriptions Icons Descriptions Signal strength Full battery Charging Low battery In a call Missed calls You have an unread message. You have an unread E-mail. You have an unread G-mail. Airplane mode Vibration mode Silent mode Connected to a PC Music playing Alarm clock on New calendar reminder Wi-Fi function on Bluetooth ® function is on -6- Before getting started Inserting and removing the USIM/SIM Insert the USIM/SIM card as follows: 1. Switch off your phone and disconnect any external power. 2. Remove the back cover. 3. Hold your USIM/SIM on the cut corner, and slide it face down into the card holder. 4. Replace the back cover. Inserting a memory card 1. Remove the back cover. 2. Push tightly until the card is installed in the correct position and replace the back cover. -7- 第7页 Using the battery Charging the battery The battery is not fully charged when you unpack it for the first time. Please exhaust the capacity of the battery before you recharge it for the first time.To ensure the battery is always in its best condition, please charge the battery 8 hours for the first time and recharge it later at least 2 hours each time. 1. Connect the charger to the mobile phone, and insert the charger to the standard power socket. 2. Please disconnect the charger from the power socket after the charging is completed. Tips: z To charge the battery, you can also connect the phone to the PC through the USB cable. Users have to use the connection to USB interfaces with USB 2.0 version or higher. z During charging, the phone and charger may normally become hot. Power on/off Powering on Long press the Power key until the power-on animation appears. Powering off -8- Long press the Power key to display the menu Phone options and select Power off. Tips: PIN is the password provided by your operator. If PIN is enable, you need input the correct PIN to use the SIM card.After receiving the PIN, the phone will automatically search for the designated networks. The searching process might last for a few seconds. Mandatory restart Long press the Power key till the phone vibrate, release the Power key, the phone will stop vibrating and restart. Use the SD card as USB storage device 1. Insert the SD card into the card slot on the phone. 2. Connect the phone to the PC through the USB cable. The PC will automatically recognize the SD card as removable storage device. 3. Touch “Open USB storage device”. Now you can exchange data between the PC and the SD card. -9- 第9页 Basic Operation Screen control You can control your phone through a series of operations on the screen. z Touch: you can touch the items on the screen to select them, to open the applications, or using the keyboard to input characters. z Slide or slide: Quickly move your finger across the surface of the screen, without pausing when you first touch (so you don't drag something instead). z Touch & hold: you can touch & hold some items to get the item’s available menu. z Drag: you can drag some items on the screen to realize some operations. z Switch between landscape mode and portrait mode: you can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as text input interface, message viewing interface, etc. z Pinch: In some apps (such as Maps, Browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in). Open and close the All Apps -10- On the home screen, touch the icon to open the All Apps. After opening the All Apps, press an icon to enter the corresponding application. Touch the Back key to return to the previous screen. Touch the Home key to return to the home screen. Switch to a recentl…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE Pla Federal Co Authorizat Confident i Pursuant to treatment o Schematics Block Diag Parts List ( Operation Tune up Pr The above the public. unjustifie d The applic and all acc application Sincerely, ________ _ Gong Bolin 3 aza, Keji Ro ommunicati tion and Eva iality Reque o Sections 0 of informati s (file: V865 gram (file: V (file: V865M Description rocedure (fi materials c The public d benefits to ant understa companying n. __________ n ZT oad South, H Tel: +86 ons Commi aluation Div est regarding 0.457 and 0. ion accomp 5M_Schem. V865M_Blk M_PartsLst n (file: V865 ile: V865M_ contain trade c disclosure its competi ands that pu g documenta _______ TE CO Hi-Tech, Ind 518 6-755-86360 ission vision g applicatio .459 of the anying this .pdf) kDia.pdf) .pdf) 5M_OpDes _TunPro.pd e secrets an e of these m itors. ursuant to S ation will no ORPOR dustrial Park 8057, P.R.Ch 0734 ; Fax: on for certifi Commissio application s.pdf) df) nd proprietar materials may Section 0.45 ot be made RATIO k, Nanshan hina +86-755-8 fication of F on’s Rules, w n as outlined ry informati y be harmfu 7 of the Ru before the d ON District,She 6360734 FCC ID: Q7 we hereby r d below: ion not cust ul to the app ules, disclosu date of the G enzhen, Gu Date: Marc 8-V865M request conf tomarily rel plicant and p ure of this a Grant for th angdong, ch 22, 2013 fidential leased to provide application his 3

Date: Marc Federal Co Authorizat RE : FCC ID : To Who m Pursuant t information following d disclosure The applic secrets and applicant in The Appli accompany Sincerely, Contact P Compan y TEL: +86- FAX: +86- E-mail: Go ch 22, 2013 ommunicati tion and Eva Certificatio Q78-V865 It May Con to sections n prior to m documents for an initia z Exte z Inter z Test z User cation conta d proprietar n the marke icant under ying docum erson: Gon : ZTE COR -755-86360 -755-86360 ong.bolin1@ ZT ons Commi aluation Div on Applicat 5M ncern, 0.457 and marketing o contained i al period of ernal Photos rnal Photos set-up phot rs Manual ains technic ry. If made et place. rstands that mentation wi ng Bolin RPORATION 0734 0734 @zte.com.c TE CO ission vision tion 0.459 of or release o n this certif f180 days: s tos cal informa public, the t pursuant t ill not be ma N cn 1/1 ORPOR CFR 47 an of the produ fication app ation, which e informatio to Rule 0.4 ade before t RATIO nd to avoid uct to the p plication be h ZTE COR on might be 457, disclo the date of t ON d prematur public, the temporarily RPORATIO e used to th sure of thi the Grant fo re release o applicant r y withheld f ON deems t he disadvan is Applicati or this appli of sensitive requests the from public to be trade ntage of the ion and all cation e e c e e l

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: March 22, 2013 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Wang Jianrong in Shanghai Tejet Communications Technology Co.,Ltd and Gong Bolin in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Wang Jianrong in Shanghai Tejet Communications Technology Co.,Ltd and Gong Bolin in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-V865M If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

ZT We, spac batt the ___ Con Com Tel Fa x E-m TE Plaza, K , ZTE COR ce to put the tery inside t products an __________ ntact Pers mpany: ZT : +86-755 x: +86-755 mail: Gong ZT Keji Road So Tel: +86 RPORATION e label exce the battery c nd install the __________ on: Gong TE CORP 5-8636073 5-8636073 g.bolin1@ TE CO outh, Hi-Tec Guan 6-755-86360 St N, states tha ept the surfa compartmen e battery. ___ Bolin PORATION 34 34 @zte.com.c ORPOR ch, Industri gdong, P.R. 0734 ; Fax: atemen at our devic ace of this d nt and it is v N cn RATIO al Park, Nan .China +86-755-8 nt e, FCC ID: device. The visible to th ON nshan Distr 6360734 Q78-V865 M label will pu e users as th rict, Shenzh M, has no ut under the hey purchas hen, e se

Report No. 2013SAR077 Page 2 / 254 V5.0 Standards Conclusion Localized Specific Absorption Rate (SAR) of this equipment has been measured in all cases requested by the relevant standards above. Maximum localized SAR is below exposure limits as well. Applicable Limit Regulations ANSI/IEEE C95.1-2005 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields. 3 kHz to 300 GHz ANSI/IEEE C95.3-2002 Recommended Practice For Measurements and Computations of Radio Frequency Electromagnetic Fields with Respect to Human Exposure to such Fields. 100 kHz-300 GHz Applicable Standards IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques OET Bulletin 65-(Edition 97-01) Supplement C（edition01-01） Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields---Additional Supplement C (Edition 01-01)Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Report No. 2013SAR077 Page 3 / 254 V5.0 Change History Version Change Contents Author Date V1.0 First edition Yin Xiaoming 2013-03-20 V2.0 Page6，Add Statement of Compliance, Add BT SAR evaluation. Yin Xiaoming 2013-03-25 V3.0 Page14,correct the estimated SAR of BT. Yin Xiaoming 2013-04-01 V4.0 Page6/14, correct the reported SAR of each band. Yin Xiaoming 2013-04-07 V56.0 Page6/14/29/41,update the output power and estimated SAR of BT. Yin Xiaoming 2013-04-07 Report No. 2013SAR077 Page 4 / 254 V5.0 CONTENTS: STANDARDS ....................................................................................................................... 2 CONCLUSION ..................................................................................................................... 2 CHANGE HISTORY............................................................................................................. 3 1. STATEMENT OF COMPLIANCE ................................................................................. 6 2. ADMINISTRATIVE INFORMATION ................................................................................ 7 2.1 PROJECT INFORMATION ...................................................................................................................... 7 2.2 TEST LABORATORY INFORMATION ....................................................................................................... 7 2.3 TEST ENVIRONMENT ........................................................................................................................... 7 3. CLIENT INFORMATION .................................................................................................. 8 3.1 APPLICANT INFORMATION ................................................................................................................... 8 3.2 MANUFACTURER INFORMATION........................................................................................................... 8 4. EQUIPMENT UNDER TEST (EUT) AND ACCESSORY EQUIPMENT (AE) ................. 9 4.1 INFORMATION OF EUT ........................................................................................................................ 9 4.2 IDENTIFICATION OF EUT ................................................................................................................... 10 4.3 IDENTIFICATION OF AE ...................................................................................................................... 10 5．OPERATIONAL CONDITIONS DURING TEST .......................................................... 11 5.1 GENERAL DESCRIPTION OF TEST PROCEDURES ................................................................................ 11 5.2 GSM TEST CONFIGURATION ............................................................................................................ 11 5.3 WCDMA TEST CONFIGURATION ...................................................................................................... 11 5.4 BLUETOOTH TEST CONFIGURATION .................................................................................................. 14 5.5 WI-FI TEST CONFIGURATION ............................................................................................................ 15 6. SAR MEASUREMENTS SYSTEM CONFIGURATION ................................................ 16 6.1 SAR MEASUREMENT SET-UP ............................................................................................................ 16 6.2 DASY5 E-FIELD PROBE SYSTEM ..................................................................................................... 17 6.2.1 Es3DV3 Probe Specification ................................................................................................. 17 6.2.2 E-field Probe Calibration ........................................................................................................ 18 6.3 OTHER TEST EQUIPMENT ................................................................................................................. 19 6.3.1 Device Holder for Transmitters .............................................................................................. 19 6.3.2 Phantom .................................................................................................................................. 19 6.4 SCANNING PROCEDURE .................................................................................................................... 20 6.5 DATA STORAGE AND EVALUATION ..................................................................................................... 21 6.5.1 Data Storage ........................................................................................................................... 21 6.5.2 Data Evaluation by SEMCAD ...................................................................................…

Text truncated - open the document above for the full version.

Report No. 2013SAR077 Page 121 / 254 V5.0 WCDMA BAND II towards ground mid Date/Time: 14/03/2013 11:16:27 Communication System: WCDMA; Communication System Band: BAND 2; Frequency: 1880 MHz; Communication System PAR: 0 dB Medium parameters used: f = 1880 MHz; σ = 1.477 mho/m; ε r = 52.425; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE1528/OET65c) DASY5 Configuration:  Probe: ES3DV3 - SN3241; ConvF(4.66, 4.66, 4.66); Calibrated: 31/08/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1226; Calibrated: 03/09/2012  Phantom: ELI v4.0; Type: ELI4; Serial: TP:1086  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) body/towards ground mid/Area Scan (111x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.00 mW/g body/towards ground mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.697 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.390 mW/g SAR(1 g) = 0.790 mW/g; SAR(10 g) = 0.430 mW/g Maximum value of SAR (measured) = 0.990 mW/g body/towards ground mid/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.697 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.910 mW/g SAR(1 g) = 0.592 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.700 mW/g Report No. 2013SAR077 Page 122 / 254 V5.0 0 dB = 1.00 mW/g = 0.04 dB mW/g Report No. 2013SAR077 Page 123 / 254 V5.0 WCDMA BAND II front mid Date/Time: 15/03/2013 11:10:06 Communication System: WCDMA; Communication System Band: BAND 2; Frequency: 1880 MHz; Communication System PAR: 0 dB Medium parameters used: f = 1880 MHz; σ = 1.477 mho/m; ε r = 52.425; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE1528/OET65c) DASY5 Configuration:  Probe: ES3DV3 - SN3241; ConvF(4.66, 4.66, 4.66); Calibrated: 31/08/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1226; Calibrated: 03/09/2012  Phantom: ELI v4.0; Type: ELI4; Serial: TP:1086  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) body/front mid/Area Scan (81x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.670 mW/g body/front mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.242 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.895 mW/g SAR(1 g) = 0.547 mW/g; SAR(10 g) = 0.309 mW/g Maximum value of SAR (measured) = 0.668 mW/g 0 dB = 0.670 mW/g = -3.48 dB mW/g Report No. 2013SAR077 Page 124 / 254 V5.0 WCDMA BAND II left side mid Date/Time: 14/03/2013 14:18:50 Communication System: WCDMA; Communication System Band: BAND 2; Frequency: 1880 MHz; Communication System PAR: 0 dB Medium parameters used: f = 1880 MHz; σ = 1.477 mho/m; ε r = 52.425; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE1528/OET65c) DASY5 Configuration:  Probe: ES3DV3 - SN3241; ConvF(4.66, 4.66, 4.66); Calibrated: 31/08/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1226; Calibrated: 03/09/2012  Phantom: ELI v4.0; Type: ELI4; Serial: TP:1086  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) body2/left side mid/Area Scan (71x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.655 mW/g body2/left side mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.546 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.858 mW/g SAR(1 g) = 0.533 mW/g; SAR(10 g) = 0.310 mW/g Maximum value of SAR (measured) = 0.646 mW/g 0 dB = 0.655 mW/g = -3.68 dB mW/g Report No. 2013SAR077 Page 125 / 254 V5.0 WCDMA BAND II right side mid Date/Time: 15/03/2013 10:33:07 Communication System: WCDMA; Communication System Band: BAND 2; Frequency: 1880 MHz; Communication System PAR: 0 dB Medium parameters used: f = 1880 MHz; σ = 1.477 mho/m; ε r = 52.425; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE1528/OET65c) DASY5 Configuration:  Probe: ES3DV3 - SN3241; ConvF(4.66, 4.66, 4.66); Calibrated: 31/08/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1226; Calibrated: 03/09/2012  Phantom: ELI v4.0; Type: ELI4; Serial: TP:1086  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) body2/right side mid/Area Scan (71x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.376 mW/g body2/right side mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.313 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.488 mW/g SAR(1 g) = 0.311 mW/g; SAR(10 g) = 0.186 mW/g Maximum value of SAR (measured) = 0.373 mW/g 0 dB = 0.376 mW/g = -8.50 dB mW/g Report No. 2013SAR077 Page 126 / 254 V5.0 WCDMA BAND II towards phantom low Date/Time: 11/03/2013 20:04:36 Communication System: WCDMA; Communication System Band: BAND 2; Frequency: 1852.4 MHz; Communication System PAR: 0 dB Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.451 mho/m; ε r = 52.481; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE1528/OET65c) DASY5 Configuration:  Probe: ES3DV3 - SN3241; ConvF(4.66, 4.66, 4.66); Calibrated: 31/08/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1226; Calibrated: 03/09/2012  Phantom: ELI v4.0; Type: ELI4; Serial: TP:1086  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) body/towards phantom low/Area Scan (111x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.10 mW/g body/towards phantom low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.718 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 1.522 mW/g SAR(1 g) = 0.878 mW/g; SAR(10 g) = 0.490 mW/g Maximum value of SAR (measured) = 1.09 mW/g 0 dB = 1.10 mW/g = 0.79 dB mW/g Report No. …

Text truncated - open the document above for the full version.

No.2013TAR190 Page1 of 81 TEST REPORT No. 2013TAR190 for ZTE Corporation WCDMA Digital Mobile Handset Model Name：ZTE V865M FCC ID : Q78-V865M with Hardware Version: V865M_V1AMB_A Software Version: V865M_SACommon_1.05 Issued Date: 2013-04-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2013TAR190 Page2 of 81 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 18 A.3 CONDUCTED EMISSION ............................................................................................................. 24 A.4 FREQUENCY STABILITY ............................................................................................................ 27 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 31 A.6 EMISSION BANDWIDTH ................................................................................................................ 43 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 55 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 61 No.2013TAR190 Page3 of 81 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Mar 07, 2013 Testing End Date: Mar 19, 2013 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2013TAR190 Page4 of 81 2. Client Information 2.1. Applicant Information Company Name: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-755-86360200 Fax: +86-755-86360298 2.2. Manufacturer Information Company Name: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-755-86360200 Fax: +86-755-86360298 No.2013TAR190 Page5 of 81 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description WCDMA Digital Mobile Handset Model Name ZTE V865…
