Q78-WF720WCDMA/GSM Fixed Wireless Terminal WF720

1 WF720 WCDMA/GSM Fixed Wireless Terminal User Manual 2 Welcome to AT&T Wireless Thank you for choosing AT&T Fixed Wireless Terminal. You're now connected to the power of America’s most reliable wireless network. This user manual will help you to understand your new wireless device and all the things you can do with it. So let’s get started. 3 Catalog Contents in Package ............................... 5 Appearance ............................................... 6 LED Indicator ............................................ 8 Getting Started ......................................... 9 Installing the Antenna ..................................................................... 9 Inserting the SIM card ..................................................................... 9 Installing the Battery ..................................................................... 10 Installing the Power Adapter ......................................................... 10 Connecting the Device to a Telephone .......................................... 11 Powering on/off the Device ................. 13 General Function ................................... 14 Checking PIN/PUK ....................................................................... 14 Making Calls ................................................................................. 14 4 Receiving Calls ............................................................................. 14 Making Three-Way Call ................................................................ 15 Voice Mail ..................................................................................... 15 Call Waiting .................................................................................. 15 Call Forwarding ............................................................................ 16 Activating Call Forwarding ....................... 错误!未定义书签。 Deactivating Call Forwarding .................. 错误!未定义书签。 Adjusting Volume .......................................................................... 16 TTY Support ................................................................................. 17 Troubleshooting .................................... 18 Specification ........................................... 19 Safety Notes ............................................ 20 Radio Frequency (RF) Energy错误!未定义 书签。 FCC Compliance ...... 错误!未定义书签。 5 Contents in Package The package should contain the following items. Please contact AT&T if any of the items are missing or damaged. Antenna Battery Power Adapter User Manual Quick Start Guide Telephone Cable (RJ11) AT&T Fixed Wireless Terminal 6 Appearance The figures are only for your reference, the actual shape and color of the product may be different. 1. Power on/off switch 2. Telephone ports 3. USB port 4. Power port 5. Antenna port 6. Signal strength indicator 7. Battery indicator 8. Voice mail indicator 9. Power indicator Note: Never place a USB-based device into the USB port of the device under any circumstance. Doing so may damage the device and negate its warranty. The port was designed for diagnostic purposes only, but not for customer use. 9 8 1 2 3 4 5 6 7 7 10. Wall-mounting brackets 11. Battery cover 10 11 8 LED Indicator The table below describes possible states for each of the LED indicators. Icon Indicator Status Signal Strength Green Strong Yellow Weak Red No service Blinking Red Check SIM Battery Green Full charging Yellow Partial charging Red Low charging Blinking Discharging(Charger not present) Voice Mail Blinking GreenNew message waiting Power Green AC power present 9 Getting Started Installing the Antenna Turn off the device. Align the antenna with the antenna port on the device as shown below. Screw the antenna into the port, make sure that the connection is correct. Inserting the SIM card Remove the battery cover and Insert SIM card into the SIM card slot show as below. 10 Installing the Battery Note:  The system will stop charging the battery when the ambient temperature is outside of the temperature range allowed for charging (-10°C ~ 55 °C).  When the power adapter is connected, the battery will automatically charge.  When fully charged, the battery will automatically stop charging.  Remove the battery if the device will be unused for a long period.  The battery is intended for backup purposes only (in the event of a power failure).  The device takes 5 hours to charge fully. The charge time may be impacted by environmental factors. 1. Insert and place the battery into the battery slot. 2. Return the battery cover. Installing the Power Adapter Under normal usage, the device relies on the external power adapter for its power supply. Insert the power adapter into the DC input port, and plug the unit into 11 an AC wall outlet. Connecting the Device to a Telephone Fixed Phone: Note: Put the device at least 2.5 meters away from the connected phone, TV sets, radio and other electronic devices to avoid electromagnetic interference. DECT (Digital Enhanced Cordless Telecommunications) Phone: To avoid electromagnetic interference between DECT phone and the 12 device, be sure the distance between DECT phone and the device is 0.5 meter at least. 13 Powering on/off the Device Press and hold the Power on/off switch for 2 seconds or plug in charger to power on the device. Press and hold the Power on/off switch for 2 seconds to power off the device. 14 General Function Checking PIN/PUK PIN code could prevent your SIM card from illegal use. If the PIN lock of SIM card is on，the battery indicator will blink green to indicate that you should verify PIN code, while you pick up the handset, a continuous warn tone will be heard. You should enter the PIN code (e.g. 4321#). If you enter the wrong PIN code consecutively for three times, your SIM card will be locked. You need PUK code to unblock the SIM card, and the battery indicator will blink yellow. Please follow the steps below to unblock the SIM card: 1. Enter PUK code and * (12345…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-29-88458594 ; Fax: +86-29-88458594 Date: October 11, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-WF720 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: WF720_Schem.pdf) Block Diagram (file: WF720_BlkDia.pdf) Parts List (file: WF720_PartsLst.pdf) Operation Description (file: WF720_OpDes.pdf) Tune up Procedure (file: WF720_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Yang Zhao

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: October 11, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Yang Zhao in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Yang Zhao in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-WF720 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: October 11, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-WF720 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Ya n g Z h a o Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

1/1 ZTE CORPORATION Date: October 11, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-WF720 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Ya n g Z h a o Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 1. External Photograph of EUT Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50I1500C35 Battery Brand Name ZTE Model Name Ni3615T30P3S534416 Cable Type 300cm non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720

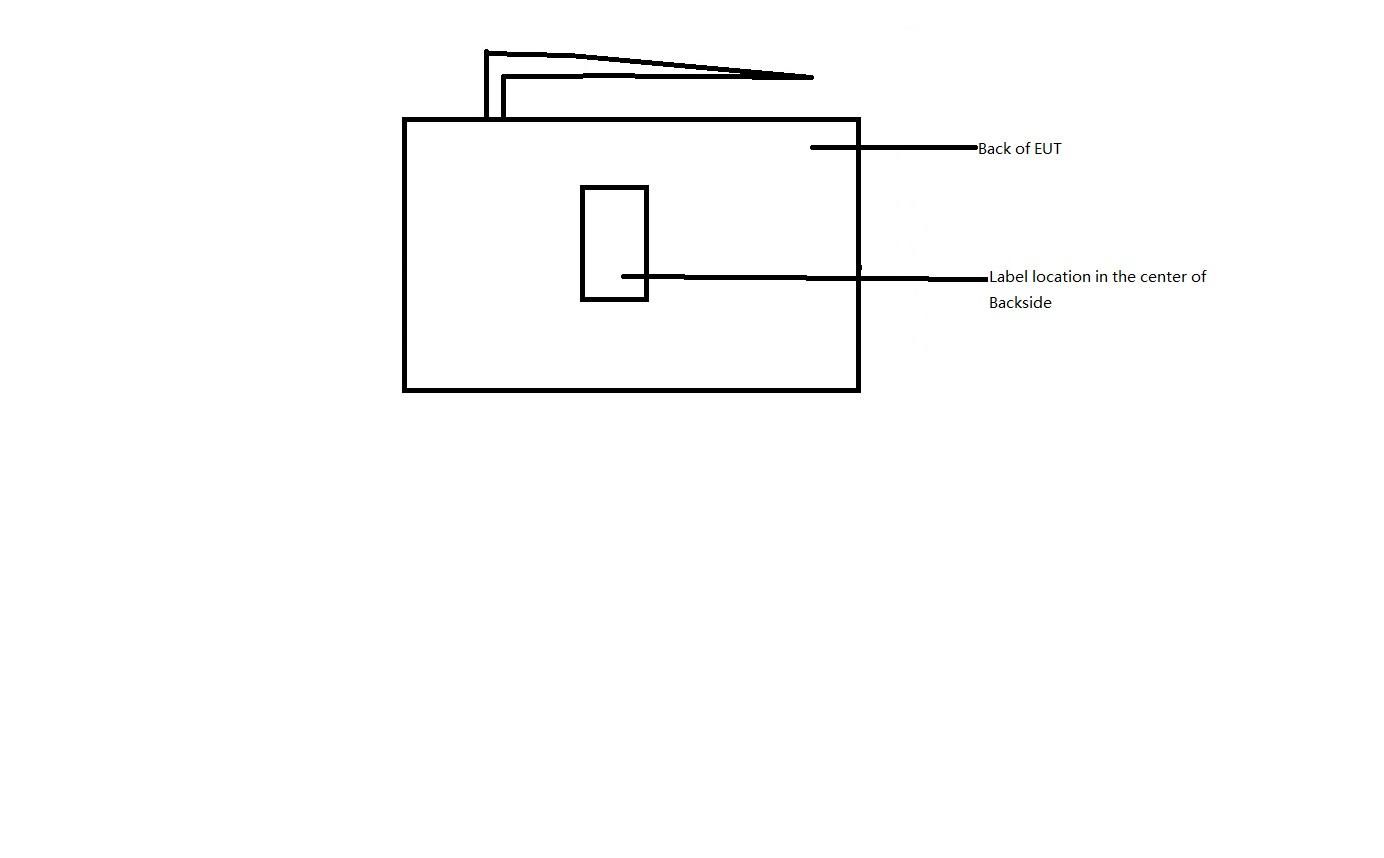

Model: WF 720 FCC ID: Q78-WF720 IMEI:XXXXXXXXXXXXXXX S/N:XXXXXXXXXXXX SKU:XXXXX H/W: XXXX MADE IN CHINA

Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 3. Internal Photograph of EUT Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 GPS Antenna Photographs of EUT Report No.: EP192609 Brand Name: ZTE / Model Name: WF720 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-WF720 WWAN Antenna

SPEED TECHNOLOGY SPEED Communication Technology Limited Radio-Frequency Performance Report Of ZTE WF720 External Antenna Customer/Project ZTE/WF720 Frequency Band GSM850/1900 WCDMA850/1 900 SCT P/N Version R: A Date 2011-9-21 SPEED Checked by RF Frank Design by RF Linh ME ME QC Remark Customer Date Confirmed by RF ME Remark www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Page 2 Index 1、 、、 、Indication.............................................................................. 3 2、 、、 、Electrical Performance............................................................ 3 2.1 Matching Circuit Description ................................................... 3 2.2Test Set-up ........................................................................... 3 2.2.1 VSWR.............................................................................. 3 2.2.2 Gain & Radiation Patterns...................................................... 3 2.3 Measurement Data............................................................. ... 4 2.3.1WF720 VSWR ..................................................................... 4 2.3.2 Peak Gain ........................................................................... 4 2.3.3 Efficiency ........................................................................ ................................................................................................................................................ ........................................................................ 5 3、 、、 、 Suggestion and Conclusion ...................................................... 5 4、 、、 、Attachment ........................................................................... 5 4.1 WF720 S11 Parameter. ................................................................ 5 4.2 Radiation Pattern........................................................................6 Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Page 3 1.Indication This report summarizes the electrical performance results of the proposed external antenna to support the WF720 program. The antenna is an assembly GSM850/1900,WCDMA850/1900 band. (see Figure1). Figure 1: Proposed Antenna 2.Electrical Performance 2.1 Matching Circuit Description The matching circuit that is the customer provides with us. 2.2 Test Set-up The antenna was evaluated using the customer provided prototype phone. Figure 2 shows the antenna mounted on the test fixture. This section of the report describes the testing on this test fixture. Figure 2: Antenna Mounted on WF720Test Fixture 2.2.1 VSWR VSWR measurements (S11) were performed using E5071C Network Analyzer and the previously described test fixture. A ferrite-loaded coaxial cable was used to mitigate surface currents on the outside of the cabling. The testing was performed in free space. 2.2.2 Gain & Radiation Patterns The gain and efficiency of the antenna was measured in the Speed Communication Technology anechoic Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Page 4 chamber (SG24). The chamber provides less than –40 dB reflectivity from 400 MHz through 6 GHz and 25cm diameter spherical quite zone. The measurement results are calibrated using both dipole and leaky wave horn standards. This section of the report describes the testing on this test fixture 4 . Figure 4: SG24 Passive Test 2.3 Measurement Data 2.3.1 WF720VSWR Freq (MHz) 824 894 4850 1990 Free Space 1.5 4.5 1.8 1.9 2.3.2 Peak gain Gain （dBi） Frequency GSM Freq. (MHz) SCT Sample 824 1.01 849 1.63 869 1.34 894 1.11 DCS 1850 4.38 1910 3.54 1930 2.19 1990 1.52 Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Page 5 2.3.3 Efficiency Efficiency(%) Frequency GSM Freq. (MHz) SCT Sample 824 71 849 72 869 56 894 41 DCS 1850 80 1910 76 1930 72 1990 63 3. Suggestions and Conclusion This report summarizes the electrical performance of external antenna for ZTE WF720. The antenna was tested using the customer provided bar phone test fixture. In order to get best performance, we tune the resonance frequency higher of GSM 850/1900, WCDMA850/1900 band. SCT team is looking forward to getting your approval. 4.Attachment 4.1 WF720 S11 Parameter VSWR, WF720 Antenna Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SPEED Communication Technology. Page 6 Return Loss,WF720 Antenna 4.2 Radiation Pattern E1, ZTE WF720 Antenna Confidential Information www.speed-hz.com SPEED has possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence an…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : F1 of F3 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 FCC SAR Test Report Report No. : FA192609 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the TS 34.121. Data Devices as documented/evaluated in the following table. WCDMA SAR Test mode - Conducted Power Mode Setup Cell band (850) PCS band (1900) CH4132CH4182CH4233CH9262 CH9400 CH9538 826.4 (MHz) 836.4 (MHz) 846.6 (MHz) 1852.4 (MHz) 1880.0 (MHz) 1907.6 (MHz) WCDMA AMR 22.92 22.76 22.85 22.48 23.01 22.68 RMC 12.2Kbps 22.95 22.77 22.87 22.52 23.05 22.71 SPORTON INTERNATIONAL INC. Page Number : F2 of F3 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 FCC SAR Test Report Report No. : FA192609 WCDMA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting i. Data rates: Varied from RMC 12.2Kbps ii. RMC Test Loop = Loop Mode 1 iii. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F3 of F3 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 FCC SAR Test Report Report No. : FA192609 Reference: [1] 941225 D01 SAR test for 3G devices v02, SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA/HSPA Oct. 2007 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2.] TS 34.121 Universal Mobile Telecommunications System (UMTS); Terminal Conformance Specification, Radio Transmission and Reception (FDD)

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 RF Exposure Evaluation Report Report No. : FA192609 RF Exposure Evaluation Report APPLICANT : ZTE CORPORATION EQUIPMENT : WF720 BRAND NAME : ZTE MODEL NAME : WF720 FCC ID : Q78-WF720 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 RF Exposure Evaluation Report Report No. : FA192609 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 RF Exposure Evaluation Report Report No. : FA192609 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA192609 Rev. 01 Initial issue of report Nov. 08, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-WF720 RF Exposure Evaluation Report Report No. : FA192609 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be us…

Text truncated - open the document above for the full version.
