Q78-X500CDMA 2000 Digital Mobile Phone

Contents Using your phone ............................................................................ 1 Getting to know your phone ........................................................... 2 Onscreen icons ................................................................................ 4 Before getting started ...................................................................... 6 Inserting a memory card ................................................................ 6 Using the battery ........................................................................... 7 Inserting the battery ............................................................... 7 Removing the battery ............................................................ 8 Charging the battery .............................................................. 9 Power on/off ................................................................................... 10 Powering on ................................................................................ 10 Powering off ................................................................................ 10 Basic Operation ............................................................................. 11 Screen control ............................................................................. 11 Enter the Launcher ...................................................................... 12 Home screen ............................................................................... 12 Add icons on the home screen ............................................ 13 Move icons on the home screen .......................................... 13 Delete icons on the home screen ........................................ 13 Change wallpaper ............................................................... 13 Display the dial keyboard ............................................................ 14 Switch to sleep mode .................................................................. 14 Wake up your phone ................................................................... 16 Text Input ........................................................................................ 17 Android Keyboard ....................................................................... 17 XT9 text input .............................................................................. 18 Care and maintenance ................................................................ 19 Consumer limited warranty .......................................................... 21 Additional safety information ....................................................... 26 Using your phone Thanks for choosing the ZTE X500. It’s a CDMA2000 1X EVDO Digital Mobile Phone, which we’ll simply call ‘phone’ from now on. Under Android operating system, the phone supports 3G high-speed Internet access, which brings you brandnew experiences. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions they show that matter. For more information about how to use your phone, refer to the User Manual on the phone. To read the User Manual, do as follows: 1. Turn on your phone using the power button. 2. Click to enter the Launcher, and select User Manual. Search Touch Back ke Home Menu k Receiv Speak Camer Power key Headset Getting to know your phone Memory card solt Volume k USB port Camera key Onscreen icons Icons Descriptions Icons Descriptions Signal strength No signal Battery is full In charging Battery is low In call 3G connected You have unread message. Speakerphone is on You have unheard voice mail. Call forwarding is on You have unread email. Memory card doesn’t exist. You have unread gmail. Call on hold Connected to a PC Vibrate mode Music playing Ringer is silenced New calendar reminder Flight mode A clock alarm is active. Missed call WLAN function on Bluetooth ® is on Receiving location data from GPS Icons Descriptions Icons Descriptions Roaming Before getting started Inserting a memory card 1. Open the memory card cover at the right side of the phone and insert the memory card. 2. Push tightly until the card is installed in the right position and close the card cover. 3. Before you take out the card, please open the card cover and press the card inward to unlock. Note: This mobile phone supports memory card. For details on compatibility information of memory, please consult your manufacturer or supplier. Using the battery Inserting the battery 1. Open the battery cover on the back of your phone. 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover clicking it back into position. Removing the battery 1. Switch off your phone. 2. Open the battery cover. 3. Lift the battery up and out of your phone. Charging the battery The rechargeable Li-ion battery that comes with your phone is ready to use, but is not charged. That’s easy to do. We’ll show you how below. The first three times you use the battery, make sure it’s completely drained before recharging. And then recharge it fully. That will help to ensure its optimum performance and a long life. 1. Connect the charger to your phone, and plug it into an 110V/220V socket. 2. The battery indicator in the corner of the screen will scroll right and left to show you it’s charging. If the phone’s battery has been fully drained, the battery indicator may not immediately appear on the screen when charging starts. And please don’t worry if the phone and charger become warm while charging. That’s completely normal. 3. When fully charged, the battery indicator will stop scrolling right and left. 4. Disconnect the charger from your mobile, and unplug. Power on/off Powering on Press the power key until the power-on animation appears. Note: You may need to enter the password, Personal Identification Number (PIN) or Draw unlock pattern if you have set a passw…

Text truncated - open the document above for the full version.

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P. R . C h i n a Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: June 20, 2011 We, ZTE CORPORATION, declare the device of FCC ID: Q78-X500, Model Name: ZTE-C X500,doesn't have ad hoc function on "non-US frequencies"; in non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies and the device does not support radar detection capability. This includes transmissions for beacon ad-hoc peer-to-peer modes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: David. Gong Tel: +86-755-86360379 Fax: +86-755-86360298 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: June 20, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: Q78-X500 To Whom It May Concern: We, ZTE CORPORATION, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: June 20, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Jones Tsai in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-X500 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-86360379 FAX: +86-755-86360298 E-mail: [email protected]

1/1 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: June 20, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-X500 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: ZTE-C X500_ExtPho.pdf)  Internal Photos (file: ZTE-C X500_IntPho.pdf)  Test Setup Photos (file: ZTE-C X500_Tsup.pdf)  User Manual (file: ZTE-C X500_UserMan.pdf) The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, David Gong

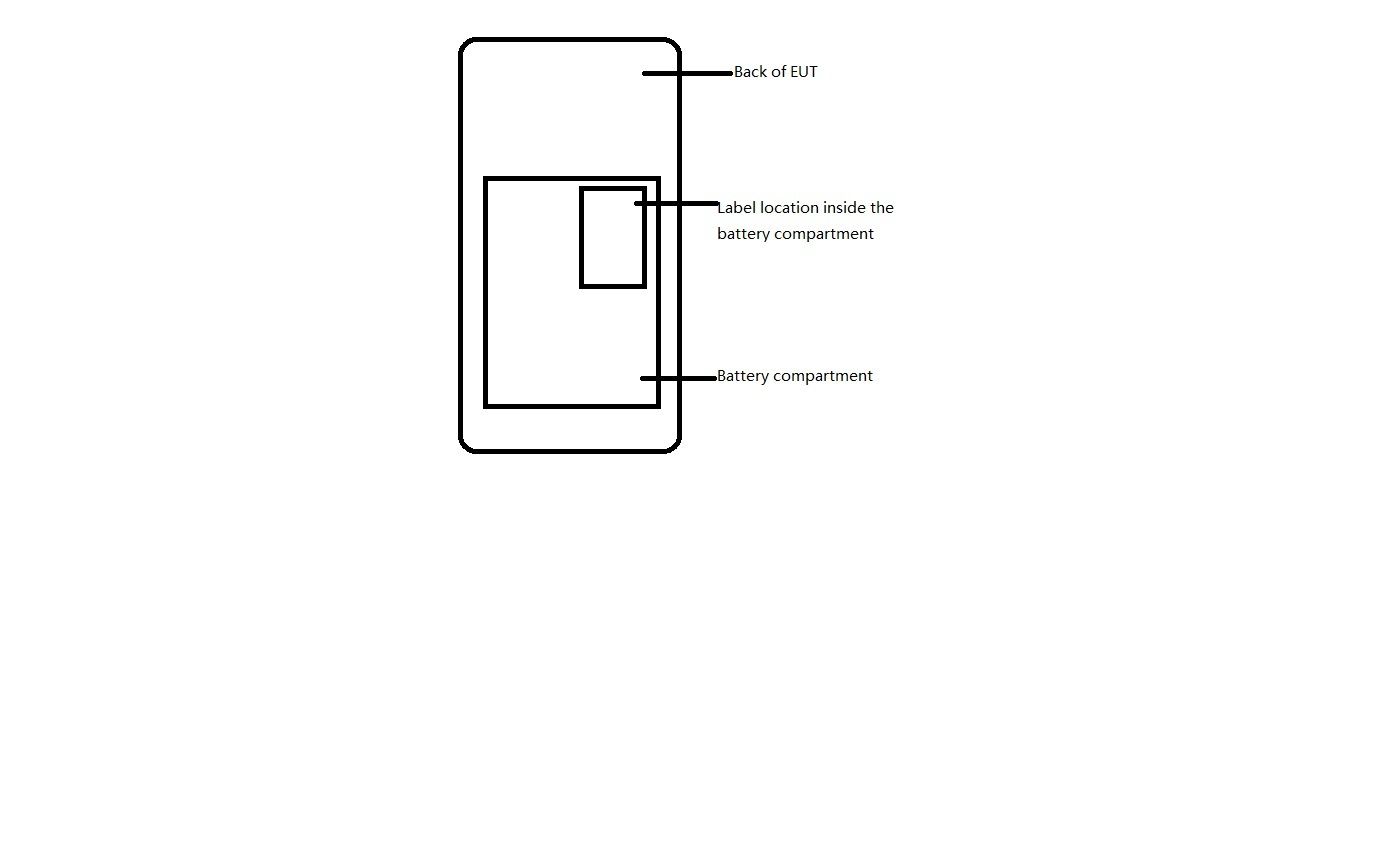

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-X500, has no space to put the label except the surface of this device. The label will put on the backside of the device and it is visible to the users as they purchase the products. _______________________ Contact Person: David. Gong Company: ZTE CORPORATION Tel: +86-755-86360379 Fax: +86-755-86360298 E-mail: [email protected]

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-X500 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE-C X500_Schem.pdf) Block Diagram (file: ZTE-C X500 _BlkDia.pdf) Parts List (file: ZTE-C X500_PartsLst.pdf) Operation Description (file: ZTE-C X500 _OpDes.doc) Tune Up Procedure (file: ZTE-C X500 _TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Gong

Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 1. External Photograph of EUT Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50M5-C Battery Brand Name ZTE(Cell brand:sony) Model Name Li3712T42P3h734141 Earphone Brand Name SANGFAI Model Name SF-880KM-45 USB Cable Brand Name YILISHENG Model Name USB-MU5-B-120 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500

Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 3. Internal Photograph of EUT Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 GPS Antenna Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 WIFI / Bluetooth Antenna Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 WWAN VICE Antenna Photographs of EUT Report No.: EP142634 Brand Name: ZTE / Model Name: ZTE-C X500 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 24 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X500 WWAN MAIN Antenna

SPORTON INT TEL : 886-3-32 FAX : 886-3-32 FCC ID : Q78- Append The plots ar TERNATIONAL 27-3456 28-4978 -X500 FCC SA dix A. re shown as L INC. AR Test Re Plots of follows. eport fSystem Perform mance Ch Page Numb Report Issu Report Vers R heck ber : A1 ued Date : Ju sion : Re Report No. : of A1 n. 27, 2011 ev. 01 FA142634B B Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 System Check_Head_2450MHz_110507 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.8 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 30.4 W/kg SAR(1 g) = 14 mW/g; SAR(10 g) = 6.44 mW/g Maximum value of SAR (measured) = 15.8 mW/g 0 dB = 15.8mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 System Check_Body_2450MHz_110507 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110507 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 59 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.8 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 30.7 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.89 mW/g Maximum value of SAR (measured) = 14.3 mW/g 0 dB = 14.3mW/g

SPORTON INT TEL : 886-3-32 FAX : 886-3-32 FCC ID : Q78- Append The plots ar TERNATIONAL 27-3456 28-4978 -X500 FCC SA dix B. re shown as L INC. AR Test Re Plots of follows. eport fSAR Meeasureme ent Page Numb Report Issu Report Vers R ber : B1 ued Date : Ju sion : Re Report No. : of B1 n. 27, 2011 ev. 01 FA142634B B Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 #01 802.11b_Right Cheek_Ch11_1M_14 DUT: 142502 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.081 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.98 V/m; Power Drift = -0.057 dB Peak SAR (extrapolated) = 0.128 W/kg SAR(1 g) = 0.070 mW/g; SAR(10 g) = 0.038 mW/g Maximum value of SAR (measured) = 0.073 mW/g Ch11/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.98 V/m; Power Drift = -0.057 dB Peak SAR (extrapolated) = 0.102 W/kg SAR(1 g) = 0.051 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.057 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 #02 802.11b_Right Tilted_Ch11_1M_14 DUT: 142502 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.100 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.81 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 0.131 W/kg SAR(1 g) = 0.067 mW/g; SAR(10 g) = 0.035 mW/g Maximum value of SAR (measured) = 0.069 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 #03 802.11b_Left Cheek_Ch11_1M_14 DUT: 142502 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.112 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.02 V/m; Power Drift = 0.106 dB Peak SAR (extrapolated) = 0.201 W/kg SAR(1 g) = 0.097 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.110 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 #03 802.11b_Left Cheek_Ch11_1M_14_2D DUT: 142502 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.112 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.02 V/m; Power Drift = 0.106 dB Peak SAR (extrapolated) = 0.201 W/kg SAR(1 g) = 0.097 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.110 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-7 #04 802.11b_Left Tilted_Ch11_1M_14 DUT: 142502 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110507 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.067 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.19 V/m; Power Drift = 0.053 dB Peak SAR (extrapolated) = 0.124 W/kg SAR(1 g) = 0.062 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.068 mW/g Ch11/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.19 V/m; Power Drift = 0.053 dB Peak SAR (extrapolated) = 0.104 W/kg SAR(1 g) = 0.050 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.059 mW/g Test Laboratory: Sporton International Inc. SAR/HAC …

Text truncated - open the document above for the full version.

SPORTON INT TEL : 886-3-32 FAX : 886-3-32 FCC ID : Q78- Append The DASY c TERNATIONAL 27-3456 28-4978 -X500 FCC SA dix C. calibration ce L INC. AR Test Re DASY C ertificates ar eport Calibratio e shown as f on Certifi follows. icate Page Numb Report Issu Report Vers R ber : C1 ued Date : Ju sion : Re Report No. : of C1 n. 27, 2011 ev. 01 FA142634B B SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INT TEL : 886-3-32 FAX : 886-3-32 FCC ID : Q78- APPL EQU BRA MO D FCC STA N The p SPOR evalu appli c The t writte repro Revi e TERNATIONAL 27-3456 28-4978 -X500 FCC SA F LICANT IPMENT AND NAME DEL NAME ID NDARD product was RTON INTER ated in ac cable techn test results en approva oduced exce ewed by: Jones T s SP No. 3- L (KUNSHAN) I AR Test Re FCC : : E : E : : : s received o RNATIONAL ccordance w ical standar in this rep l of SPOR ept in full. sai / Manage PORTON -2, PingXia NC. eport SAR ZTE COR Dual-Ban ZTE X500 Q78-X50 0 FCC 47 C IEEE C95 IEEE 152 FCC OET on Apr. 26, L INC., woul with the p rds. port apply e RTON INTE er N INTERN ang Road, R Tes RPORATIO nd 0 CFR Part 2 5.1-1991 8-2003 T Bulletin 6 2011 and c ld like to de rocedures exclusively RNATIONA L NATIONA , Kunshan st Re ON 2 (2.1093) 65 Supple completely eclare that and show n to the test L INC., the AL (KUNS n, Jiangsu Page Numb Report Issu Report Vers R epor ement C (E tested on M the tested s n the com ed model / e t…
