Q78-X501CDMA2000 Digital Mobile Phone

ZTE X501 User Guide Contents Using your phone .................... 1 Getting to know your phone ... 2 Onscreen icons ........................ 3 Before getting started ............. 4 Inserting a memory card ........ 4 Using the battery ................... 5 Power on/off ............................. 7 Powering on .......................... 7 Powering off .......................... 7 Basic Operation ....................... 8 Screen control ....................... 8 Open and close the Launcher 8 Switch to a recently used application ............................. 9 Home screen ......................... 9 Display the dialing keypad ... 10 Switch to sleep mode .......... 11 Wake up your phone ............ 11 Bluetooth ® ............................ 12 Text Input ............................... 15 Android Keyboard ................ 15 Swype.................................. 16 Appendix ................................ 17 Care and maintenance ........ 17 Consumer limited warranty .. 18 Additional safety information 21 1 Using your phone Using your phone Thanks for choosing the ZTE X501. It’s a CDMA2000 1X EVDO Digital Mobile Phone, which is shortly referred to as ‘phone’ from now on. Under the Android operating system, the phone supports 3G high-speed Internet access, which brings you brand new experiences. Don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions that matter. Getting to know your phone 2 Search Key Touch screen Back key Home key Menu key Earpiece Speaker Camera Power key Headsetjack Volume keys Memory card slot Camera key USB port Getting to know your phone 3 Onscreen icons Onscreen icons Icons Descriptions IconsDescriptions Signal strength No signal Full battery Charging Low battery In a call Connected on 3G You have an unread message. Speakerphone on You have an unheard voicemail. Call forwarding on You have an unread E-mail. No memory card You have an unread G-mail. Call held Connected to a PC Vibration mode Music playing Silence mode New calendar reminder Flight mode Alarm clock on Missed calls Wi-Fi function on Bluetooth ® function is on Receiving location data from GPS Roaming Before getting started 4 Before getting started Inserting a memory card 1. Open the memory card cover on the right side of the phone and insert a memory card. 2. Push tightly until the card is installed in the right position and close the cover. 3. Before you take out the card, please open the cover and press the card inward to unlock. Note: This mobile phone supports memory cards. For details on compatibility information of memory, please consult your manufacturer or supplier. 5 Before getting started Using the battery Inserting the battery 1. Open the battery cover on the back of your phone. 2. Align the battery's contact points with those of the phone and gently press the battery down into place. 3. Replace the battery cover clicking it back into position. Removing the battery 1. Switch off your phone. 2. Open the battery cover. 3. Lift the battery up and out of your phone. Before getting started 6 Charging the battery The rechargeable Li-ion battery that comes with your phone is ready to use but is not charged. That’s easy to do. We’ll show you how below. The first three times you use the battery, make sure it’s completely drained before recharging and then recharge it fully. That will help to ensure its optimum performance and a long life. 1. Connect the charger to your phone and plug it into an 110V/220V socket. 2. The battery indicator in the corner of the screen will scroll up and down to show you it’s charging. Please don’t worry if the phone and charger become warm while charging. That’s completely normal. 3. When fully charged, the battery indicator will stop scrolling. 4. Disconnect the charger from your mobile and unplug. 5. Or using USB cable which should be shielded cable. 7 Power on/off Power on/off Powering on Long press the Power key until the power-on animation appears. Powering off Long press the Power key to display the menu Phone options and select Power off. Basic Operation 8 Basic Operation Screen control You can control your phone through a series of operations on the screen.  Press: you can press the items on the screen to select, open the applications, or use the keyboard to input characters.  Slide: you can scroll up/down the page or scroll the page left/right by sliding vertically or horizontally on the screen.  Long press: you can long press some items to get the item’s available menu.  Drag: you can drag some items on the screen to realize some operations.  Switch between landscape mode and portrait mode: you can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as text input interface, message viewing interface, etc. Open and close the Launcher On the home screen, press the icon to open the Launcher. You can slide the Launcher left or right to view more. After opening the Launcher, press an icon to enter the corresponding 9 Basic Operation application. Press the Back key to return to the previous screen. Press the Home key to return to the home screen. Switch to a recently used application Press and hold the Home key. A window opens with icons of applications that you’ve used recently. Press an icon to open its application. Home screen Status bar Screen Indicator Notification bar Display area Icons Tap the icon to open the relevant application. Messaging icon Launcher icon Tap the icon to view all installed applications on the phone. Tap and hold the icon to view the home screen thumbnails. Phone icon Basic Operation 10 Add icons to the home screen Long press the empty area on the home screen to pop up the Add to Home screen menu. Select Shortcuts, Widgets, Folders, etc. You can copy icons from the Launcher to the home screen by long pressing an icon in the Launcher until the icon enlarges and the phone vibrate…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-86360734 ; Fax: +86-755-86360734 Date: February 22, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-X501 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: X501_Schem.pdf) Block Diagram (file: X501_BlkDia.pdf) Parts List (file: X501_PartsLst.pdf) Operation Description (file: X501_OpDes.pdf) Tune up Procedure (file: X501_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Gong Bolin

1/1 ZTE CORPORATION Date: February 22, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-X501 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Gong Bolin Company: ZTE CORPORATION TEL: +86-755-86360734 FAX: +86-755-86360734 E-mail: [email protected]

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: February 22, 2012 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Michael Lin in Sporton International Inc. and Gong Bolin in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. and Gong Bolin in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-X501 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

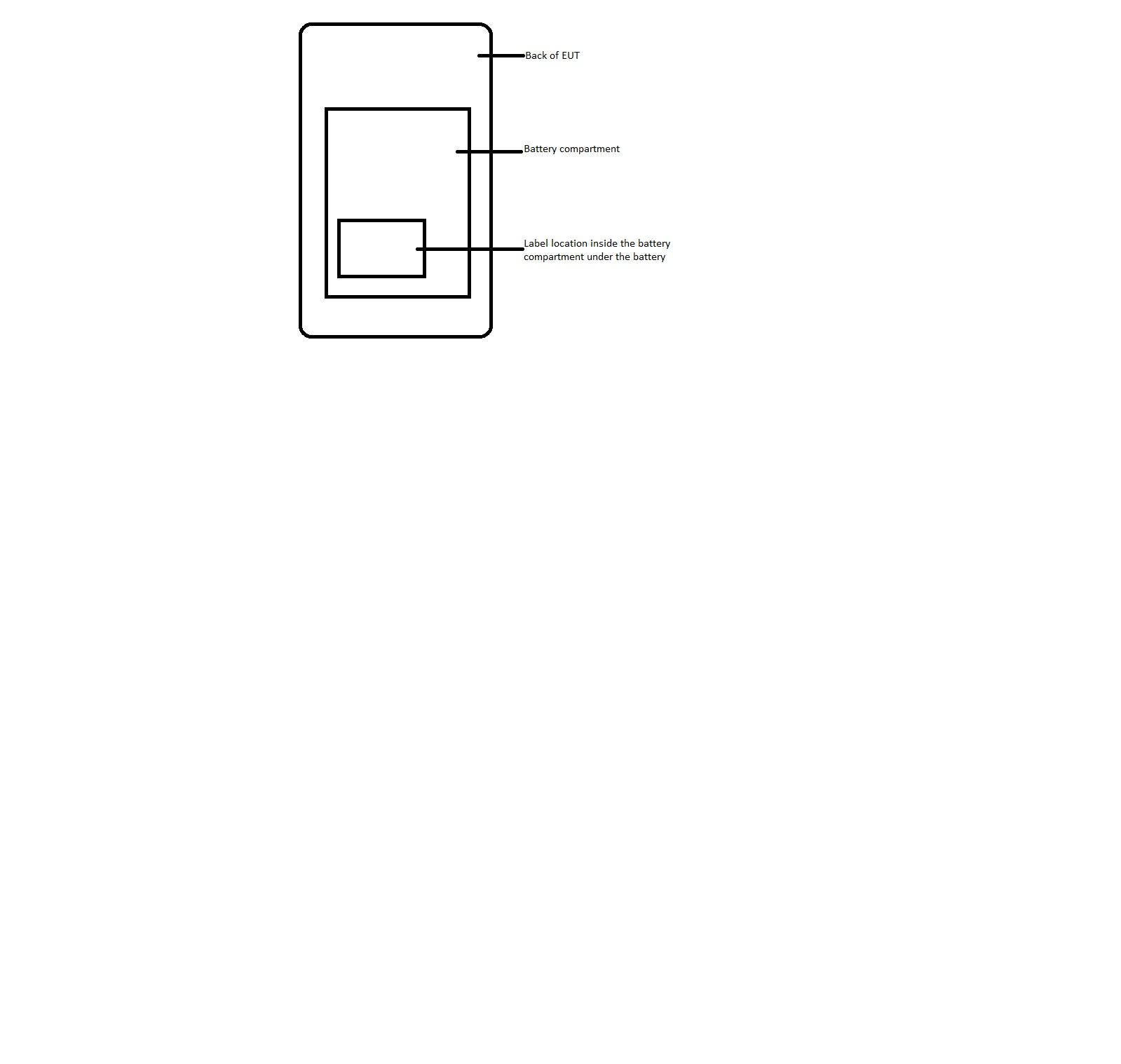

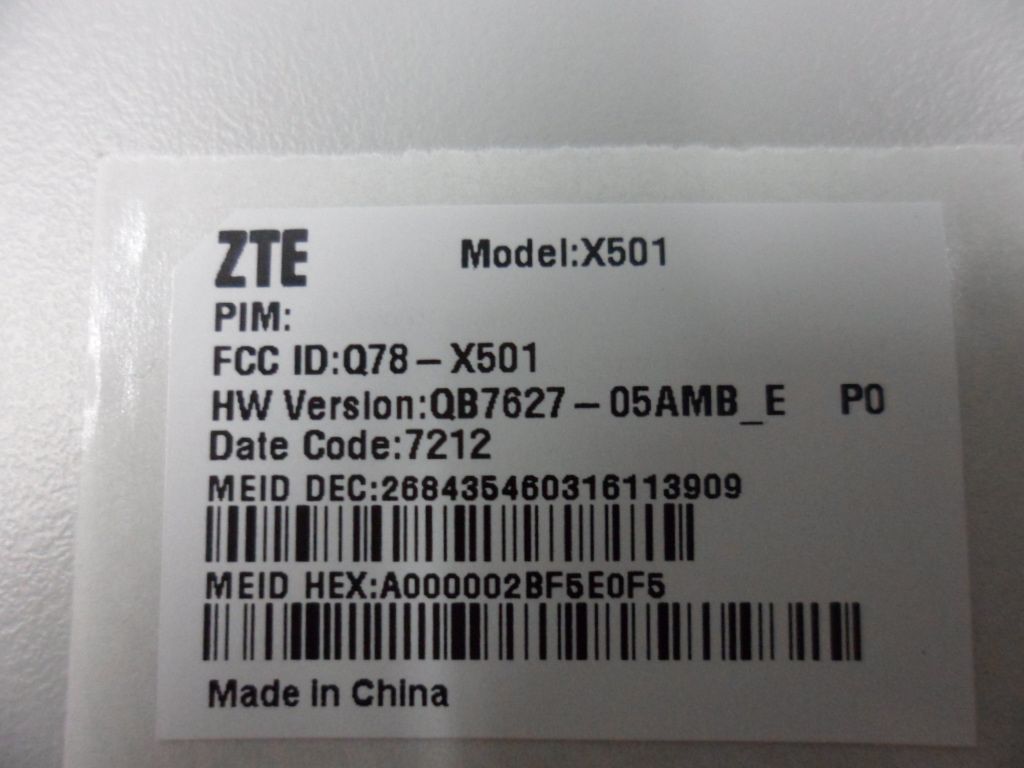

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360734 ; Fax: +86-755-86360734 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-X501 , has no space to put the label except the surface of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. _______________________ Contact Person: Gong Bolin Company: ZTE CORPORATION Tel: +86-755-86360734 Fax: +86-755-86360734 E-mail: [email protected]

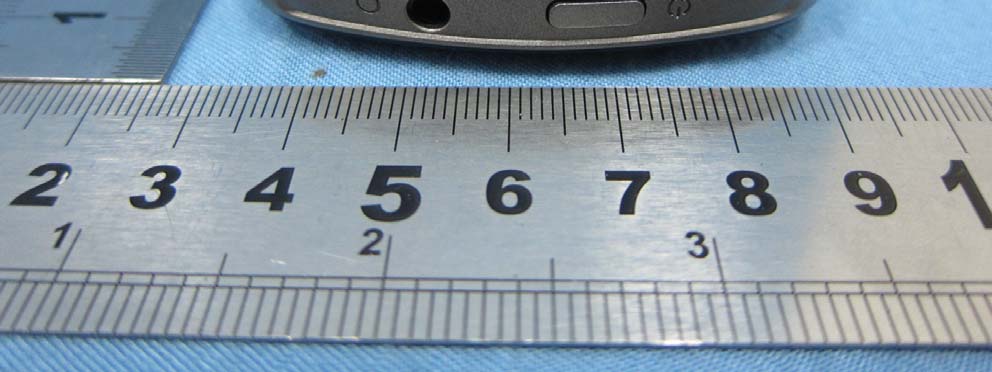

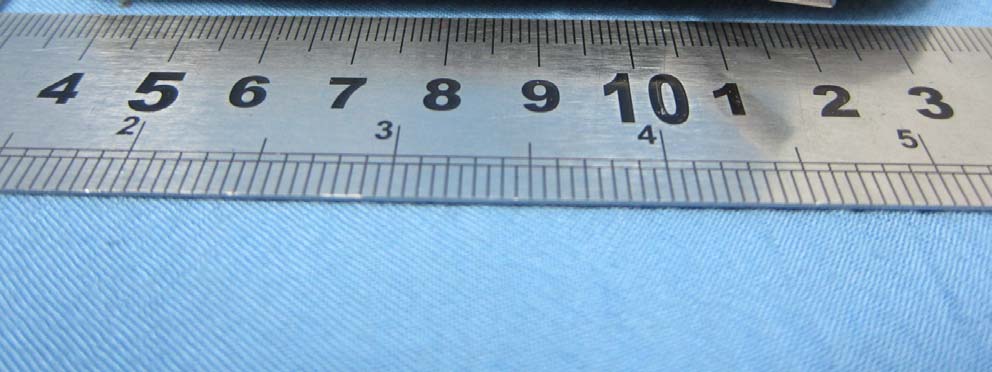

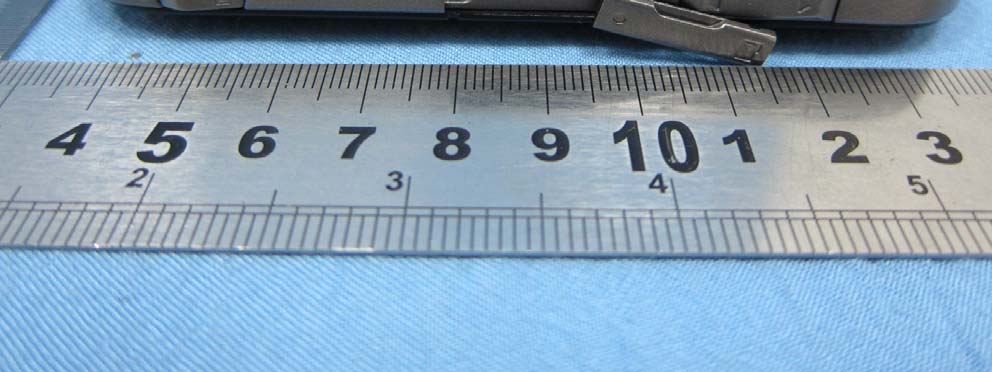

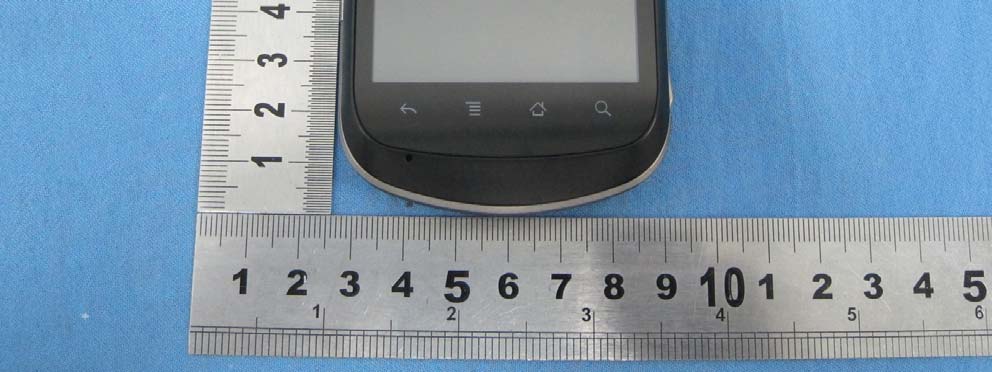

Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 1. External Photograph of EUT Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE中兴 Model Name STC-A22O50I1000USBA-C Battery Brand Name ZTE中兴 Model Name Li3715T42P3h654251 USB Cable 1.20 meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501

Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 3. Internal Photograph of EUT Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 GPS, Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 WWAN Main Antenna Photographs of EUT Report No.: EP220101 Brand Name: ZTE / Model Name: X501 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 WWAN Vice Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 38 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 FCC SAR Test Report Report No. : FA220101 FCC SAR Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : CDMA2000 Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : X501 FCC ID : Q78-X501 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 01, 2012 and completely tested on Feb. 21, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 38 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 FCC SAR Test Report Report No. : FA220101 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standard .....................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose of System Performance check…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-X501 FCC SAR Test Report Report No. : FA220101 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 System Check_Head_835MHz_120206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120206 Medium parameters used: f = 835 MHz; σ = 0.897 mho/m; ε r = 40.781; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：21.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.566 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.192 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.6650 SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.592 mW/g 0 dB = 2.590mW/g = 8.27 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 09.02.2012 System Check_Body_835MHz_120209 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120209 Medium parameters used: f = 835 MHz; σ = 0.969 mho/m; ε r = 56.069; ρ = 1000 kg/m 3 Ambient Temperature： 23.8 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.72, 9.72, 9.72); Calibrated: 16.11.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.564 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.078 V/m; Power Drift = -0.00013 dB Peak SAR (extrapolated) = 3.6010 SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.556 mW/g 0 dB = 2.560mW/g = 8.16 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-2-21 System Check_Body_835MHz_120221 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120221 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 54.382; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.662 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.731 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.626 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.555 mW/g 0 dB = 2.560mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 04.02.2012 System Check_Head_1800MHz_120204 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800_120204 Medium parameters used: f = 1800 MHz; σ = 1.435 mho/m; ε r = 41.118; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8.69, 8.69, 8.69); Calibrated: 16.11.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.201 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.253 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 18.1030 SAR(1 g) = 9.76 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 10.954 mW/g 0 dB = 10.950mW/g = 20.79 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 08.02.2012 System Check_Body_1800MHz_120208 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_120208 Medium parameters used: f = 1800 MHz; σ = 1.573 mho/m; ε r = 55.462; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8, 8, 8); Calib…

Text truncated - open the document above for the full version.
