Q78-X632MOBILE PHONE

GSM Dual-Band GPRS Digital Mobile Phone User Manual The manual is applicable for the X632 mobile phone. 文档信息 版本 修订日期 修订人软件版本 备注 1.0 2010年10月 杨小琴 Z525.C136.HW1.SW 7V1 初稿拟制 Copyright © 2010 by ZTE Corporation All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Version 1.0 in Nov. 2010 Contents Let’s get started .......................................................................................................... 1 Lost or stolen? ......................................................................................................... 1 Using your phone safely .................................................................................. 2 Battery care and safety ................................................................................... 5 Charger care and safety .................................................................................. 7 Inserting and removing the SIM ............................................................................ 12 Inserting a memory card ........................................................................................ 13 Using the battery ................................................................................................... 14 Inserting the battery ....................................................................................... 14 Removing the battery .................................................................................... 14 Charging the battery ...................................................................................... 15 Power on/off ........................................................................................................... 16 Using your phone ..................................................................................................... 17 Common functions................................................................................................... 18 Making and receiving calls .................................................................................... 18 Making a call .................................................................................................. 18 Receiving a call.............................................................................................. 19 Adjusting the volume ..................................................................................... 19 Hands-free ..................................................................................................... 19 Call options .................................................................................................... 19 Writing SMS ........................................................................................................... 19 Writing MMS .......................................................................................................... 20 Viewing messages ................................................................................................. 21 Adding a new contact ............................................................................................ 21 Using your phone as memory ............................................................................... 22 Main Function list ..................................................................................................... 23 Input what you want, how you want... ................................................................... 31 Appendix ................................................................................................................... 32 Care and maintenance .......................................................................................... 32 Health and safety ................................................................................................... 33 FCC Regulations ................................................................................................... 35 Declaration of RoHS compliance .......................................................................... 37 Disposal of your old phone .................................................................................... 38 Problems and their solutions ................................................................................. 39 Let’s get started 1 Let’s get started Thanks for choosing the ZTE-G X632. It’s a GSM dual-band GPRS digital mobile handset, which we’ll simply call ‘phone’ from now on. If you’d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions they show that matter. Lost or stolen? If your phone goes missing, please tell your service provider as soon as you know. That way other people can be barred from using it. Obviously, it’s best to keep your phone with you at all times, and we’d strongly advise you to set a PIN, and change it from time to time. Let’s get started 2 Using your phone safely on the road z Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. near sensitive electronics z Don’t use your phone near sensitive electronic equipment – particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. z For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. z Your phone may cause i…

Text truncated - open the document above for the full version.

Date: 17 Nov, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The ZTE Corporation, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the ZTE Corporation solely in matters relating to the application for an FCC equipment authorization for FCC ID: Q78-X632 including the signing of documents in connection with this Application. Necessary acts carried out by ZTE Corporation on our behalf of the ZTE Corporation in connection with the Application shall have the same effect as acts of the ZTE Corporation. The ZTE Corporation also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Royce Wang ZTE product approval manager

Date: 17 Nov, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: ZTE Corporation FCC ID: Q78-X632 FCC Part 22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. ZTE Corporation requests that the following documents regarding this submission for FCC ID: Q78-X632 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX Q78-X632_Block Diagram.pdf Schematics CONF APPENDIX Q78-X632_Schematics.pdf Operational Description CONF APPENDIX Q78-X632_Operational Description.pdf Part list CONF APPENDIX Q78-X632_BOM.pdf Tune-Up-Procedure CONF APPENDIX Q78-X632_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which ZTE Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, ZTE Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Royce Wang ZTE product approval manager

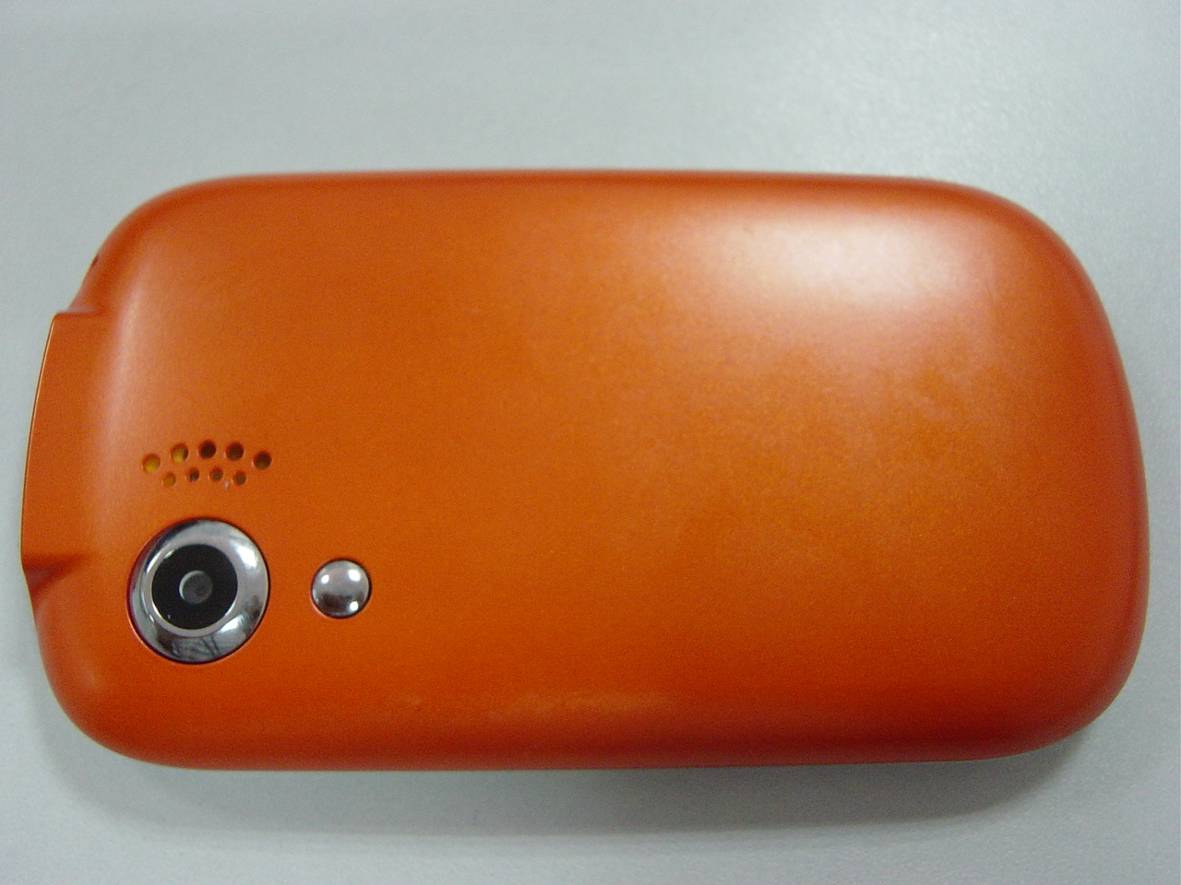

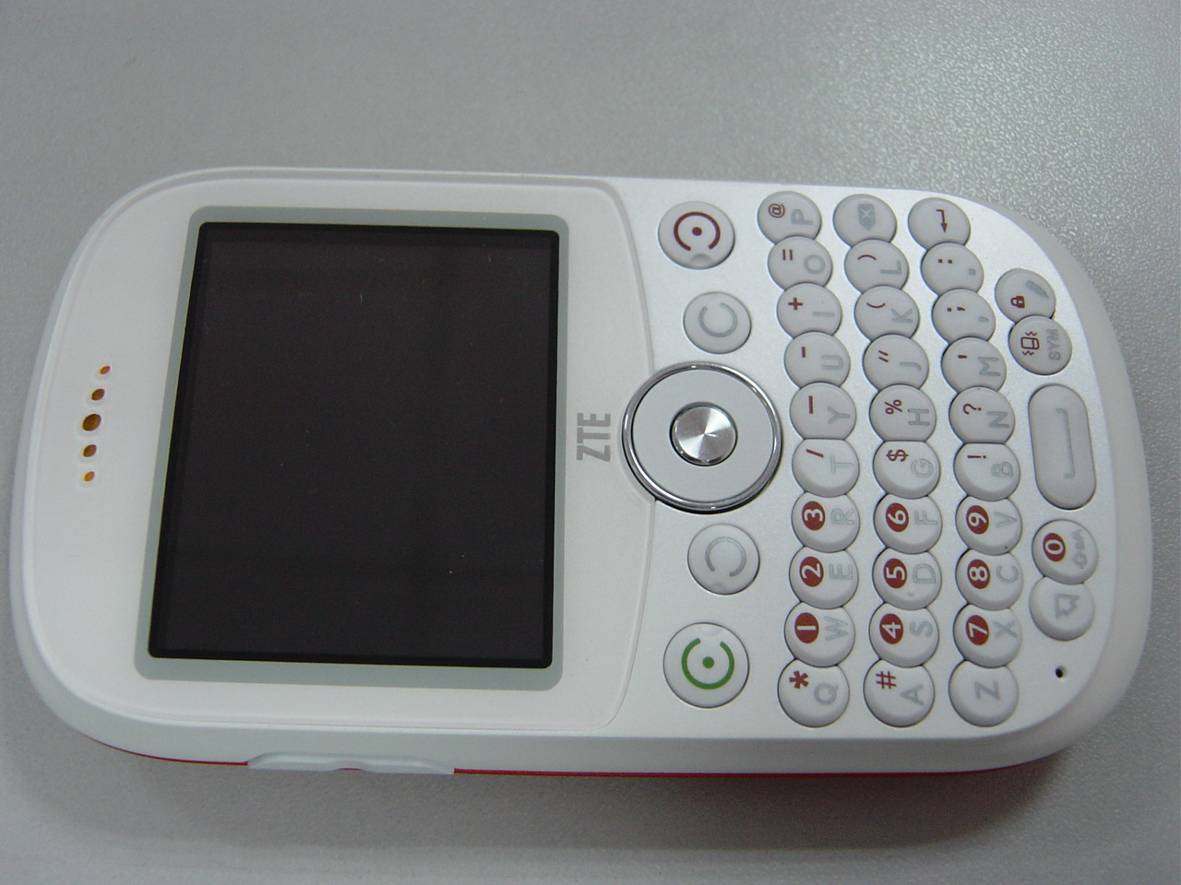

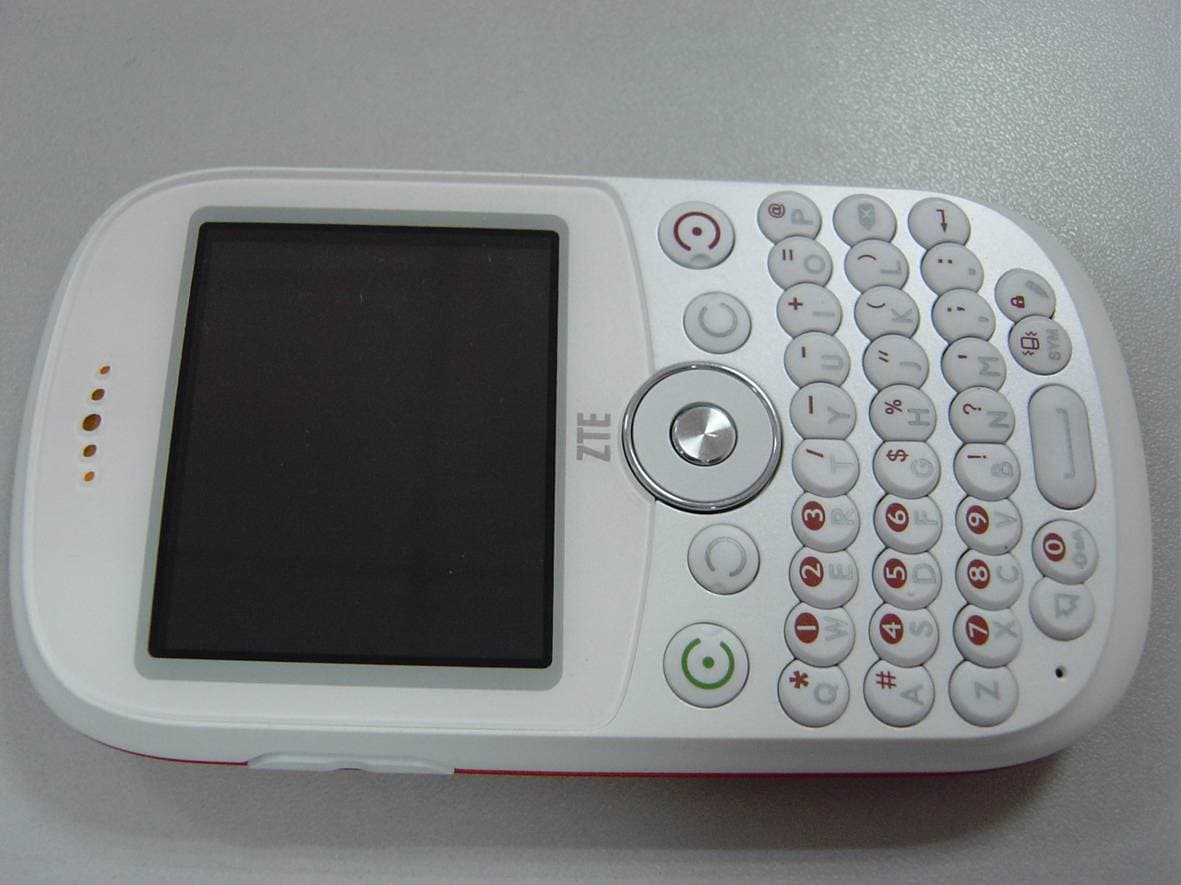

External Photos 1. Front View of EUT 2. Back View of EUT 3. All Side View of EUT

Label Label Location

17 Nov, 2010 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: Q78-X632 Dear Sirs: ZTE Corporation requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier Q78-X632. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22&24 for mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls, camera and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, ZTE Corporation proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), ZTE Corporation will add the FCC identifier "Q78-X632" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, Royce Wang ZTE product approval manager

Internal Photos

Report No.: SZ10110061E02 Page 2 of 17 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 3 2. GENERAL INFORMATION .................................................................................................... 4 2.1 EUT Description ......................................................................................................................... 4 2.2 Test Standards and Results........................................................................................................ 5 2.3 Facilities and Accreditations ..................................................................................................... 6 2.3.1 Facilities ................................................................................................................................... 6 2.3.2 Test Environment Conditions ................................................................................................... 6 2.3.3 Measurement Uncertainty ........................................................................................................ 6 3. TEST CONDITIONS SETTING............................................................................................... 7 3.1 Test Mode .................................................................................................................................... 7 3.2 Test Setup and Equipments List ............................................................................................... 8 3.2.1 Conducted Emission ................................................................................................................. 8 3.2.2 Radiated Emission .................................................................................................................... 9 4. 47 CFR PART 15B REQUIREMENTS .................................................................................. 10 4.1 Conducted Emission................................................................................................................. 10 4.1.1 Requirement ........................................................................................................................... 10 4.1.2 Test Description ...................................................................................................................... 10 4.1.3 Test Result .............................................................................................................................. 10 4.1.3.1 GSM Test Mode ........................................................................................................................ 10 4.1.3.2 USB Test Mode ...................................................................................................................... 12 4.2 Radiated Emission .................................................................................................................... 14 4.2.1 Requirement ........................................................................................................................... 14 4.2.2 Test Description ...................................................................................................................... 14 4.2.3 Test Result .............................................................................................................................. 14 Change History Issue Date Reason for change 1.0 November 24, 2010 First edition Report No.: SZ10110061E02 Page 4 of 17 2. GENERAL INFORMATION 2.1 EUT Description EUT Type ....................... GSM Dual-Band GPRS Digital Mobile Phone Model Name ................... ZTE-G X632 / Movistar Match Serial No. ....................... (n.a, marked #1 by test site) Hardware Version ........... MB2309AV1BMB_B Software Version ............ Z525.C136.HW1.SW8.V1 Modulation Type ............ GMSK Power Supply ................. Battery Model Name: BK553442ARH Brand name: B&K Capacitance: 850mAh Rated voltage: 3.7V Manufacturer: Shenzhen B&K Rechargeable Battery,Inc. Ancillary Equipment 1 ... AC Adapter (Charger for Battery) Model Name: STC-A22O50M5-C Brand Name: ZTE Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V 50/60Hz, 200mA Rated Output: 5.0V700mA Manufacturer: ZTE Corporation Manufacturer Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,Nanshan District,Shenzhen,Guangdong,P.R.China Note 1: The EUT is a GSM Dual-Band GPRS Digital Mobile Phone; it supports GSM 850MHz, 1900MHz. GSM 850MHz and 1900MHz are tested in this report. Note 2: The EUT is equipped with a T-Flash card slot; equipped with a special port which can be connected to the ancillary equipments supplied by the manufacturer e.g. the AC Adapter and the USB Adapter Cable. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ10110061E02 Page 5 of 17 2.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in ANSI C63.4 2003. Report No.: SZ10110061E02 Page 6 of 17 2.3 Facilities and Accreditations 2.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in confo…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2. RE
