Q78-ZTE32003G Mobile HotSpot

3. ZTE3200 User Manual The manual is applicable for the ZTE 3200 2. 文档信息 版本 修订日期 修订人 软件版本 备注 1.0 2010年6 月 liuhongmei 2. Copyright © 2010 by ZTE Corporation All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. Version 1.0 in Jun. 2010 2. Contents 1 You ZTE 3200 Device .................................................................................. 1 1.1 How to Use This guide ............................................................................ 2 1.1.1 Getting More Information About the Device and Service....... 3 2 Section 1 ..................................................................................................... 4 3 Introducing the ZTE 3200 ........................................................................... 4 3.1 Introducing the ZTE 3200 ....................................................................... 5 3.1.1 Package Contents ................................................................ 5 3.1.2 Care and Maintenance ......................................................... 5 4 Section 2 ..................................................................................................... 7 5 Using the ZTE 3200 device ........................................................................ 7 5.1 ........................................................................................................................ 7 5.2 Charging the Battery ............................................................................... 8 5.3 Battery Tips ............................................................................................. 9 5.4 Connecting to the ZTE 3200 ................................................................. 10 4. 5.4.1 How to connect the ZTE 3200 ............................................ 11 5.4.2 Using the Device Outside of the United States ................... 12 5.4.3 Connecting sprint Customer Service .................................. 13 5.4.4 Troubleshooting .................................................................. 13 5.4.5 Using the Master Reset Button ........................................... 14 5.4.6 Using the WLAN ................................................................. 15 5.5 Configuring the ZTE 3200 Device ......................................................... 17 5.5.1 Opening the Browser Interface ........................................... 17 5.5.2 Administration ..................................................................... 19 6 Section 3 ................................................................................................... 26 7 Technical Specifications, Regulatory and Safety Information, Warranty, and Glossary ......................................................................................................... 27 7.1 Technical Specifications ........................................................................ 28 7.1.1 LED Overview .................................................................... 28 7.1.2 Environmental Specifications .............................................. 29 7.1.3 Mechanical Specifications .................................................. 29 7.1.4 CDMA Technology .............................................................. 30 7.2 Regulatory Information ......................................................................... 30 4. 7.2.1 Regulatory Notices ............................................................. 31 7.2.2 Federal Communications Commission Notice(FCC – United States) 32 7.2.3 Iimitation of liability ............................................................. 32 7.2.4 Additional Information and Updates .................................... 33 7.3 Important Safety Information ................................................................. 34 7.3.1 Important Notice ................................................................. 34 7.3.2 Safety and Hazards ............................................................ 35 7.4 ZTE Wireless Limited Warranty and Liability ......................................... 36 7.5 Glossary ............................................................................................... 37 5. 1 1 You ZTE 3200 Device Thanks for choosing the ZTE 3200. This device offers more freedom than ever before. No wires, no cables-just access to your data when you need it. The power of the Internet is truly at your fingertips. 5. 2 1.1 How to Use This guide The advances of Sprint are as clear as each wireless connection you make. With Sprint service, we give you what you really want from a wireless service provider-clear connections, easy-to-understand service plans, and 5. 3 self-servicing options for managing your account, All this is designed to make your life easier and worry-free. We know you‟re eager to start using your device right away, and the sections of this guide are designed to help you do just that.  The first section ( ) gives an overview of the device package contents.  The second section ( ) guides you through the steps required to set up and use your device.  The third section ( ) lists technical specifications and regulatory, safety, and warranty information for your device. There is also a glossary of technical terms used in this guide. 1.1.1 Getting More Information About the Device and Service This guide describes how to set up and use the device. To learn how to use all the features of your device and its browser interface, consult the user guide (available at www.sprint.com) or online help. 5. 4 2 Section 1 3 Introducing the ZTE 3200 5. 5 3.1 Introducing the ZTE 3200  Package Contents  Care and Maintenance This section introduces your ZTE 3200 devic…

Text truncated - open the document above for the full version.

Rev. 1/1/03 ZTE CORPORATION Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZTE3200). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE3200_Schem.pdf) Block Diagram (file: ZTE3200_BlkDia.pdf) Parts List (file: ZTE3200_PartsLst.pdf) Operation Description (file: ZTE3200_OpDes.pdf) Tune Up Procedure (file: ZTE3200_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ David Gong

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: July 19, 2010 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Roy Wu in Sporton International Inc. and David Gong in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., and David Gong in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-ZTE3200 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-86360379 FAX: +86-755-86360298 E-mail: [email protected]

1/1 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Tel: +86-755-86360379 ; Fax: +86-755-86360298 Date: November 2, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-ZTE3200 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: ZTE3200_ExtPho.pdf)  Internal Photos (file: ZTE3200_IntPho.pdf)  Test Setup Photos (file: ZTE3200_Tsup.pdf)  User Manual (file: ZTE3200_UserMan.pdf)  WWAN SAR for ZTE3200 alone_Appendix DE  WWAN SAR for ZTE3200 with iPod 2_Appendix DE  WWAN SAR for ZTE3200 with iPod 3_Appendix DE  WLAN SAR for ZTE3200 alone_Appendix DE  WLAN SAR for ZTE3200 with iPod 2_Appendix DE  WLAN SAR for ZTE3200 with iPod 3_Appendix DE The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, David Gong

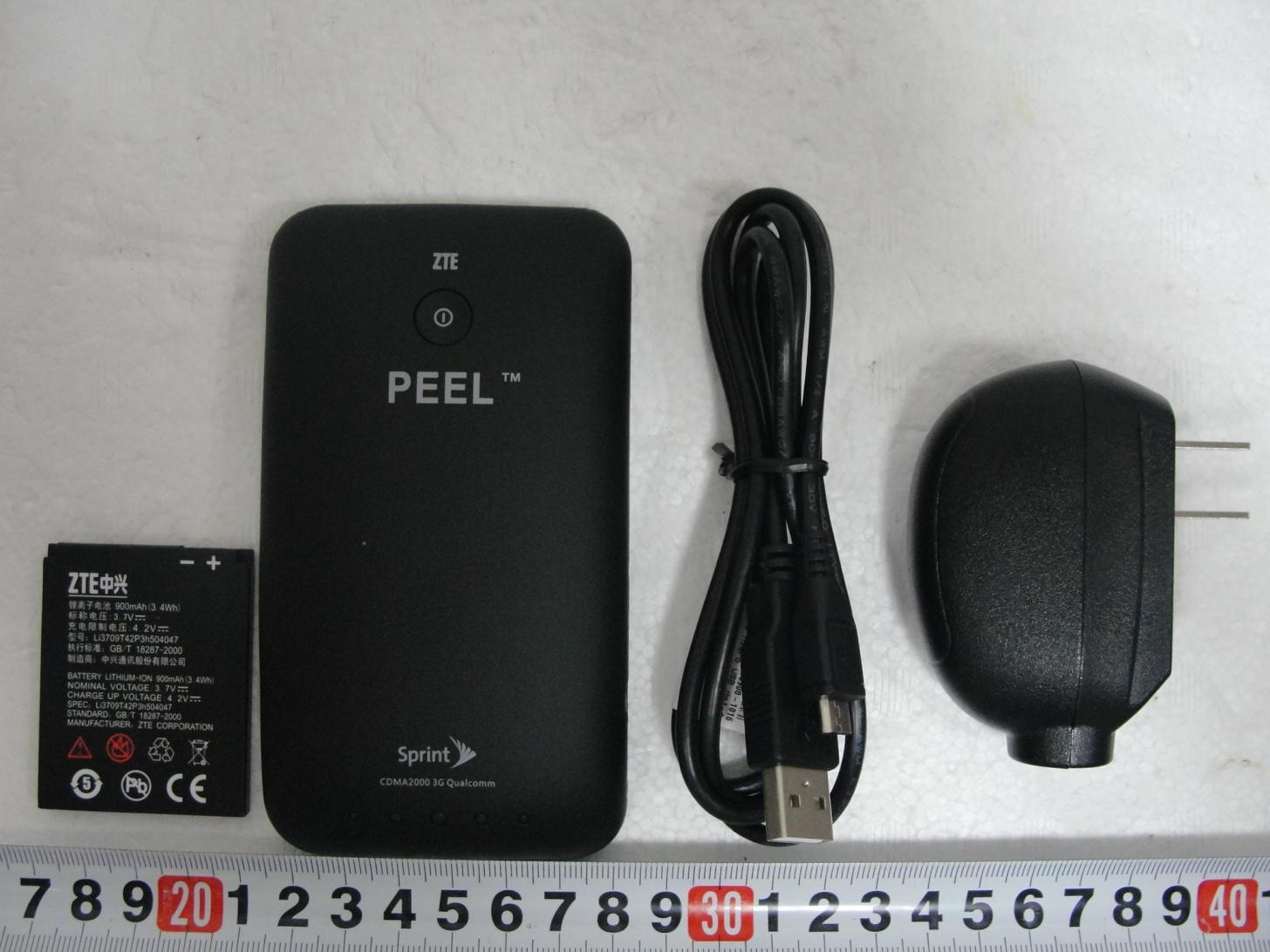

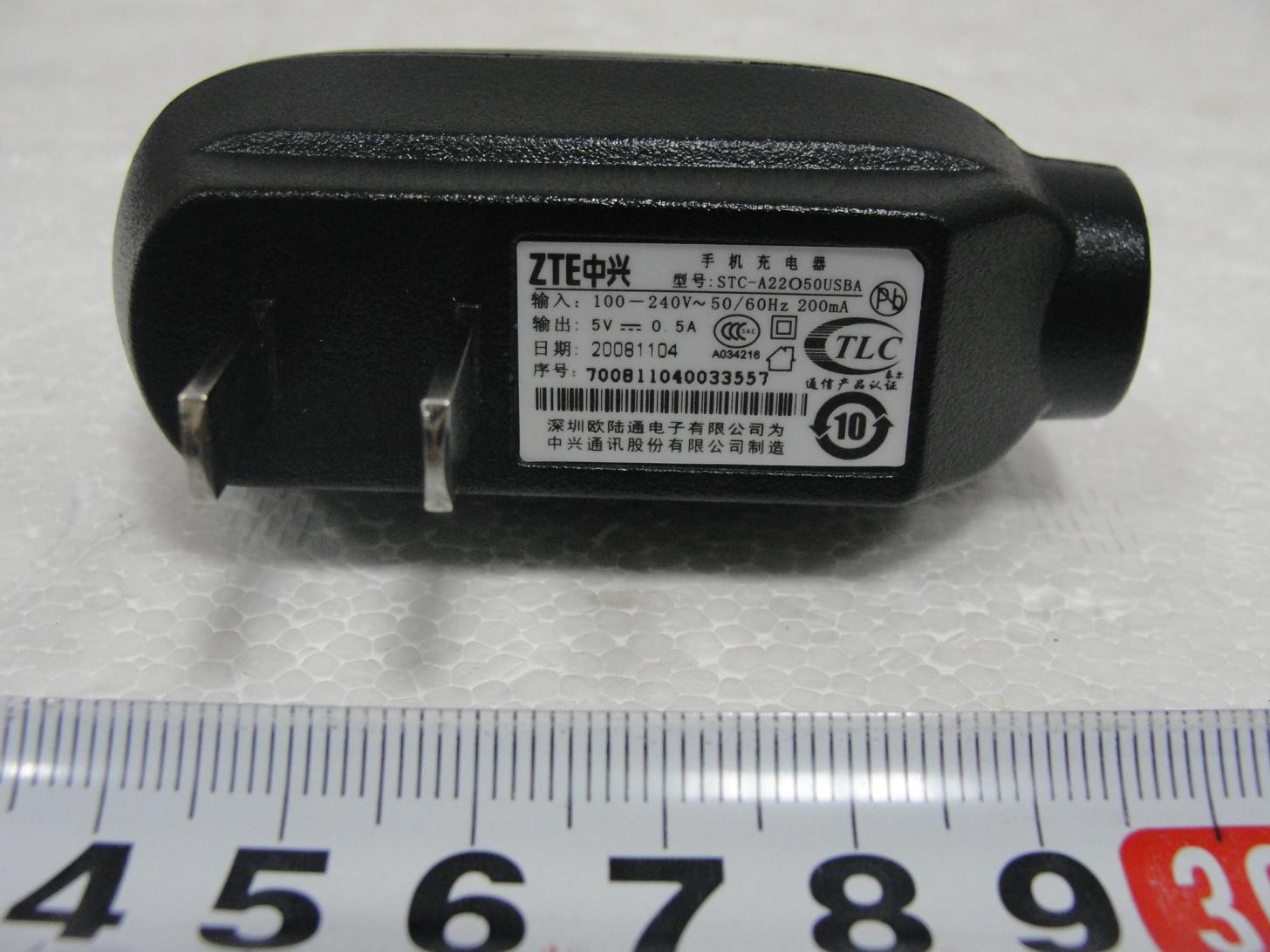

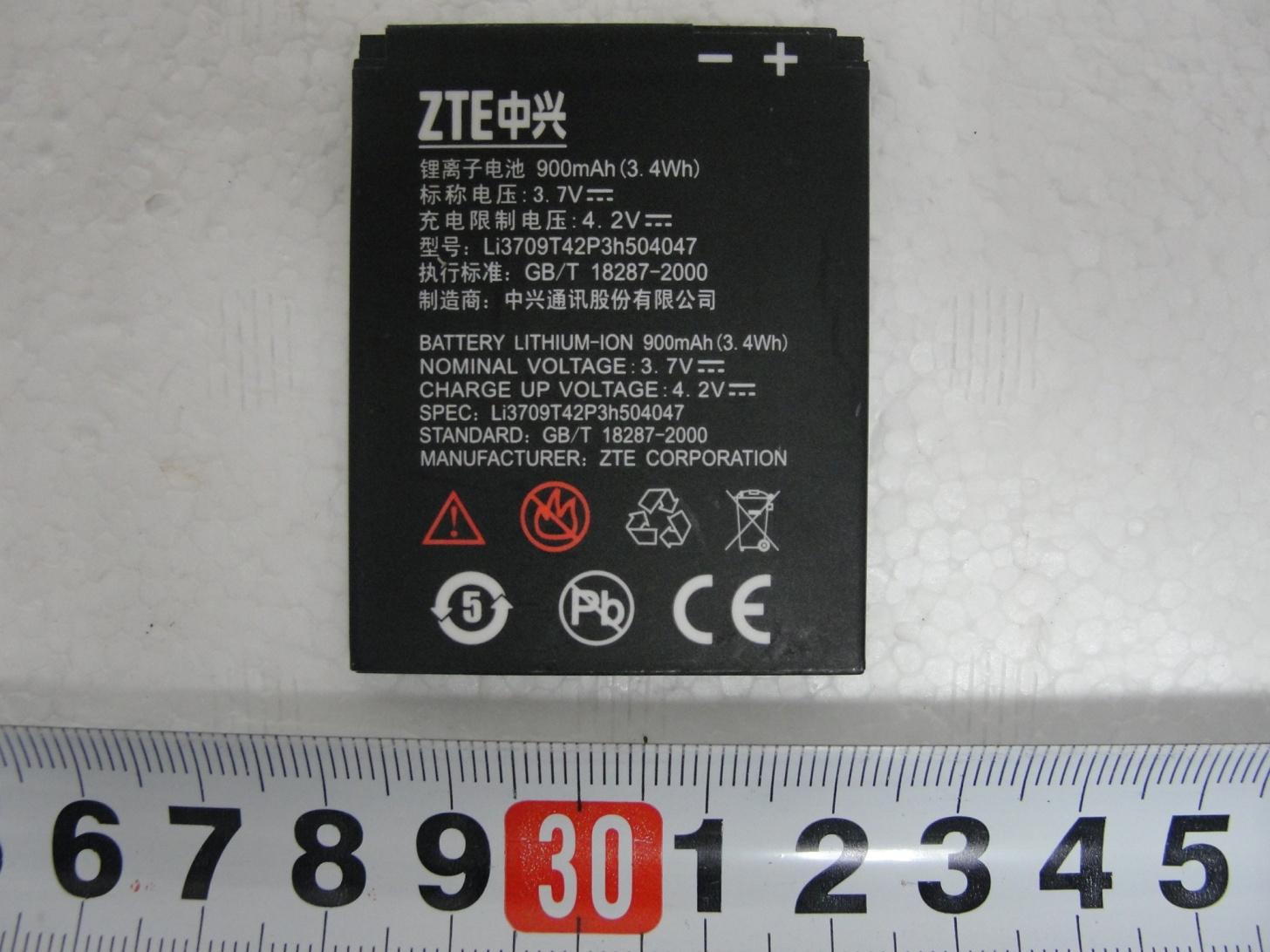

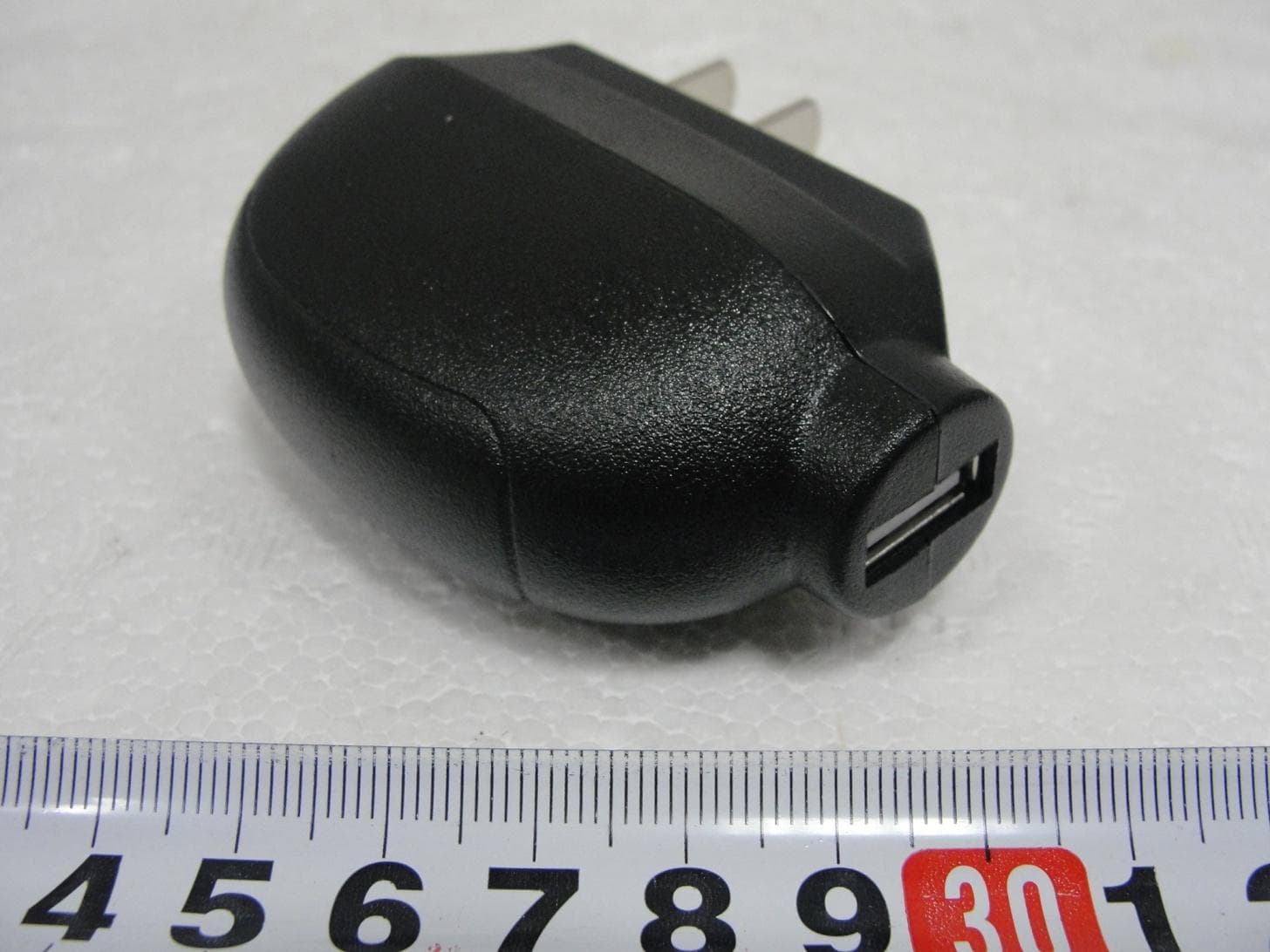

Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 1 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 1. External Photograph of EUT Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 2 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 3 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 4 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 5 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 6 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 720510 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 7 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O50USBA Power Rating I/P:100-240Vac, 50-60Hz, 200mA; O/P: 5Vdc, 0.5A Battery Brand Name ZTE Model Name Li3709T42P3h504047 Power Rating 3.7Vdc, 900mAh Type Li-ion USB Cable Brand Name CARVE Model Name USB-MU5-B-120 Signal Line Type 1.2 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 8 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 9 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 10 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 11 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 12 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 13 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 14 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 720510

Back of the device Label Location

Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 15 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 3. Internal Photograph of EUT Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 16 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 17 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 18 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 Photographs of EUT Report No.: EP070306 Brand Name: ZTE / Model Name: ZTE3200 SPORTON INTERNATIONAL INC. Page Number : 19 of 19 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : Q78-ZTE3200 720510 WLAN Antenna (Tx/Rx) WWAN Diversity Antenna (Rx only) WWAN Main Antenna (Tx/Rx)

SAR Test Reduction for ZTE3200 The device, ZTE3200 can be operated as hotspot either with or without iPod Touch clipped together. It can only attach to iPod Touch 2 or 3 since the internal shape design. 1. Conducted Output Power <ZTE3200 / FCC ID: Q78-ZTE3200> Band CDMA2000 BC0 CDMA2000 BC1 Channel 1013 384 777 25 600 1175 Frequency (MHz) 824.70 836.52 848.31 1851.25 1880.00 1908.75 1xRTT RC1+SO55 23.58 22.92 22.90 23.16 23.59 23.24 1xRTT RC3+SO55 23.51 23.01 22.96 23.29 23.66 23.38 1xRTT RC3+SO32 23.62 23.00 22.87 23.29 23.55 23.33 EVDO RTAP 153.6 23.59 23.02 22.87 23.22 23.58 23.35 EVDO RETAP 4096 23.57 23.00 22.86 23.08 23.52 23.33 Band 802.11b 802.11g Channel 1 6 11 1 6 11 Frequency (MHz) 2412 2437 2462 2412 2437 2462 Peak Power 15.30 13.23 16.16 21.53 19.98 22.79 Average Power 12.45 10.60 13.52 12.12 10.35 13.30 <iPod Touch 2 / FCC ID: BCGA1288> Band 802.11b 802.11g Channel 1 6 11 1 6 11 Frequency (MHz) 2412 2437 2462 2412 2437 2462 Peak Power 18.17 18.15 18.57 24.24 24.04 22.86 Average Power 16.66 16.36 16.18 16.40 16.50 15.30 <iPod Touch 3 / FCC ID: BCG-2310> Band 802.11b 802.11g Channel 1 6 11 1 6 11 Frequency (MHz) 2412 2437 2462 2412 2437 2462 Peak Power 18.17 17.03 17.74 22.36 23.36 22.24 Average Power 15.10 15.00 15.10 14.10 15.10 14.00 2. SAR Test Results FCC ID: ZTE3200 A) DUT Combinations B) Tx Modes C) Test Position (DUT) 1) ZTE3200 2) ZTE3200 + iPod Touch 3 3) ZTE3200 + iPod Touch 2 1) ZTE3200 CDMA2000 1) Rear Face 2) Front Face 3) Right Side 4) Left Side 5) Top Side 6) Bottom Side NOTE 1–modes and modulations tested per KDB 941225 (all subdocuments therein where applicable); KDB 248227 for 802.11abg NOTE 2–Only the Apple iPod Touch 3 was used for SAR evaluation since both iPod Touch 2 and iPod Touch 3 have the same dimension and ID design NOTE 3–The separation distance between DUT and phantom is 10 mm for all test positions for SAR testing NOTE 4–According to KDB 648474, the WLAN SAR for ZTE3200 is not required because its average power is less than 60/f. NOTE 5–According to Apr. 2010 FCC-TCB conference notes, ZTE3200 use the highest power channel to determine test reduction for each mode SINGLE-TRANSMIT: Row# Body A) DUT Combinations B) Tx Modes C ) Test Position (DUT) BC0 Ch1013 824.70 BC0 Ch384 836.52 BC0 Ch777 848.31 BC1 Ch25 1851.25 BC1 Ch600 1880.00 BC1 Ch1175 1908.75 .11b Ch1 2412.0 .11b Ch6 2437.0 .11b Ch11 2462.0 .11g Ch1 2412.0 .11g Ch6 2437.0 .11g Ch11 2462.0 1 B 1 1 Rear 0.969 1.31 1.23 1.12 1.26 1.35 2 B 1 1 Front 0.421 0.479 3 B 1 1 Right 0.632 0.775 1.08 1.22 4 B 1 1 Left 0.339 0.19 5 B 1 1 Top 0.045 0.346 6 B 1 1 Bottom 0.011 0.168 7 B 1 2 Rear 8 B 1 2 Front 9 B 1 2 Right 10 B 1 2 Left 11 B 1 2 Top 12 B 1 2 Bottom 13 B 1 3 Rear 14 B 1 3 Front 15 B 1 3 Right 16 B 1 3 Left 17 B 1 3 Top 18 B 1 3 Bottom 19 B 2 1 Rear 1.05 1.33 1.29 0.861 1.1 1.32 20 B 2 1 Front 0.298 0.608 21 B 2 1 Right 0.551 0.875 1.05 1.38 22 B 2 1 Left 0.366 0.122 23 B 2 1 Top 0.075 0.244 24 B 2 1 Bottom 0.012 0.066 25 B 2 2 Rear 26 B 2 2 Front 27 B 2 2 Right 28 B 2 2 Left 29 B 2 2 Top 30 B 2 2 Bottom 31 B 2 3 Rear 32 B 2 3 Front 33 B 2 3 Right 34 B 2 3 Left 35 B 2 3 Top 36 B 2 3 Bottom 37 B 3 1 Rear 0.911 1.22 1.19 0.823 1.15 1.26 38 B 3 1 Front 0.284 0.449 39 B 3 1 Right 0.591 0.684 0.941 1.19 40 B 3 1 Left 0.415 0.189 41 B 3 1 Top 0.077 0.23 42 B 3 1 Bottom 0.015 0.048 43 B 3 2 Rear 44 B 3 2 Front 45 B 3 2 Right 46 B 3 2 Left 47 B 3 2 Top 48 B 3 2 Bottom 49 B 3 3 Rear 50 B 3 3 Front 51 B 3 3 Right 52 B 3 3 Left 53 B 3 3 Top 54 B 3 3 Bottom Note: Because the test separation distance is difference for 0 mm gap and 10 mm gap, the SAR trend for Rear Face and Right Side have different effect.

Page: 1 of 9 Evaluation for mini-tablet/UMPC Operations for ZTE3200 and iPod Touch 2/3 Per FCC test requirement as below, we test the worst SAR channel of WWAN on the worst SAR face, DUT Rear Face and DUT Right Side with 10 mm gap. <SAR Test Results> ZTE3200 + iPod Touch 3 Position ZTE3200 CDMA2000 BC0 ZTE3200 CDMA2000 BC1 Hand SAR Limit (W/kg per 10g) Note Rear Face 1.01 3.7 4 Pass Right Side 1.78 2.68 4 Pass ZTE3200 + iPod Touch 2 Position ZTE3200 CDMA2000 BC0 ZTE3200 CDMA2000 BC1 Hand SAR Limit (W/kg per 10g) Note Rear Face 1.03 3.76 4 Pass Right Side 1.78 2.56 4 Pass <Simultaneous Transmission SAR Evaluation for 0 mm Gap> The highest 0 mm SAR for ZTE3200 is 3.76 (W/kg per 10g). The worst case conservative of front face SAR for iPod Touch is 0.224 (W/kg per 10g). The simultaneous transmission SAR is calculated as below. 3.76 + 0.224 = 3.984 < 4 W/kg Page: 2 of 9 <SAR Plots for mini-tablet/UMPC Operations> Page: 3 of 9 Page: 4 of 9 Page: 5 of 9 Page: 6 of 9 Page: 7 of 9 Page: 8 of 9 Page: 9 of 9

Page: 1 of 7 Simultaneous Transmission SAR Evaluation for ZTE3200 and iPod Touch 2/3 Because the iPod Touch can’t set it up into engineer mode for continuous transmission, we follow two steps as below to transmit a large file to evaluate the worst SAR of iPod Touch. Step 1: The iPod Touch should NOT be mounted in the ZTE3200. Instead is should be tested by itself. It should be set to communicate with a WiFi access point at some distance away so that the iPod Touch will be operating at the maximum power level. The SAR readings should then be measured at 0 cm from the iPod Touch on the worst case frequency and in the worst case position as documented in Apple's SAR report. Step 2: The iPod Touch should be mounted in the ZTE3200. However, the Peel should be turned off. Again the iPod Touch should be set to communicate with a WiFi access point at some distance away so that the iPod Touch will be operating at the maximum power level. The SAR readings should then be taken at 10 mm from the ZTE3200/iPod Touch on the same frequency as the Step 1. It should take these measurements using the same position as the Step 1. The setup steps for large-file-transfer from iPod Touch to Laptop PC are as below. 1. Install FTP application software into both iPod Touch and laptop PC. 2. Set the Access Point to use 802.11b mode channel 6 only. 3. Make both iPod Touch and laptop PC linking with Access Point. 4. Execute FTP software of iPod Touch to transfer one large file (file name: test, file size: 1GB) to laptop PC through Access Point. 5. Use a Spectrum Analyzer to monitor and make sure the WLAN continuous transmission during SAR testing. Spectrum Analyzer Transmission Monitoring Plot Page: 2 of 7 <Scaling Up Factor> iPod Touch Version Apple Report (0 mm Gap) iPod Big-File-Transfer (0 mm Gap) Scaling Up Factor iPod Touch 3 SAR 1g 1.20 0.658 1.82 iPod Touch 2 SAR 1g 1.30 0.627 2.07 Note: 1. The test condition for iPod Touch WLAN SAR testing is Front Face of iPod Touch, and channel 6 of 802.11b mode. 2. Scaling Up Factor = SAR of Apple Report / SAR of iPod Big-File-Transfer <Worst SAR Calculating for iPod Touch> iPod Touch Version iPod Big-File-Transfer (10 mm Gap) Scaling Up Factor Calculated Worst SAR iPod Touch 3 SAR 1g 0.063 1.82 0.115 iPod Touch 2 SAR 1g 0.049 2.07 0.101 Note: 1. Calculated Worst SAR = SAR of iPod Big-File-Transfer *Scaling Up Factor Page: 3 of 7 Simultaneous Transmission SAR Evaluation for 10 mm Gap <ZTE3200 + iPod Touch 3> Position ZTE3200 CDMA2000 BC0 ZTE3200 802.11b/g iPod Touch 3 802.11b/g Max. SAR Summation Front Face 0.298 0 0.115 0.413 Rear Face 1.33 1.445 Right Side 0.551 0.666 Left Side 0.366 0.481 Top Side 0.075 0.19 Bottom Side 0.012 0.127 Position ZTE3200 CDMA2000 BC1 ZTE3200 802.11b/g iPod Touch 3 802.11b/g Max. SAR Summation Front Face 0.608 0 0.115 0.723 Rear Face 1.32 1.435 Right Side 1.38 1.495 Left Side 0.122 0.237 Top Side 0.244 0.359 Bottom Side 0.066 0.181 Note: According to KDB 648474, the WLAN SAR for ZTE3200 is not required because its average power is less than 60/f. <ZTE3200 + iPod Touch 2> Position ZTE3200 CDMA2000 BC0 ZTE3200 802.11b/g iPod Touch 2 802.11b/g Max. SAR Summation Front Face 0.284 0 0.101 0.385 Rear Face 1.22 1.321 Right Side 0.591 0.692 Left Side 0.415 0.516 Top Side 0.077 0.178 Bottom Side 0.015 0.116 Position ZTE3200 CDMA2000 BC1 ZTE3200 802.11b/g iPod Touch 2 802.11b/g Max. SAR Summation Front Face 0.449 0 0.101 0.55 Rear Face 1.26 1.361 Right Side 1.19 1.291 Left Side 0.189 0.29 Top Side 0.23 0.331 Bottom Side 0.048 0.149 Note: According to KDB 648474, the WLAN SAR for ZTE3200 is not required because its average power is less than 60/f. <Conclusion> According KDB 648474, the simultaneous transmission SAR for ZTE3200 WWAN, ZTE3200 WLAN and iPod Touch WLAN was not required, because all SAR summations are less than 1.6 W/kg. Page: 4 of 7 <SAR Plots for iPod Touch Big-File-Transfer> Page: 5 of 7 Page: 6 of 7 Page: 7 of 7

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/19/2010 #35 CDMA2000 BC0_RTAP 153.6_Rear Face_10mm_Ch384 DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100819 Medium parameters used: f = 825 MHz; σ = 0.997 mho/m; ε r = 57.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.42 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.7 V/m; Power Drift = 0.061 dB Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 1.31 mW/g; SAR(10 g) = 0.895 mW/g Maximum value of SAR (measured) = 1.39 mW/g 0 dB = 1.39mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/19/2010 #35 CDMA2000 BC0_RTAP 153.6_Rear Face_10mm_Ch384_2D DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100819 Medium parameters used: f = 825 MHz; σ = 0.997 mho/m; ε r = 57.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.42 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.7 V/m; Power Drift = 0.061 dB Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 1.31 mW/g; SAR(10 g) = 0.895 mW/g Maximum value of SAR (measured) = 1.39 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/19/2010 #37 CDMA2000 BC0_RTAP 153.6_Front Face_10mm_Ch1013 DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100819 Medium parameters used: f = 825 MHz; σ = 0.997 mho/m; ε r = 57.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.474 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.105 dB Peak SAR (extrapolated) = 0.534 W/kg SAR(1 g) = 0.421 mW/g; SAR(10 g) = 0.320 mW/g Maximum value of SAR (measured) = 0.439 mW/g 0 dB = 0.439mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/19/2010 #40 CDMA2000 BC0_RTAP 153.6_Right Side_10mm_Ch1013 DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100819 Medium parameters used: f = 825 MHz; σ = 0.997 mho/m; ε r = 57.7; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.747 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.9 V/m; Power Drift = -0.126 dB Peak SAR (extrapolated) = 0.851 W/kg SAR(1 g) = 0.632 mW/g; SAR(10 g) = 0.446 mW/g Maximum value of SAR (measured) = 0.670 mW/g 0 dB = 0.670mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/30/2010 #70 CDMA2000 BC0_RTAP 153.6_Left Side_10mm_Ch1013 DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100830 Medium parameters used: f = 825 MHz; σ = 0.961 mho/m; ε r = 56.4; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.392 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.4 V/m; Power Drift = -0.104 dB Peak SAR (extrapolated) = 0.447 W/kg SAR(1 g) = 0.339 mW/g; SAR(10 g) = 0.244 mW/g Maximum value of SAR (measured) = 0.356 mW/g 0 dB = 0.356mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 8/30/2010 #71 CDMA2000 BC0_RTAP 153.6_Top Side_10mm_Ch1013 DUT: 070101-03 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_100830 Medium parameters used: f = 825 MHz; σ = 0.961 mho/m; ε r = 56.4; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn121…
