Q78-ZTEA137GSM Dual-band GPRS Digital Mobile Phone

1 ZTE CORPORATION ZTE A137 GSM Digital Mobile Phone User Manual 2 Copyright © 2007 by ZTE Corporation All rights reserved. No part of this publication may be exce rpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE operates a policy of continuous devel opment. We reserve the right to update the technical specifications in this doc ument at any time without prior notice. Release V1.0 Manual number MM DD, 2007 3 GENERAL INFORMATION ....................................................................... 8 W ELCOME .................................................................................................... 8 S ECURITY ..................................................................................................... 8 S AFETY P RECAUTIONS ................................................................................. 9 GETTING STARTED ................................................................................. 18 K EY D EFINITION ........................................................................................ 18 D ISPLAY I NDICATORS ................................................................................. 20 T ECHNICAL P ARAMETERS .......................................................................... 22 B ATTERY .................................................................................................... 22 Removing & Installing the Battery ...............................................23 Charging the Battery .......................................................................23 C ONNECTING TO THE N ETWORK ................................................................ 25 SIM Card .............................................................................................25 Inserting & Removing SIM Card ...................................................25 4 Switch on/off Your Phone ..............................................................25 Connecting to the Network ............................................................26 BASIC OPERATIONS................................................................................ 27 M AKING AND A NSWERING A C ALL ............................................................. 27 C ALL M ENU ............................................................................................... 27 FUNCTION MENU..................................................................................... 28 U SAGE AND S TRUCTURE OF F UNCTION M ENU ........................................... 28 C ALL H ISTORY ........................................................................................... 29 Missed Calls ......................................................................................29 Dialed Calls ........................................................................................29 Received Calls ..................................................................................29 Delete Call Log ..................................................................................29 Call Time .............................................................................................29 Call cost ..............................................................................................29 5 SMS Counter .....................................................................................29 GPRS Counter ...................................................................................29 Auto Quick End .................................................................................29 U SER P ROFILES .......................................................................................... 30 F ILE M ANAGER .......................................................................................... 31 P HONE B OOK ............................................................................................. 31 M ESSAGES ................................................................................................. 32 SMS ......................................................................................................32 MMS .....................................................................................................33 Voicemail ............................................................................................34 Broadcast Message .........................................................................34 M ULTIMEDIA .............................................................................................. 35 Camera ................................................................................................35 Image Viewer .....................................................................................35 Video Recorder .................................................................................35 Video Player .......................................................................................35 6 Audio Player ......................................................................................35 Sound Recorder ................................................................................35 Melody Compose ..............................................................................35 T OOLKIT .................................................................................................... 36 Calendar .............................................................................................36 To Do List ...........................................................................................36 Alarm ...................................................................................................36 World clock ........................................................................................36 Games .................................................................................................36 St…

Text truncated - open the document above for the full version.

秘密▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共2页 DECLARATION We, ZTE Corporation declare Our company’s project ZTEA137 (FCC ID: Q78-ZTEA137) Is same as ZTE Corporation’s project ZTEA137+ (FCC ID: Q78-A137PLUS) Except Hardware: A137 doesn’t support the FM radio function, which is not supported by FM chipset and related electronic components. Software: only changed the Man-machine Interface\ Version Update\ do not change the Software of GSM Protocol The above-mentioned statements of our company are totally true. If false, we will bear corresponding liability. 秘密▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第2页，共2页 Company Address: B105, #889, Bibo Rd, Zhangjiang Hi-Tech Park, Shanghai,China Telephone: 86-21-68896840 Fax: 021-50801070 2007-12-12

Date: 2007-12-07 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we, ZTE CORPORATION, hereby requests confidential treatment of information accompanying this Application (Q78-ZTEA137 ) as outlined below: Exhibit Type File Name - Block Diagram -ZTE_A137_Block Diagram.pdf - Schematics -ZTE_A137_Circuit Schematics.pdf - Operational Description -ZTE_A137_Operational Description.pdf - Part List -ZTE_A137_Part List.pdf - TuneUp Info -ZTE_A137_TuneUp.pdf The above materials contain trade secrets and proprietary information not customarily released to the prublic. The public disclosure of these matters might be harmful to us, ZTE CORPORATION, and provide unjustified benefits to its competitors. We, ZTE CORPORATION, understand that pursuant to Rule 0.457, disclosure of this Application (FCC ID: Q78-ZTEA137) and all accompanying documentation will not be made before the date of the Grant for this application. Thank you for your attention in this matter. Signatory Tianye Date: 2007-12-07 ZTE CORPORATION

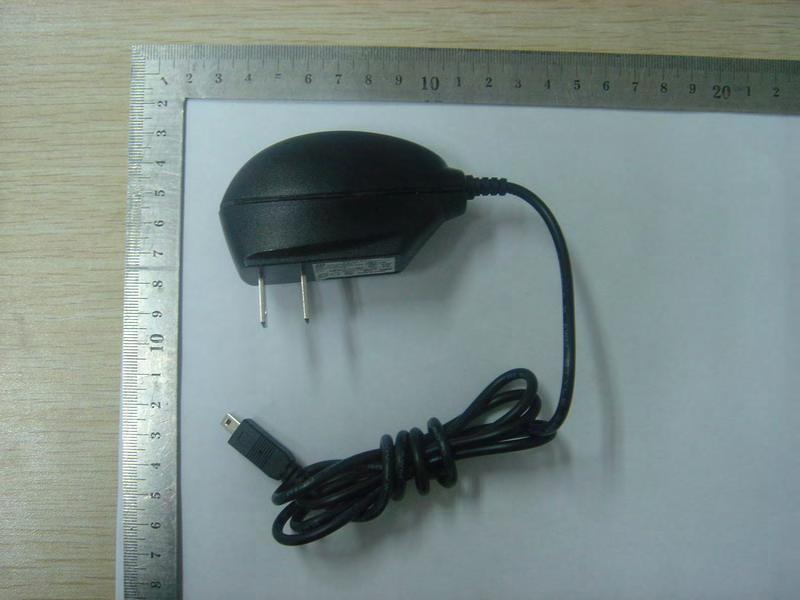

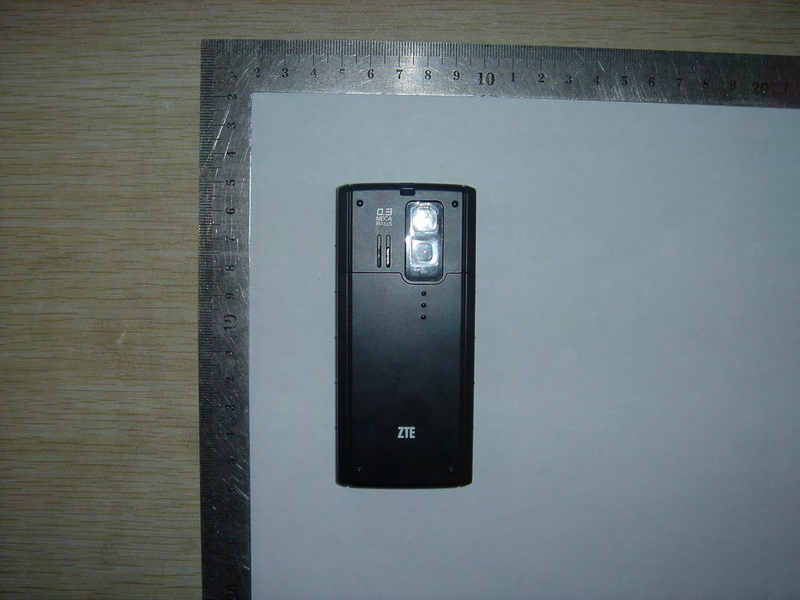

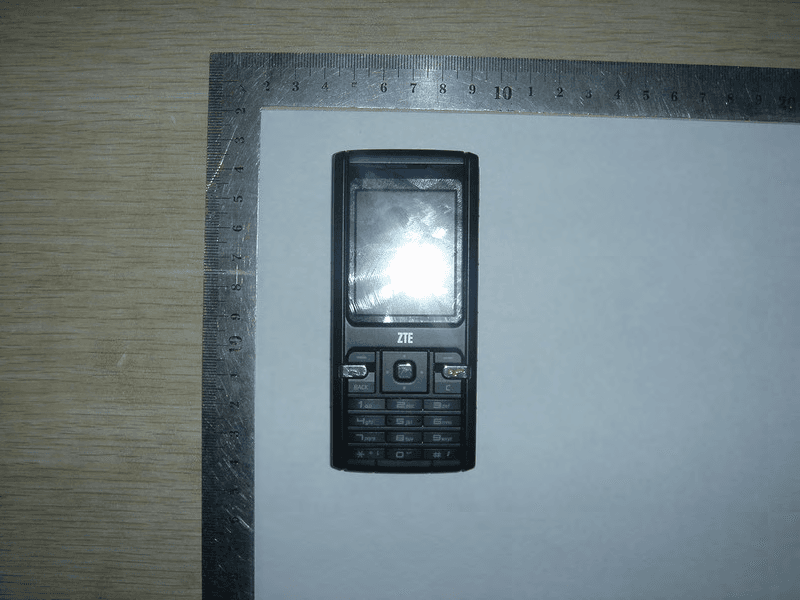

External Photo

07 Dec 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: Q78-ZTEA137 Dear Sirs: ZTE CORPORATION requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier Q78-ZTEA137. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22/Part 24 for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls,and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, ZTE CORPORATION proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), ZTE CORPORATION will add the FCC identifier " Q78-ZTEA137" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Sincerely, Tianye 07 Dec 2007

Internal Photos

Report No: SH08010005S01 Page 3 of 53 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results Annex E: System Performance Check Data Report No: SH08010005S01 Page 4 of 53 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Morlab Communications Technology Co., Ltd. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Morlab Communications Technology Co., Ltd. and the Accreditation Bodies, if it applies. 1.5 This report refers to full SAR test report of Q78-A137PLUS, as this report just covers re-measurement of max SAR values. Report No: SH08010005S01 Page 5 of 53 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co.,Ltd. Department: Testing Department Address: 3Fl, Electronic Testing Building, ShaHe Road, NanShan District, Shenzhen, P. R. China Telephone: +86 755 86130268 Fax: +86 755 86130218 Responsible Test Lab Managers: Mr. Shu Luan 2.2. Identification of the Responsible Testing Location(s) Company Name: Shenzhen Electronic Product Quality Testing Center Morlab Laboratory Address: 3Fl, Electronic Testing Building, ShaHe Road, NanShan District, Shenzhen, P. R. China 2.3. Organization Item Morlab Report No.: SH08010005S01 Morlab Project Leader: Mr. Yang Jinhua Morlab Responsible for Accreditation scope: Mr. Shu Luan Start of Testing: 2008-1-16 End of Testing: 2008-1-17 2.4. Identification of Applicant Company Name: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Contact person: Mr. Tian Ye Telephone: +86-021-68896840 Fax: +86-021-50801070 2.5. Identification of Manufacture Company Name: ZTE CORPORATION Address: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Contact person: Mr. Tian Ye Telephone: +86-021-68896840 Fax: +86-021-50801070 Notes: This data is based on the information offered by the applicant. Report No: SH08010005S01 Page 6 of 53 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: ZTE中兴 Type Name: ZTEA137 Marking Name: ZTEA137 Test frequency Cellular 850MHz PCS 1900MHz Development Stage Identical prototype Accessories Charger, Battery Battery Model Li3707T42P3h553447 Battery specification 3.7V 770 mAh Antenna type Integrated Operation mode Call established Modulation mode GMSK General description: Max. Power（EIRP） 0.993W Cellular 850MHz 0.577W PCS 1900MHz 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code Serial Number Hardware Version Software Version IMEI A01 N.A. g4sB P103B5BA8V1.0.0B03 351756020000123 NOTE: 1. The EUT consists of Hand Telephone Set and normal options: Charger, Lithium Battery as listed above. 2. Please refer to Appendix C for the photographs of the EUT. For a more detailed features description of the EUT, please refer to its User’s Manual. Report No: SH08010005S01 Page 7 of 53 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 0, 62 and 124 respectively in the case of GSM 900 MHz, or to 512, 700 and 885 respectively in the case of PCS 1800 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the COMOSAR Test Bench, which consists of a Figure1. SAR Lab Test Measurement Set-up KUKA 6-axis robot arm and controller, Antennessa probe with no amplifier and SAM phantom. The system is controlled remotely from a PC, which contains the software to control most of the bench devices and stores measurement data. The software also displays the data obtained from test scans, Report No: SH08010005S01 Page 8 of 53 and determines the averaged SAR values (averaging region 1 gram or 10 gram) for compliance testing. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found…

Text truncated - open the document above for the full version.

2 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.301 MΩ Dipole 2: R2=1.403 MΩ Dipole 3: R3=1.312 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 SIMT No. 716 Yishan Road, Shanghai
: +86 021-6470-1390  : +86 021-6470-1810 3 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions δ = Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to chack it. SIMT No. 716 Yishan Road, Shanghai
: +86 021-6470-1390  : +86 021-6470-1810 4 PROBE UNCERTAINTIES Uncertainty analysis for the evaluation of reference antenna gain ERROR SOURCES Description (Section) Uncertainty value (%) Probability Distribution Divisorci Standard Uncertainty (%) Incident PowerB.2.20,20%Rectangular 1,7320508 10,115% Reflection coefficientsB.2.20,75%Rectangular 1,7320508 10,433% DistanceB.2.22,50%Rectangular 1,7320508 11,443% Liquid PermittivityB.2.23,00%Rectangular 1,7320508 11,732% Combined standard uncertaintyB.2.22,299% Expanded uncertainty (confidence interval of 95%) B.2.24,506% Uncertainty analysis for the technique using reference antennas ERROR SOURCES Description (Section) Uncertainty value (%) Probability Distribution Divisorci Standard Uncertainty (%) Incident PowerB.2.20,20%Rectangular 1,7320508 10,200% Reflection coefficientsB.2.20,75%Rectangular 1,7320508 10,433% Antenna GainB.2.22,50%Normal112,500% Liquid PermittivityB.2.23,00%Rectangular 1,7320508 01,732% Probe PositioningB.2.22,50%Rectangular 1,7320508 11,443% Combined standard uncertainty B.2.22,926% Expanded uncertainty (confidence interval of 95%) B.2.25,735% Uncertainty on measurement system ERROR SOURCES Description (Section) Uncertainty value (%) Probability Distribution Divisorci Standard Uncertainty (%) Probe Calibration7.2.1.5,73%Normal115,735% Axial Isotropy7.2.1.5,00% Hemispherical Isotropy7.2.1.10,00% Total Isotropy7.2.1.7,50%Rectangular 1,7320508 14,330% Linearity7.2.1.4,60%Rectangular 1,7320508 12,656% Detection Limits7.2.1.0,50%Rectangular 1,7320508 10,289% Boundary Effect7.2.1.0,50%Rectangular 1,7320508 10,289% Readout Electronics7.2.1.0,02%Normal110,020% Response Time7.2.1.0,50%Normal110,500% Noise7.2.1.0,50%Normal110,500% Integration Time7.2.1.0,50%Normal110,500% Combined standard uncertainty7,721% Expanded uncertainty (confidence interval of 95%) 15,132% Calibration report of dosimetric Antennessa probe 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 SIMT No. 716 Yishan Road, Shanghai
: +86 021-6470-1390  : +86 021-6470-1810 5 1. Calibration at 835.00 MHz A. Calibration parameters. Label GSM850 Epsilon 43.41 Sigma 0.91 S/m Temperature 21°C Cable loss 0.00 dB Coupler loss 20.50 dB Waveguide S11 -13.70 dB Low limit detection 0.73 V/m (0.49 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: E=(e1*e1+e2*e2+e3*e3)pow(1/2) The following tables represent the calibration curves linearisation by curve segment in CW signal. SIMT No. 716 Yishan Road, Shanghai
: +86 021-6470-1390  : +86 021-6470-1810 6 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.663662 367.127583 0.643538 363.495807 0.657584 362.615893 0.537478 302.011016 0.511269 294.058594 0.532727 298.546152 0.432809 247.914344 0.411373 241.520088 0.428098 244.767754 0.346250 203.074569 0.333598 200.511997 0.340905 199.839184 0.274978 166.027529 0.268019 165.809876 0.275168 165.845605 0.221203 137.938818 0.213905 137.022519 0.219797 137.067623 0.179687 116.113420 0.170122 113.554364 0.176383 114.342794 0.143941 97.153792 0.138298 96.324751 0.142262 96.311120 0.114454 81.317115 0.109781 80.677757 0.114125 81.250888 0.073256 58.452202 0.070676 58.519536 0.072827 58.452202 0.062379 52.275822 0.060093 52.336041 0.061974 52.275822 0.053008 46.967871 0.051096 46.913828 0.052766 46.913828 0.045230 42.247486 0.043477 42.296154 0.044929 42.247486 0.038553 38.132992 0.036980 38.176919 0.038264 38.176919 0.032683 34.379604 0.031295 34.419209 0.032420 34.419209 0.027541 30.959995 0.026326 30.995659 0.027307 30.959995 0.022915 27.720488 0.021885 27.752421 0.022715 27.752421 0.018758 24.677484 0.017906 24.734371 0.018585 24.734371 0.014998 21.742069 0.014299 21.817294 0.014866 21.792189 0.011179 18.462941 0.010617 18.484210 0.011049 18.484210 0.009084 16.493046 0.008623 16.531066 0.008980 16.531066 0.007404 14.801335 0.007024 14.835454 0.007317 14.818385 0.006051 13.313765 0.005736 13.344455 0.005982 13.344455 0.004960 12.003305 0.004699 12.030976 0.004901 12.030976 0.004055 10.821834 0.003843 10.846781 0.004007 10.846781 0.003299 9.734214 0.003125 9.756653 0.003258 9.756653 0.002654 8.715672 0.002510 8.745827 0.002624 8.735764 0.002109 7.758913 0.001997 7.776799 0.002081 7.776799 0.001634 6.828116 0.001547 6.843856 0.001607 6.843856 0.001136 5.692472 0.001070 5.699030 0.001116 5.699030 0.000904 5.090974 0.000851 5.102710 0.000890 5.096839 0.000726 4.574050 0.000684 4.573791 0.000714 4.579319 0.000584 4.119086 0.000550 4.120519 0.000575 4.124160 0.000472 3.710338 0.000442 3.715163 0.000461 3.712009 0.000380 3.347550 0.000357 3.361938 0.000373 3.359454 0.000304 3.015109 0.000287 3.040387 0.000295 3.012664 0.000235 2.677779 0.000219 2.691486 0.000233 2.…

Text truncated - open the document above for the full version.

Report No. FCC08-8004 Page 1 of 11 FCC Part 15B TEST REPORT of GSM Dual-band Digital Mobile Phone FCC ID Q78-ZTEA137 Model No. ZTE A137 Serial No. / Report No. FCC08-8004 Date January 29, 2007 Prepared for ZTE Corporation Zhongxing Bldg, Hi-Tech Park, Nanshan, Shenzhen, P.R.China Prepared by ShenZhen Electronic Product Quality Testing Center Electronic Testing Building, Shahe Road, Xili, Nanshan District, ShenZhen, 518055, P.R.China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No. FCC08-8004 Page 2 of 11 Table of Contents 1 Test Report Certification ............................................................................................................... 3 2 General Information ...................................................................................................................... 4 2.1 Description of EUT ............................................................................................................... 4 2.2 Objective ............................................................................................................................... 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 List of Equipments Used ....................................................................................................... 5 2.5 Test Facility ........................................................................................................................... 6 2.6 Environmental conditions ..................................................................................................... 6 3 Radiated Emission Test ................................................................................................................. 7 3.1 Limits of Radiated Emission ................................................................................................. 7 3.2 Test Procedure ....................................................................................................................... 7 3.3 Test Setup .............................................................................................................................. 8 3.4 EUT Setup and Operating Conditions................................................................................... 8 3.5 Test Results............................................................................................................................ 9 Appendix IPhotographs of the Test Configuration........................................................................ 11 Product: FCC ID: Model No.: Applicant: Applicant Address: Manufacturer: Manufacturer Address: Test Standards: Approved by: Test Result: PASS We, Shenzhen E,lectronic Product Quality Testing Center, hereby certifo that the submitted samples of the above item, as detailed in chapter 2.1 of this report, has been tested in our facility. The test record, data evaluation and test configuration represented herein are true and accurate accounts of measurements of the sample's EMC characteristics under the conditions herein specified. Tested by: Page3ofll Report No. FCC08-8004 Page 4 of 11 2 General Information 2.1 Description of EUT EUT1 Description: GSM Dual-band Digital Mobile Phone Model No.: ZTE A137 Serial No.: / Hardware Version: g4sB Software Version: P103B5BA8V1.0.0B03 EUT2 Description: Lithium-ion Battery Model No.: Li3707T42P3h553447 Serial No.: N.A. Manufacturer: ZTE CORPORATION Capacitance: 770mAh Rated Voltage: 3.7V Extreme Voltage: High, 4.2V; Low, 3.6V EUT3 Description: AC/DC Adaptor (Charger) Model No.: STC-A22O50U8-C Serial No.: 100710071704008 Manufacturer: ZTE CORPORATION Rated Input: a.c. 100-240V, 50/60Hz, 200mA Rated Output: d.c. 5.0V, 700mA Length of DC cable: 190cm NOTE: 1. The EUT is Quad-band GSM mobile phone which supports GSM 850MHz and 1900MHz bands. 2. The report is issued as an appendix to test report SZ07120061E01 issued by Shenzhen Electronic Product Quality Testing Center Morlab Laboratory on January 8, 2008. 3. Please refer to Appendix I for the photographs of the EUT. For a more detailed features description about the EUT, please refer to User’s Manual. 4. ZTE A137 is identical to ZTE A137+ except the new deletion of the FM receiver function Only Radiated Emission at GSM/GPRS mode was re-tested for ZTE A137. Report No. FCC08-8004 Page 5 of 11 2.2 Objective Perform EMC test according to FCC Part 15 Subpart B (Class B digital device). 2.3 Test Standards and Results The EUT has been tested according to 47 CFR Part 15, Radio Frequency Devices (10-1-05 Edition). Test items and the results are as bellow: ? FCC Rules Test Type Result Test Date 1 §15.109 Radiated Emission PASS 2008.1.25 2.4 List of Equipments Used Description Manufacturer Model No. Cal. Due Date Serial No. Test Receiver Rohde & Schwarz ESIB26 2008.06.02 A0304218 Ultra Broadband Ant. Rohde & Schwarz HL562 2008.06.02 A0304224 Universal Radio Communication Tester Rohde & Schwarz CMU200 2008.06.02 A0304212 Mobile Phone Tester Willtek 4403 2008.02.10 0811211 3G Communication Antenna European Antennas PSA 75301R/170 2008.06.02 A0304213 Anechoic Chamber Albatross EMC12.8×6.8× 6.4(m) 2008.04.10 A0304210 Report No. FCC08-8004 Page 6 of 11 2.5 Test Facility Shenzhen Electronic Product Quality Testing Center (SET) is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS). according to ISO/IEC 17025. The accreditation certificate number is L1659. The EMC chamber…

Text truncated - open the document above for the full version.

Report No.: SZ07120061E01 Page 2 of 15 TABLE OF CONTENTS 1. TEST CERTIFICATION ...........................................................................................................3 2. GENERAL INFORMATION ....................................................................................................4 2.1 EUT Description .........................................................................................................................4 2.2 Test Standards and Results ........................................................................................................5 2.3 Facilities and Accreditations ......................................................................................................6 2.3.1 Facilities ....................................................................................................................................6 2.3.2 Test Environment Conditions....................................................................................................6 3. TEST CONDITIONS SETTING...............................................................................................7 3.1 Test Mode ....................................................................................................................................7 3.2 Test Setup and Equipments List................................................................................................8 3.2.1 Conducted Emission..................................................................................................................8 3.2.2 Radiated Emission.....................................................................................................................9 4. 47 CFR PART 15B REQUIREMENTS ..................................................................................10 4.1 Conducted Emission .................................................................................................................10 4.1.1 Requirement ............................................................................................................................10 4.1.2 Test Description ......................................................................................................................10 4.1.3 Test Result .....................................................................................…

Text truncated - open the document above for the full version.
