Q78-ZTECF450CDMA1x/GSM Digital Mobile Handset

1 Verizon Wireless F450 User Manual 2 LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. Version No. : R1.0 Edition Time : 2011.2.15 Manual No. : 3 Contents Welcome .......................................................................................................................................... 5 Your F450 .................................................................................................................................... 5 Phone Overview ........................................................................................................................... 5 Specifications ............................................................................................................................... 6 Getting Started ................................................................................................................................. 7 Installing the Battery .................................................................................................................... 7 Removing the Battery .................................................................................................................. 7 Charging the Battery .................................................................................................................... 8 Inserting and Removing the SIM Card ........................................................................................ 8 Inserting and Removing the microSD Card ................................................................................. 9 Powering On/Off Your Phone ...................................................................................................... 9 Activating Your Phone ................................................................................................................. 9 Idle Mode ..................................................................................................................................... 9 Main Display Icons .................................................................................................................... 10 Menu Outline ............................................................................................................................. 11 Basic Operation .............................................................................................................................. 14 Menu Navigation ........................................................................................................................ 14 Locking/Unlocking Your Phone ................................................................................................ 14 Locking/Unlocking the Keypad ................................................................................................. 15 Choosing the Network Mode ..................................................................................................... 15 Set-up Wizard ............................................................................................................................. 15 Easy Set-up ................................................................................................................................. 15 Entering Text .............................................................................................................................. 16 Calling ............................................................................................................................................ 17 Making a Call ............................................................................................................................. 17 Caller ID Function ...................................................................................................................... 17 In-Call Options ........................................................................................................................... 18 Call History ................................................................................................................................ 18 Contacts .......................................................................................................................................... 19 New Contact ............................................................................................................................... 19 Contact List ................................................................................................................................ 19 Backup Assistant ........................................................................................................................ 19 Groups ........................................................................................................................................ 19 Speed Dials ................................................................................................................................. 20 In Case of Emergency ................................................................................................................ 20 My Name Card ........................................................................................................................... 20 Messaging ...................................................................................................................................... 21 Creating and Sending a Text Message ....................................................................................... 21 Creating and Sending a Picture Message ........................................................................…

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: April 22, 2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-ZTECF450 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

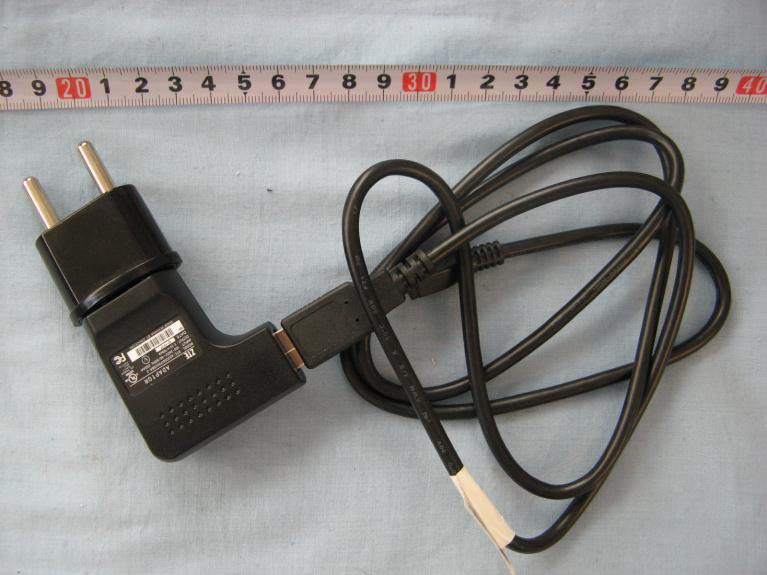

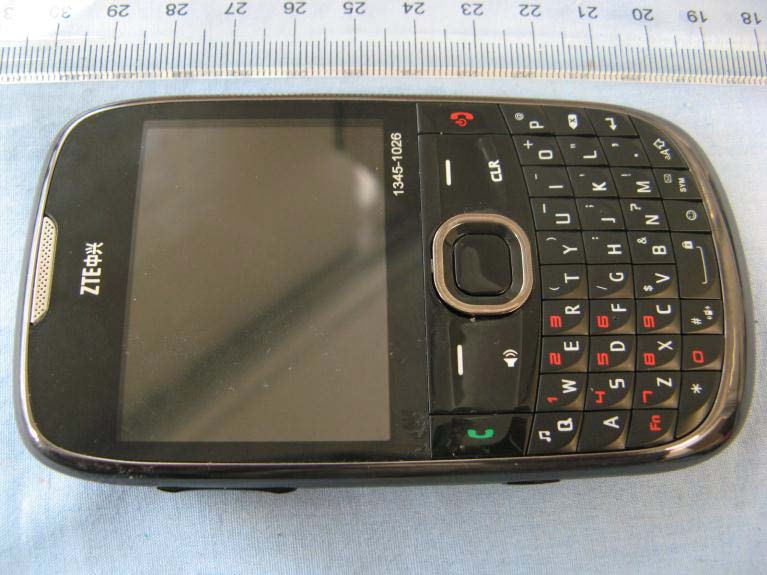

External photos

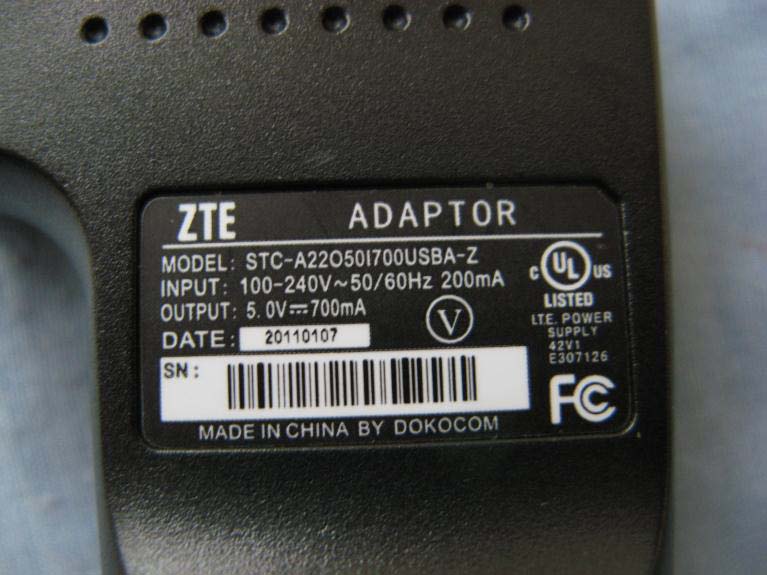

Label

No.2011SAR00021 Page 1 of 149 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00021 For ZTE CORPORATION CDMA1x/GSM Digital Mobile Handset ZTE-C F450 With Hardware Version: 1.1 Software Version: VZW_US_F450V1.0.0B11 FCCID：Q78-ZTECF450 Issued Date: 2011-03-31 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00021 Page 2 of 149 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES..................................................................................................................................... 9 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT ..............................................................................................10 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 13 8.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH FUNCTION) ............................................................... 18 8.5 CONCLUSION................................................................................................................................................ 18 9 MEASUREMENT UNCERTAINTY ............................................................................................19 10 MAIN TEST INSTRUMENTS ..................................................................................................20 ANNEX A MEASUREMENT PROCESS....................................................................................21 ANNEX B TEST LAYOUT ..................................................................................................…

Text truncated - open the document above for the full version.

No.2011SAR00021 Page 61 of 149 CDMA 835 Right Cheek Middle Date/Time: 2011-3-8 12:50:21 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 836.52 MHz; σ = 0.928 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.589 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = 0.025 dB Peak SAR (extrapolated) = 0.744 W/kg SAR(1 g) = 0.560 mW/g; SAR(10 g) = 0.398 mW/g Maximum value of SAR (measured) = 0.593 mW/g Fig.32 CDMA 835MHz CH384 No.2011SAR00021 Page 62 of 149 CDMA 835 Right Cheek Low Date/Time: 2011-3-8 13:04:43 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 825 MHz; σ = 0.916 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.442 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.02 V/m; Power Drift = 0.075 dB Peak SAR (extrapolated) = 0.561 W/kg SAR(1 g) = 0.422 mW/g; SAR(10 g) = 0.300 mW/g Maximum value of SAR (measured) = 0.444 mW/g Fig. 33 CDMA 835MHz CH1013 No.2011SAR00021 Page 63 of 149 CDMA 835 Right Tilt High Date/Time: 2011-3-8 13:19:12 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.937 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.339 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.139 dB Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.313 mW/g; SAR(10 g) = 0.231 mW/g Maximum value of SAR (measured) = 0.330 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.139 dB Peak SAR (extrapolated) = 0.377 W/kg SAR(1 g) = 0.269 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (measured) = 0.311 mW/g Fig. 34 CDMA 835MHz CH777 No.2011SAR00021 Page 64 of 149 CDMA 835 Right Tilt Middle Date/Time: 2011-3-8 13:33:36 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 836.52 MHz; σ = 0.928 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.473 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 0.572 W/kg SAR(1 g) = 0.450 mW/g; SAR(10 g) = 0.334 mW/g Maximum value of SAR (measured) = 0.476 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 0.541 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.261 mW/g Maximum value of SAR (measured) = 0.446 mW/g Fig.35 CDMA 835MHz CH384 No.2011SAR00021 Page 65 of 149 CDMA 835 Right Tilt Low Date/Time: 2011-3-8 13:47:58 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 825 MHz; σ = 0.916 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.371 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.350 mW/g; SAR(10 g) = 0.261 mW/g Maximum value of SAR (measured) = 0.368 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 0.415 W/kg SAR(1 g) = 0.301 mW/g; SAR(10 g) = 0.206 mW/g Maximum value of SAR (measured) = 0.345 mW/g Fig. 36 CDMA 835MHz CH1013 No.2011SAR00021 Page 66 of 149 CDMA 1900 Left Cheek High Date/Time: 2011-3-9 11:07:23 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.4 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.938 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.70 V/m; Power Drift = -0.135 dB Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.858 mW/g; SAR(10 g) = 0.510 mW/g Maximum value of SAR (measured) = 0.929 mW/g Fig. 37 CDMA 1900MHz CH1175 No.2011SAR00021 Page 67 of 149 CDMA 1900 Left Cheek Middle Date/Time: 2011-3-9 11:21:45 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Middle/Area Scan (61x101x1): Measurement gri…

Text truncated - open the document above for the full version.

No.2011SAR00021 Page 111 of 149 CDMA 835 Body Toward Phantom Low Date/Time: 2011-3-8 19:14:24 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 825 MHz; σ = 0.993 mho/m; εr = 53.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 835 Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.363 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.2 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.442 W/kg SAR(1 g) = 0.346 mW/g; SAR(10 g) = 0.257 mW/g Maximum value of SAR (measured) = 0.364 mW/g Fig. 78 CDMA 835MHz CH1013 No.2011SAR00021 Page 112 of 149 CDMA 1900 Body Toward Ground High Date/Time: 2011-3-9 18:01:33 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.56 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.773 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.195 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.678 mW/g; SAR(10 g) = 0.385 mW/g Maximum value of SAR (measured) = 0.695 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.195 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.578 mW/g; SAR(10 g) = 0.324 mW/g Maximum value of SAR (measured) = 0.705 mW/g Fig. 79 CDMA 1900MHz CH1175 No.2011SAR00021 Page 113 of 149 CDMA 1900 Body Toward Ground Middle Date/Time: 2011-3-9 18:16:54 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.890 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.790 mW/g; SAR(10 g) = 0.444 mW/g Maximum value of SAR (measured) = 0.825 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.682 mW/g; SAR(10 g) = 0.386 mW/g Maximum value of SAR (measured) = 0.818 mW/g Fig. 80 CDMA 1900MHz CH600 No.2011SAR00021 Page 114 of 149 CDMA 1900 Body Toward Ground Low Date/Time: 2011-3-9 18:32:17 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.53 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.919 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.820 mW/g; SAR(10 g) = 0.459 mW/g Maximum value of SAR (measured) = 0.842 mW/g Fig. 81 CDMA 1900MHz CH25 No.2011SAR00021 Page 115 of 149 Fig. 81-1 Z-Scan at power reference point (CDMA 1900 MHz CH25) No.2011SAR00021 Page 116 of 149 CDMA 1900 Body Toward Phantom High Date/Time: 2011-3-9 18:47:56 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.56 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.350 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.73 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.509 W/kg SAR(1 g) = 0.317 mW/g; SAR(10 g) = 0.192 mW/g Maximum value of SAR (measured) = 0.326 mW/g Fig. 82 CDMA 1900MHz CH1175 No.2011SAR00021 Page 117 of 149 CDMA 1900 Body Toward Phantom Middle Date/Time: 2011-3-9 19:03:22 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.456 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.21 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.663 W/kg SAR(1 g) = 0.416 mW/g; SAR(10 g) = 0.253 mW/g Maximum value of SAR (measured) = 0.422 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.21 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.440 W/kg SAR(1 g) = 0.285 mW/g; SAR(10 g) = 0.182 mW/g Maximum value of SAR (measured) = 0.298 mW/g Fig. 83 CDMA 1900MHz CH600 No.2011SAR00021 Page 118 of 149 CDMA 1900 Body Toward Phantom Low Date/Time: 2011-3-9 19:18:47 Electronics: DAE4 Sn771 Medium: Body 1900 M…

Text truncated - open the document above for the full version.

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2011TAR106 Page1 of 57 TEST REPORT No. 2011TAR106 for ZTE CORPORATION CDMA1x/GSM Digital Mobile Handset Model Name: ZTE-CF450 With FCC ID: Q78-ZTECF450 Hardware Version: 1.1 Software Version: VZW_US_F450V1.0.0B11 Issued Date: Mar 25, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2011TAR106 Page2 of 57 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ........................................................................... 11 A.2 EMISSION LIMT (§2.1051/§24.238/§22.917) ............................................................................ 15 A.3 CONDUCTED EMISSION (§15.107§15.207) ......................................................................... 20 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ..................…

Text truncated - open the document above for the full version.
