Q200 CDMA 1X Digital Mobile Phone User Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: http://www.zte.com.cn E-mail: [email protected] LEGAL INFORMATION Copyright © 2011 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : June.2011 Manual No. : 1 C h a p t e r 1 Phone Overview 2 C h a p t e r 2 Key Functions Key Function Description • Make or answer a call. • Press Send key in standby mode to enter Call History list. • End an active call or reject a call. • Long press to Power on/Power off. • Exit from any interface to standby mode. • Enter main Menu in standby mode. • Switch to the options of left bottom submenu. • Enter Radio in standby mode. • Switch to the options of right bottom submenu. • Cancel the current operation; go back to the previous window. • Confirm the commands and options selected. Up/Down key • Scroll the cursor up and down. • Used as selection key to scroll cursor up and down for keying in commands and selecting options shown on the display. • In standby mode, press Up key or Down key to active pre-set functions. • Used as direction key in games. • Adjust volume when listening radio or in conversation. Left/Right key • Scroll the cursor left and right. • Used as selection key to scroll cursor left and right for keying in commands and selecting options shown on the display. • In standby mode, press Left key or Right key to active pre-set functions. • Used as direction key in games. • Select the stored radio channel when listening radio. ~ Use to enter characters, numbers and symbols. 3 Key Function Description Press to enter the message menu in standby mode. Press to display all stored contacts in standby mode. Press to erase the characters. • Press Alt key to switch superscript and subscript. • Press Alt key twice to keep the keys to input superscript numbers or symbols. Press Alt key again to back to normal status. Press Enter key to enter the next line when entering text. • Use to enter space in editing text. • Long press to lock the keyboard in standby mode. • Press Shift key to switch between uppercase and lowercase. • Press Shift key once to enter one uppercase character; press twice to lock uppercase status; and press the shift key again to back to normal status. In standby mode, press MP3 Key to play music. • Press and hold Silence key to active/deactivate vibrate mode in standby mode. • Press to open the symbols panel when entering text. 4 C h a p t e r 3 Open the Back Cover Remove the back cover as shown below. ZTE-C Q200 User Guide Confidential and Proprietary Information of ZTE CORPORATION 5 C h a p t e r 4 Remove and Install the Battery The attached Li-ion battery along with the phone can be used after unpacking. For the first three times, please use up the power and charge it fully for a new battery to perform well. Remove the Battery Put finger on the finger grips, and then lift up the battery to remove the battery. Install the Battery 1. Install the battery as shown below. Replace the battery into the battery slot, to be noted that the side of the battery firstly inserted. 2. Put the back cover of the phone flatly upon the body of phone. Direct the back cover towards the locking catches on the each side of the phone and press the back cover of the phone to lock the cover into its place. 6 ZTE-C Q200 User Guide Confidential and Proprietary Information of ZTE CORPORATION 7 C h a p t e r 5 Insert and Remove the UIM card Insert the UIM Card 1. Power off the phone, remove the battery and other external power. 2. Insert the UIM card into UIM card slot, as shown in the picture. Remove the UIM Card 1. Power off the phone, remove the battery and other external power. 2. Remove the UIM card from the UIM card slot, as shown in the picture. 8 C h a p t e r 6 Charging Your Phone 1. Connect the charger to the phone as shown below. 2. Connect the charger to a standard wall AC socket. 3. When the charging animation on the screen stops, the charging is completed. The charging takes usually up to 2～3 hours. During charging, it is a normal phenomenon that the battery, phone and charger may get hot. 4. After the completion of charging, disconnect the charger from the phone and AC socket. ZTE-C Q200 User Guide Confidential and Proprietary Information of ZTE CORPORATION 9 C h a p t e r 7 Switching On/Off 1. Press and hold End key to switch on/off your phone. 2. The phone will automatically search for available networks. 10 C h a p t e r 8 Indicators and Icons Icon Indication Signal strength Earphone in use Roaming New message Ring + Vibration Vibration Silence all Alarm In calling Power indicator Confidential and Proprietary Information of ZTE CORPORATION 11 C h a p t e r 9 Keypad Lock If you activate Auto Keypad Lock, the keypad will be locked automatically according to your settings. Press and hold (long press) the Space/Lock key to lock the keypad in standby mode. If you want to unlock the keypad, please press first the Right select key, and then the Space/Lock key. Notes: If the call is coming when the keypad is locked, you can press the Send key to answer. When the keypad is locked, calls may be possible to the official emergency number programmed into your device. ZTE-C Q200 User Guide 12 Confidential and Proprietary Information of ZTE CORPORATION C h a p t e r 10 Phone & Menu Code Phone lock could prevent your phone from illegal use. The default handset password is 0000. Please change it to your own phone password as soon as possible. Notes: Please remember your code, otherwise some service expense may happen.…

Text truncated - open the document above for the full version.

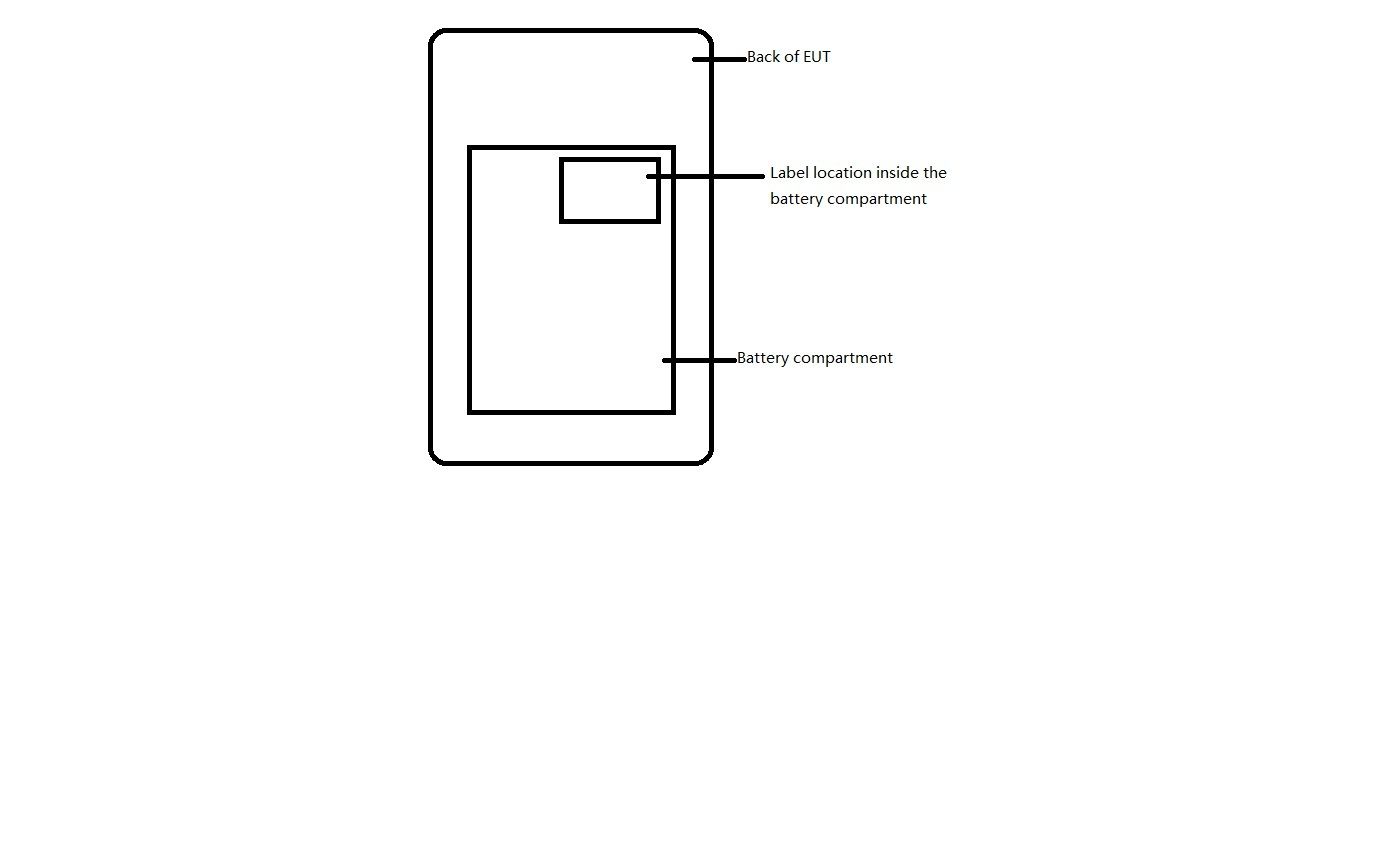

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-29-88458594 ; Fax: +86-29-88458594 Date: July 14, 2011 Statement We, ZTE CORPORATION, states that our device, FCC ID: Q78-ZTECQ200 , has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, Yanli Chen

Rev. 1/1/03 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-29-88458594 ; Fax: +86-29-88458594 Date: July 14, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZTECQ200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: ZTE-C Q200_Schem.pdf) Block Diagram (file: ZTE-C Q200_BlkDia.pdf) Parts List (file: ZTE-C Q200_PartsLst.pdf) Operation Description (file: ZTE-C Q200_OpDes.pdf) Tune up Procedure (file: ZTE-C Q200_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yanli Chen

ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Tel: +86-755-26770345 ; Fax: +86-755-26770347 Date: July 14, 2011 Power of Attorney To whom it may concern, Please be notified that I, Royce Wang, have designated Jones Tsai in Sporton International Inc. and Yanli Chen in ZTE CORPORATION as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. and Yanli Chen in ZTE CORPORATION on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: Q78-ZTECQ200 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Royce Wang Company: ZTE CORPORATION TEL: +86-755-26770345 FAX: +86-755-26770347 E-mail: [email protected]

1/1 ZTE CORPORATION Date: July 14, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : Q78-ZTECQ200 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which ZTE CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Ya n l i C h e n Company: ZTE CORPORATION TEL: +86-29-88458594 FAX: +86-29-88458594 E-mail: [email protected]

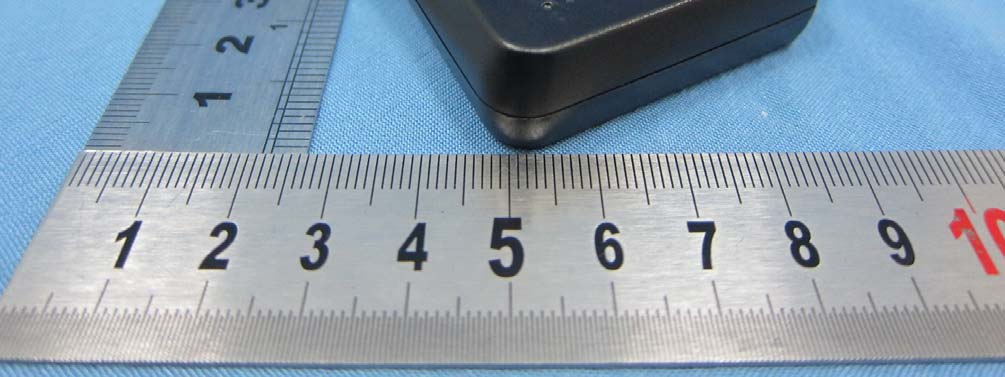

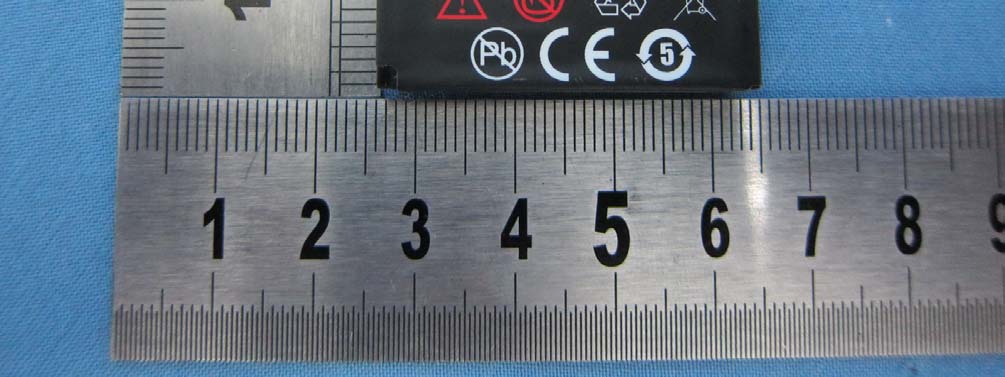

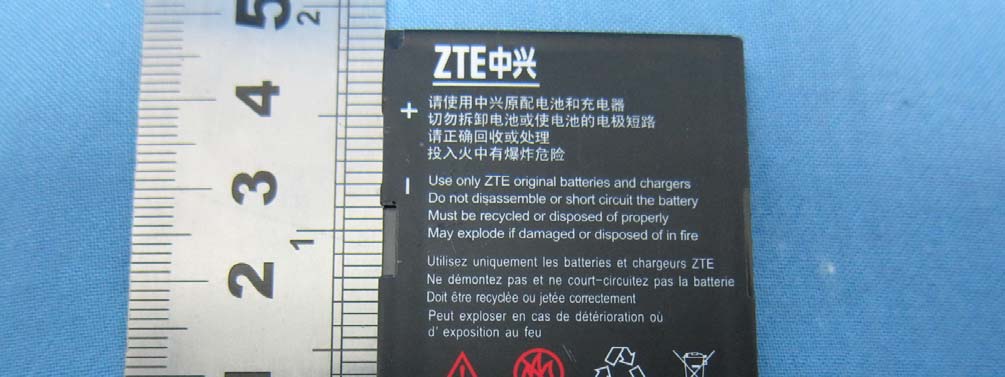

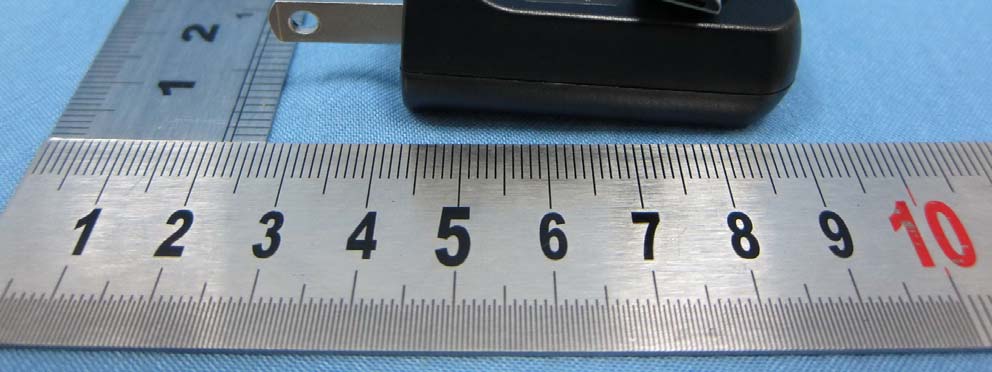

Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 1. External Photograph of EUT Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 List of Accessory: Specification of Accessory AC Adapter Brand Name ZTE Model Name STC-A22O501700M5-C Battery Brand Name ZTE Model Name Li3709T42P3h453756 Earphone Type 163cm non-shielded with core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200

FCC ID: Q78-ZTECQ200 size:31*19mm ModelZTE-C Q200 ZTE CORPORATION

Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 3. Internal Photograph of EUT Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 Photographs of EUT Report No.: EP170433 Brand Name: ZTE / Model Name: ZTE-C Q200 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 WWAN Antenna

SPORTON INT TEL : 86-0512- FAX : 86-0512 FCC ID : Q78- APPL EQU BRA MO D FCC STA N The p SPOR evalu appli c The t writte be rep Revi e TERNATIONAL -5790-0158 -5790-0958 -ZTECQ200 FCC SA F LICANT IPMENT AND NAME DEL NAME ID NDARD product was RTON INTER ated in ac cable techn test results en approval produced ex ewed by: Jones T s SP No. 3- L (KUNSHAN) I AR Test Re FCC : : E : E : : : s received o RNATIONAL ccordance w ical standar in this rep of SPORTO xcept in full sai / Manage PORTON -2, PingXia NC. eport SAR ZTE COR ZTE-C Q2 ZTE ZTE-C Q2 Q78-ZTEC FCC 47 C IEEE C95 IEEE 152 FCC OET on Jul. 04, L INC., woul with the p rds. port apply e ON INTERNA . er N INTERN ang Road, R Tes RPORATIO 200 CDMA 200 CQ200 CFR Part 2 5.1-1991 8-2003 T Bulletin 6 2011 and c ld like to de rocedures exclusively ATIONAL (K NATIONA , Kunshan st Re ON A 1X Digita 2 (2.1093) 65 Supple completely eclare that and show n to the test KUNSHAN) I AL (KUNS n, Jiangsu Page Numb Report Issu Report Vers epor al Mobile P ement C (E tested on J the tested s n the com ed model / NC., the te s SHAN) IN u Province ber : 1 o ued Date : Ju sion : Re Report No. rt Phone Edition 01 Jul. 07, 201 sample ha s pliance wit / sample. W st report sh NC. e, P.R.C. of 30 l. 14, 2011 ev. 01 : FA170433 -01) 1. We, s been th the Without all not 3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC SAR Test Report Report No. : FA170433 Table of Contents Revision History .................................................................................................................................................................3 1. Statement of Compliance ...........................................................................................................................................4 2. Administration Data ....................................................................................................................................................5 2.1 Testing Laboratory .............................................................................................................................................5 2.2 Applicant ............................................................................................................................................................5 2.3 Manufacturer .....................................................................................................................................................5 2.4 Application Details .............................................................................................................................................5 3. General Information ....................................................................................................................................................6 3.1 Description of Device Under Test (DUT) ............................................................................................................6 3.2 Product Photos ..................................................................................................................................................6 3.3 Applied Standards .............................................................................................................................................7 3.4 Device Category and SAR Limits ......................................................................................................................7 3.5 Test Conditions ..................................................................................................................................................7 5.1.1 Test Configuration ....................................................................................................................................7 4. Specific Absorption Rate (SAR) .................................................................................................................................8 4.1 Introduction ........................................................................................................................................................8 4.2 SAR Definition ...................................................................................................................................................8 5. SAR Measurement System .........................................................................................................................................9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ........................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F4 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC SAR Test Report Report No. : FA170433 Appendix F. FCC CDMA2000 SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low ChMid. ChHigh Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 23.96 23.96 23.66 3 3 3 55 Full All Up 23.99 24.00 23.69 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F2 of F4 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC SAR Test Report Report No. : FA170433 CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F3 of F4 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC SAR Test Report Report No. : FA170433 1xRTT setting for Radio Configuration 1 with Service Option 55 1xRTT setting for Radio Configuration 3 with Service Option 55 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F4 of F4 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC SAR Test Report Report No. : FA170433 Reference: [1] SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA, June 2006 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2] 3.1.2.3.4 Maximum RF Output Power 3GPP2 C.S0033-0 Version 2.0, Date: 12 December 2003 Recommended Minimum Performance Standards for cdma2000 High Rate Packet Data Access Terminal

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC RF Test Report Report No. : FG170433 FCC RF Test Report APPLICANT : ZTE CORPORATION EQUIPMENT : ZTE-C Q200 CDMA 1X Digital Mobile Phone BRAND NAME : ZTE MODEL NAME : ZTE-C Q200 FCC ID : Q78-ZTECQ200 STANDARD : FCC 47 CFR Part 2, 22(H) CLASSIFICATION : PCS Licensed Transmitter Held to Ear (PCE) Tx/Rx FREQUENCY RANGE : 824.70 ~ 848.31 MHz /869.70 ~ 893.31 MHz MAX. ERP POWER : 0.13 W EMISSION DESIGNATOR : 1M27F9W The product was received on Jul. 04, 2011 and completely tested on Jul. 07, 2011. We, SPORTON INTERNATIONAL Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 14, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : Q78-ZTECQ200 FCC RF Test Report Report No. : FG170433 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ....................................................................................................................................... 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 7 3 TEST RESULT ............................................................................................................................................. 8 3.1 Conducted Output Power Measurement ........................................................................................... 8 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ........................... 9 3.3 Occupied Bandwidth Measurement ................................................................................................ 11 3.4 Band Edge Measurement ................................................................................................................ 13…
