Q78-ZTECS300CDMA2000 1X Digital Mobile Phone

ZTE-C S300 CDMA 1X Digital Mobile Phone User Guide Copyright © 2010 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. The information on the package is only for your reference. Images are for your reference only. Please check the product model before purchasing. 批注 [z1]: DALACOM_S300_RNTL42FV0 .1.0B02 ZTE Corporation NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Http://www.zte.com.cn Service Hotline: +86-755-26779999 E-mail: [email protected] Manual No.: 07958450xxxx 1 Contents Know your Phone .................................................................................................................................. 2 Key Instruction ..................................................................................................................................... 2 Key Instruction ..................................................................................................................................... 3 Interface Icons ..................................................................................................................................... 4 Insert and Extract UIM Card .............................................................................................................. 4 Remove and Install the Battery ......................................................................................................... 4 Charge the Battery .............................................................................................................................. 5 Power on/ off Your Phone .................................................................................................................. 5 Make and Answer a Call .................................................................................................................... 6 Menu Tree ............................................................................................................................................ 6 Voice Mail ........................................................................................................... 错误！未定义书签。 Text Input .............................................................................................................................................. 7 Message ............................................................................................................................................... 7 Menu Functions ................................................................................................................................... 8 Phone Lock ........................................................................................................................................ 10 PIN Code and PUK Code ................................................................................................................ 10 Warning and Maintenance ............................................................................................................... 10 Warranty Terms .................................................................................................................................. 11 Limitation of Liability .......................................................................................................................... 11 Know your Phone Earphone 2 SP: To “press” the key and release it. LP: To “hold” the key (keep pressing the key for two second or more). Charger connector OK key SP: Main Menu LP: - Left select key SP: Main Menu LP: - Function key SP: UTK LP: - UP key SP: Profile LP: - “*” key SP: Input symbol mode LP: Lock keypad “1” key Input symbol Send key SP: Call history LP: - Earpiece Left key SP: Games LP: - Down key SP: Message LP: Right select key SP: Contacts LP: - Microphone Right key SP: Radio LP: - End key SP: Return to idle LP: Power on/off Clear key SP: Erase character LP: - “#” key SP: Change input mode LP: Vibrate enable/disable Key Instruction Key Function Description Send key: ‹ Make or answer a call. ‹ Press Send key in standby mode to enter all recent calls list. End key: ‹ End an active call or reject a call. ‹ Long press to Power on/Power off. ‹ Exit from any interface to standby mode. Left select key: ‹ Enter Main menu in standby mode. ‹ Switch to the options of left bottom submenu. Right select key: ‹ Enter Contacts in standby mode. ‹ Switch to the options of right bottom submenu. ‹ Cancel operation, exit to previous window. Clear key: ‹ Erase character(s) while editing text. OK key: ‹ Enter Main menu in standby mode. ‹ Press OK key to confirm the commands and options selected. ‹ Confirm the character chosen while character inputting. Up/Down key. ‹ Scroll the cursor up and down. ‹ Used as selection key up and down for keying in commands and selecting options shown on the display. ‹ In standby mode, press Down key to write message (default). ‹ In standby mode, press Up key to enter Profile menu (default). ‹ Or press the scroll key to utilize the function set in Settings. ‹ Used as direction key in games. Left /Right key: ‹ Scroll the cursor left and right. ‹ Used as selection key to scroll cursor left and right for keying in commands and selecting options shown on the display. ‹ In standby mode, press Left key to enter Games menu(default). ‹ Press Right key to listen to the radio(default). ‹ Or press the scroll key to utilize the function set in Settings. ‹ Adjust volume in conversation. ‹ Used as direction key in games. ~ 0~9 key: ‹ Key in numbers or characters. ‹ Make a Speed Dial call. ‹ Hold 0 key to input + in standby mode. # key: ‹ Hold # key in standby mode to enable/disable vibration. …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZTE Corporation (Current Date) 3/14/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZTE Corporation_______ ZTE Corporation _________hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) CDMA2000 1X Digital Mobile Phone We affirm that between SIEMIC and __ ZTE Corporation ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title ChenYanli/ Certificate engineer Contact information / address ZTE Corporation R&D Center(Xi'an), 10# South Tangyan Road, Hi-tech Industries Development Zone, Xi'an 710065, P.R. China

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 (Client’s Company Letterhead/log) ZTE Corporation (Current Date) 3/14/2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q78-ZTECS300 We hereby request confidential treatment of information accompanying this application as outlined below: - ZTE-C S300 BOM - ZTE-C S300 schematic - ZTE-C S300_Block diagram - ZTE-C S300 USB BLOCK DIAGRAM - ZTE-C S300 operational description - ZTE-C S300 tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title ChenYanli/ Certificate engineer Contact information / address ZTE Corporation R&D Center(Xi'an), 10# South Tangyan Road, Hi-tech Industries Development Zone, Xi'an 710065, P.R. China

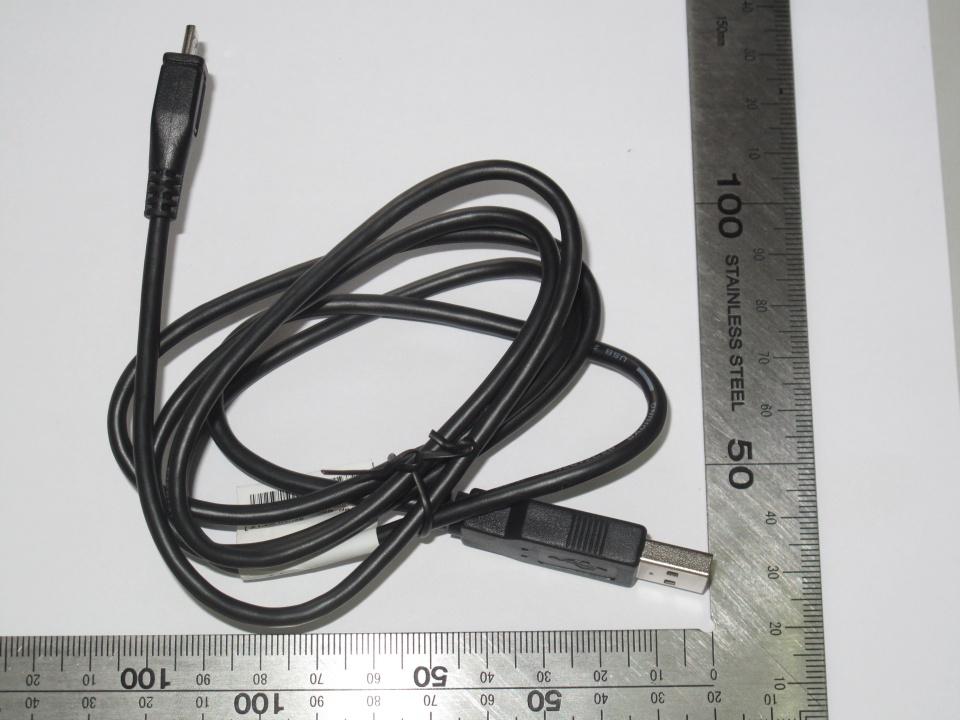

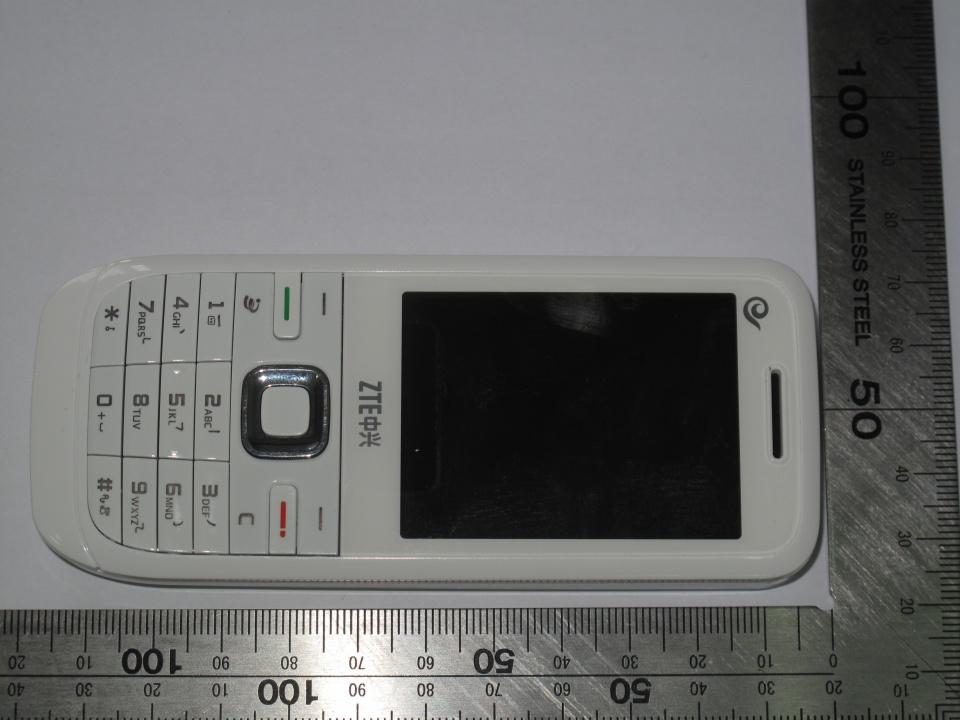

FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 35 of 42 China Telecommunication Technology Labs. ® Annex A External Photos Front view Back view FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 36 of 42 China Telecommunication Technology Labs. ® Top view Bottom view FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 37 of 42 China Telecommunication Technology Labs. ® Right view Left view FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 38 of 42 China Telecommunication Technology Labs. ® Adaptor Cable FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 39 of 42 China Telecommunication Technology Labs. ® Battery

19 31 4-R1 4-R1.2 Model:ZTE-C S300 FCC ID:Q78-ZTECS300 MEID: S/N: ZTE CORPORATION

FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 40 of 42 China Telecommunication Technology Labs. ® Annex B Internal Photos Cover off photo Main board (face) FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 41 of 42 China Telecommunication Technology Labs. ® Main board (back) Note: Antenna is located on the left edge of the above photo. The antenna is on the bottom of the EUT. Adaptor (face) FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 42 of 42 China Telecommunication Technology Labs. ® Adaptor (back) ANNEX C Deviations from Prescribed Test Methods No deviation from Prescribed Test Methods. The End of this Report

China Telecommunication Technology Labs. ® TEST REPORT REPORT NUMBER: I11GC0118-FCC-SAR-1 ON Type of Equipment: CDMA 1X Digital Mobile Phone Type of Designation: ZTE-C S300 Manufacturer: ZTE Corporation ACCORDING TO FCC Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices, 2009-10-01 FCC OET Bulletin 65 Supplement C (Edition 01-01): Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques China Telecommunication Technology Labs. Month date, year March 17, 2011 Signature He Guili Director FCC Part 2.1093 (2009-10-01), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-SAR-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 79 China Telecommunication Technology Labs. ® FCC ID: Q78-ZTECS300 Report Date: 2011-03-17 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 2.1093. The sample tested was found to comply with the requirements defined in the applied rules. FCC Part 2.1093 (2009-10-01), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-SAR-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 79 China Telecommunication Technology Labs. ® Table of Contents 1. General Information ...................................................................... 4 1.1 NOTES ............................................................................................... 4 1.2 TESTERS ............................................................................................. 5 1.3 TESTING LABORATORY INFORMATION ............................................................ 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER ..................................................... 7 2 Test Item ....................................................................................... 8 2.1 GENERAL INFORMATION ........................................................................... 8 2.2 OUTLINE OF EUT ................................................................................... 8 2.3 MODIFICATIONS INCORPORATED IN EUT ........................................................ 8 2.4 EQUIPMENT CONFIGURATION ..................................................................... 8 2.5 OTHER INFORMATION .............................................................................. 9 2.6 EUT PHOTOGRAPHS ................................................................................ 9 3 Measurement Systems .................................................................. 12 3.1 SAR MEASUREMENT SYSTEMS SETUP ......................................................... 12 3.2 E-FIELD PROBE ................................................................................... 13 3.3 PHANTOM .......................................................................................... 15 3.4 DEVICE HOLDER .................................................................................. 15 4 Test Results.................................................................................. 16 4.1 OPERATIONAL CONDITION ....................................................................... 16 4.2 TEST EQUIPMENT USED .......................................................................... 16 4.3 APPLICABLE LIMIT REGULATIONS ............................................................... 16 4.4 TEST RESULTS .................................................................................... 17 4.5 TEST SETUP AND PROCEDURES ................................................................. 17 4.6 TEST ENVIRONMENT AND LIQUID PARAMETERS ............................................... 17 4.7 SYSTEM VALIDATION CHECK .................................................................... 18 4.8 CONDUCTED POWER MEASUREMENT ........................................................... 19 4.9 TEST DATA ........................................................................................ 20 4.10 MEASUREMENT UNCERTAINTY.................................................................. 23 ANNEX A Photographs ..................................................................... 24 ANNEX B Graphical Results .............................................................. 27 Annex C System Performance Check Graphical Results .................... 63 ANNEX D Probes Calibration Certificates .......................................... 67 ANNEX E Deviations from Prescribed Test Methods .......................... 79 FCC Part 2.1093 (2009-10-01), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-SAR-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 79 China Telecommunication Technology Labs. ® 1. General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with the requirements of FCC CFR 47 Part 2.1093. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviations from, additions to, or exclusions from the test specifications have been made. See Annex E. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce this report provided, and the test report may only be reproduced or …

Text truncated - open the document above for the full version.

China Telecommunication Technology Labs. ® TEST REPORT REPORT NUMBER: I11GC0118-FCC-RF-1 ON Type of Equipment: CDMA 1X Digital Mobile Phone Type of Designation: ZTE-C S300 Manufacturer: ZTE Corporation ACCORDING TO FCC CFR Part 2, FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS; e-CFR, April 24, 2009 PART 22, PUBLIC MOBILE SERVICES (April 24, 2009) China Telecommunication Technology Labs. Month date, year March 17, 2011 Signature He Guili Director FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 42 China Telecommunication Technology Labs. ® FCC ID: Q78-ZTECS300 Report Date: 2011-03-17 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 2, and 22. The sample tested was found to comply with the requirements defined in the applied rules. FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 42 China Telecommunication Technology Labs. ® CONTENTS 1 GENERAL INFORMATION ................................................................ 4 1.1 NOTES ......................................................................................... 4 1.2 TESTERS ....................................................................................... 5 1.3 TESTING LABORATORY INFORMATION ...................................................... 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER ............................................... 7 2 TEST ITEM ...................................................................................... 8 2.1 GENERAL INFORMATION ..................................................................... 8 2.2 OUTLINE OF EUT ............................................................................. 8 2.3 MODIFICATIONS INCORPORATED IN EUT .................................................. 8 2.4 EQUIPMENT CONFIGURATION ............................................................... 8 2.5 OTHER INFORMATION ........................................................................ 8 3 SUMMARY OF TEST RESULTS .......................................................... 9 4 TEST RESULTS .............................................................................. 10 4.1 RADIATED SPURIOUS EMISSION ........................................................... 10 4.2 RADIATED RF POWER OUTPUT AND ERP ................................................. 15 4.3 OCCUPIED BANDWIDTH ..................................................................... 18 4.4 FREQUENCY STABILITY OVER TEMPERATURE VARIATION ................................ 22 4.5 FREQUENCY STABILITY OVER VOLTAGE VARIATION ...................................... 24 4.6 CONDUCTED RF POWER OUTPUT .......................................................... 26 4.7 CONDUCTED SPURIOUS EMISSION ........................................................ 28 4.8 BAND EDGE .................................................................................. 31 ANNEX A EXTERNAL PHOTOS ........................................................... 35 ANNEX B INTERNAL PHOTOS ........................................................... 40 ANNEX C DEVIATIONS FROM PRESCRIBED TEST METHODS .............. 42 FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 42 China Telecommunication Technology Labs. ® 1 General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 2 and 22. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviation from, additions to, or exclusions from the test specifications have been made. See Annex C. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce this report provided, and the test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CTTL Mr. He Guili. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. CTTL accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 5 of 42 China Telecommunication Technology Labs. ® 1.2 Testers Name: Li Guoqing Position: Engineer Department: Department of EMC test Signature: Name: Lv Ke Position: Engineer Department: Department of EMC test Signature: Editor of this test report: Name: Li Guoqing Position: Engineer Department: Department of EMC test Date: 2011-03-17 Signature: Technical responsibility for area of testing: Name: Zou Dongyi Position: Manager Department: Department of EMC test Date: 2011-03-17 Signature: FCC Parts 2, 22 Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-RF-1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 6 of 42 China Telecommunication Technology Labs. ® 1.3 Testing Laboratory information 1.3.1 Location Name: China Telecommunication Technology Labs. Address: No. 11, Yue Tan Nan Jie, Xi Cheng District BEIJING P. R. CHINA, 100083 Tel:…

Text truncated - open the document above for the full version.

FCC Parts 15B Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-PART15B Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 11 of 21 China Telecommunication Technology Labs. China Telecommunication Technology Labs.China Telecommunication Technology Labs. China Telecommunication Technology Labs. ® Test Configuration The measuring distance between E.U.T and antenna is 3m. Test Setup: The EUT was placed in an anechoic chamber, see figure RE. The EUT is tested as tabletop EUT. The EUT is positioned on an 80cm height wood table. The EUT is used as the peripheral equipment of the PC. The setup is according to Figure 11a of ANSI C63.4-2003. The test was done using an automated test system, where all test equipments were controlled by a computer. Figure RE Antenna Semi Anechoic Chamber E.U.T. Test Receiver Computer FCC Parts 15B Equipment: ZTE-C S300 REPORT NO.: I11GC0118-FCC-PART15B Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 14 of 21 China Telecommunication Technology Labs. China Telecommunication Technology Labs.China Telecommunication Technology Labs. China Telecommunication Technology Labs. ® Test Configuration Test Setup: The EUT was placed in a shielding room, see figure CE. The EUT is positioned on an 80cm height wood table. The EUT is used as the peripheral equipment of the PC. The setup is according to Figure 10a of ANSI C63.4-2003. The Wireless Communications Test Set (Test Simulator) was used to set the TX channel and power level and modulate the TX signal with different bit patterns. The test was done using an automated test system, where all test equipments were controlled by a computer. Figure CE Shielding Room E.U.T Test Receiver Computer Power Supply Artificial Mains Network
