Q78-ZTEGS512GSM 850/1900 Digital Mobile Phone

ZTE-G S512 User Manual LEGAL INFORMATION Copyright © 2010 ZTE CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : 20100820 Manual No. : 079584501958 3 Contents Getting Started ......................................................... 6 Your ZTE-G S512 ............................................................ 6 Technical Parameters ...................................................... 7 Battery .............................................................................. 7 Installing and Removing the SIM Card .......................... 10 Powering On/Off ............................................................ 10 Keypad Lock .................................................................. 11 Indicators ....................................................................... 11 Entering Text.................................................................. 12 Input Modes .............................................................. 12 Word Predictive Text Mode ...................................... 12 Alphabetic Modes ..................................................... 13 Numeric Mode .......................................................... 13 Symbols .................................................................... 13 Making and Answering a Call ............................... 14 Making a Call ................................................................. 14 Answering a Call ............................................................ 14 Speed Dial Call .............................................................. 14 Call History..................................................................... 14 SIM Card Services (SIM Toolkit) ................................... 15 Messaging .............................................................. 16 Composing and Sending a Message ............................. 16 Voicemail ....................................................................... 16 Broadcast SMS .............................................................. 17 4 Contacts ................................................................. 18 Creating a Contact ......................................................... 18 Groups ........................................................................... 18 FM Radio ................................................................ 19 Setting up Your Phone .......................................... 20 Profiles Settings ............................................................. 20 Phone Settings............................................................... 20 Display Settings ............................................................. 20 Date and Time ............................................................... 20 Call Settings ................................................................... 21 Network Selection .......................................................... 21 Security Settings ............................................................ 21 Factory Settings ............................................................. 22 Other Functions ..................................................... 23 Games ........................................................................... 23 Alarm .............................................................................. 23 Calculator ....................................................................... 23 World Clock.................................................................... 23 Calendar ........................................................................ 23 Converter ....................................................................... 24 Torchlight ....................................................................... 24 Safety Precautions ................................................ 25 Operational Precautions ................................................ 25 Precautions While Driving .............................................. 25 Precautions for Medical Devices and Facilities ............. 26 5 Mobile Phone ................................................................. 26 Precautions for Potentially Explosive Atmospheres ...... 27 Precautions for Electronic Devices ................................ 29 Safety and General Use in Vehicles .............................. 29 Aircraft Safety ................................................................ 30 Battery Use .................................................................... 30 Limitation of Liability ...................................................... 34 6 Getting Started Your ZTE-G S512 Earpiece Left Soft Key Perform the function indicated at the left bottom of the display. Alphanumeric Keys * Key and # Key Display Screen Send Key Dial a phone number or answer a call. In standby mode, show all dialed call history. Navigation Keys and OK Key Perform the function indicated at the right bottom of the display. End/Power Key Press to end or reject a call. Press to return to the standby mode. In standby mode, press and hold to power on/off the phone. Right Soft Key Charger Jack Torch 7 Note: The pictures and icons presented in this manual are meant for illustrative purposes only and may not accurately represent the actual pictures and icons found on the phone. Your phone contains the most up to date information. Technical Parameters Type ZTE-G S512 Dimensions 107 mm (L) × 47.5 mm (W)× 14 mm (H) Weight 69 g (Including a standard battery) Battery 670 mAh Li-ion battery Continuous standby time (Maximum) 210 hours (670 mAh Li-ion battery) Continuous talk time (Maximum) 420 minutes …

Text truncated - open the document above for the full version.

ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070 Authorization Letter Date: December 17, 2010 BABT Forsyth House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: We, the undersigned, hereby authorize Ms. Zhang Xiaoying from TUV Product Service Limited, Beijing Branch, Unit 918, Landmark Tower 2, 8 North Dongsanhuan Road, 100004 Beijing, act on our behalf, as our agent, in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization shall expire 3 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Sincerely Royce Wang Title: Product Certification Director

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: GSM Dual-band Digital Mobile Phone Product Model: ZTE-G S512 FCC ID: Q78-ZTEGS512 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Royce Wang Title: Product Certification Director ZTE Corporation Zhongxing Bldg, Shenzhen Hi-tech Industrial Park Nanshan District, Shenzhen city, GuangDong Province, P.R.China 518057 Tel: 086-021-68895196 Fax: 086-021-50801070

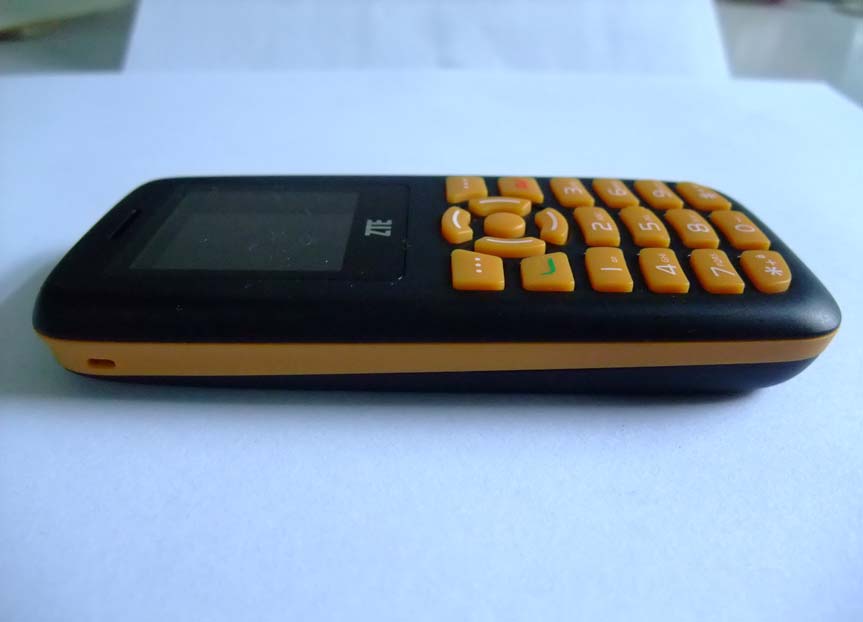

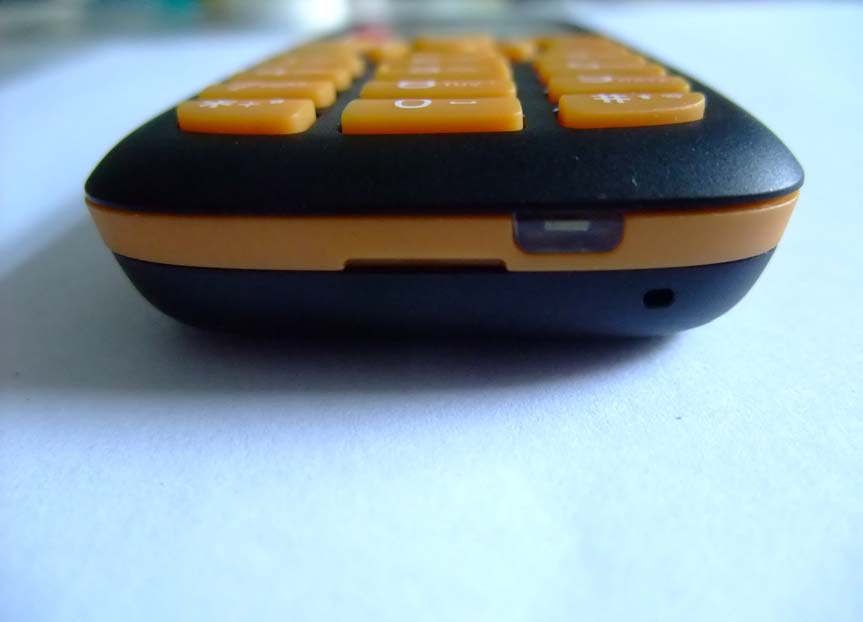

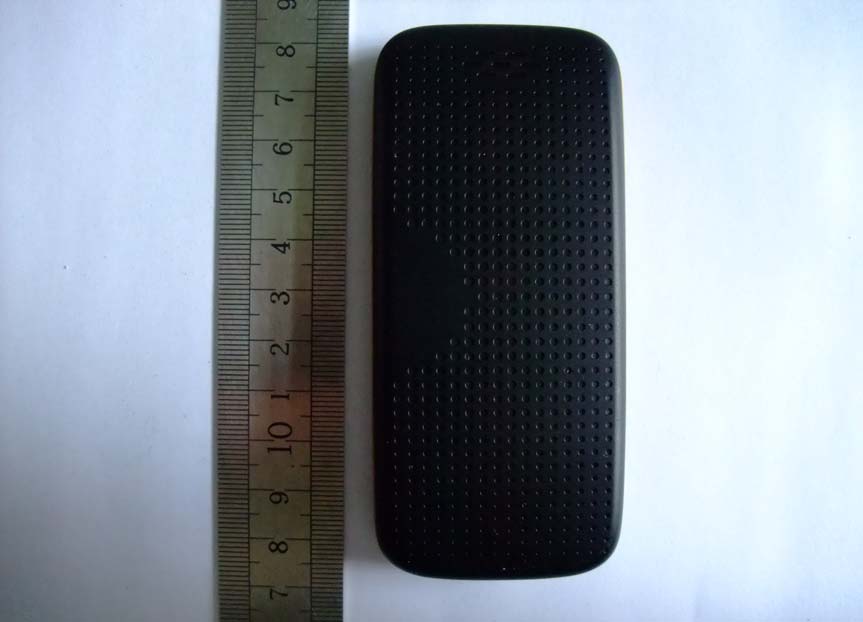

Q78-ZTEGS512 External Photo

Q78-ZTEGS512 Internal Photo

DAT-P-174/04-00 CNAS L0447 Registration No.910917 TEST REPORT Report No.: SRTC2010-H024-E0035 Product Name: GSM Dual-band Digital Mobile Phone Product Model: ZTE-G S512 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2010-H024-E0035 FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC CONTENTS 1. General information .................................................................................. 3 1.1 Notes of the test report...................................................................................................3 1.2 Information about the testing laboratory.......................................................................3 1.3 Applicant’s details............................................................................................................3 1.4 Manufacturer’s details.....................................................................................................3 1.5 Application details............................................................................................................4 1.6 Reference specification...................................................................................................4 1.7 Information of EUT..........................................................................................................4 1.7.1 General information..............................................................................................4 1.7.2 EUT details............................................................................................................5 1.7.3 Auxiliary equipment details..................................................................................5 2. Test information ........................................................................................ 6 2.1 Summary of the test results............................................................................................6 2.2 Test result..........................................................................................................................7 2.2.1 Conducted Emissions-FCC Part15.107............................................................7 2.2.2 Radiated Emissions-FCC Part15.109...............................................................9 2.3. List of test equipments.................................................................................................12 Appendix .................................................................................................... 13 No.: SRTC2010-H024-E0035 FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1. General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel: +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] / [email protected] 1.3 Applicant’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Grantee Code: Q78 Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] 1.4 Manufacturer’s details Company: ZTE Corporation Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, 518057 City: Shenzhen Country or Region: P.R.China Contacted person: Min Zhang Tel: +86-021-68897541 Fax: +86-021-50801070 Email: [email protected] No.: SRTC2010-H024-E0035 FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.5 Application details Date of reception of test sample: 11 th December 2010 Date of test: 11 th December 2010 to 15 th December 2010 1.6 Reference specification FCC Part 15B October 1, 2009 (Certification) 1.7 Information of EUT 1.7.1 General information Name of EUT GSM Dual-band Digital Mobile Phone FCC ID Q78-ZTEGS512 Frequency range GSM850: Tx:824~849MHz Rx:869~894MHz PCS1900: Tx:1850~1910MHz Rx:1930~1990MHz Rated output power GSM850:33.0dBm PCS1900:30.0dBm E.R.P. & E.I.R.P. E.R.P.: 28.7dBm E.I.R.P.: 25.8dBm Modulation type GMSK Emission Designator 300KGXW Duplex mode FDD Equipment Class Class B Duplex spacing GSM850:45MHz PCS1900:80MHz Antenna type Integral Power Supply Battery or charger Rated Power Supply Voltage 3.7V Extreme Temperature Lowest: -30°C Highest: +50°C Extreme Voltage Minimum: 3.5V Maximum: 4.2V HW Version g9xA SW Version P118A14(U)B01-En-01\\ng9xA No.: SRTC2010-H024-E0035 FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 13 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.7.2 EUT details Name Model IMEI GSM Dual-band Digital Mobile PhoneZTE-G S512 355828040001104 1.7.3 Auxiliary equipment details Equipment Charger Manufacturer Shenzhen Dokocom Energy Technology Co., Ltd Model Number STC-A22O50I700M5-A Input Voltage 100V-240V a.c. Output Voltage 5.0V d.c. Frequency 50/60Hz Equipment Battery Manufacturer ZTE Corpo…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 CNAS L0447 Registration No.910917 Appendix1 TEST SETUP Report No.: SRTC2010-H024-E0035 Product Name: GSM Dual-band Digital Mobile Phone Product Model: ZTE-G S512 Applicant: ZTE Corporation Manufacturer: ZTE Corporation Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2010-H024-E0035 FCC ID: Q78-ZTEGS512 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Appendix1 Test Setup Radiated Emissions Test Setup Conducted Emissions Test Setup
