Q78-ZTEMF206AHSPA LGA Module

1 1 Introduction 1.1 Introduction This is a multi-mode 3G LGA module. It works in HSDPA/UMTS/EDGE/GPRS/GSM networks. It integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data, and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. 1.2 Functions Functions SMS, Data service, Applications management, etc. Network Standards. HSDPA/UMTS/EDGE/GPRS/GSM Transmission (Max. data rate) HSDPA: 3.6 Mb/s DL 1.3 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If 2 this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. 1.4 RF Exposure Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits. Important safety information regarding radiofrequency radiation (RF) exposure. To ensure compliance with RF exposure guidelines the device must be used with a separation from the body. Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits. The maxim permissible exposure is defined in 47 CFR 1.1310 with 1mW/cm*cm. The transmitter is using external antenna that operate at 20cm or more from nearby persons. The maxim power density is 0.157mW/cm*cm. The FCC grant can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: Q78-ZTEMF206A. 1.5 IC This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required 3 antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type， are strictly prohibited for use with this device. Immediately following the above notice, the manufacturer shall provide a list of all antenna types approved for use with the transmitter, indicating the maximum permission antenna gain（in dBi）and required impedance for each. IC ID: 5200A-ZTEMF206A . 4 2 Installation 2.1 Install Software 1. It is strongly recommended that you exit all other Windows programs, and then click the Next button 2. Select the folder that you want to install the software by pressing the Change button, and then click the Next button. 5 3. The system shows the installation progress, wait a minute and click the Finish button to complete the installation. 6 Note: After the software is installed, pull out the modem before restarting the computer to avoid damages to your modem. If you have problems with the installation steps above, please contact your service provider or ZTE. After the installation, select Start > Programs > Join Air. You can find Join Air and Uninstall. There will be a shortcut icon on the desktop just as follows. 2.2 Run the Application Software After the modem is correctly connected to the computer, click Start > Programs > Join Air > Join Air on the computer to run the application software. You can also launch the application software by double-clicking the shortcut icon 7 shown above. After the modem is initialized, the main interface of the connection manager appears. The standby icon appearing in the taskbar indicates the modem working normally. 8 3 Functions & Operation 3.1 Interface introduction 3.1.1 Main Interface The following picture is the starting screen of the software. The whole interface is divided into four parts. Related functions can be executed by operation in the related areas. System information area Icons in this area show the system status and different kinds of tips. Icon Explanation Indication of signal strength, which is divided into 6 stages from none to the strongest. Indication of current network type. Roaming. Packet switched Circuit switched Internet information area This area shows the name of the current service provider, device condition and connection information. Function button area System information area Main menu button area Internet information area 9 Function button area There are five function button icons. SMS: Send, read and manage SMS. Phonebook: Manage contact information. Settings: Setting options for the device. Data records: Show connect ion information. Connect: Connect to the Internet. Main menu button area Click the icon to popup the following menu: Log: The record of software operation. Diagnostics: View Hardware information, Operat…

Text truncated - open the document above for the full version.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Feb 22, 2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-ZTEMF206A To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开Internal Use Only▲ <以上所有信息均为中兴通讯股份有限公司所有，不得外传> All Rights reserved, No Spreading abroad without Permission of ZTE 第1页 ZTE CORPOARTION 2011-2-23 F ederal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: Q78- ZTEMF206A To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days:  External Photos  Internal Photos  Test Setup Photos  User’s Manual The applicant also acknowledges that they will also provide appropriate notice to ATCB should either of the following occur: a) if the applicant requires additional 45 day extension periods they will notify ATCB with a new request letter at least 7 days prior to the short-term confidentiality expiration date - [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ATCB in the event the information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04 -1705. Sincerely, Royce Wang CERTIFICATION MANAGER ZTE CORPORATION

MF206A Label Location：

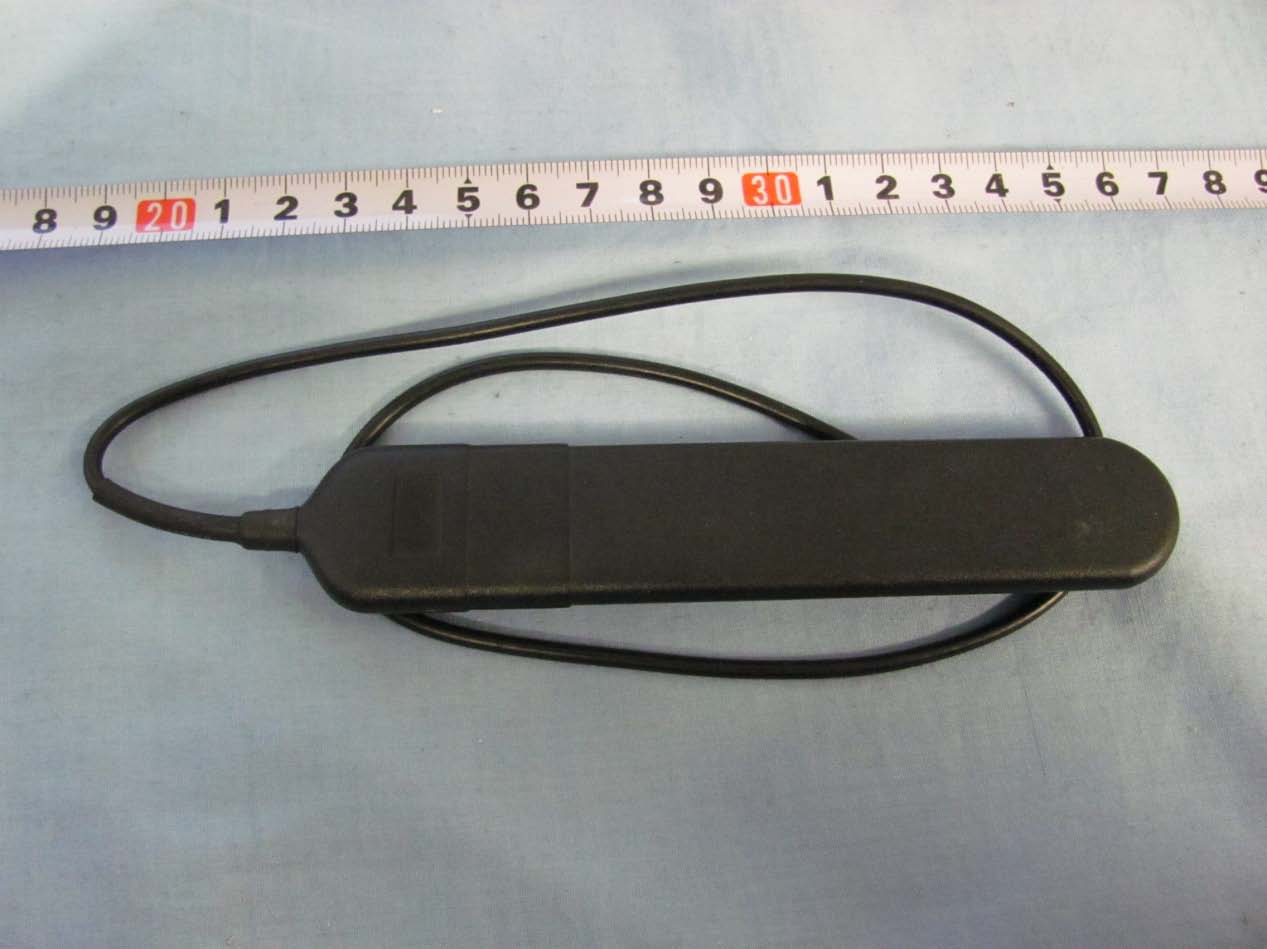

RF exposure requirements – ZTE MF206A Dear Reviewer, The maximum measured power output is GSM 850:32.15dBm GSM 1900:29.68dBm WCDMA850: 22.94dBm WCDMA 1900: 22.93dBm the maximum antenna gain for integral antenna is GSM 850: 1.0dBi GSM 1900:2.5dBi WCDMA850: 1.0dBi WCDMA 1900: 2.5dBi The maximum permissible exposure is defined in 47 CFR 1.1310 with 1mW/cm². The Transmitter is using external antennas that operate at 20 cm or more from nearby persons. The maximum permitted level is calculated using the general equation: S = P’ / 4πR² GSM 850: P’ = 32.15dBm+1.0dBi=33.15dBm=2065.4mW GSM1900: P’ = 29.68dBm+ 2.5dBi=32.18dBm=1652.0mW WCDMA850: P’ = 22.94dBm+1.0dBi=23.94dBm=247.7mW WCDMA1900: P’ = 22.93dBm+2.5dBi =25.43dBm=349.1mW R = 20cm π = 3.1416 Solving for S, the power density at 20 cm is GSM 850: 0.411mW/cm² GSM1900: 0.329mW/cm² UMTS850: 0.049mW/cm² UMTS1900: 0.069mW/cm² So the limit is kept. Best Regard. Yin Feng 2011-02-23 Telecommunication Metrology Center of MIIT Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191

No. 2011TAR076 Page1 of 63 TEST REPORT No. 2011TAR076 for ZTE CORPORATION HSPA LGA Module Model Name: MF206A FCC ID: Q78-ZTEMF206A with Hardware Version: BD_MF206AV1.0.0B01 Software Version: MF206A-2.0.0 Issued Date: Feb 23, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2011TAR076 Page2 of 63 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 10 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ............................................................................... 10 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 16 A.3 FREQUENCY STABILITY (§2.1055/§24.235) ......................................................................... 22 A.4 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ............................................................................... 24 A.5 EMISSION BANDWIDTH (§22.917(B)/§24.238(B))................................................................ 36 A.6 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) .......................................................... 48 A.7 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ......................................... 54 No. 2011TAR076 Page3 of 63 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 07, 2011 Testing End Date: Feb 22, 2011 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2011TAR076 Page4 of 63 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 No. 2011TAR076 Page5 of 63 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA LGA Module Model Name MF206A FCC ID Q78-ZTEMF206A Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna external Output power 28.39 dBm maximum EIRP measured for GSM1900 Extreme vol. Limits 3.4VDC to 4.2VDC (nominal: 3.8VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N04 356118040000135 MF206A-2.0.0 BD_MF206AV1.0…

Text truncated - open the document above for the full version.

No.2011TAR077 Page1 of 40 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2011TAR077 for ZTE CORPORATION HSPA LGA Module Model Name: MF206A FCC ID: Q78-ZTEMF206A with Hardware Version: BD_MF206AV1.0.0B01 Software Version: MF206A-2.0.0 Issued Date: Feb 23, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011TAR077 Page2 of 40 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. GENERAL DESCRIPTION ............................................................................................................ 5 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 10 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) .......................................................................... 10 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 14 A.3 FREQUENCY STABILITY (§2.1055/§24.235) .......................................................................... 20 A.4 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ............................................................................... 22 A.5 EMISSION BANDWIDTH (§22.917(B)/§24.238(B))................................................................ 26 A.6 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) .......................................................... 30 A.7 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ......................................... 32 No.2011TAR077 Page3 of 40 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 07, 2011 Testing End Date: Feb 22, 2011 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR077 Page4 of 40 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 No.2011TAR077 Page5 of 40 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA LGA Module Model Name MF206A FCC ID Q78-ZTEMF206A Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna external Output power 28.39 dBm maximum EIRP measured for GSM1900 Extreme vol. Limits 3.4VDC to 4.2VDC (nominal: 3.8VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunicati…

Text truncated - open the document above for the full version.

Part22/24_Test Setup Photos
