Q78-ZTEMF332Wireless Data Card

ZTE MF332 HSDPA/EDGE Card User Manual II Copyright © 2007 by ZTE Corporation All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written authorization of ZTE Corporation. Edition: 1 st edition, Sep., 2007 . III Contents 1 Wireless Data Card Introduction...................................................... 1 1.1 Introduction ............................................................................... 1 1.2 Safety Warning and Notices...................................................... 2 1.3 Systems Supported................................................................... 3 1.4 PC System Requirements......................................................... 4 1.5 Data Card Technical Specification ............................................ 4 2 Installation ......................................................................................... 5 2.1 Unpacking ................................................................................. 5 2.2 Appearance and Parts............................................................... 5 2.3 Software Installation.................................................................. 6 2.4 Running the Application ............................................................ 8 2.5 Safe Removal from your system ............................................... 9 2.6 Software Uninstallation Process ............................................. 10 2.7 Hardware Set Up .....................................................................11 3 Using the Software Application ..................................................... 12 3.1 Software Introduction .............................................................. 12 3.2 Connecting to the Internet....................................................... 16 3.3 Making a Call .......................................................................... 17 3.4 Answering an Incoming Call.................................................... 18 3.5 Other Call Functions ............................................................... 18 3.6 SMS Messages ....................................................................... 19 3.7 Create a New Message .......................................................... 19 3.8 Phone Book ............................................................................ 21 3.9 Settings ................................................................................... 23 3.10 Call Records ......................................................................... 29 3.11 Help ....................................................................................... 29 4 FAQ & Answers ............................................................................... 30 5 Environmental Statement ............................................................... 33 1 1 Wireless Data Card Introduction 1.1 Introduction Thank you for choosing the ZTE MF332 HSDPA/EDGE Card. To help you use your card please read the manual carefully and keep it for reference. The pictures, symbols and contents in this manual are for reference only. They might not be completely identical to your card. Please refer to the actual device. The manufacturer operates a policy of continuous development. We reserve the right to update and modify technical specifications in this document at any time without prior notice. The ZTE MF332 HSDPA/EDGE Card is a multi-mode 3G wireless data card compatible with HSDPA, WCDMA, EDGE, GPRS, and GSM networks. With PCMCIA II interface to connect to portable PC’s, it integrates the functionality of a modem and a mobile phone and combines mobile communication with the internet perfectly. It supports data, audio and SMS services through the mobile phone network helping you break away from limitations of fixed line connections, location and network connectivity to communicate wirelessly anytime and anywhere. 2 1.2 Safety Warning and Notices To the ow ner z The use of electronic transmitting devices is forbidden in aircraft, at petrol stations and in hospitals. Please observe and obey all warning signs and switch off your PC in these conditions. z Operating a portable PC and data card may interfere with medical devices like hearing aids and pacemakers. z Be aware of warning signs in places such as oil refineries or chemical factories where there are explosive gases or explosive products being processed. z Store the data card out of the reach of children. The data card may cause injury if used as a toy or may be damaged by rough play or moisture. z This data card has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this data card can be used in desktop or laptop computers with side mounted PCMCIA slots. z This data card cannot be used with handheld PDAs (personal digital assistants). z This data card and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. z This data card complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This data card may not cause harmful interference, and (2) this data card must accept any interference received, including interference that may cause undesired operation. z This data card has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. 3 z This data card generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. z There is no guarantee that interference will not occur in a particular installation. If this data card does cause harmful interference to radio or television reception, which can be determined by turning the data card off and on Using your Data card z Only use original …

Text truncated - open the document above for the full version.

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: HSDPA/UMTS/EDGE/GPRS/GSM Data Card Product Model: MF332 FCC ID: Q78-ZTEMF332 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Li Dezi Title: Product Certification Director ZTE Corporation

Cover Letter FCC ID: Q78-ZTEMF332 Date: 9 th November, 2007 To whom it may concern: We, the undersigned, hereby declare that our product: Product Name: HSDPA/UMTS/EDGE/GPRS/GSM Data Card Product Model: MF332 Which only can support HSPA Release 5 and previous version. Thank you. Sincerely, Li Dezi Title: Product Certification Director ZTE Corporation

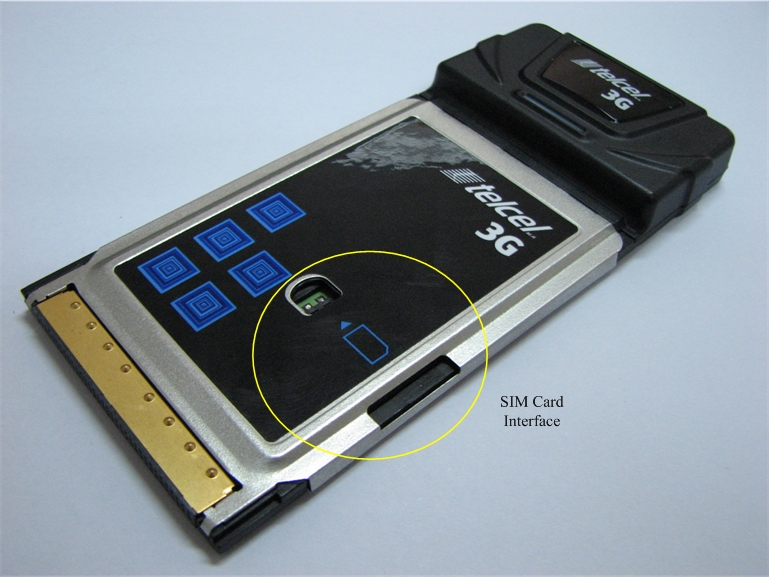

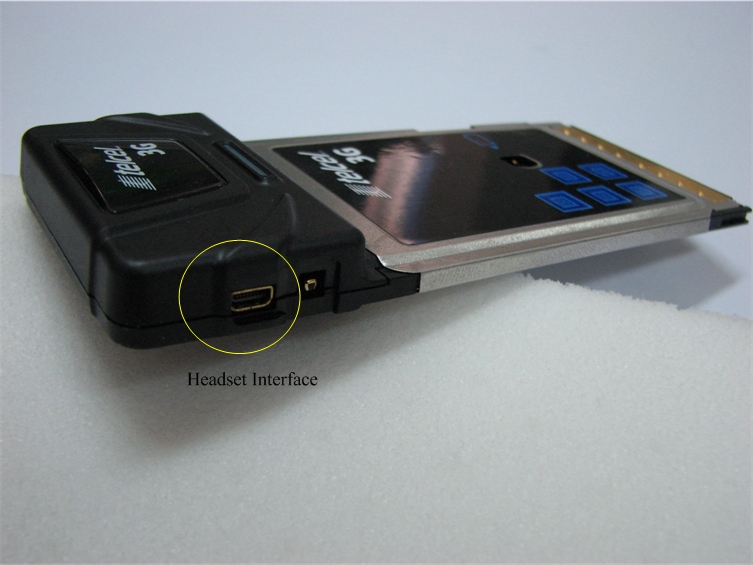

Q78-ZTEMF332 External Photo

Q78-ZTEMF332 Label Location

Q78-ZTEMF332 Internal Photo

a MF332 Specification 1.Overview The ZTE MF332 HSDPA/EDGE Wireless Data Card is a type of multi-mode, 3G wireless data card, applicable to HSDPA/ WCDMA/ EDGE/ GPRS/ GSM network. With PCMCIA interface to connect to portable PC, it integrates functions of modem and mobile phone, and combines mobile communication with the Internet perfectly. Via HSDPA/ WCDMA/ EDGE/ GPRS /GSM mobile network, it carries out data, audio and SMS services, helping you break away from limitation of time and zone, and communicate wirelessly anytime and anywhere. For ZTE MF332, the RF, BB and PM module is the core of system, they help MF332 realize functions for supporting HSDPA/ WCDMA/ EDGE/ GPRS /GSM. The RF module include HSDPA/ WCDMA/ EDGE/ GPRS /GSM sub-module which using for transceiver and receiver for different frequency. The BB module for baseband handling and PM for power, they also provides interfaces to external facilities: voice function, SIM card and PCMCIA port etc. With BB module on MB, MF332 realizes system functions for support 3G standard and also for 2G standard protocol. The RF module independently finish transmit and receive commission among the system performance index and the PB on MB realizes power and other extern For voice service, it is completed by software testing in BB module and ringing circuit, voice conversion circuit and voice amplification circuit. The software in BB module realizes service flow. The single board provides interface to PC and also provides signals of RSSI interface. The RF transmit index of single board is mainly realized by RF module and the functional index is jointly realized by external circuit interface. 2.Technical specifications Section SpecificationRemarks H/W Interface TypePCMCIA Type II Common Air InterfaceHSDPA/UMTS/EDGE/GPRS/GSM FrequencyHSDPA/WCDMA 2100/850MHz, GSM/GPRS/EDGE 900/1800/1900MHz Channel Spacing200 KHz Transmission (Max. Data Rate) (E)GPRS CLASS10 HSDPA DL3.6Mbps UMTS DL384/UL384 Kbps EDGE DL236.8Kbps Voice CapabilitySupport Dimensions (W X D X H)120.8mm*54.8mm*12mm Weightabout 55g Headset JackSupport USIM &SIMSupport LEDTwo colour status LED Antenna Main Antenna(for all Frequency)>Shape : Internal >Gain : 0 dBi >Output Impedance : 50 ohm Sub Antenna(only for umts 850)>Shape : Internal >Gain : 0 dBi >Output Impedance : 50 ohm Supply Voltage3.3V Temperature - Storage Temperature -20~ +65 - Operation Temperature 0 ~ +55 S/W Data transmision >Authentication >PDP type >Class >Multislot capability >IP Version >Support PAP CHAP >PPP, IP >Class 10 >GPRS Class B >IPV4 SMS SMS MT & MO Concatenated SMSSupport Voice callVoice call MO/MT Voice codec HR, FR, EFR, AMR E911 Support STKSupport SMS MT & MO AT CommandsAT Interface 3GPP TS27.007 and extended AT Call records Support Phonebook Support SMS boxSupport Online Help Support LanguageEnglish, Simplified Chinese etc. Product Support ToolSupport Tx Max Power0.25W(UMTS),2W(GPRS/GSM/EDGE) Transmitter Frequency Range 890~915MHz GSM/GPRS/EDGE 1710~1785MHz GSM/GPRS/EDGE 1850~1910MHz GSM/GPRS/EDGE 824 MHz~849 MHz HSDPA/UMTS 1920~1980MHz HSDPA/UMTS Frequency Stability0.1ppm BandWidth5MHz(UMTS),200KHz(GSM/GPRS/EDGE) Type of OscillationPLL Synthesizer Intermediate FrequencyZero Intermediate Frequency Modulation MethodQPSK(UMTS),GMSK(GSM/GPRS/EDGE),16QAM(HSDPA) Common RF Impedance50 ohm Receiver Frequency Range 935~960MHz GSM/GPRS/EDGE 1805~1880MHz GSM/GPRS/EDGE 1930~1990MHz GSM/GPRS/EDGE 869 ~894 MHz HSDPA/UMTS 2110~2170MHz HSDPA/UMTS BandWidth5MHz(UMTS),200KHz(GSM/GPRS/EDGE) Type of OscillationPLL Synthesizer Channel EqualizerSupport Rx diversitySupport Intermediate FrequencyZero Intermediate Frequency Modulation Method QPSK (UMTS),GMSK(GSM/GPRS/EDGE)16QAM 16QAM(HSDPA) Common RF Impedance50 ohm Etc. Operating systemWindows 2000/XP Notebook/laptopIBM, DELL, Toshiba, Fujitsu, SONY, HP, Founder, Lenova, etc. Accessories >CD-ROM (Installation software) >Headset >User's Guide >Guarantee card Certification & Approval>IOT tests

The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 38 of 81 SONY VGN-SZ58N Body worn 1880 MHz GPRS+GSM Towards ground - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = -0.00769 dB Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 0.902 mW/g; SAR(10 g) = 0.316 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.926 mW/g 0 dB = 0.926 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 39 of 81 SONY VGN-SZ58N Body worn 1850.2 MHz GPRS+GSM Towards ground - Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.00279 dB Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 0.910 mW/g; SAR(10 g) = 0.454 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.01 mW/g 0 dB = 1.01 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 40 of 81 SONY VGN-SZ58N Body worn 1909.8 MHz GPRS+GSM Towards groud - high/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 0.998 mW/g; SAR(10 g) = 0.488 mW/g Maximum value of SAR (measured) = 1.13 mW/g 0 dB = 1.13 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 41 of 81 SONY VGN-SZ58N Body worn 1880 MHz EGPRS Towards ground -Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.82 V/m; Power Drift = -0.101 dB Peak SAR (extrapolated) = 0.556 W/kg SAR(1 g) = 0.280 mW/g; SAR(10 g) = 0.104 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.324 mW/g 0 dB = 0.324 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 42 of 81 IBM 2672-AEC Body worn 1880 MHz EGPRS Towards ground -Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.67 V/m; Power Drift = 0.085 dB Peak SAR (extrapolated) = 0.326 W/kg SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.105 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.215 mW/g 0 dB = 0.215 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 43 of 81 DELL LATITUDE D620 Body worn 1880 MHz EGPRS Towards ground -Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.94 V/m; Power Drift = -0.065 dB Peak SAR (extrapolated) = 0.115 W/kg SAR(1 g) = 0.070 mW/g; SAR(10 g) = 0.042 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.077 mW/g. 0 dB = 0.077 mW/g The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 44 of 81 7.7 Pictures of the device under test Front view of the IBM 2672-AEC Front view of the SONY VGN-SZ58N The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 45 of 81 Front view of the DELL LATITUDE D620 The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 46 of 81 7.8 Test Positions for the Device under test Lap Held Position with the IBM 2672-AEC Notebook Lap Held Position with the SONY VGN-SZ58N Notebook The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 47 of 81 Lap Held Position with the DELL LATITUDE D620 Notebook 7.9 Picture to demonstrate the required liquid depth the liquid depth in the used SAM phantoms Liquid depth for SAR Measurement The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 48 of 81 7.10 Simplified Performance Checking The simplified performance check was realized using the dipole validation kits. The input power of the dipole antennas were 250mW (cw signal) and they were placed under the flat part of the SAM phantom. The results are listed in the Table 7 .The target values were adopted from the manufactures calibration certificates which are attached in the appendix. Table 9 includes the uncertainty assessment for the system performance checking which was suggested by the IEC 62209-1-2005 and determined by Schmid & Partner Engineering AG. The expanded uncertainty is assessed to be ± 21.9%. Temperature SAR 1g [w/kg] ε r σ[S/m] Ambient[°C]Liquid[°C] Target Value 2.74 55.2±2.70.97±0.10 15-30 - 835MHz Measured Value 2.5 53.9 1.00 24.0 22.3 Table17: Validation results, 835 MHz Temperature SAR 1g [w/kg] ε r σ[S/m] Ambient[°C]Liquid[°C] Target Value …

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS Report No. : SRMC2007-H024-E0012 Product Name: HSDPA/UMTS/EDGE/GPRS/GSM Data Card Product Model: MF332 FCC ID: Q78-ZTEMF332 Manufacture: ZTE Corporation Specification: FCC OET Bulletin 65 (Edition 97-01) The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 The State Radio Monitoring Center, Equipment Testing Division Num：SRMC2007-H024-0012 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 1 of 81 Tables of Contents 1. General information ......................................................................................................................3 1.1 Notes of the test report........................................................................................................3 1.2 Information about the testing laboratory .............................................................................3 1.3 Applicant’s details ...............................................................................................................3 1.4 Manufacturer’s details.........................................................................................................3 1.5 Application details.................................................................................................................4 1.6 Information of Test Sample.................................................................................................4 1.7 Auxiliary Equipment (AE)....................................................................................................4 1.8 Reference Specification.......................................................................................................5 2．Subject of Investigation ..............................................................................................................6 2.1 The IEEE Standard C95.1 and the FCC Exposure Criteria...........................................6 2.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 2.3 Distinction between Maximum Permissible Exposure and SAR Limits........................7 2.4 SAR Limit...............................................................................................................................8 3 The FCC Measurement Procedure .................................................................................................8 3.1 General Requirements.........................................................................................................8 3.2 Phantom specifications (shell and liquid)..........................................................................9 3.3 Specifications of the SAR measurement equipment.......................................................9 3.4 Scanning system specifications.......................................................................................10 3.5 Mobile phone holder specifications.................................................................................10 4. Measurement preparation............................................................................................................10 4.1 General preparation...........................................................................................................10 4.2Simplified performance checking......................................................................................10 4.3 Preparation of the mobile phone under test................................................................... 11 4.4 Position of the mobile phone in relation to the phantom.............................................. 11 4.5Tests to be performed.........................................................................................................12 4.6 Additional information for Modules in Portable devices................................................13 5 The Measurement system....................................................................................................14 5.1 DASY5 Information............................................................................................................14 5.2Test Equipments:.................................................................................................................16 5.3 Uncertainty Assessment....................................................................................................17 6. Test Results .................................................................................................................................18 6.1Test Environment:...............................................................................................................18 6.2Test Method and Procedure...............................................................................................18 6.3Test Configuration................................................................................................................19 6.4Test Results..........................................................................................................................19 7. Appendix .....................................................................................................................................23 7.1 Administrative Data............................................................................................................23 7.2 Device under Test and Test Conditions...........................................................................23 7.3 Tissue Recipes...................................................................................................................24 7.4 Material Parameters...........................................................................................................25 The St…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 1 TEST REPORT Report No.: SRMC2007-H024-E0011 Product Name: HSDPA/UMTS/EDGE/GPRS/GSM Data Card Product Model: MF332 Manufacture: ZTE Corporation Specification: FCC Part22, Part 24, Part 2, Part 15 FCC ID: Q78-ZTEMF332 The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0011 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 2 of 55 CONTENTS 1．General information ................................................................................ 3 1.1 Notes of the test report...................................................................................................3 1.2 Information about the testing laboratory.......................................................................3 1.3 Applicant’s details............................................................................................................3 1.4 Manufacturer’s details.....................................................................................................3 1.5 Application details............................................................................................................4 1.6 Reference specification...................................................................................................4 1.7 Information of EUT..........................................................................................................4 1.7.1 General information..............................................................................................4 1.7.2 EUT details............................................................................................................5 1.7.3 Auxiliary equipment details..................................................................................5 2. Test information: ....................................................................................... 6 2.1 Summary of the test results:..........................................................................................6 2.2 Test result..........................................................................................................................7 2.2.1 HSDPA/WCDMA:.........................................................................................................7 2.2.1.1 RF Power Output –FCC Part2.1046...............................................................7 2.2.1.2 Effective Radiated Power-FCC Part22.913...................................................9 2.2.1.3 Occupied Bandwidth-FCC Part2.1049......................................................... 11 2.2.1.4 Spurious Emissions at antenna terminals-FCC Part2.1051/22.917........15 2.2.1.5 Band Edges Compliance-FCC Part2.1051/22.917....................................18 2.2.1.6 Frequency Stability-FCC Part2.1055/Part22.355.......................................21 2.2.1.7 Radiated Spurious Emissions-FCC Part2.1053/22.917............................23 2.2.1.8 Radiated Emissions-FCC Part15.109..........................................................28 2.2.2 EDGE/GPRS/GSM.....................................................................................................30 2.2.2.1 RF Power Output –FCC Part2.1046.............................................................30 2.2.2.2 Effective Isotropic Radiated Power-FCC Part24.232.................................32 2.2.2.3 Occupied Bandwidth-FCC Part2.1049.........................................................34 2.2.2.4 Spurious Emissions at antenna terminals-FCC Part2.1051/24.238........38 2.2.2.5 Band Edges Compliance- FCC Part2.1051/24.238...................................42 2.2.2.6 Frequency Stability-FCC Part2.1055/Part24.235.......................................45 2.2.2.7 Radiated Spurious Emissions-FCC Part2.1053/24.238............................47 2.2.2.8 Radiated Emissions -FCC Part15.109.........................................................52 2.3. List of test equipments.................................................................................................54 Appendix................................................................................................................................55 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0011 The State Radio Spectrum Monitoring and Testing Center Tel: 86-10-68009202 68009203 fax:86-10-68009195 68009205 Page 3 of 55 1．General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio Monitoring Center. The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company： The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center Address： No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] 1.3 Applicant’s details Company: ZTE Corporation Address： Zhongxing Bldg, High-Tech Park, Nan Shan,ShenZhen City: ShenZhen City, GuangDong Country or Region: P.R.China Grantee Code: Q78 Contacted person: Tian li Tel: +86 029-88723944 Fax: +86 029-88723529 Email: [email protected] 1.4 Manufacturer’s details Company: ZTE Corporation Address： Zhongxing Bldg, High-Tech Park, Nan Shan,ShenZhen City: ShenZhen City, GuangDong Country or Region: P.R.China Grantee Code: Q78 Contacted person: Tian li Tel: +86 029-88723944 Fax: +86 029-88723529 Email: [email protected] The State Radio Mo…

Text truncated - open the document above for the full version.

DAT-P-174/04-00 NO.L0447 Registration No.612767 Appendix1 TEST SETUP Report No.: SRMC2007-H024-E0011 Product Name: HSDPA/UMTS/EDGE/GPRS/GSM Data Card Product Model: MF332 Manufacture: ZTE Corporation Specification: FCC Part22, Part 24, Part 2, Part 15 FCC ID: Q78-ZTEMF332 The State Radio Monitoring Center, Equipment Testing Division The State Radio Spectrum Monitoring and Testing Center No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 The State Radio Monitoring Center, Equipment Testing Division No.: SRMC2007-H024-E0011 The State Radio Spectrum Monitoring…

Text truncated - open the document above for the full version.
