Q78-ZTEMF633THSUPA USB Modem

ZTE MF633T USB Modem Quick User Guide Introduction The ZTE MF633T USB modem is a multi-mode 3G USB modem, working in HSPA/UMTS/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. Specification The following table shows the specification of your device. Interface Type USB2.0 Systems supported Supports most types of laptop and desktop PC. Operating systems supported Windows XP, Vista MAC OS X Functions SMS service, Data service, Applications management, Data concurrent, support MicroSD card, etc. Network Standards HSPA/UMTS/EDGE/GPRS/GSM Transmission speed (Max) HSUPA 5.76Mbps UL HSDPA 7.2Mbps DL Temperature Storage: -20°C ~ +60°C Operation: -10°C ~ +55°C Dimension 85 mm×25 mm×9.6 mm Weight About 24g T-Flash capability Support up to 32GB MicroSD card Getting to know your device The following figure shows the appearance of the MF633. It is only for your reference. The actual product may be different. 1. USB Connector 2. Indicator 3. Back Cover 4. MicroSD card slot 5. SIM/USIM card slot 1 2 3 4 5 Hardware installation 1. Slide the back cover and remove it. 2. Insert the SIM/USIM card into the SIM/USIM card slot Insert the SIM/USIM card with the metal contact area facing downwards into the slot, shown as the following picture. 3. Insert the MicroSD card into the MicroSD card slot Note: This modem only supports MicroSD card. Insert your MicroSD card into the MicroSD slot, if you want to use it. Make sure that the metal contact side of the MicroSD card facing downwards, shown as the following picture. 4. Close the back cover 5. Connect the Modem to your laptop or desktop PC Rotate the USB connector and plug the USB connector into your computer’s USB port. Make sure that it is tightly inserted. The OS automatically detects and recognizes new hardware and starts the installation wizard. Software Installation On different operating systems, the installation procedures may be difference. Follow the system prompts during operation. z For Windows OS Your system will start the software setup process automatically when you connect the modem to your computer correctly. Follow the system prompts to complete the software installation. Note: If the system does not launch installation automatically, you can run the installation program in path of My Computer → ZoomTown Connect → Install.exe. z For Mac OS The system will automatically display a ZoomTown Connect CD-ROM icon on the desktop, when you connect the modem to your computer correctly. Double click the installation software package in the ZoomTown Connect, and follow the system prompts to complete the software installation. Safe Removal from your System Please close the application software, and then you can pull out the USB Modem safely. How to use your modem Various icons are presented to enable quick operation of the following functions: SMS Click the “New” button, enter recipient’s number and content, and then click “Send” to send new message. Phonebook Click “New” to fill in a new contact person and contact details. Settings Set the configuration for the USB modem. Data record Show the data record. Safety Warning To the ow ner z Using electronic transmitting devices in aircraft, at petrol stations, and in hospitals is prohibited. Please observe and obey all warning signs and switch off your modem in these conditions. z Operating USB modem may interfere with medical devices like hearing aides and pacemakers. z Be aware of warning signs in places such as oil refineries or chemical factories where there are explosive gases or explosive products being processed. z Store the USB modem out of the reach of children. The USB modem may cause injury if used as a toy or may be damaged by rough play or moisture. Using your USB Modem z Only use original accessories supplied by the manufacturer. Using unapproved accessories may invalidate your warranty. z Avoid using the USB modem near or inside metallic structures or establishments that can emit electromagnetic waves. z The USB Modem is not waterproof. Please keep it dry and store it in a cool place out of direct sunlight. z Handle the USB modem with care. Do not drop, bend, knock or treat it harshly to avoid damage to the unit. z There are no user serviceable parts. Dismantling the unit will invalidate the warranty. z Operating temperature range of -10 °C ~ +55°C and humidity 5%~95% are recommended. Radio Frequency (RF) Energy z This model device meets the government’s requirements for exposure to radio waves. z This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government: z The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. z The highest SAR value for the model device as reported to the FCC when worn on the body, as described in this user guide, is 1.16 W/kg (Body-worn measurements differ among device models, depending upon available enhancements and FCC requirements.) z While there may be differences between the SAR levels of various devices and a…

Text truncated - open the document above for the full version.

1 Yin Feng 发件人: [email protected] 发送时间: 2009年10月31日星期六 1:02 收件人: [email protected] 主题: Response to Inquiry to FCC (Tracking Number 512055) 右键单击此处可下载图片。为帮助保护您的隐私，O utlook 禁止自动从Internet 下载此图片。 Link to Federal Communications Commission Home Page FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People 右键单击此处可下载图片。为帮助保护您的隐私，O utlook 禁止自动从Internet 下载此图片。 Office of Engineering and Technology Office of Engineering and Technology Inquiry: Dear Sir/madam, Please help provide PBA guidance for SAR evaluation of rel-6 HSPA data device. This project is a Part22H/24E/27 portable device, a USB dongle supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA, GSM with 300KHz bandwidth operating within 824.2 to 848.8MHz and 1850.2 to 1909.8MHz, WCDMA with 4.5MHz bandwidth operating within 1712.4 to 1752.6 and1852.4 to 1907.6MHz. Since HSPA belongs to 3GPP rel-6, the proposed SAR measurement will follow KDB 941225 D01/D02 and KDB447498 D02. And we plan to follow the testing procedure for an already certified similar product with FCCID: Q78-MF633PLUS, the PBA request tracking number is 968193. Please find the following conducted power values (Unit: dBm): BAND CHANNEL RMC R99SUBTEST‐1 SUBTEST‐2 SUBTEST‐3 SUBTEST‐4 SUBTEST‐5 II 966319.3418.8516.9917.8617.0318.87 II 980019.7518.9817.1317.9917.1918.99 II 993719.4918.7517.0617.9617.0618.77 IV 961321.8220.718.9819.8718.9920.78 IV 975021.6620.9619.1519.9919.1620.98 IV 988721.6820.8819.0319.9719.1320.92 Thanks in advance. BR Yin Feng TMC Beijing Response: The conducted output power measurements confirm implementation of maximum power reduction (MPR) and SAR exclusion for HSPA in this device and the PBA is approved. This PBA approval is limited to the HSPA functionality in this device and does not resolve any other potential issues. It is the responsibility of the TCB to ensure the device meets all other FCC requirements. This KDB is designated by the inquiry first category, Permit But Ask Guidance for Non TCBs. Please refer to KDB publication 388624, part 2), for additional guidance. Please be aware that the TCB must follow the procedures in part 3) of that publication. In order to alleviate any misunderstanding between the TCB and test lab and ensure that applications are not granted before final FCC approval is given, the following procedure should be followed: 2 The TCB will submit a separate new KDB with the inquiry first category, Permit But Ask Inquiry (TCB). This new KDB will reference KDB 512055 and request permission to upload the Form 731. Upon FCC permission, the TCB will upload the Form 731 and then respond with the application confirmation number (TC) and FCC ID to facilitate final FCC review. Following KDB 388624 procedure 3) c) ii), the new TCB KDB inquiry number should be entered on the Equipment Specs, Page 1, section of the Form 731. The test lab should not be involved in this process as the TCB will receive final FCC approval. The TCB may not grant the application until after final FCC approval is given through the TCB submitted KDB. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: Oct 25, 2009 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78-ZTEMF633T To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

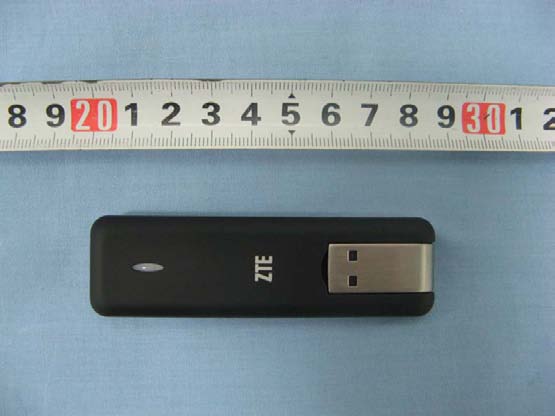

External Photos

MF633T Label Location Label

Internal Photos

No.2009TAR130 Page1 of 67 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR130 for ZTE CORPORATION HSUPA USB MODEM Type : MF633T FCC ID :Q78-ZTEMF633T with Hardware Version: DC8A Software Version: M6290A-KPRBL-2.4.0065T Issued Date: Oct 21th, 2009 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR130 Page2 of 67 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. GENERAL DESCRIPTION .................................................................................................. 5 4. REFERENCE DOCUMENTS .................................................................................................. 5 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 5 5. LABORATORY ENVIRONMENT ............................................................................................ 6 6. SUMMARY OF TEST RESULTS ............................................................................................. 7 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 7 ANNEX A: MEASUREMENT RESULTS ........................................................................................ 8 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ................................................................ 8 A.2 EMISSION LIMT (§2.1051/§24.238) .............................................................................. 13 A.3 FREQUENCY STABILITY (§2.1055/§24.235) ................................................................ 25 A.4 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ....................................................................... 27 A.5 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) ........................................................ 39 A.6 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ...................................................... 51 A.7 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ................................ 57 No.2009TAR130 Page3 of 67 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Sep 22,2009 Testing End Date: Oct 17,2009 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2009TAR130 Page4 of 67 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2009TAR130 Page5 of 67 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA USB MODEM Model Name MF633T FCC ID Q78-ZTEMF633T Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Output power 29.40 dBm maximum EIRP measured for PCS1900 Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5.0VDC) Extreme temp. Tolerance -30°C to +50°C Note: Photographs of EUT are shown in ANNEX A of this test report. Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N04 35792…

Text truncated - open the document above for the full version.

No.2009TAR131 Page1 of 44 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR131 for ZTE CORPORATION HSUPA USB MODEM Type : MF633T FCC ID :Q78-ZTEMF633T with Hardware Version: DC8A Software Version: M6290A-KPRBL-2.4.0065T Issued Date: Oct 21th, 2009 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR131 Page2 of 44 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. GENERAL DESCRIPTION ................................................................................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 5 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 5 5. LABORATORY ENVIRONMENT .............................................................................................. 6 6. SUMMARY OF TEST RESULTS .............................................................................................. 7 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 7 ANNEX A: MEASUREMENT RESULTS ......................................................................................... 8 A.1 OUTPUT POWER (24.232(B) /27.50(D)(2)) .................................................................. 8 A.2 EMISSION LIMT (2.1051/24.238/27.53(G)) ..................................................................... 11 A.3 FREQUENCY STABILITY (2.1055/§24.235/ 27.54) ....................................................... 24 A.4 OCCUPIED BANDWIDTH (2.1049(H)(I)) .......................................................................... 26 A.5 EMISSION BANDWIDTH (24.238(B)/27.53(G)) ............................................................... 30 A.6 BAND EDGE COMPLIANCE（24.238(B) / 27.53(G)） ........................................................ 34 A.7 CONDUCTED SPURIOUS EMISSION (2.1057/24.238/27.53(G)) ................................... 36 No.2009TAR131 Page3 of 44 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MII Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Sep 22,2009 Testing End Date: Oct 17,2009 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2009TAR131 Page4 of 44 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: 0086 21 68895196 Fax: 0086 21 61460600 No.2009TAR131 Page5 of 44 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA USB MODEM Model Name MF633T FCC ID Q78-ZTEMF633T Frequency WCDMA Band II;WCDMA Band IV Antenna Internal Power supply USB Output power 21.87 dBm maximum EIRP measured for WCDMA Band IV Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5.0VDC) Extreme temp. Tolerance -30°C to +50°C Note: Photographs of EUT are shown in ANNEX A of this test report. Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the tes…

Text truncated - open the document above for the full version.

MF633T test setup photos 1. Part22/24 Radiated Spurious Emission 2. Part15B Radiated Emission 3. Part15B Conducted Emission
